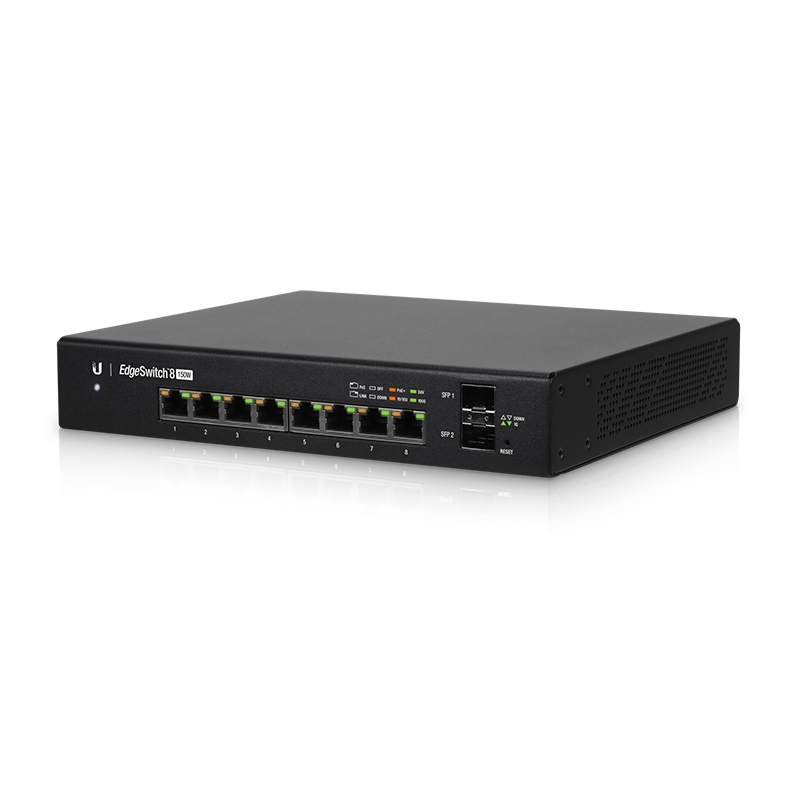

UBIQUITI Edgeswitch ES-8-150W
UBIQUITI Edgeswitch ES-8-150W, Managed PoE+ Gigabit Switch, 2x 1GBIT SFP, 8x Gbit LAN, 10 Gbps throughput
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
|Out of stock|
Technology for the Masses Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch ES-8-150w provides total, non-blocking throughput Up to 10 Gbps.
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
Dimensions: 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight Without Mount Brackets: 1.72 kg (3.79 lb)
Weight With Mount Brackets: 1.8 kg (3.96 lb)
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Max. Power Consumption Includes PoE Output: 150W
Max. Power Consumption Excludes PoE Output: 20W
Power Method AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
Power Method DC: 42 to 56VDC External, (Self-Correcting Polarity Protection), Terminal Block Input
Power Supply: AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports: PoE, Speed/Link/Activity
LEDs Per Port SFP Data Ports: Speed/Link/Activity

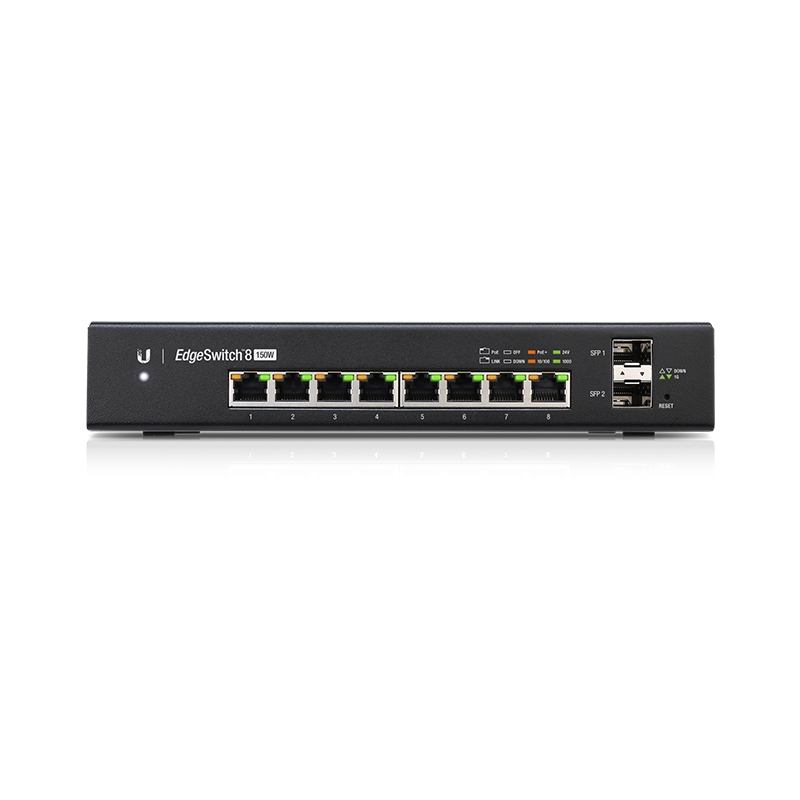

(8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports

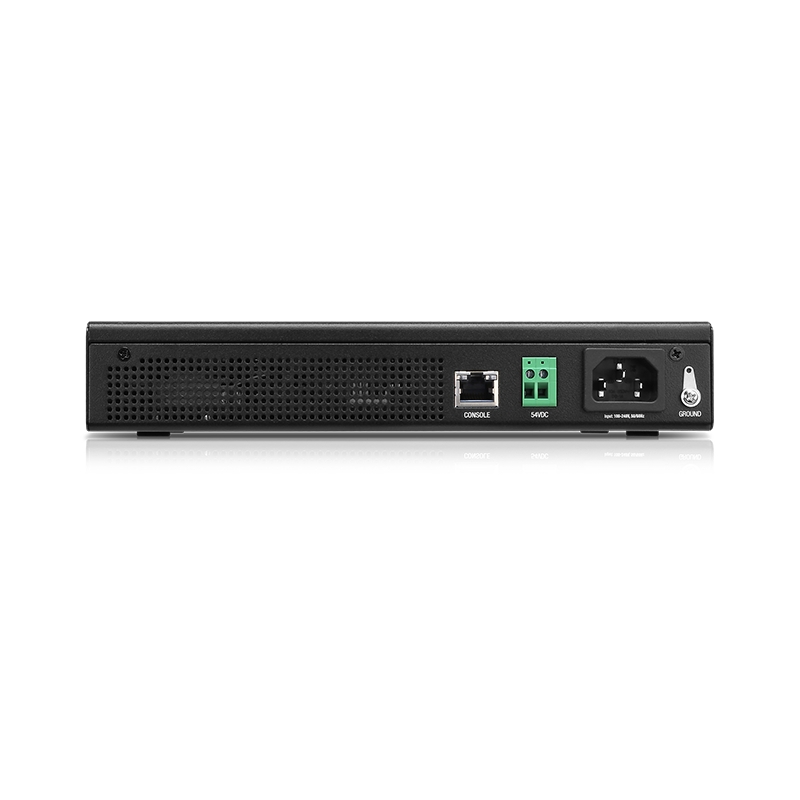

Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Operating Temperature: Internal AC/DC @ 150W Internal AC/DC @ 100W External DC
-25 to 45° C (-13 to 113° F) -25 to 55° C (-13 to 131° F) -25 to 60° C (-13 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
PoE Interfaces: POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE: (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range 802.3at Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
