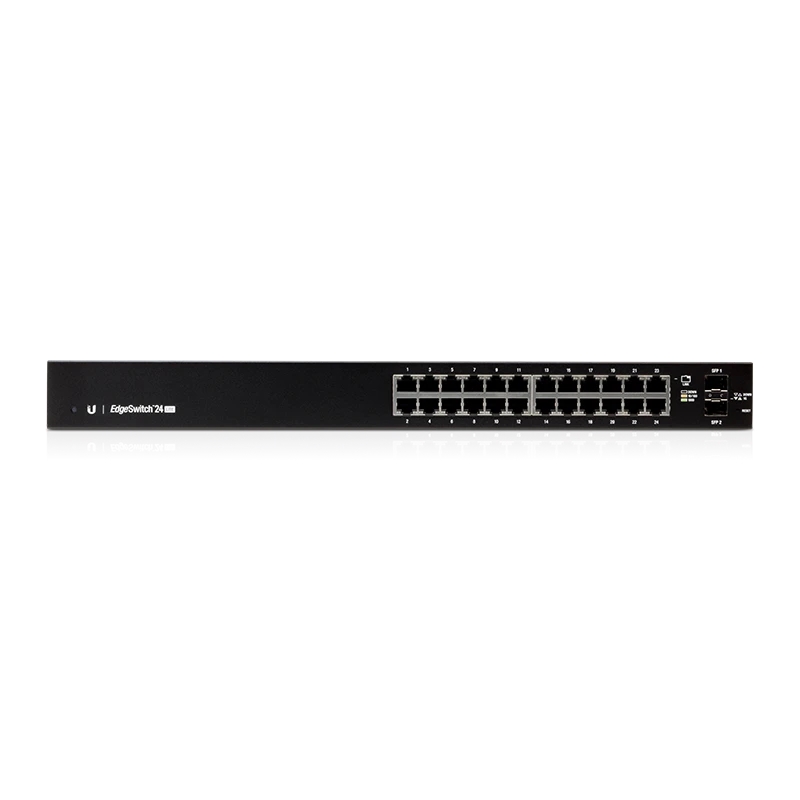

UBIQUITI EdgeSwitch 24-Port Managed Gigabit Switches with SFP (ES-24-Lite)

Order code: ES-24-Lite
Quick code: #913

UBIQUITI EdgeSwitch 24 Lite, ES-24-Lite - 26 Gbps, 24x Gbit LAN, 2x SFP port, 25W

Price exc. VAT: Price inc. VAT: For orders (total sum):
159.45£ 191.34£ >0£
158.08£ 189.70£ >300£
155.32£ 186.38£ >1000£
Qty:


Features:

  • Non-Blocking Throughput Switching Performance
  • Gigabit Ethernet RJ45 Ports
  • SFP Fiber Connectivity Options

Works with UNMS Network Controller

  • Manage your networks from a single control plane
  • Intuitive and robust configuration, control and monitoring
  • Remote firmware upgrade
  • Automatic client shaping
  • Customer billing

Specification:

Dimensions 443 x 43 x 221 mm
(17.44 x 1.69 x 8.70")
Weight
Rack-Mount Brackets Included
Rack-Mount Brackets Excluded

2.6 kg (5.7 lb)
2.51 kg (5.53 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. AC Power Consumption 25W
Power Method
AC

100-240VAC/50-60 Hz, Universal Input
DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply AC/DC, Internal, 25W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP+/SFP Data Ports

N/A
Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
