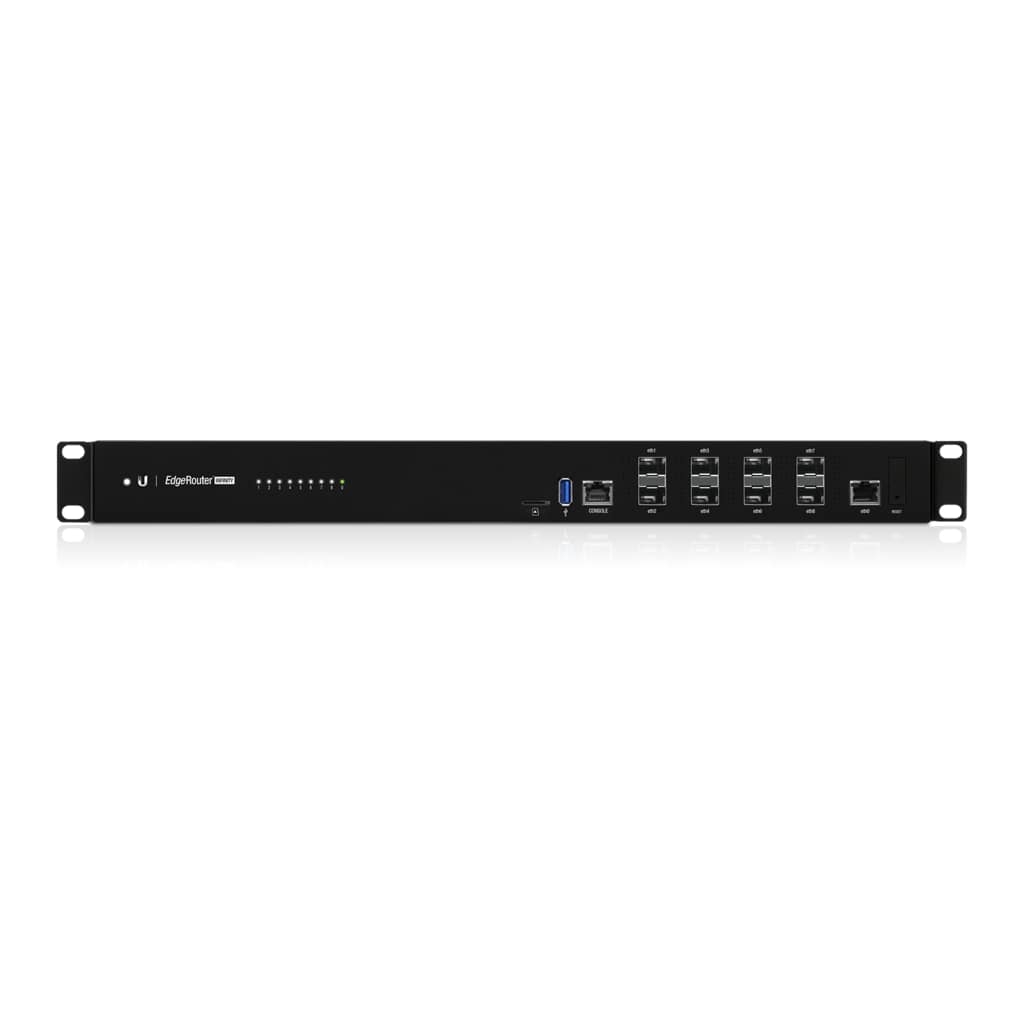

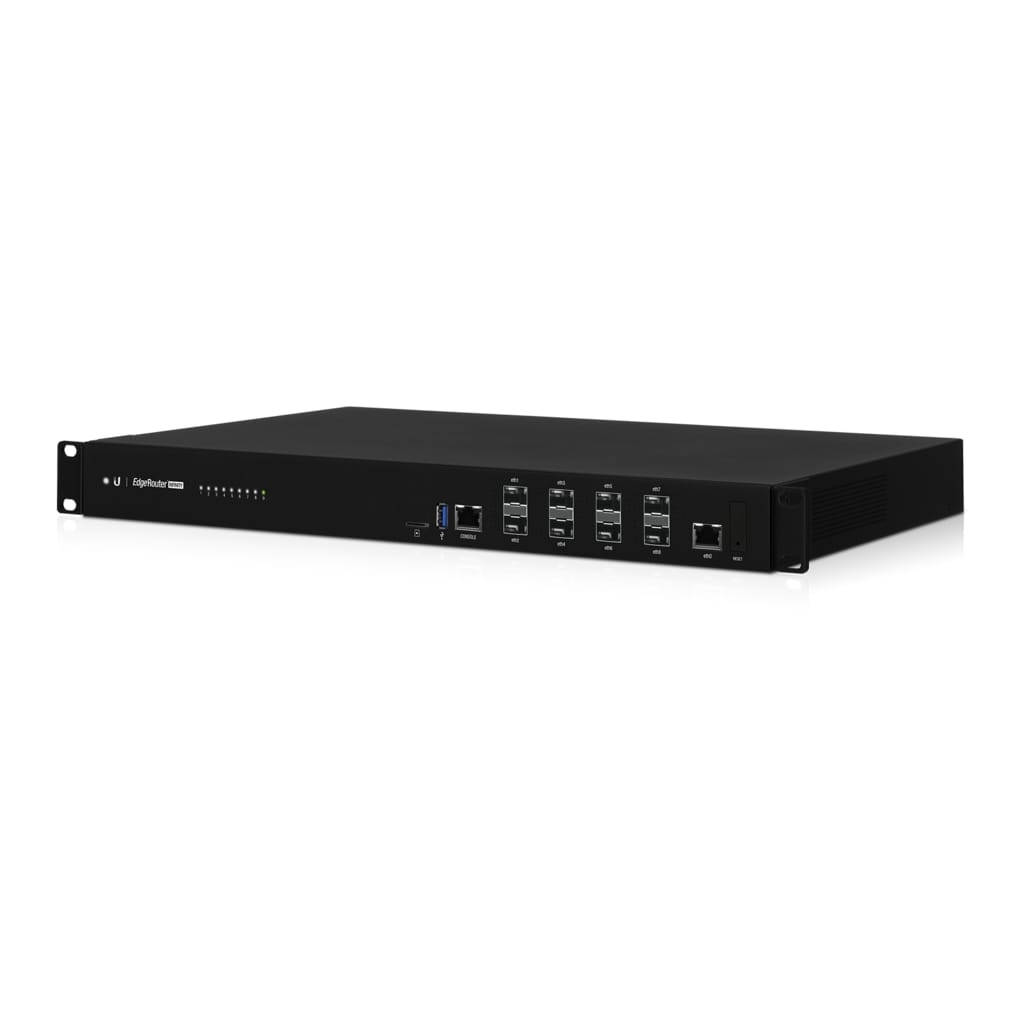

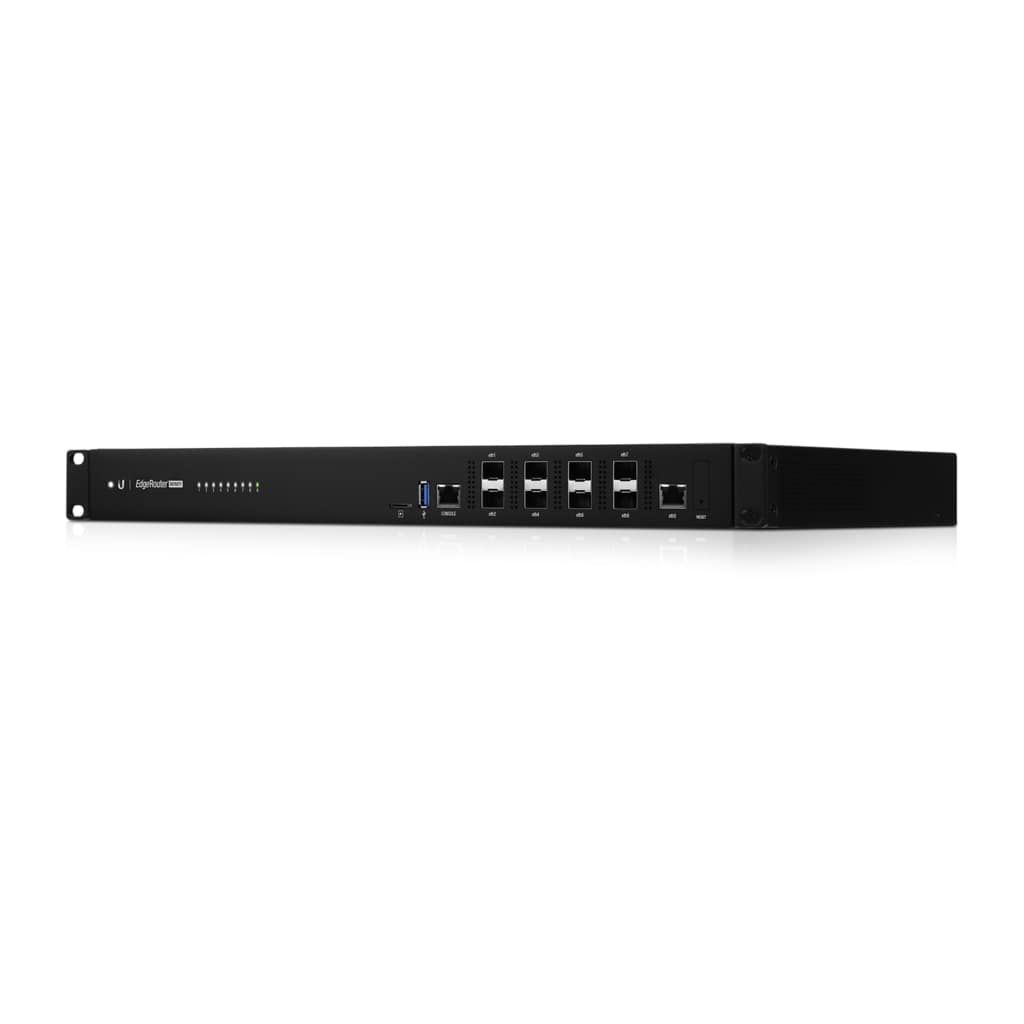

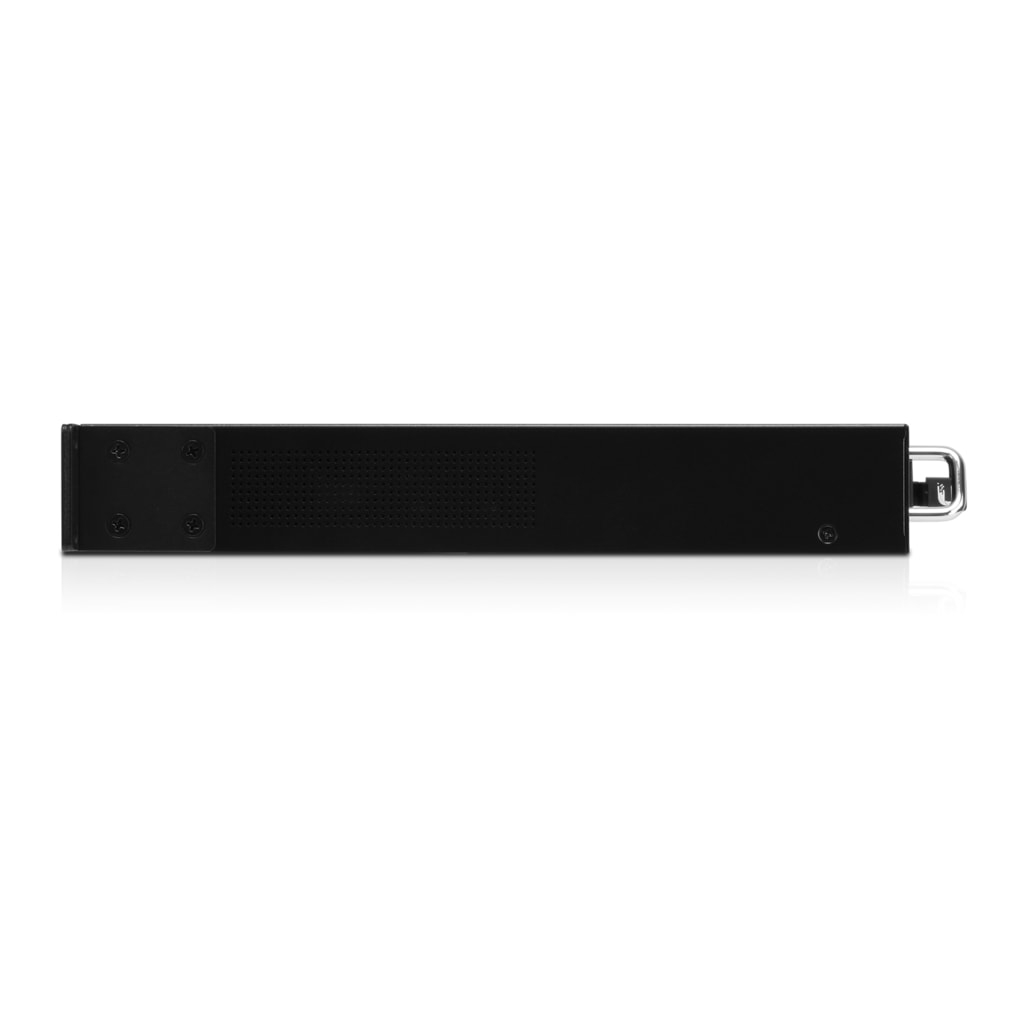

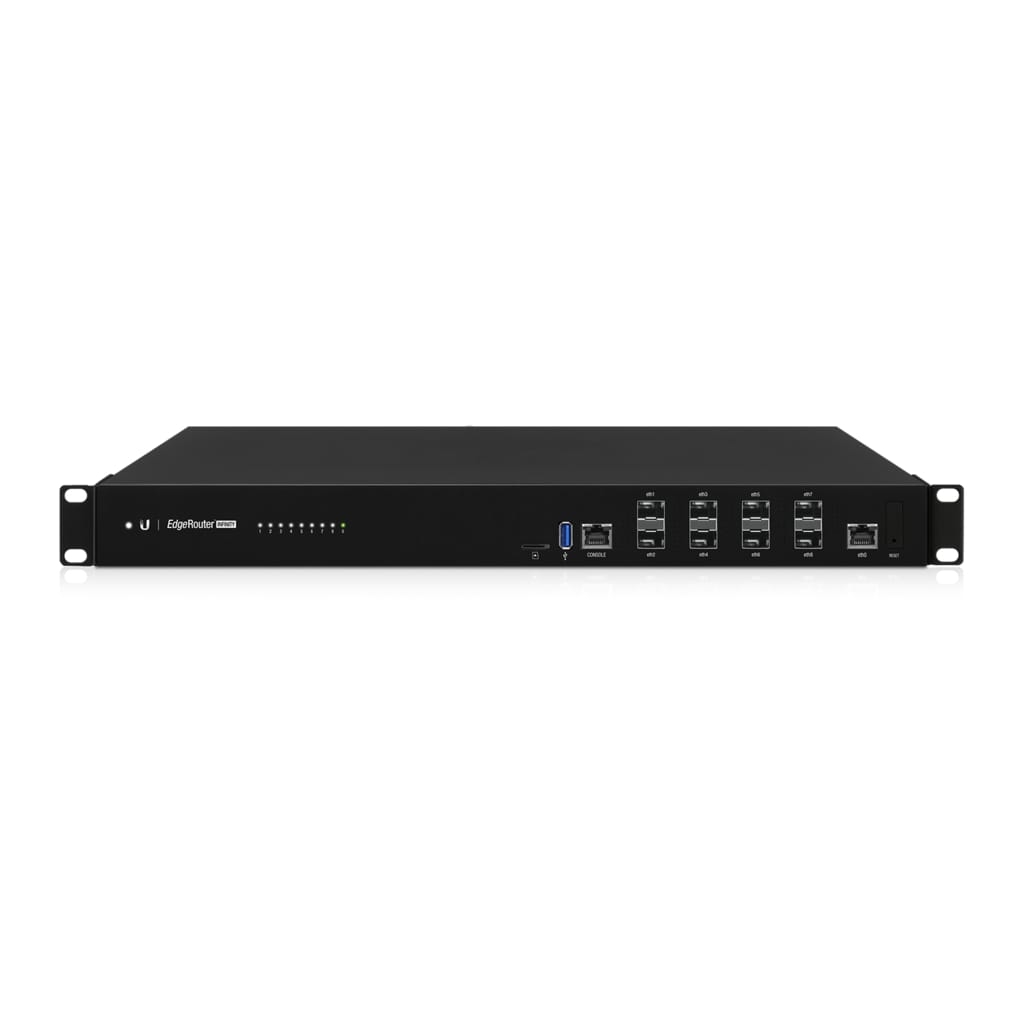

UBIQUITI EdgeRouter™ Infinity (ER-8-XG)

Features:

10G Routing Technologyfor the Masses
Ubiquiti Networks introduces the EdgeRouter™ Infinity, the next evolution of the EdgeMAX® platform.
The EdgeRouter Infinity combines 80 Gbps aggregate throughput and price/performance value in a compact
rackmountable form factor.

Maximum Performance
Powered by a 16-core, 1.8 GHz processor with 16 GB DDR4 RAM, the EdgeRouter Infinity features eight 10G
SFP+ ports and a Gigabit Ethernet RJ45 port for routing.

Advanced Applications
Powerful routing features – such as load balancing and failover– provide redundancy and increased
performance for your network.

Redundant Power
The EdgeRouter Infinity uses a hot‑swappable modular power supply. It includes primary and backup
AC/DC power supply modules, so it automatically switches over to the backup if the primary power supply fails.

Management System
The EdgeRouter Infinity is supported and managed by the Ubiquiti® Network Management System. UNMS™
is a comprehensive management controller featuring a graphic UI that is easy to navigate. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.

Manage Your Network
DHCP Server. Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
Monitoring Tools. Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.

Secure Your Network
Firewall Policies. Organize the rules you apply in the order you specify.
Firewall Groups. Apply the policies to groups filtered by IP address, network address, or port number.
NAT Rules. The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.

Direct Traffic Flow
Interfaces. Each 10G SFP+ port functions as an independent interface. You can also configure Virtual Local
Area Network (VLAN) interfaces for network segmentation.
Routing. Configure static routes and dynamic routing protocols to effectively manage the routes used by
the EdgeRouter.

Intuitive User Interface
The EdgeRouter Infinity features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.

Powerful Features
The EdgeRouter Infinity offers robust features, including:
• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS
• Firewall policies and NAT rules
• Application identification with Deep Packet Inspection (DPI)
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through the following:
• Serial console port
• SSH
• Telnet
• Graphical user interface

Specification:

HARDWARE SPECIFICATIONS

Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight:
Without Mount: 4.950 kg (10.91 lb)
With Mount: 5.045 kg (11.12 lb)
Enclosure Characteristics: SGCC Steel
Max. Power Consumption: 100W
Power Method: Hot-Swappable AC/DC or DC/DC* Power Supply Module
Supported Voltage Range:
AC/DC Power Supply Module: 100 to 240VAC, 24VDC Output
DC/DC Power Supply Module: 38 to 54VDC, 24VDC Output
Button: Reset
LEDs:
System: Status
SFP+ Data Ports: Link/Activity
RJ45 Data Port: Link/Activity
Ports:
Serial Console Port: (1) RJ45 Serial Port
Data Ports: (8) SFP+ Ports, (1) RJ45 Gigabit Ethernet Port
Layer 3 Forwarding Performance:
Packet Size: 64 Bytes; 18,000,000 pps
Packet Size: 1514 Bytes; 80 Gbps (Line Rate)
Processor: MIPS64 16 Core 1.8 GHz with Hardware Acceleration for Packet Processing
System Memory: 16 GB DDR4 RAM
On-Board Flash Storage: 8 MB NOR Flash, 4 GB eMMC NAND Flash
Certifications: CE, FCC, IC
Rackmount: Yes, 1U
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 - 95% Noncondensing

SOFTWARE SPECIFICATIONS

Interface/Encapsulation:
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)

Addressing:
Static IPv4/IPv6 Addressing
DHCP/DHCPv6

Routing:
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
MPLS

Security:
ACL-Based Firewall
Zone-Based Firewall
Application Identification with Deep Packet Inspection (DPI)
NAT

VPN:
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client

Services:
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server

QoS:
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing

Management:
Web UI
CLI (GUI, Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Syslog
