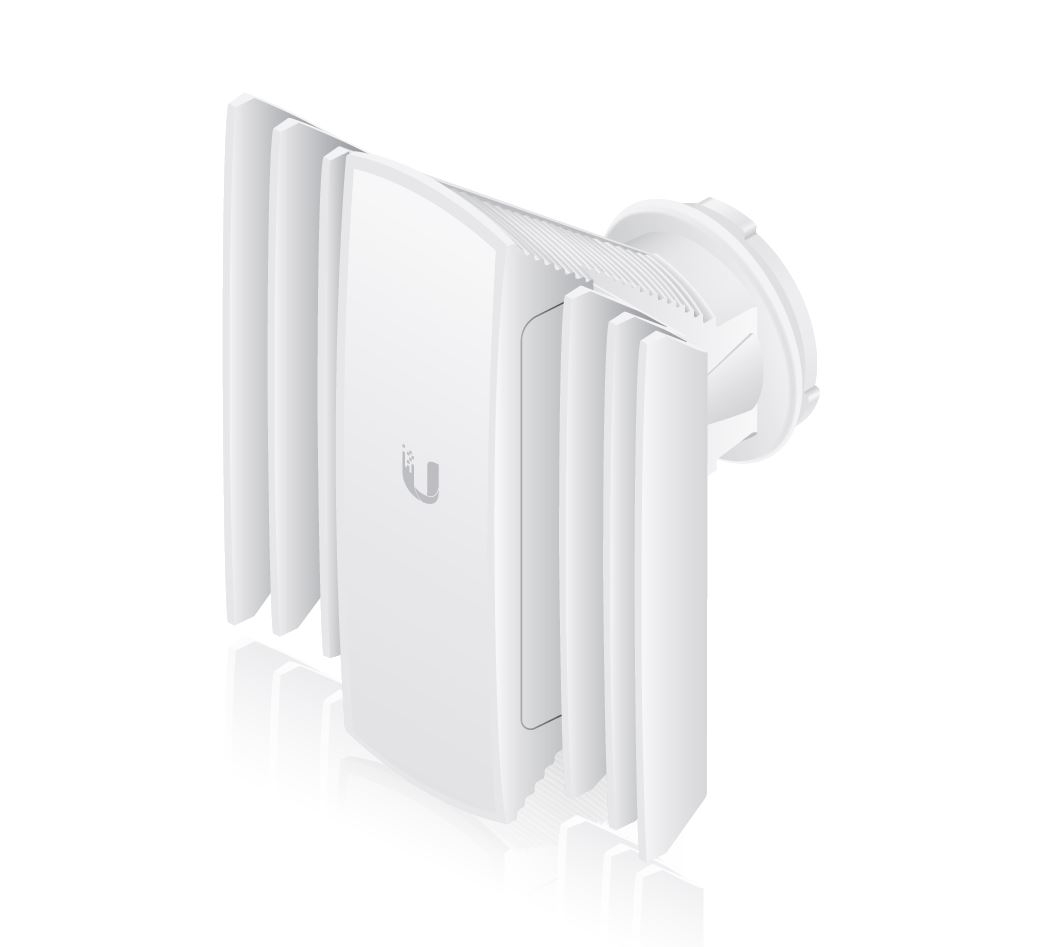

UBIQUITI airMAX® ac Beamwidth Sector Isolation Antenna Horn-5-90 (PrismAP-5-90)

MPN: Horn-5-90
Order code: PrismAP-5-90
Quick code: #1345

Isolation Antenna Horn for UBIQUITI PrismStation and IsoStation, 5Ghz, 13 dBi, beam width 90 degrees, Dual-Linear Polarization

Price exc. VAT: Price inc. VAT: For orders (total sum):
52.72£ 63.26£ >0£
52.24£ 62.69£ >300£
51.76£ 62.11£ >1000£
Qty:


Features:

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable  and improve beam‑shaping for specific deployment and environment needs. The PrismStation 5AC and  soStations use horn antenna sectors designed for increased co‑location performance without sacrificing  gain.

Scalability

Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP‑5‑45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co- location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Specification:

Dimensions: 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight: 920 g (32.45 oz)
Supported Frequency Range: 5.15 - 5.85 GHz
Gain: 13 dBi
HPOL Beamwidth: 90°
VPOL Beamwidth: 90°
Elevation Beamwidth: 45°
Maximum VSWR: 2:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-Pol Isolation: 17 dB

The PrismAP is compatible with the following models:
• IsoStation™ IS-M5
• IsoStation IS-5AC
• PrismStation™ PS-5AC

IsoStation and/or PrismStation IS NOT INCLUDED !!!
