UBIQUITI airMAX GigaBeam Long-Range 60/5 GHz Radio (GBE-LR)

MPN: GBE-LR
Order code: GBE-LR
Quick code: #2404

1x Gigabit LAN Port | Antenna Gain: 5 Ghz - 11 dBi, 60 Ghz - 38 dBi | 1+ Gbps Throughput and Up to 2 km Range

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
167.47£ 200.96£ >0£
166.02£ 199.22£ >300£
163.14£ 195.77£ >1000£
Qty:


Features:

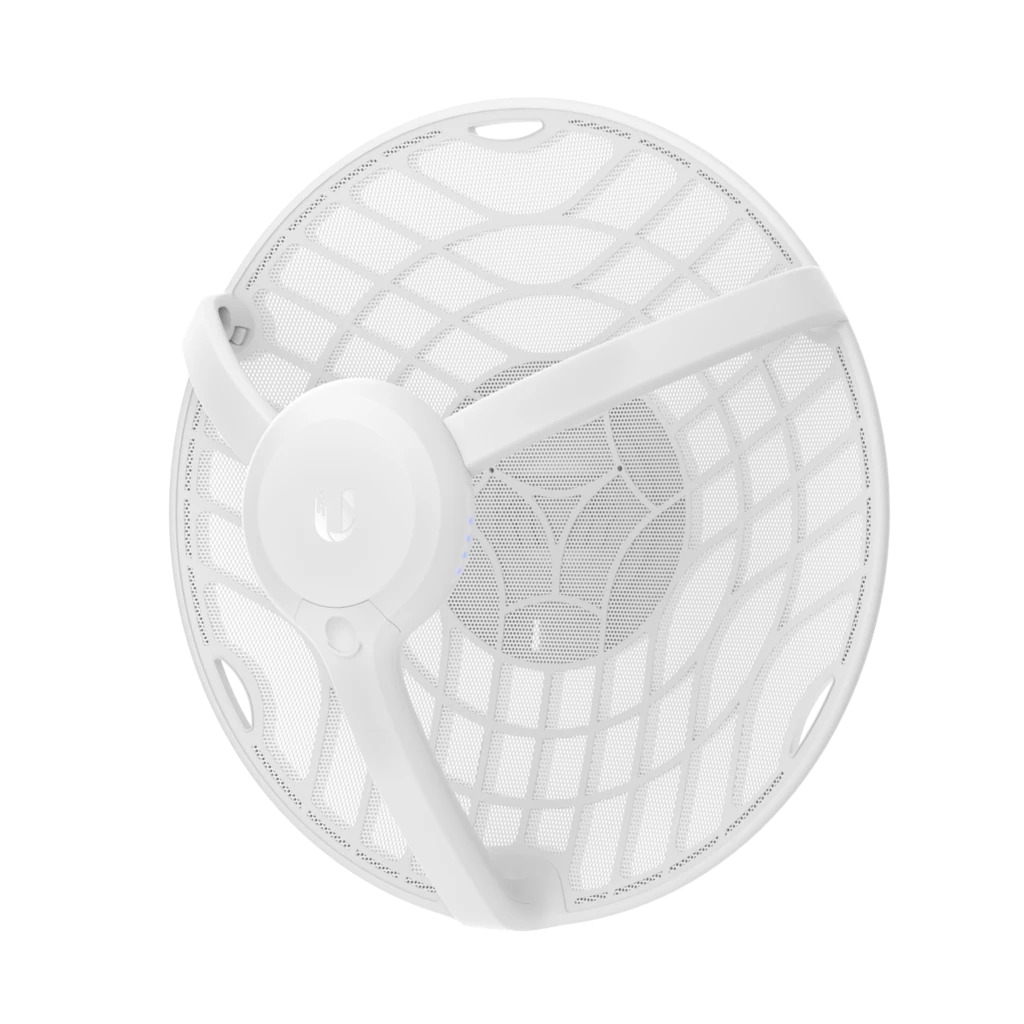

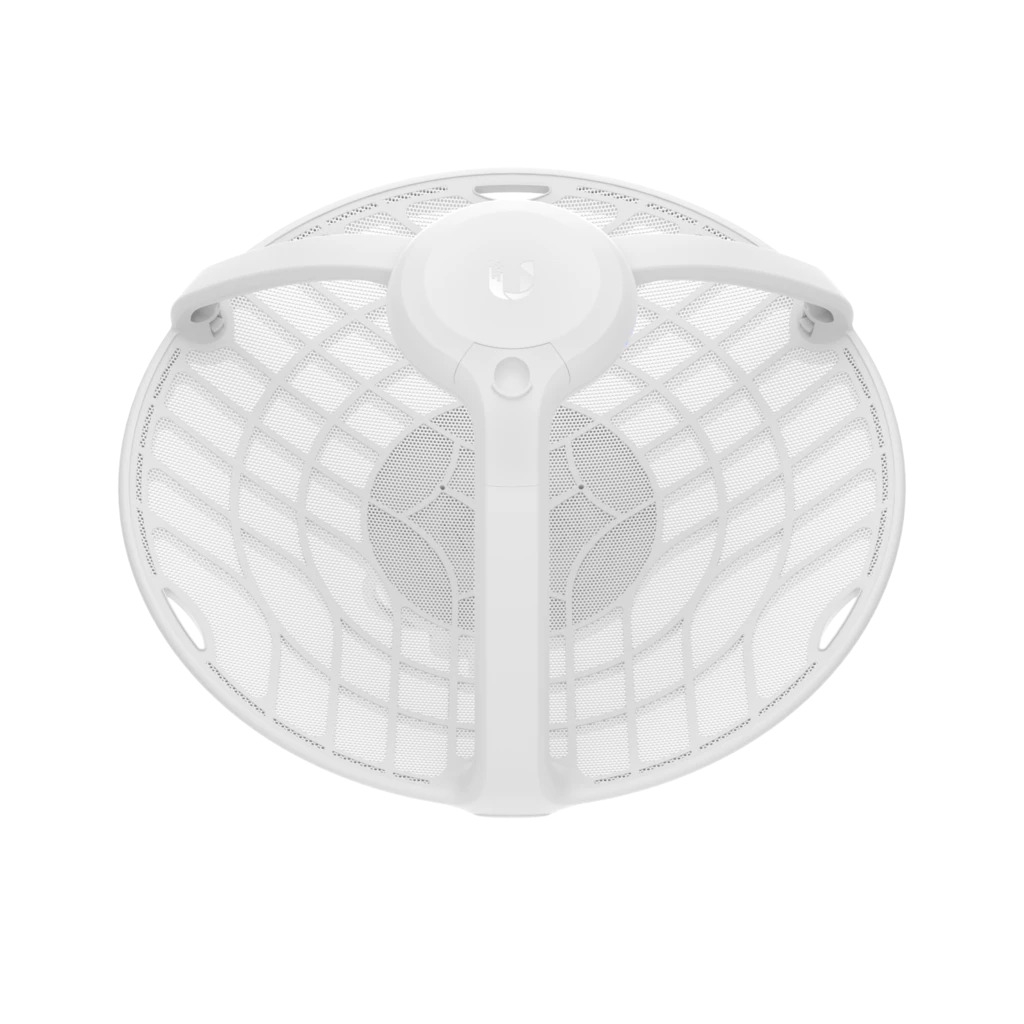

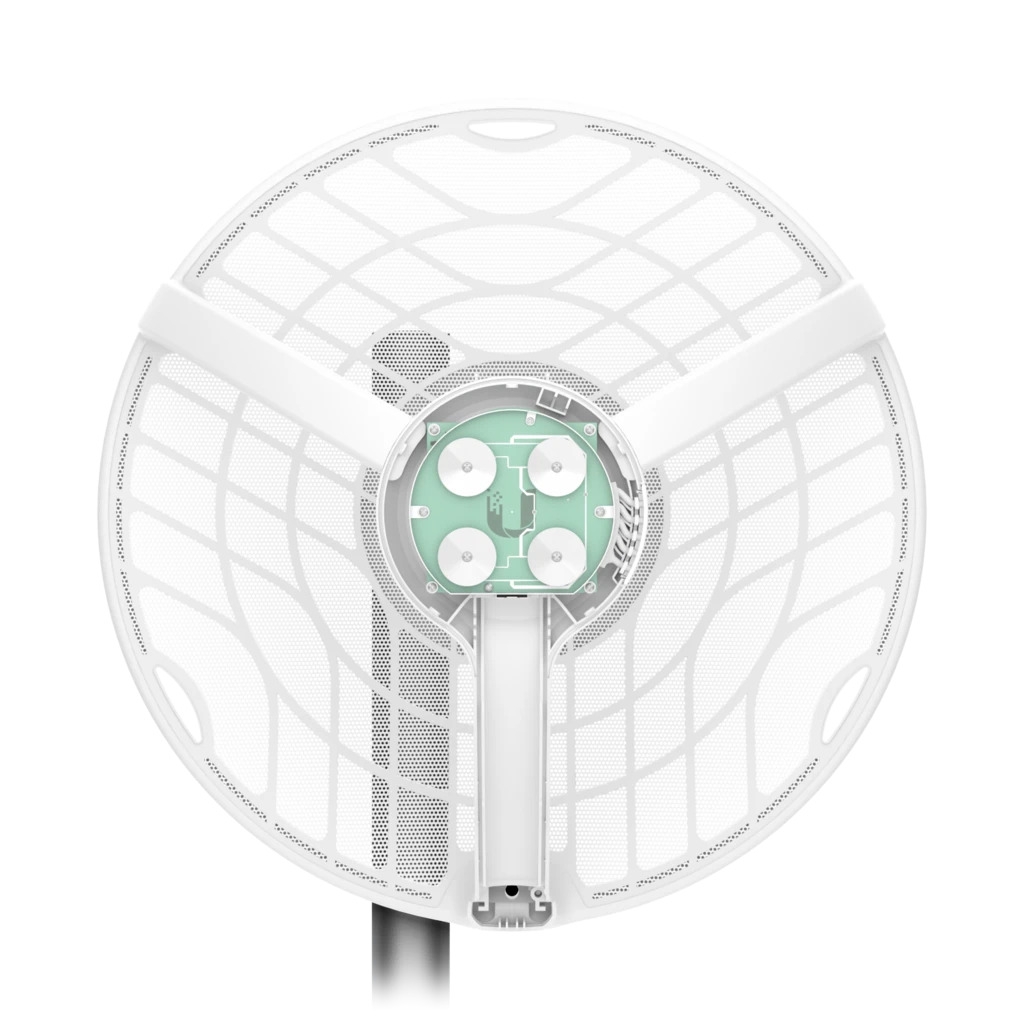

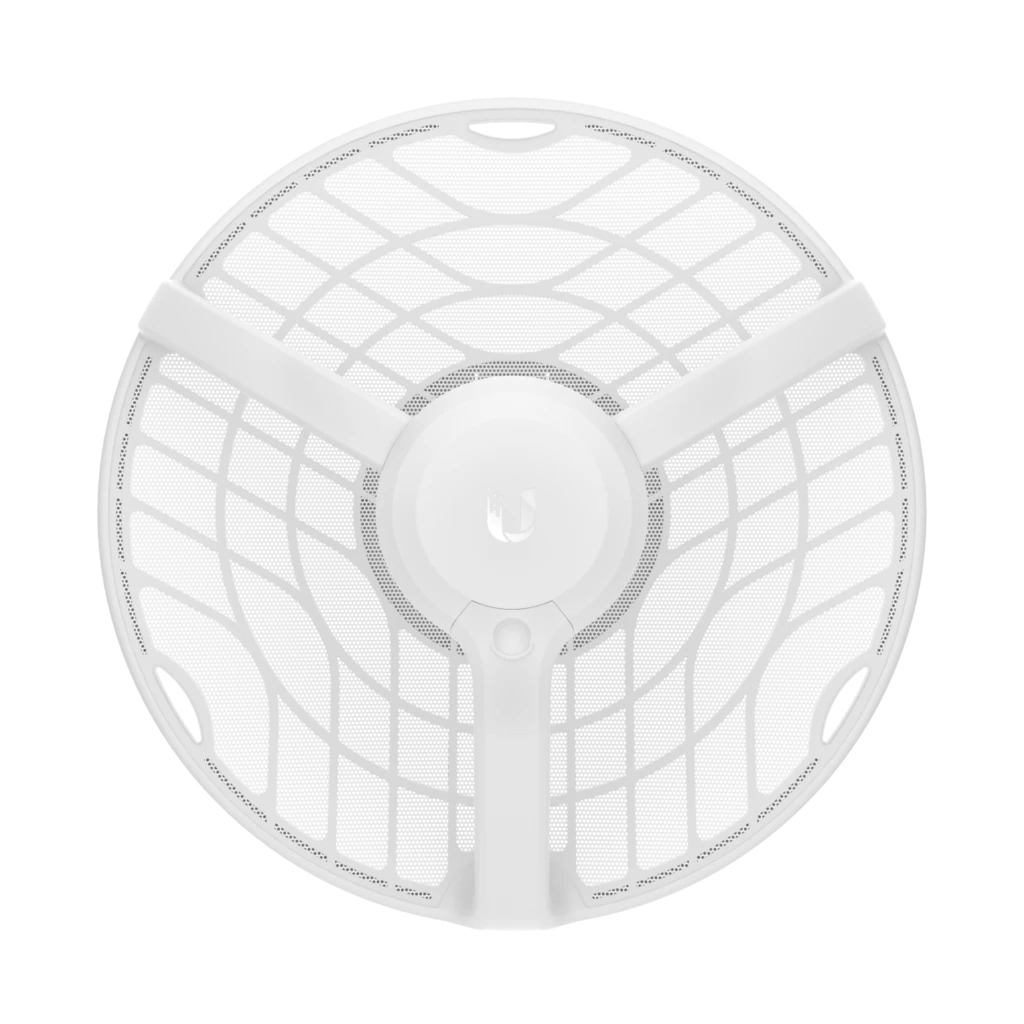

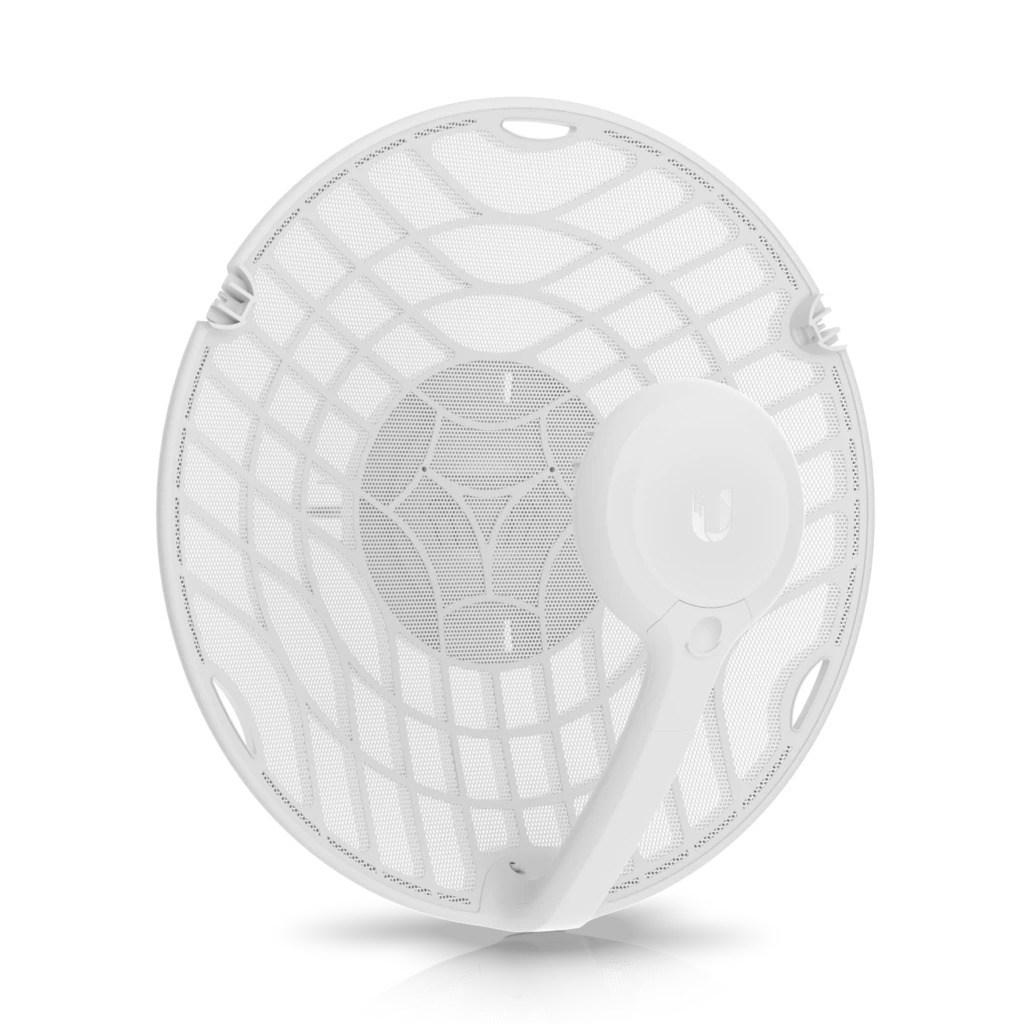

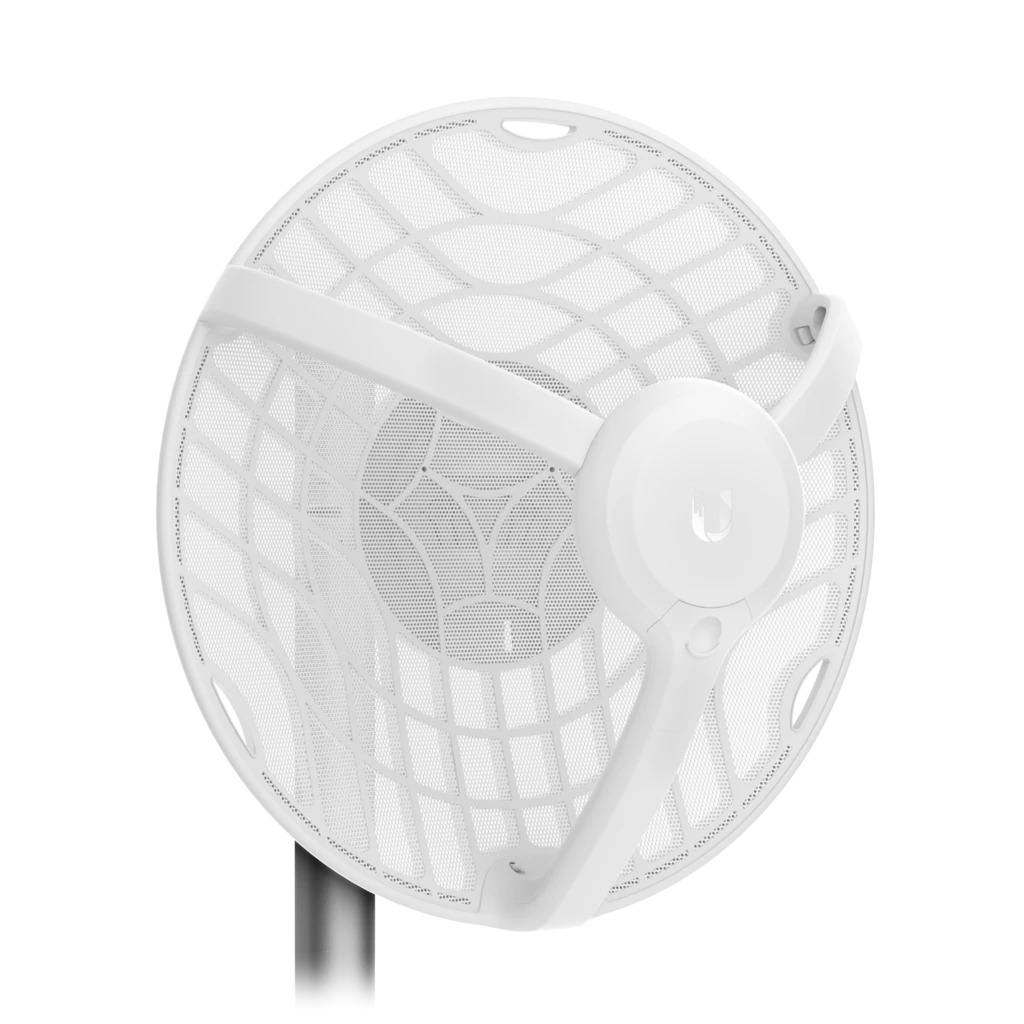

Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • Long-range performance
  • 2.4 GHz management radio
  • Full bandwidth support: 2.16 GHz

Specification:

Dimensions 415 x 415 x 303 mm
(16.34 x 16.34 x 11.93")
Weight
Without Mount 1.4 kg (3.09 lb)
With Mount 1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 Ghz 11 dBi
60 Ghz 38 dBi

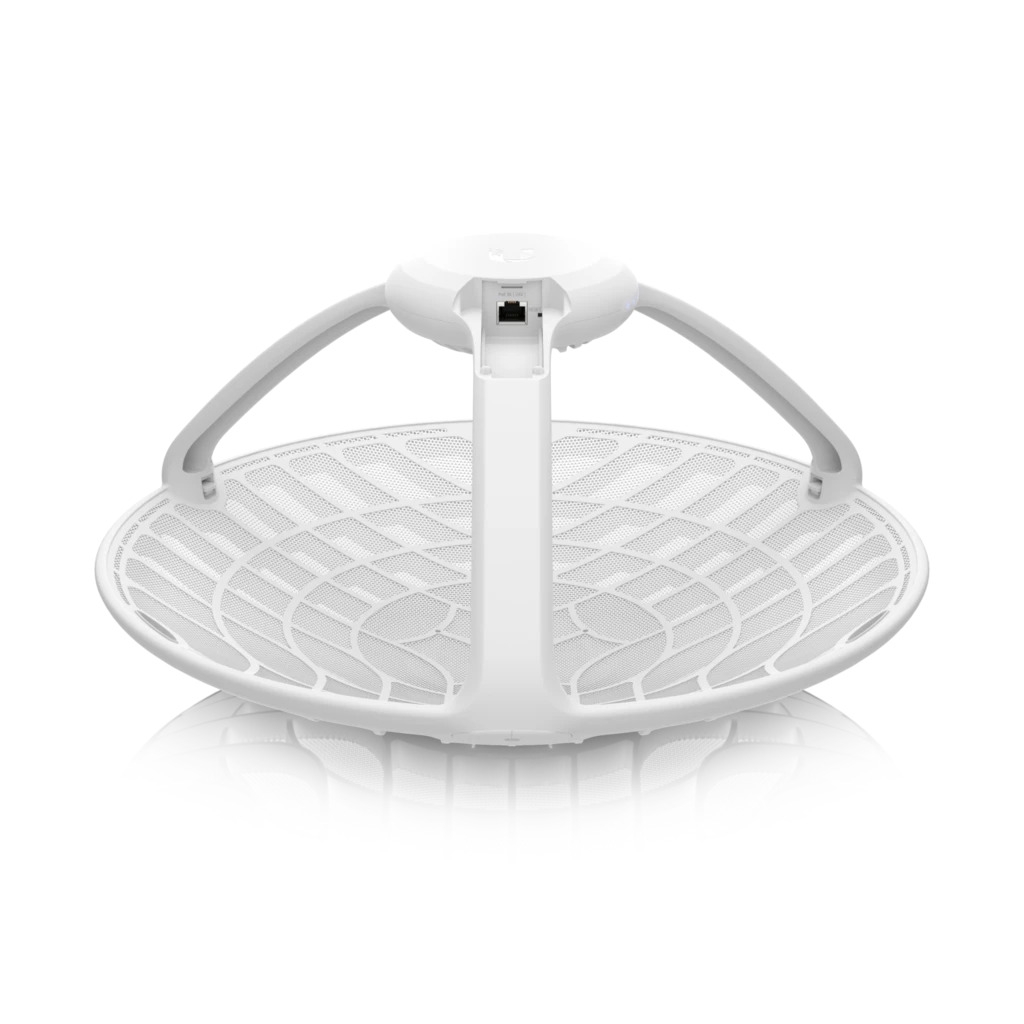

Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G
Wind Loading 56 N @ 200 km/h
<(12.6 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)

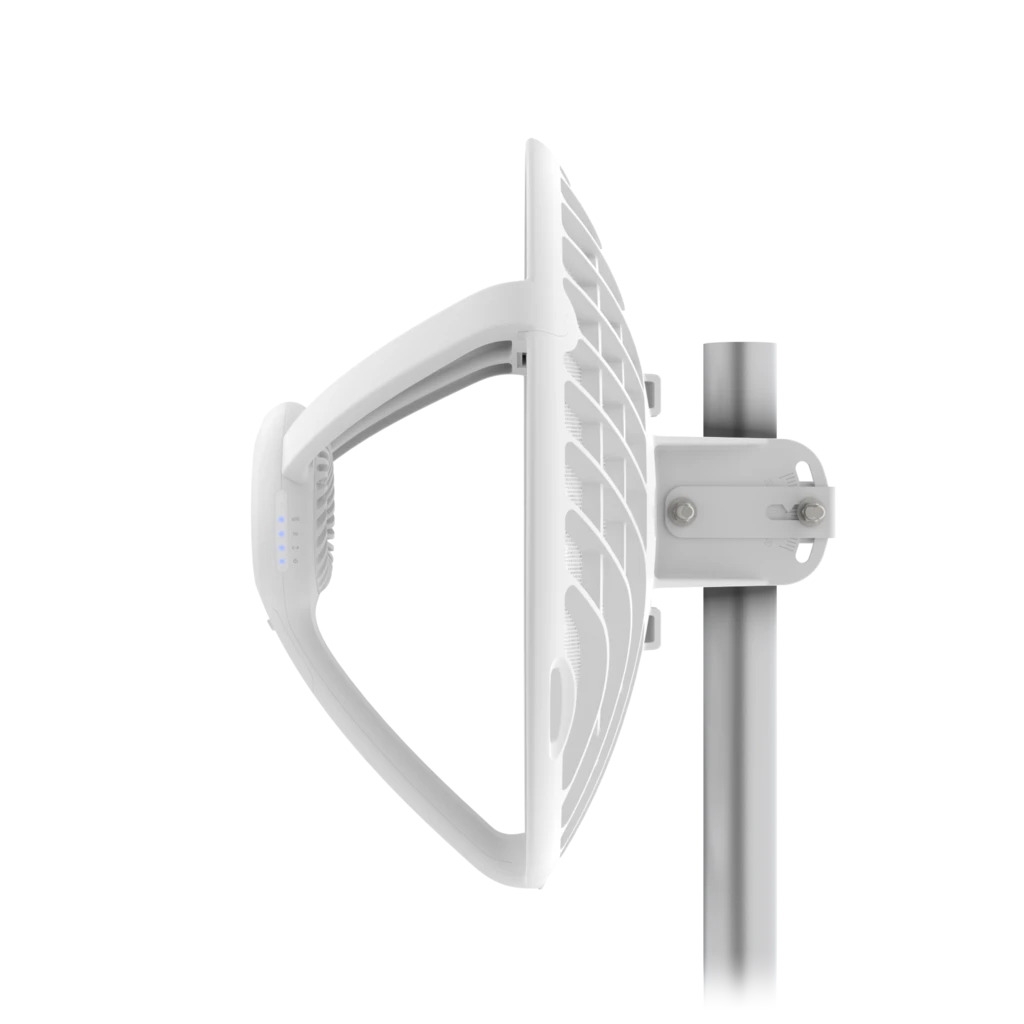

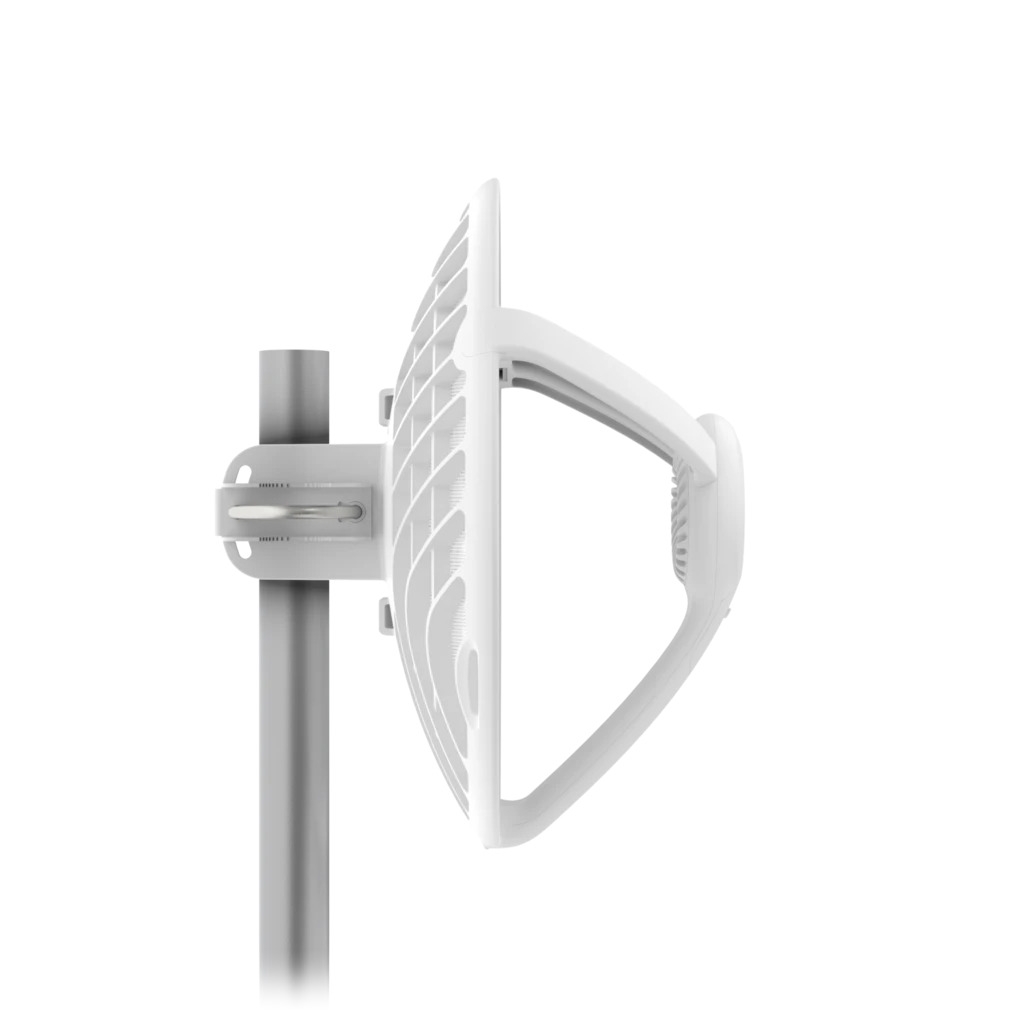

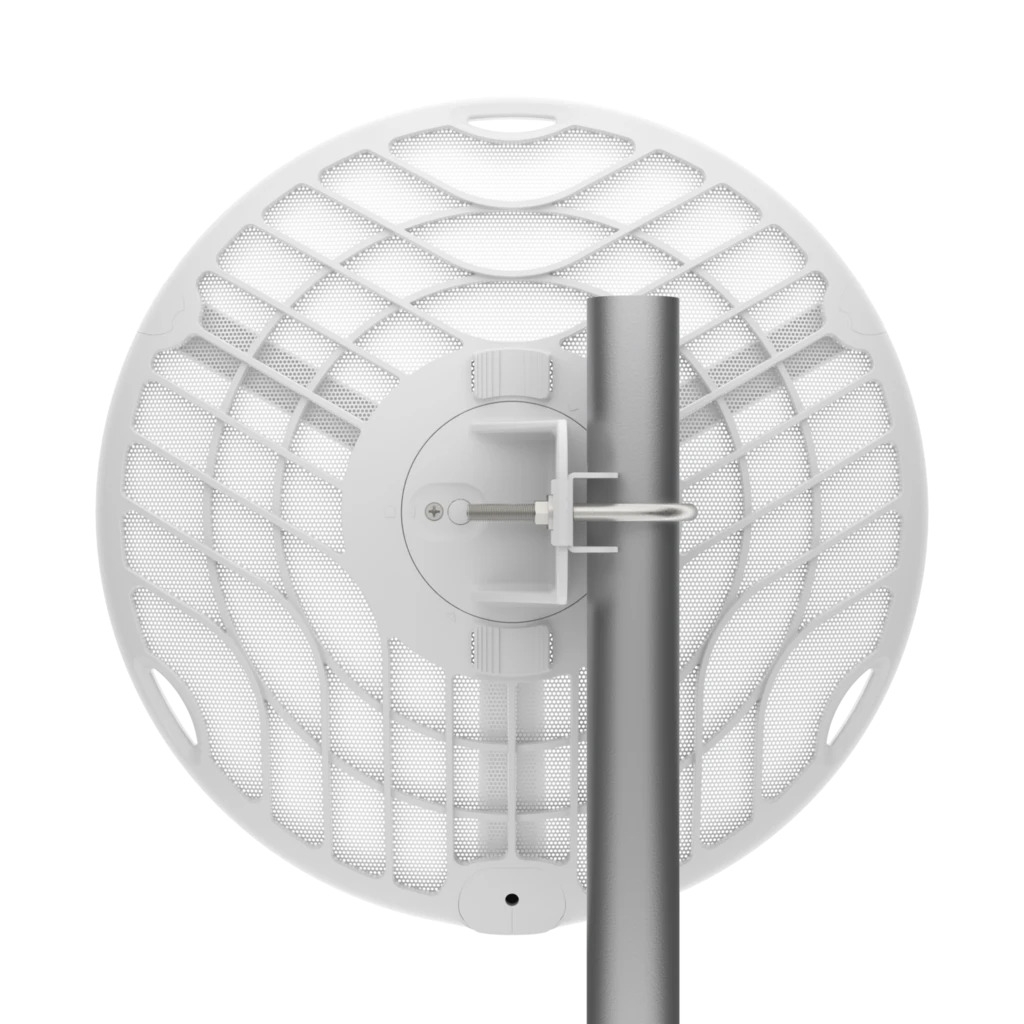

Mounting Pole Mount (Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
Radio
Max. Conducted TX Power 25 dBm
5/60 GHz Combined
Channel Bandwidth
60 Ghz 2160 Mhz
5 Ghz 20/40/80 Mhz
Operating Frequency (Mhz)
US/CA
U-NII-1 5150 - 5250
U-NII-2A 5250 - 5350
U-NII-2C 5470 - 5725
U-NII-3 5725 - 5850
  57,000 – 66,000
Worldwide 5180 – 5875
57,000 - 66,000
Management Radio (Mhz)
Worldwide 2412 - 2472
US/CA 2412 - 2462
