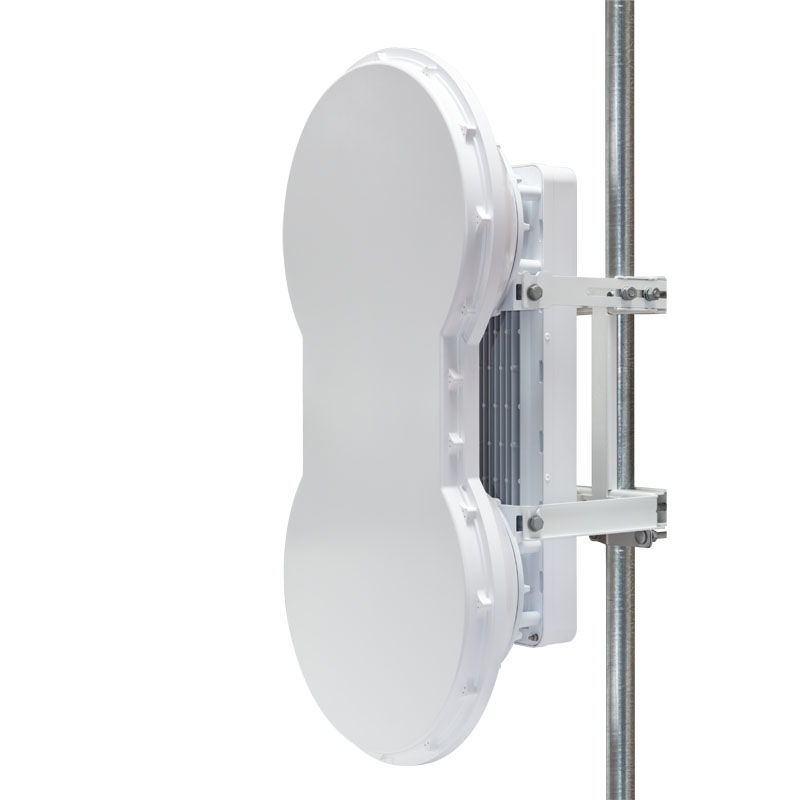

UBIQUITI AirFiber5 (AF-5)

Order code: AF-5
Quick code: #717

UBIQUITI AF-5, AirFiber 5, Point-to-Point 5.470-5.950GHz 1Gbps+ Radio

Price exc. VAT: Price inc. VAT: For orders (total sum):
769.45£ 923.34£ >0£
762.39£ 914.87£ >300£
755.33£ 906.40£ >1000£
Qty:


Features:

Superior Processing

Ubiquiti Networks introduces our proprietary INVICTUS™ core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of airFiber AF5/AF5U.

Efficient Use of 5 GHz Band

airFiber AF5/AF5U features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. airFiber AF5/AF5U accurately and continuously controls transmit power relative to the band edge. The power level automatically tracks to optimize performance near band edges, allowing you to choose the part of the band with the least interference.

Long-Range Links

Newly developed for airFiber AF5/AF5U, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximizing your link budget and spectrum utilization – while still maintaining regulatory compliance. This results in links that can span distances from 10 m up to 100+ km.

Quick and Easy Installation

The unique sliding-clamp design of airFiber AF5/AF5U allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation.

Radio Alignment Display

Introduced on airFiber AF5/AF5U, the Radio Alignment Display (RAD) makes aiming quicker and easier. The dual, calibrated signal strength indicators display the actual signal strength on the local and remote airFiber radios in real time. The comprehensive array of radio status indicators display the following:
• GPS synchronization status
• Master/slave mode
• RF link status
• RF overload warning
• Current modulation mode
• Link activity and speed for wired management and data ports

Specification:

Operating Frequency
AF5
FCC 15.247, 15.407, IC RSS 210 - 5470 - 5600 MHz, 5650 - 5850 MHz
ETSI EN 301 893, EN 302 502 5470 - 5875 MHz
Other Regions - 5470 - 5950 MHz
Dimensions 938.4 x 468.4 x 281.4 mm
Weight 16 kg (Mount included)
Max. Power Consumption 40W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Wind Loading 194 lbf @ 125 mph
Wind Survivability 125 mph
Operating Temperature -40 to 55°C
LEDs Status LEDs:
Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, Overload
Remote and Local Displays (Calibrated Signal Strength)
Interfaces
Data Port 10/100/1000 Ethernet Port
Management Port 10/100 Ethernet Port
Auxiliary Port RJ-12, Alignment Tone Port
System
Maximum Throughput 1.0+ Gbps
Maximum Range 100+ km (Dependent on Regulatory Region)
Packets per Second 1+ Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
Dynamic Frequency Selection
AF5 CE, FCC/IC
AF5U CE, (FCC/IC Not Applicable)
