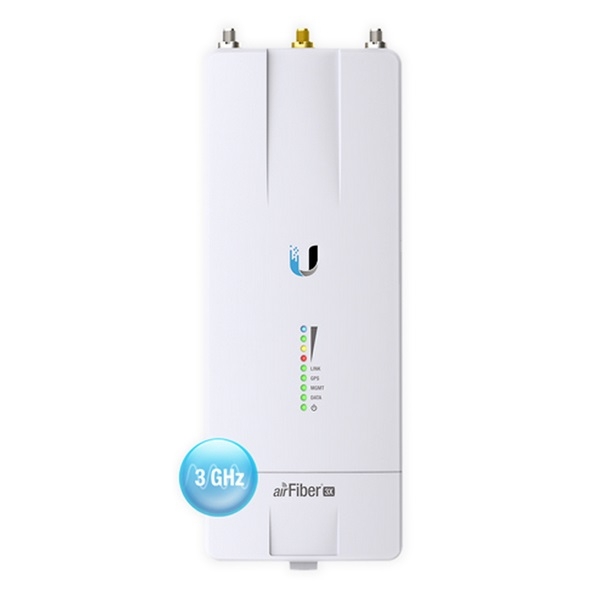

UBIQUITI AirFiber 3X (AF-3X) Radio
UBIQUITI AirFiber 3X (AF-3X), 3.30-3.90GHz Backhaul Radio, 500 + Mbps Throughput for up to 200+ km in range, Gigabit LAN port, GPS
Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links.
The airFiber X is available in three frequency bands:
• 2.4 GHz, model AF-2X
• 3 GHz, model AF-3X
• 5 GHz, model AF-5X
Engineered for Performance
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
Ubiquiti INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and higher delivered throughput.
The airFiber X features industry‑leading spectral efficiency of up to 17.1 Mbps/MHz, line‑rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.
Ultra-Low Latency with HDD Technology
The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.
With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.
Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.
Clean Power Output
Using advanced digital signal processing, the innovative airFiber X radio design has an ultra-clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.
The 3 GHz frequency band offers interference-free operation, enabling the AF-3X to provide a high-reliability backhaul solution, although a license may be required in some regions.
Optimal Operation in Unlicensed Bands
Channel width flexibility* allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments.
AF-3X 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MHz
You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight: 0.35 kg (0.77 lb)
RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS)
GPS Antenna: External, Magnetic Base
Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
Power Method: Passive Power over Ethernet, Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption: 17W @ Max. Power/Duty Cycle
Supported Voltage Range: 19-29VDC
Mounting: airFiber X Mount (Rocket Mount Compatible), GPS Pole Mount (Included)
Certifications: CE, FCC, IC
Operating Temperature: -40 to 55° C (-40 to 131° F)
Data Port: (1) 10/100/1000 Ethernet Port
Management Port: (1) 10/100 Ethernet Port
Processor: INVICTUS IC
Maximum Throughput: 525 Mbps
Maximum Range: 200+ km
Encryption: 128-bit AES
OS: airOS F
Wireless Modes: Master/Slave
Frequency Range: 3300-3900 MHz (Dependent on Regulatory Region)
Max. Conducted TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy: ± 2.5 ppm without GPS Synchronization, ± 0.2 ppm with GPS Synchronization
3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable3
Programmable Uplink and Downlink Duty Cycles
Independently Programmable TX and RX Frequencies
