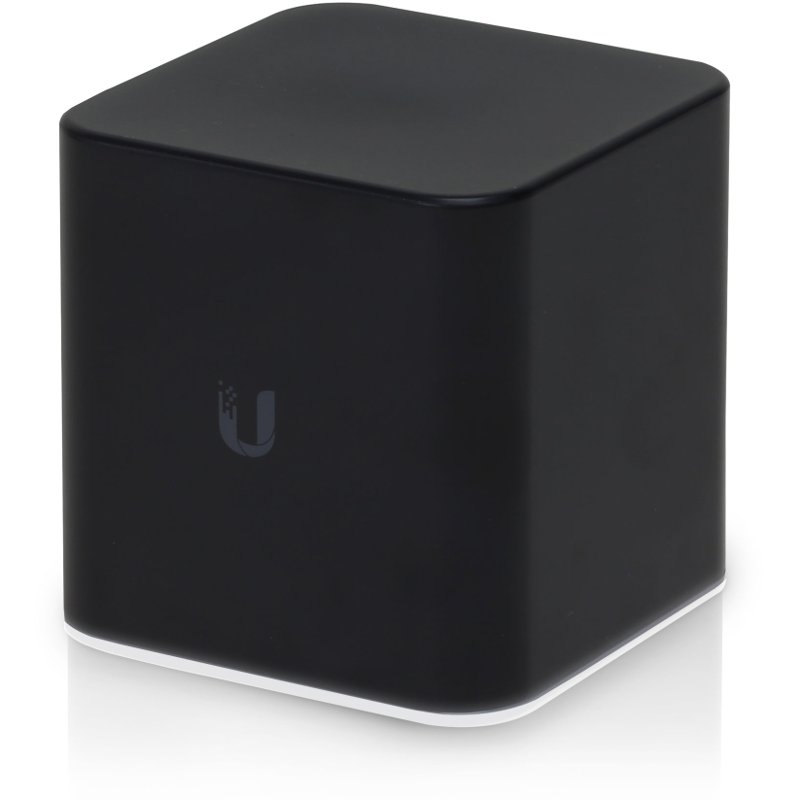

UBIQUITI airCube-AC - airMAX Home Wi-Fi Access Point (ACB-AC)

Order code: ACB-AC
Quick code: #1430

Compact design, Dual-Band 802.11ac home Wi-Fi access point with integrated 24V PoE In/Out, 2x2 MIMO technology, 4x Gigabit Ethernet Ports

Price exc. VAT: Price inc. VAT: For orders (total sum):
53.64£ 64.37£ >0£
53.17£ 63.80£ >300£
52.25£ 62.70£ >1000£

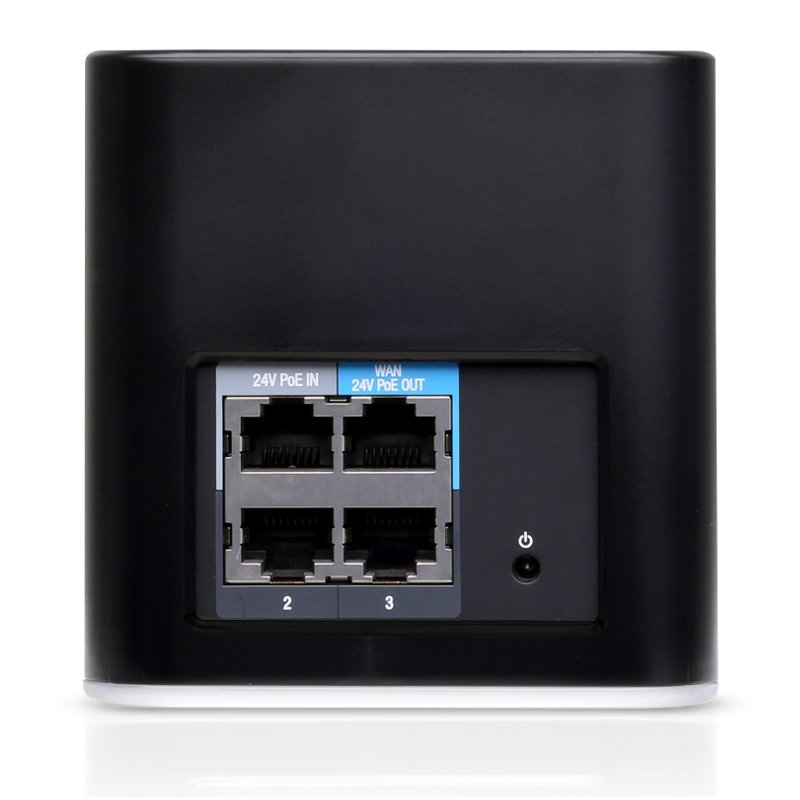

• (4) Gigabit Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• Dual-Band, 802.11ac, 2x2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Up to 866.7 Mbps in the 5 GHz Radio Band
• Powered by 24V Passive PoE or Included Power Adapter

UNMS Support

Ubiquiti Network Management Software simplifies remote network management.

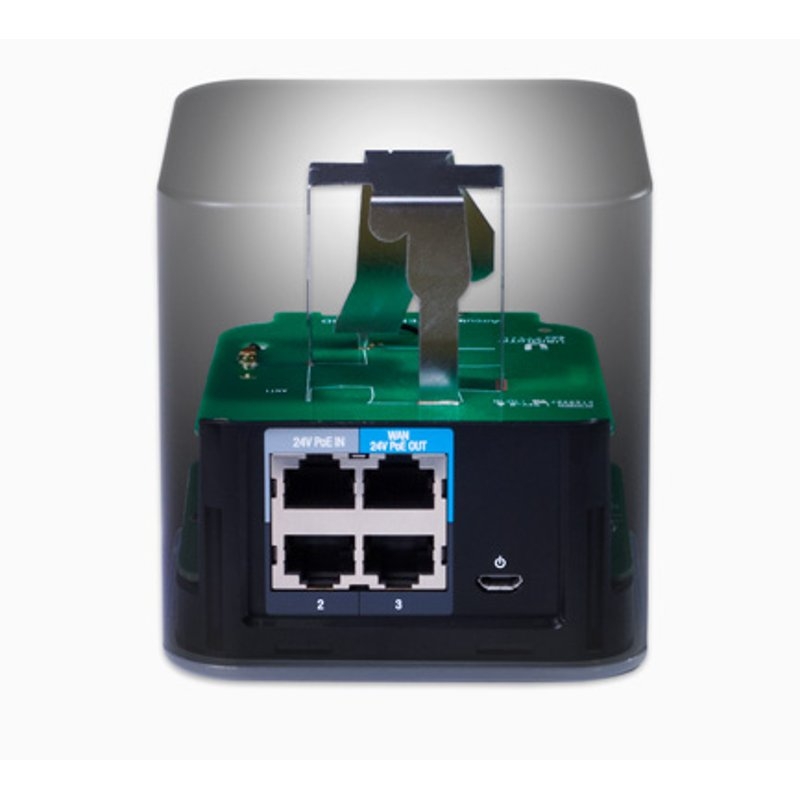

Super Antenna

Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

24V PoE Passthrough

The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

UMobile Support

Use the intuitive UMobile app for iOS and Android to install and configure airCube.


Sleek Design

The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.


Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51")
Weight: 280 g (9.88 oz)
Management Interface: Wi-Fi / Ethernet
Networking Interface: (4) Gigabit Ethernet Ports
LED: Status
Antenna Gain: 4 dBi @ 2.4 GHz, 5 dBi @ 5 GHz
Max. Speeds: 300 Mbps @ 2.4 GHz, 866.7 Mbps @ 5 GHz,
Max. Power Consumption: 8.5W
Max. TX Power: 22 dBm
Power Supply: DC24V
Power Method: 24VDC, 0.83A; PoE 24V In on LAN Port 1
PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Supported Power Voltage: 22-26V
Operating Temperature: -10 to 50° C (-14 to 122° F)
Operating Humidity: 5 to 95% Noncondensing
ESD/EMP Protection: ± 24 kV Contact / Air
Certifications: CE, FCC, IC
