UBIQUITI Access G3 Intercom (UA-G3-Intercom)

Features:

Versatile Access Methods
The Ubiquiti UniFi Access G3 Intercom (UA-G3-Intercom) is equipped with a high-definition camera that delivers clear video feeds, ensuring precise identification of individuals at entry points. Complementing the camera is a 7-inch capacitive multi-touch LCD with a resolution of 1024 x 600 pixels, offering an intuitive interface for users to interact with the system. The display achieves a maximum luminance of 1000 nits, ensuring visibility even in brightly lit environments. This combination of high-resolution video and responsive touchscreen enhances user experience and security management at access points.
The UA-G3-Intercom supports multiple authentication methods, including NFC card access, PIN codes, and mobile credentials via the UniFi Identity mobile app. It is compatible with various NFC technologies such as ISO/IEC 14443A/B, 15693, and 18092 (Ecma 340), accommodating MIFARE Classic, MIFARE DESFIRE, and Sony FeliCa standards. This versatility allows for seamless integration into existing access control systems. Additionally, the device features a built-in doorbell function and can pair with multiple UniFi Intercom Viewers, facilitating remote access control and communication.

Robust Construction
Designed for both indoor and outdoor installations, the UA-G3-Intercom boasts an IP65-rated enclosure, providing protection against dust and water ingress. The device operates reliably within a temperature range of -30°C to 60°C, making it suitable for different environmental conditions. Constructed with an aluminum alloy and UV-stabilized polycarbonate housing, it offers durability and resistance to environmental wear, ensuring long-term performance. Its impact-resistant structure also helps safeguard critical components from tampering or accidental damage. These design features make it ideal for high-traffic entryways, gated perimeters, and exposed commercial entrances where durability is essential.
The UA-G3-Intercom features a Gigabit Ethernet RJ45 port for high-speed network connectivity and supports Power over Ethernet (PoE) with a 48V DC input, simplifying installation by combining power and data transmission over a single cable. The device's maximum power consumption is 13W, promoting energy efficiency and minimizing infrastructure costs. In addition to PoE support, the intercom’s efficient network interface ensures low-latency communication, crucial for real-time video and audio transmissions. Compliance with UL 294 and CAN/ULC-60839-11-1 standards underscores its adherence to stringent safety and performance criteria, making it a reliable choice for secure access control implementations.

Specification:

Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera: ✓
NFC Card & Keyfob Access: ✓
PIN Access: ✓
Apple/Google Wallet: ✓
Mobile Unlock: ✓
Two-Way Intercom & Doorbell Access: ✓
NDAA Compliant: ✓
UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
Weatherproofing: IP65

Mechanical

Weight: Device:
    965 g (2.1 lb)
    Bracket: 445 g (1 lb)
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material: Powder-coated stainless steel

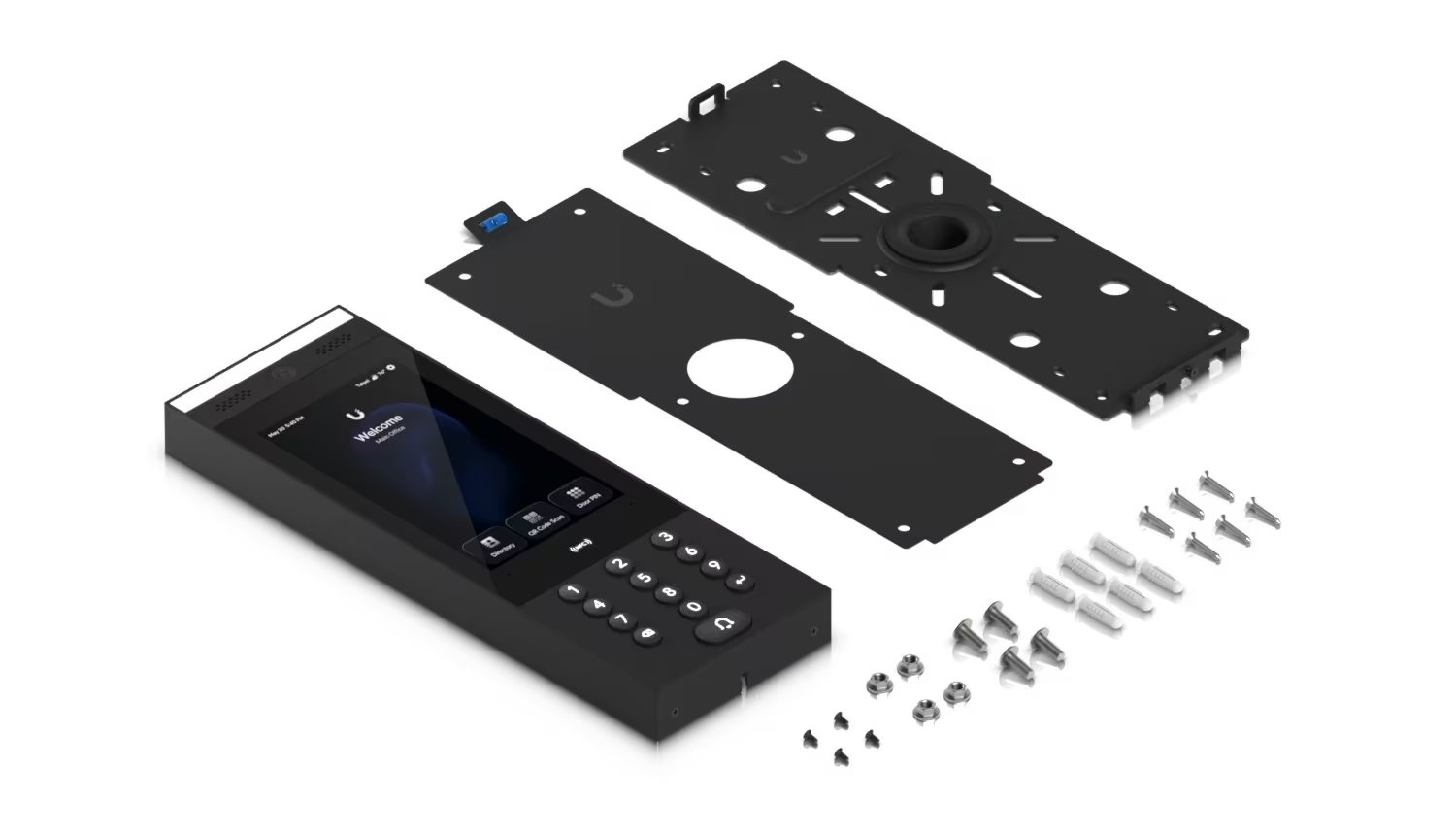

Mounting: Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)

Hardware

Indoor and Outdoor Use: Yes
Ambient Operating Temperature:
    Device: -30 to 60° C (-22 to 140° F)
    Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (1) GbE RJ45 port
Connectivity: BLE 4.2 NFC
Power Method:
    PoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 13W
Supported Voltage Range: 48V DC
Sensors:
    Proximity sensor
    ALS sensor
Display: 177 mm (7") diagonal
Touch Screen Technology: Capacitive multi-touch
Display Luminance: Max. 1000 nits (Typical)
Screen Orientation: Portrait
Resolution: 1024 x 600 px
Microphone: ✓
Speaker: ✓
NFC Frequency: 13.56 MHz
NFC Read Range: < 30 mm (1.18'')
NFC Technology:
    ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
LEDs: Amber Learn More
Buttons: (1) Factory-reset
PoE Cabling Requirements:
    Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement:
    Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: UA-G3-Intercom, V01

Software

Management Application: Access
Software Information: The software version can be checked at https://unifi.ui.com
