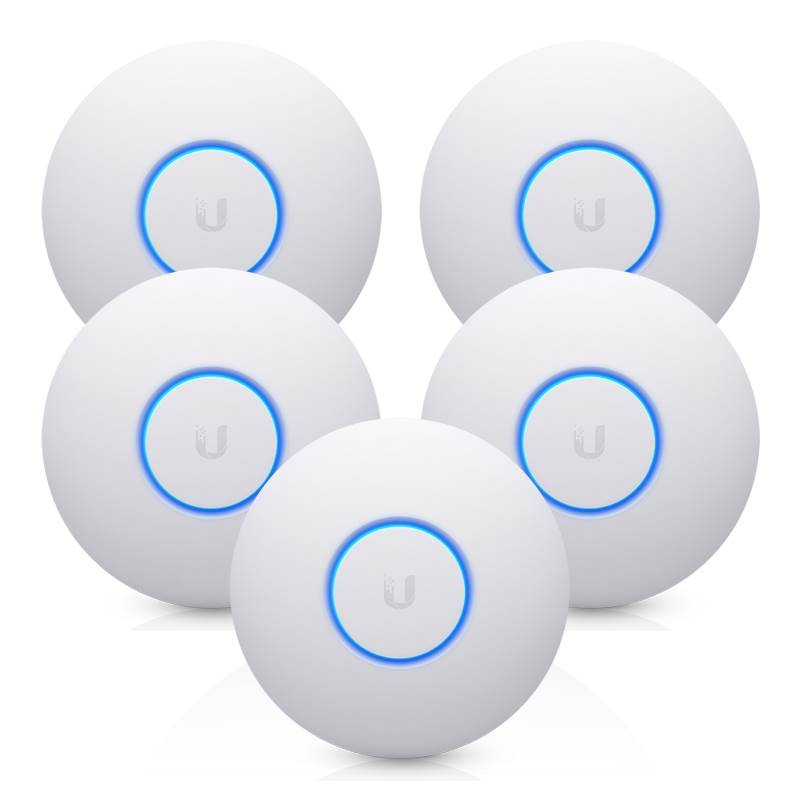

UBIQUITI UniFi nanoHD 5-pack 802.11ac Wave2 MU-MIMO Enterprise Access Point, 5 pack (UAP-nanoHD-5)
2x2 MIMO on 2.4GHz (300Mbps max PHY rate), 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 802.3af PoE Compatibility, Indoor, 1x 10/100/1000 Ethernet port, supports 200+ Concurrent Users, PoE adapters not included in Kit
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high‑density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Save Time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU‑MIMO technology.
Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.
For a Single unit
Dimensions: 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29")
Weight:300 g (10.6 oz), With Mounting Kits: 315 g (11.1 oz)

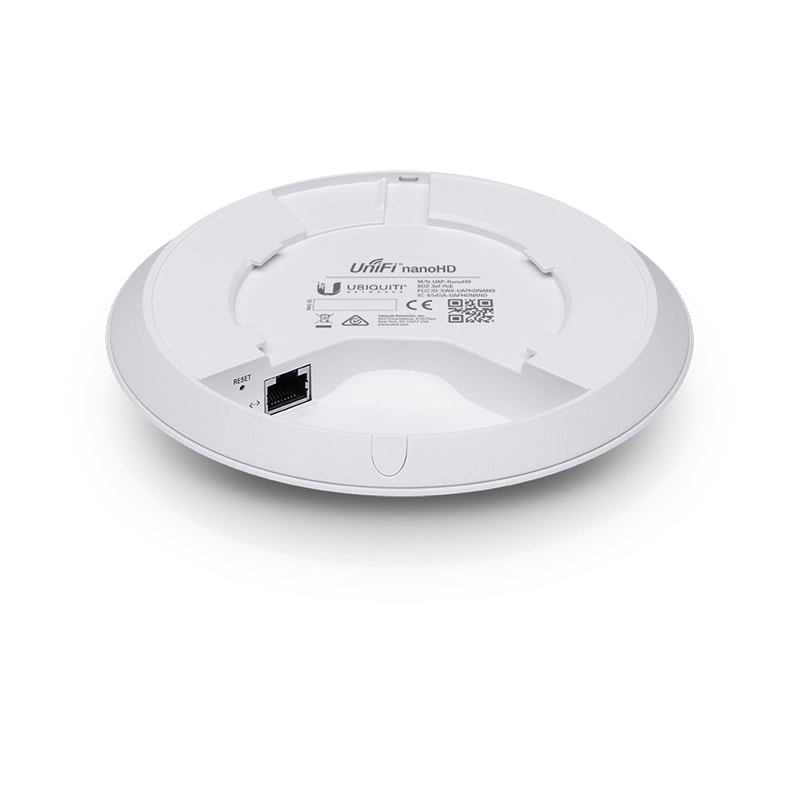

Networking Interface: (1) RJ45 GbE
Buttons: (1) Reset to Defaults
Power Method: 802.3af POE Switch or Power Supply: 48V, 0.5A Gigabit PoE Adapter ( Not included in Kit )
Max. Power Consumption: 10.5W
Operating Frequency: 2.4 GHz and 5 GHz
Max. TX Power: 2.4 GHz - 23 dB, m5 GHz - 26 dBm
Antenna Gain: 2.4 GHz - 2.8 dBi, 5 GHz - 3 dBi
MIMO: 2.4 GHz - 2x2, 5 GHz - 4x4
Radio Rate: 2.4 GHz - 300 Mbps, 5 GHz - 1733 Mbps
Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: 8 per Radio
Mounting: Wall/Ceiling (Kits Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
