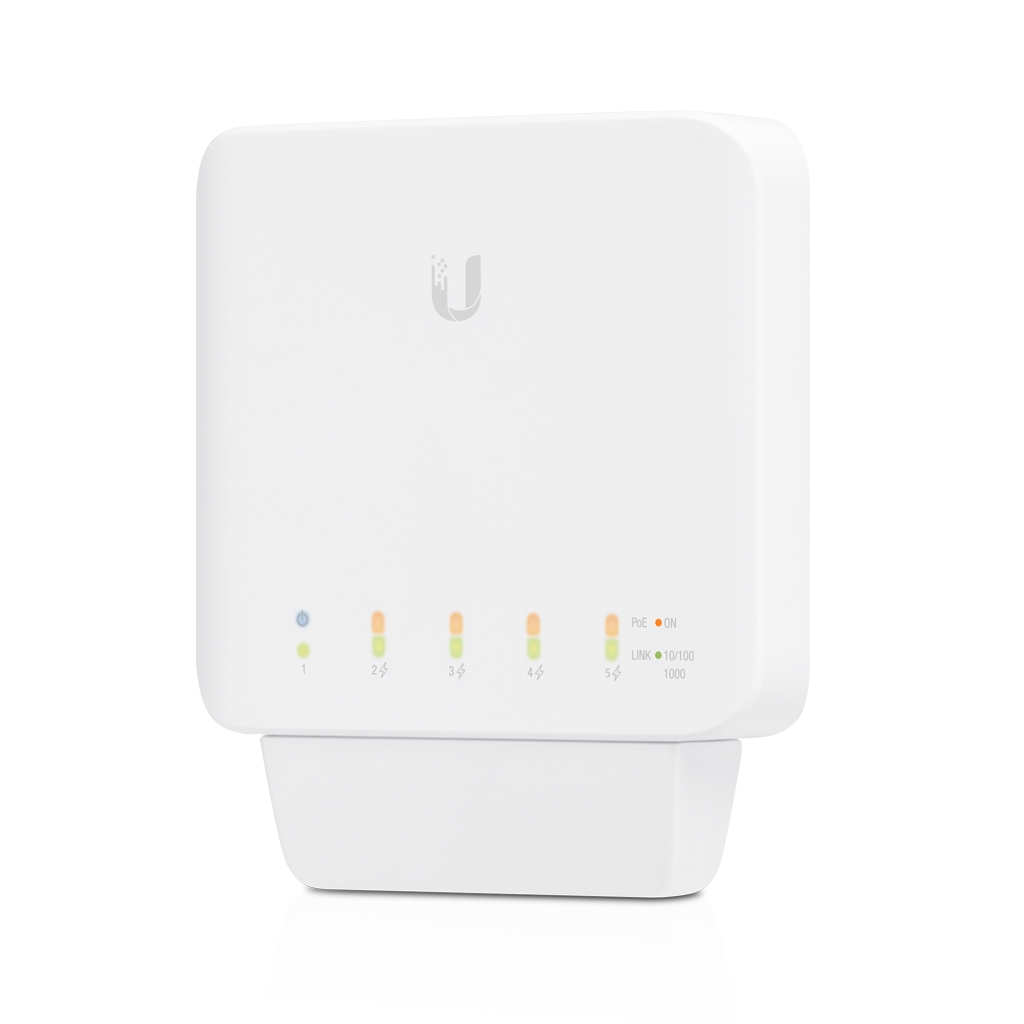

UBIQUITI 5-Port Layer 2 Gigabit Switch with PoE Support (USW-FLEX)

Order code: USW-FLEX
Quick code: #2063

The UniFi® Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.

Price exc. VAT: Price inc. VAT: For orders (total sum):
80.10£ 96.12£ >0£
79.36£ 95.23£ >300£
78.62£ 94.34£ >1000£
Qty:


Features:

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

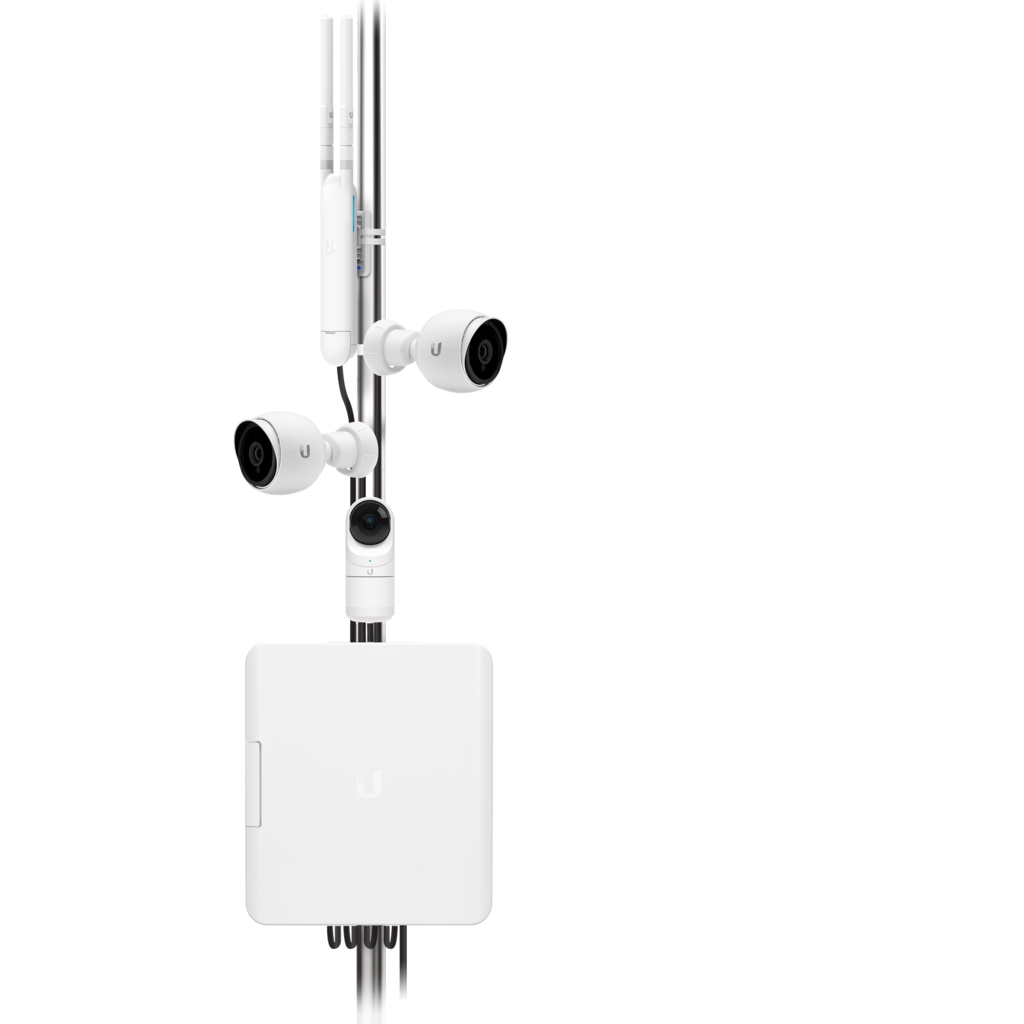

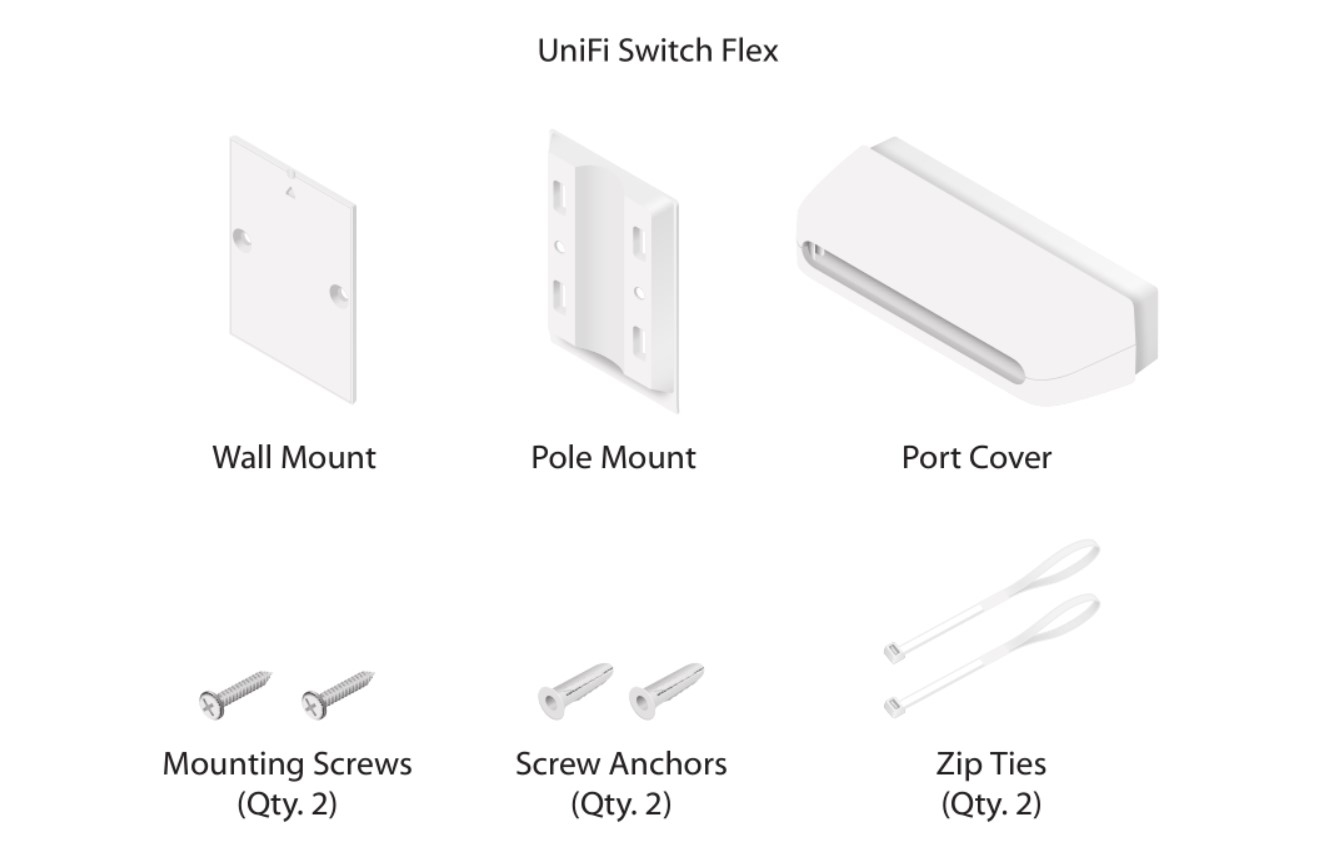

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Specification:

Dimensions 122.5 x 107.1 x 28.0 mm
(4.82 x 4.22 x 1.10")
Weight 230 g
(8.11 oz)

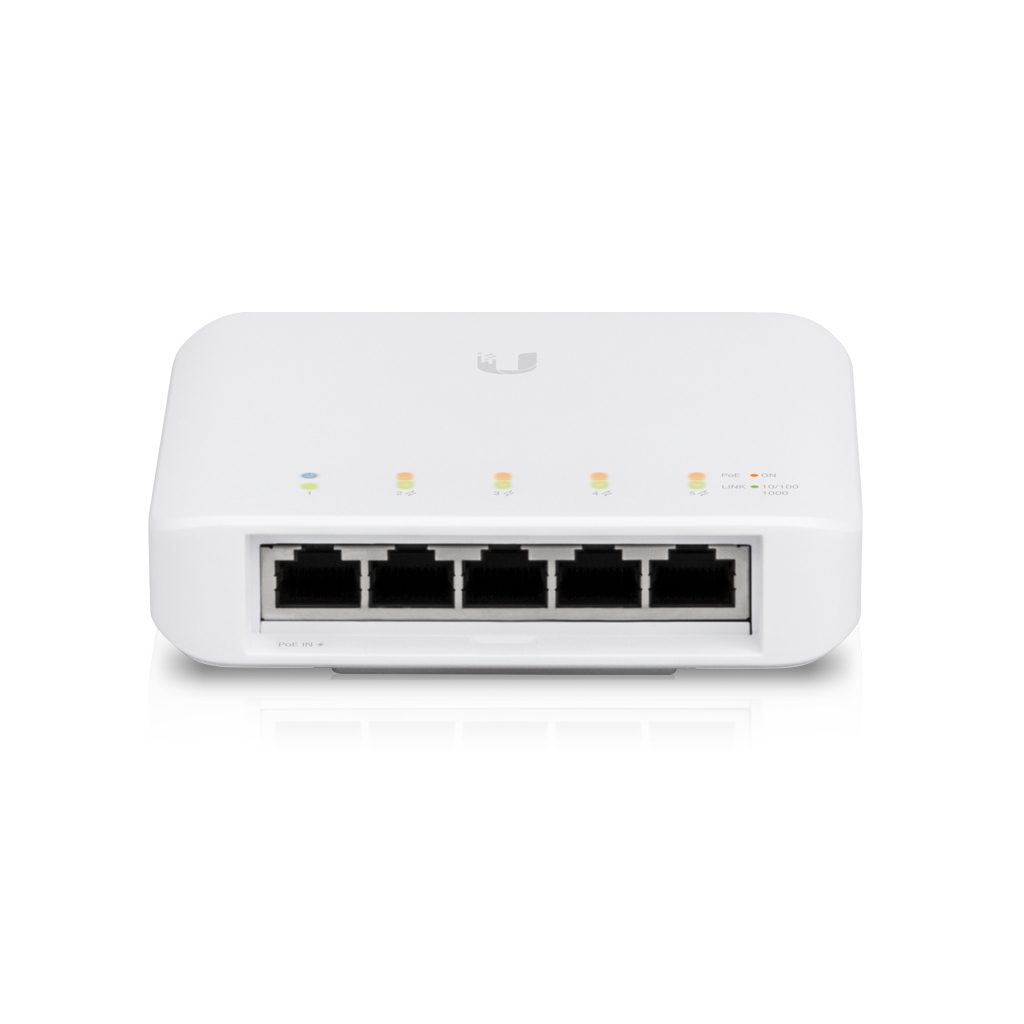

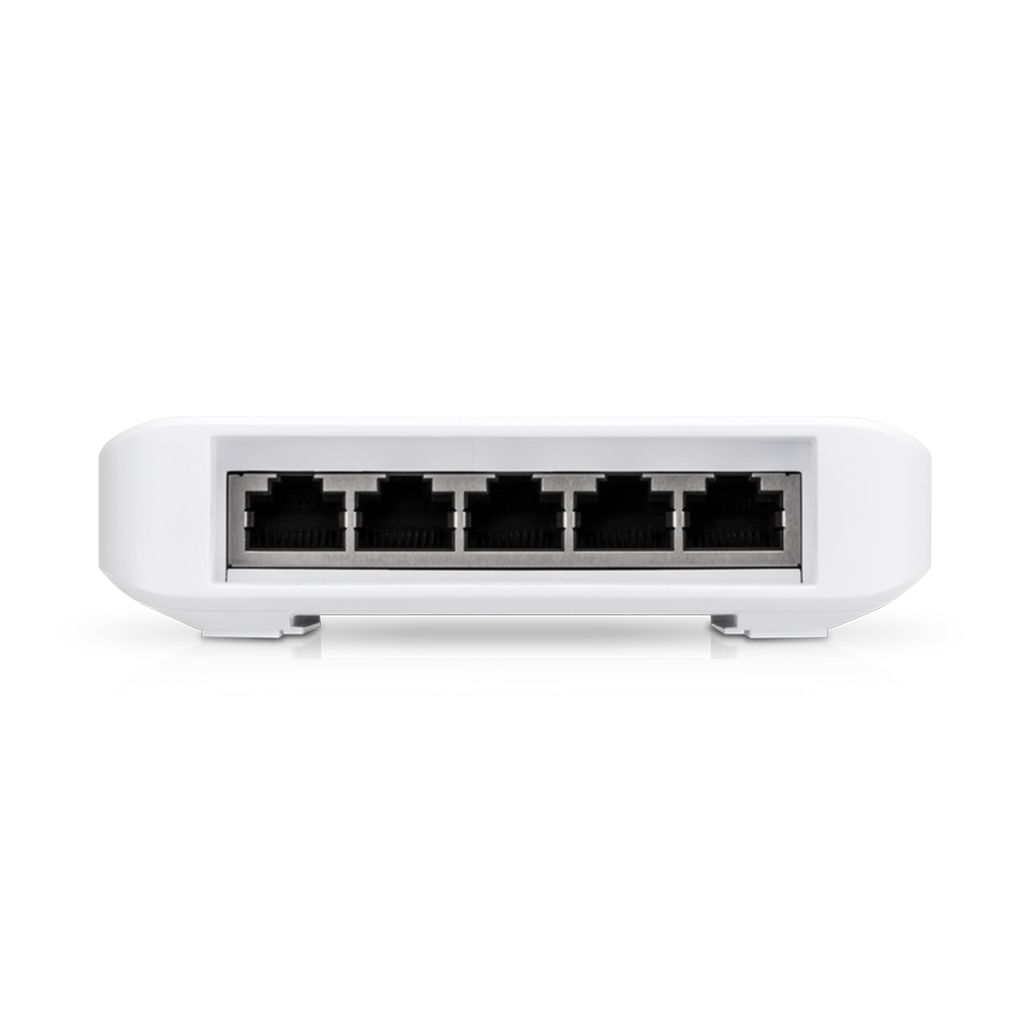

Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports
Management Interface Ethernet In-Band
Power Method (Port 1)
PoE Mode 1:
PoE Mode 2:
PoE Mode 3:

802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
54V / 1.1A PoE Adapter
PoE Out (Ports 2-5) 802.3af (Pins 1, 2+; 3, 6-)
Max. Power Consumption (Excluding PoE Output) 7W
Supported Voltage Range
802.3af Mode
802.3at/bt Mode

44V - 57V
50V - 57V
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Speed/Activity
ESD/EMP Protection ± 16kV Air, ± 16kV Contact
Operating Temperature -40 to 55° C
(-40 to 131° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
