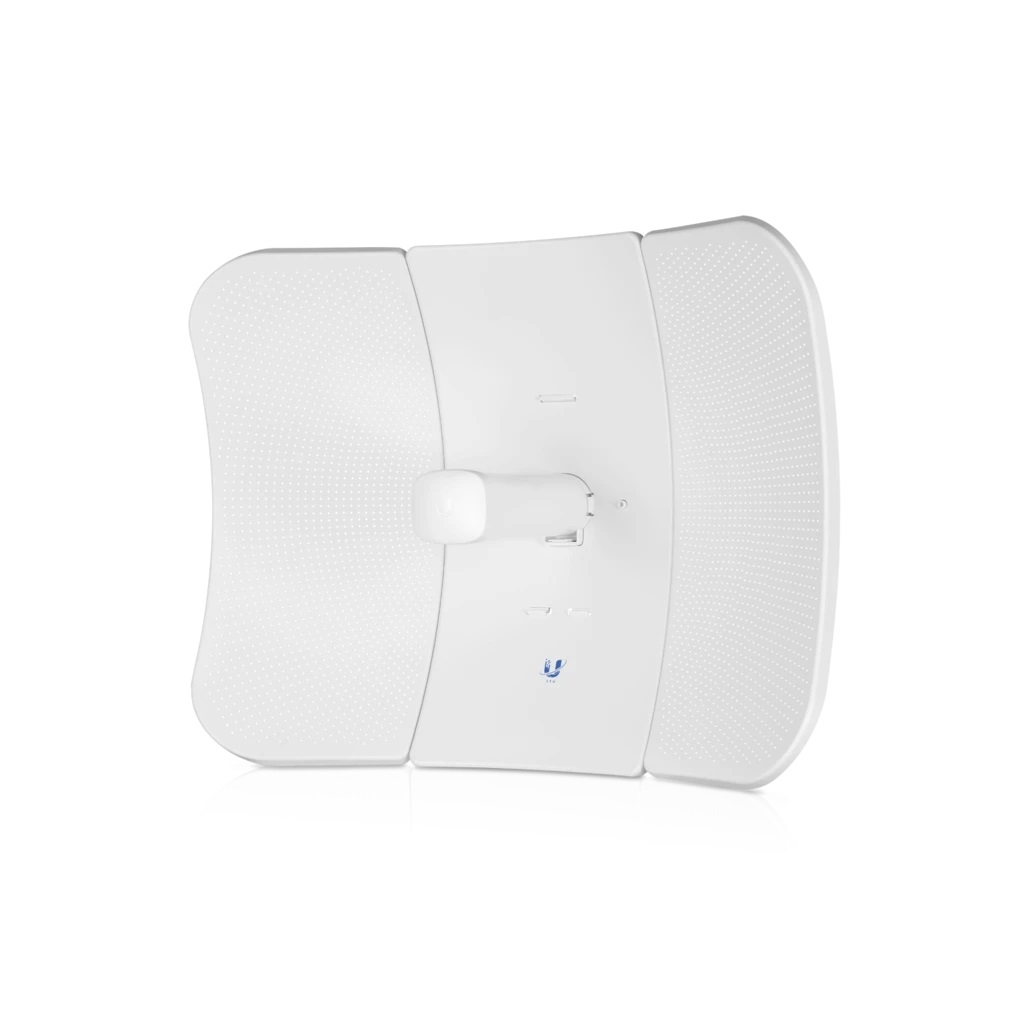

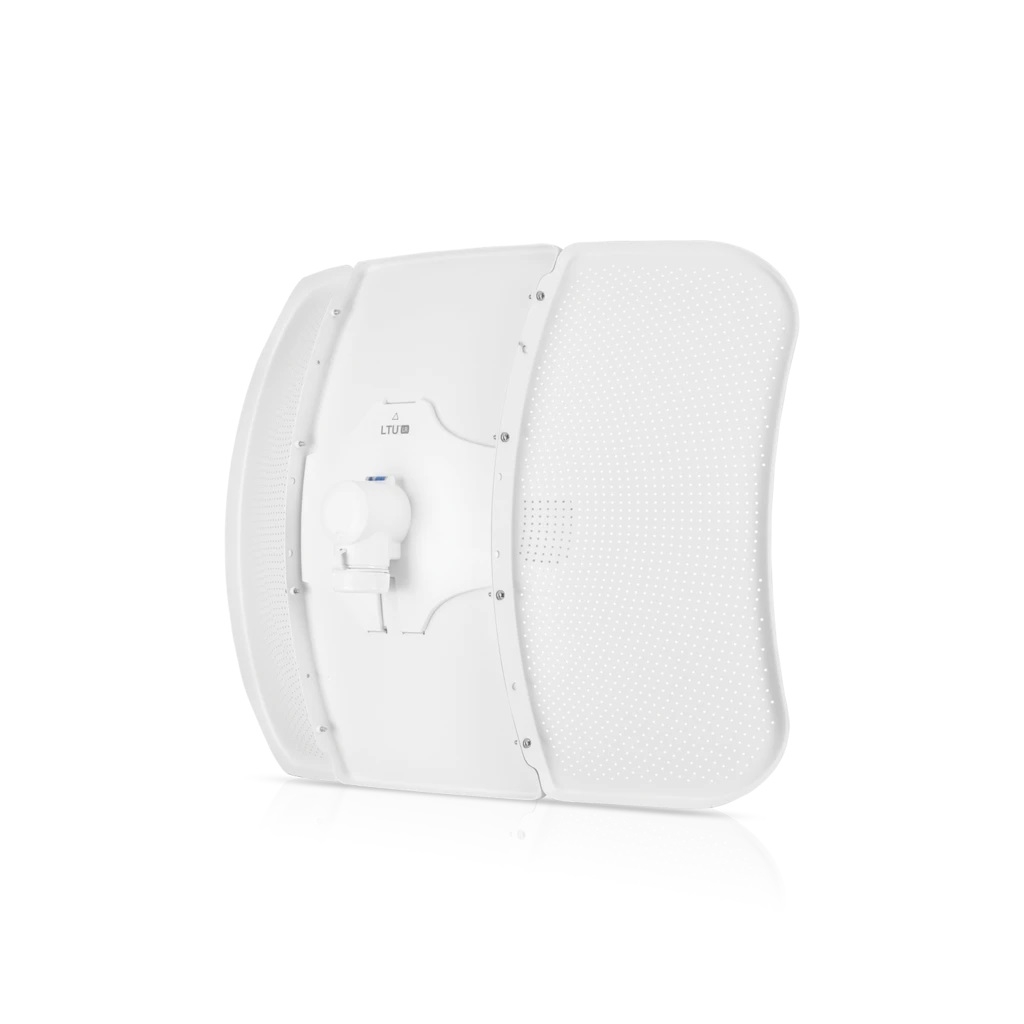

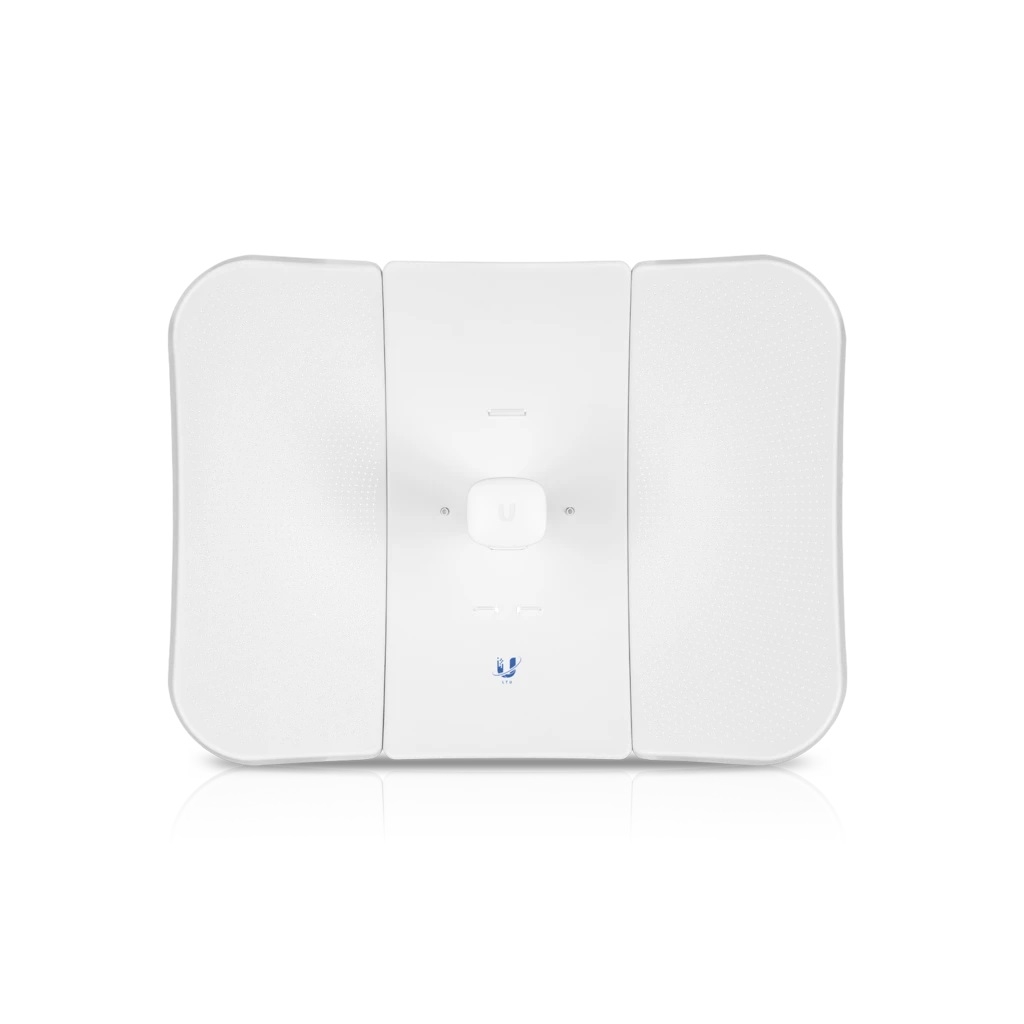

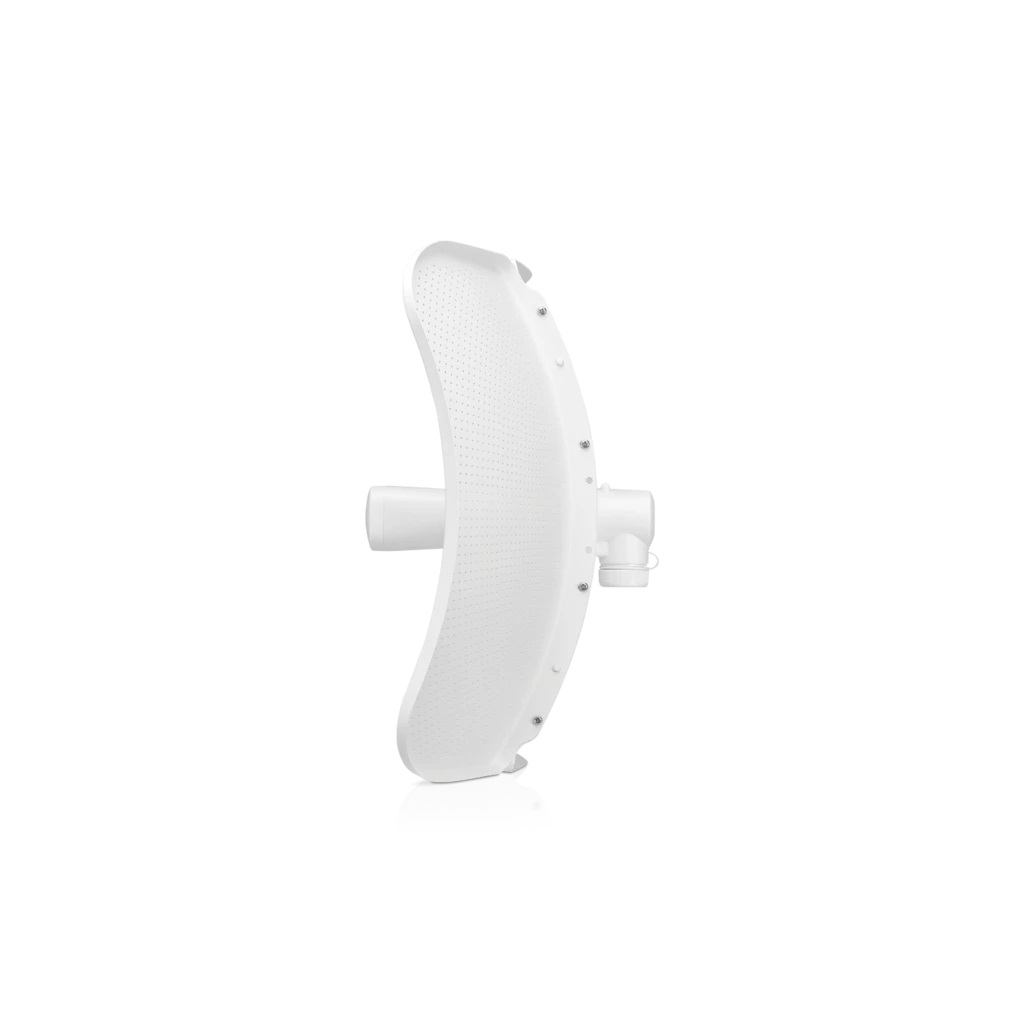

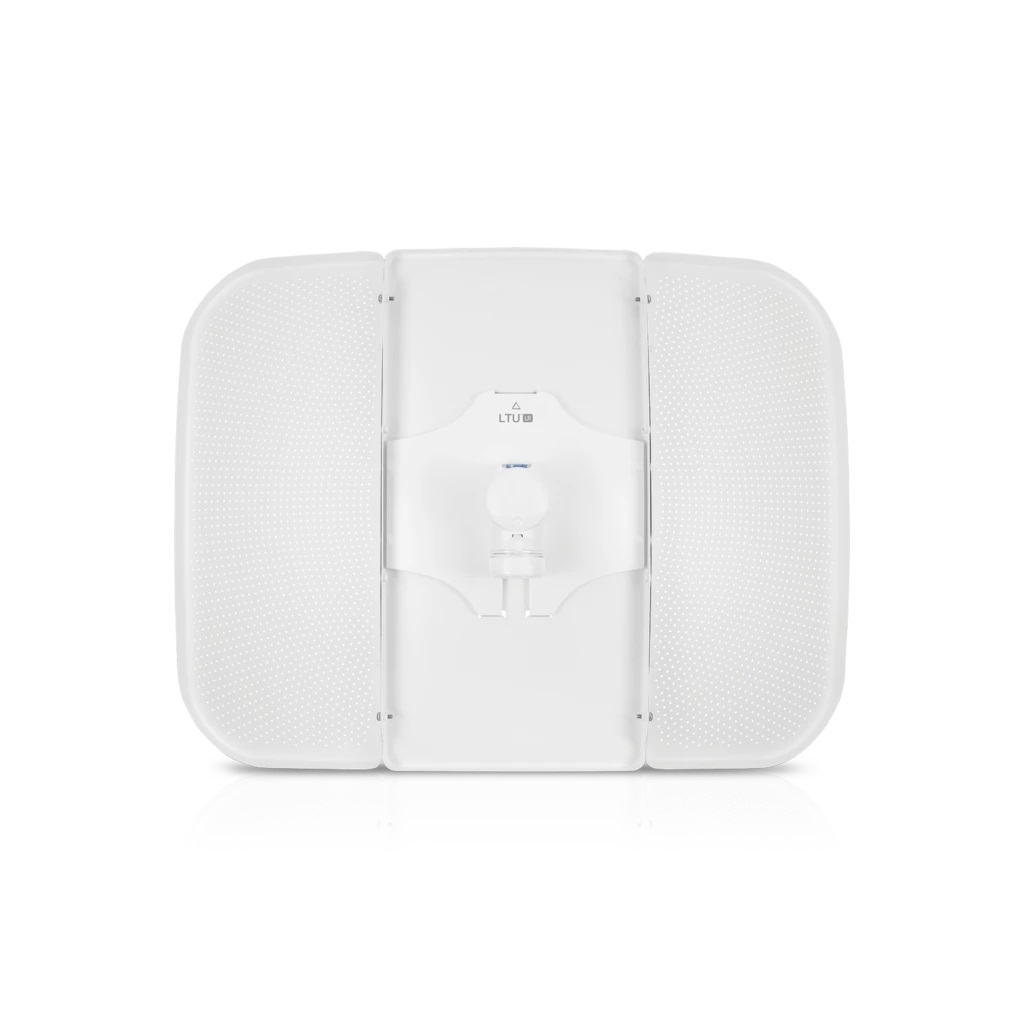

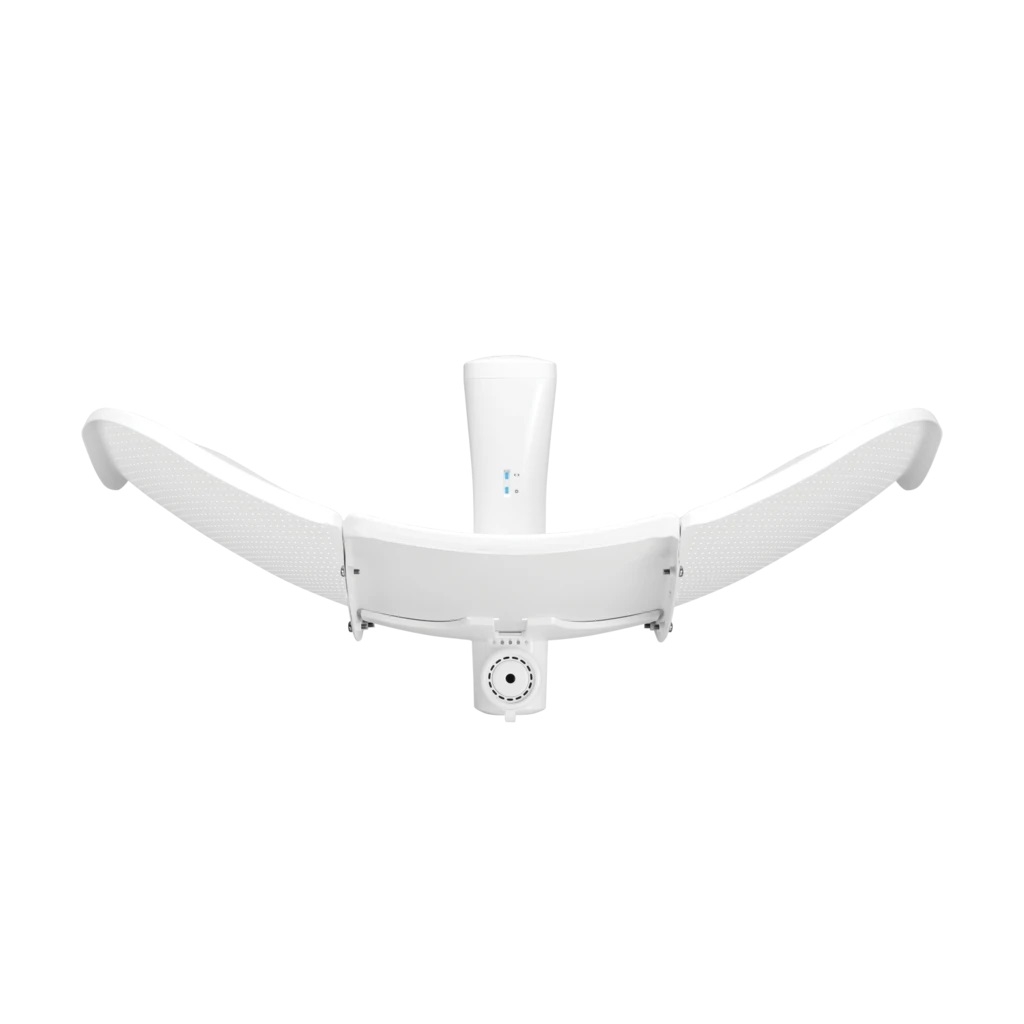

UBIQUITI 5 GHz PtMP LTU Long-Range Client Radio (LTU-LR)
MPN:
LTU-LR
Order code:
LTU-LR
Quick code:
#2329
1x Gigabit PoE in LAN Port | Proprietary Ubiquiti ® LTU Processor | Long-Range 26 dBi Antenna | 10/20/30/40/50 MHz Channel Width Flexibility | Range up to 30 km
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 106.36£ | 127.63£ | >0£ |
| 105.37£ | 126.44£ | >300£ |
| 104.40£ | 125.28£ | >1000£ |
Features:
Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
Features:
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
- Range up to 30km
Functions in a PtMP environment with the LTU-Rocket as the basestation.
Specification:
| Dimensions | 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17") |
| Weight With Mount |
1.360 kg (2.998 lb) 1.735 kg (3.825 lb) |

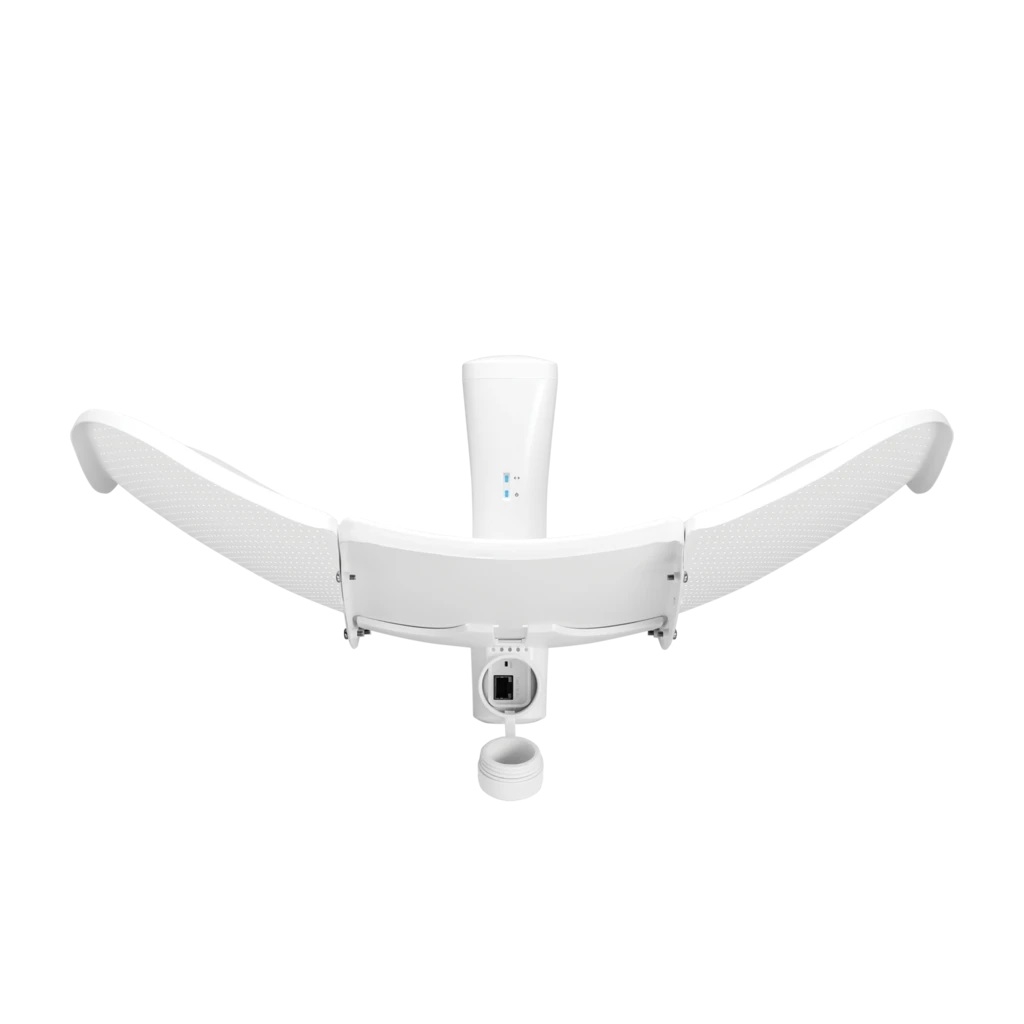

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Voltage Range | 22 - 26V |
| Max. Conducted TX Power | 22 dBm (per Chain) |

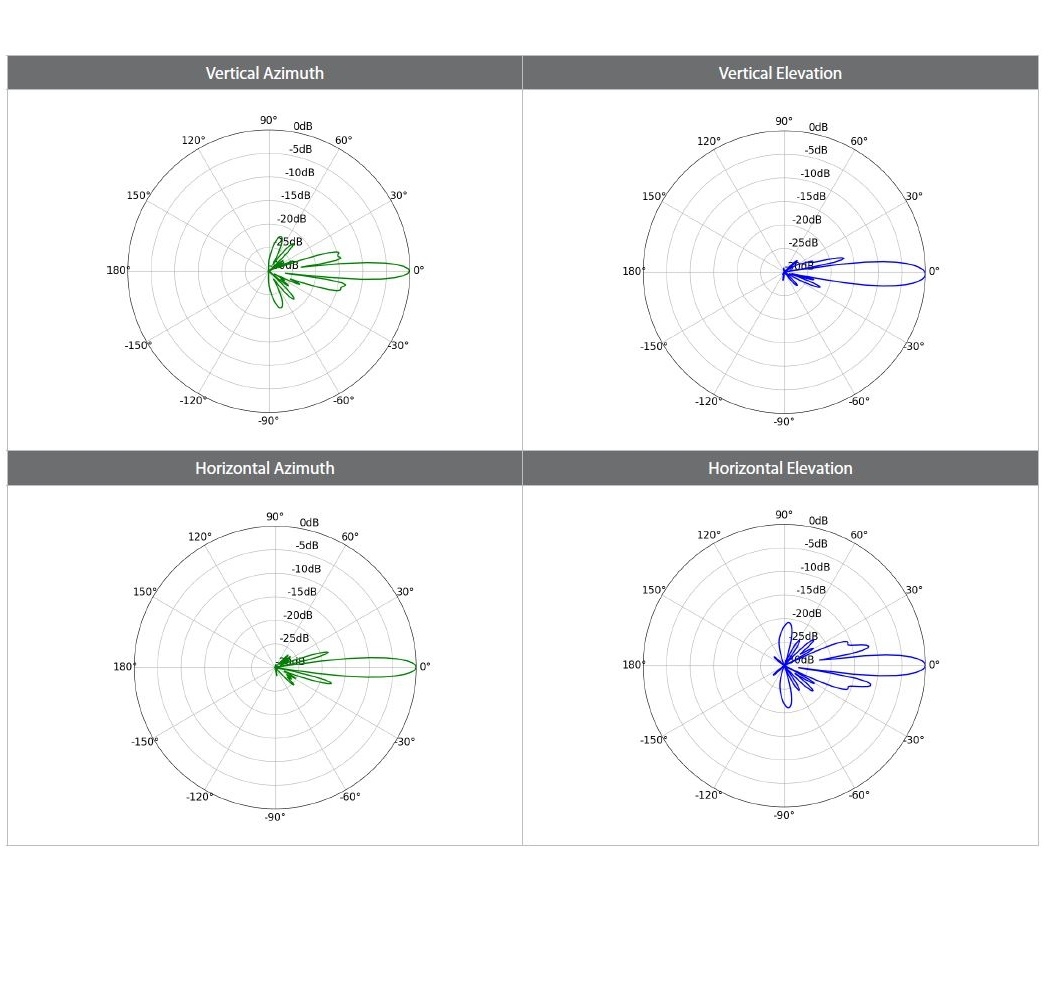

| Gain | 26 dBi |

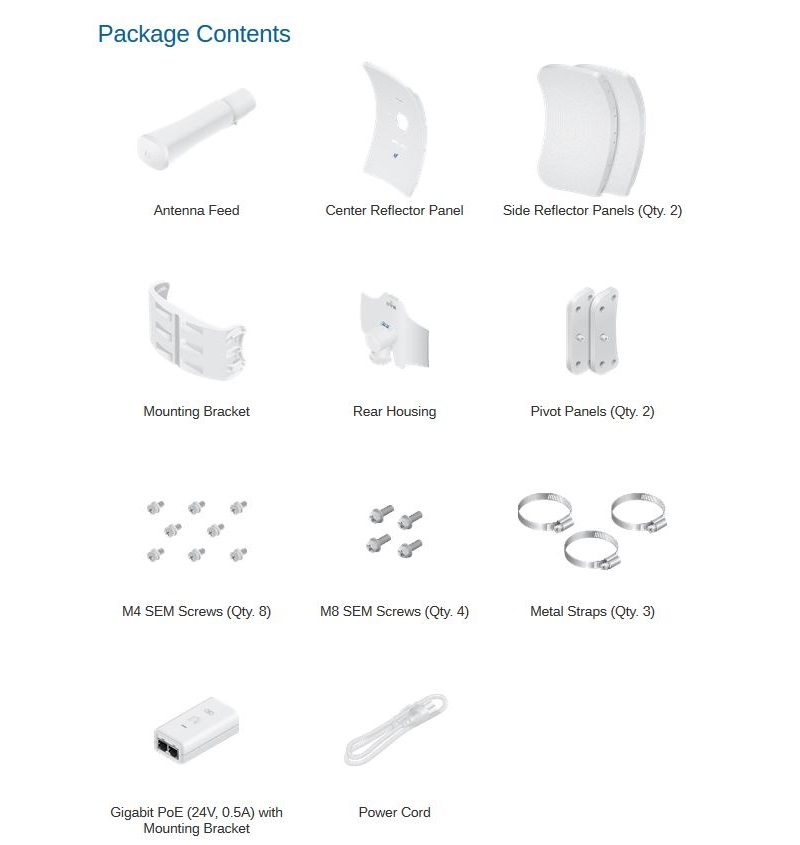

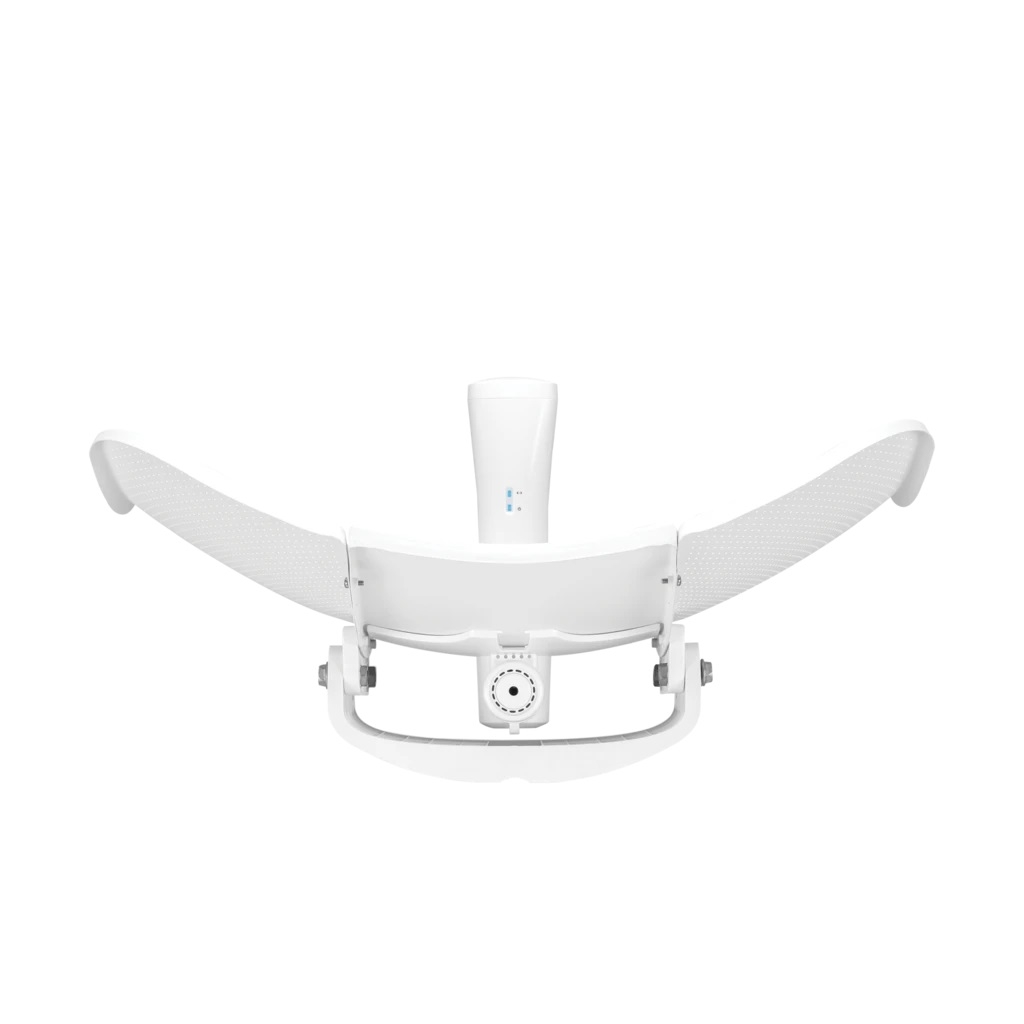

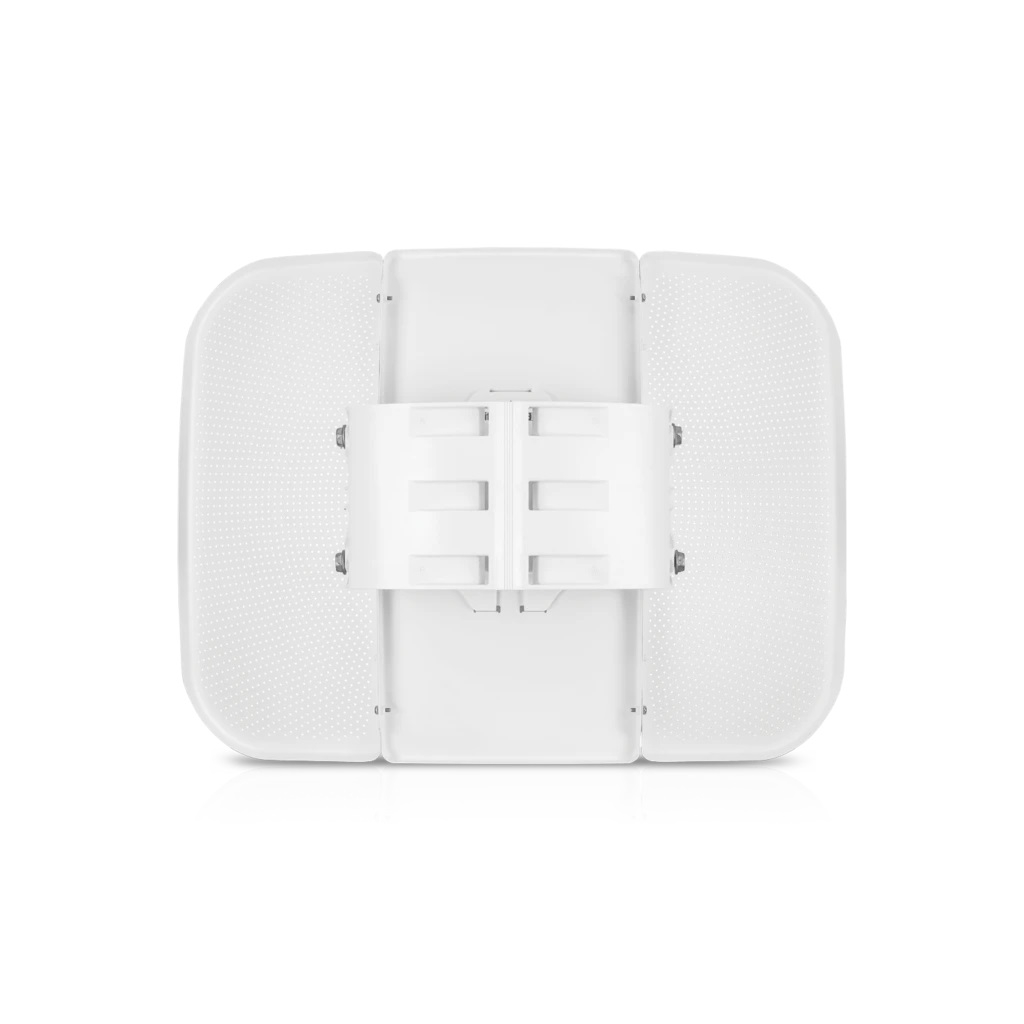

| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 550 N @ 200 km/h (123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
