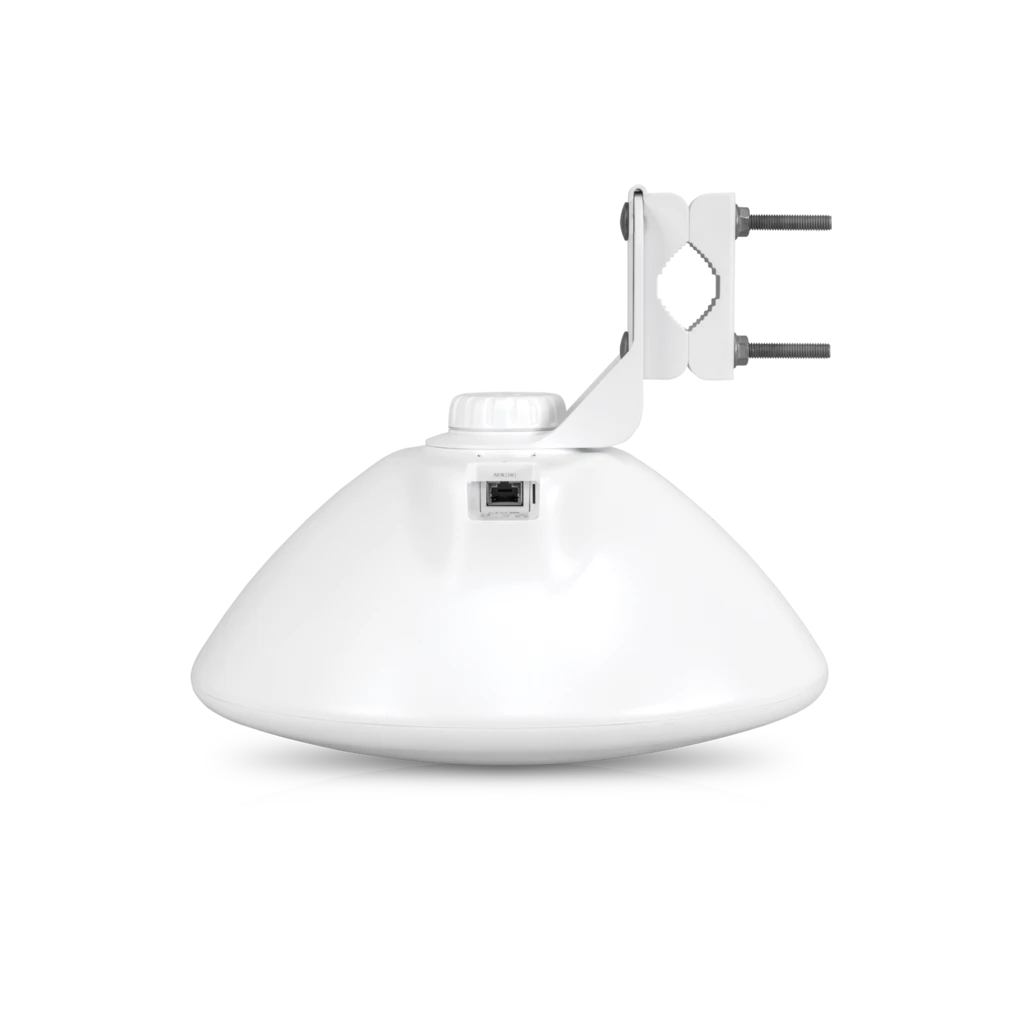

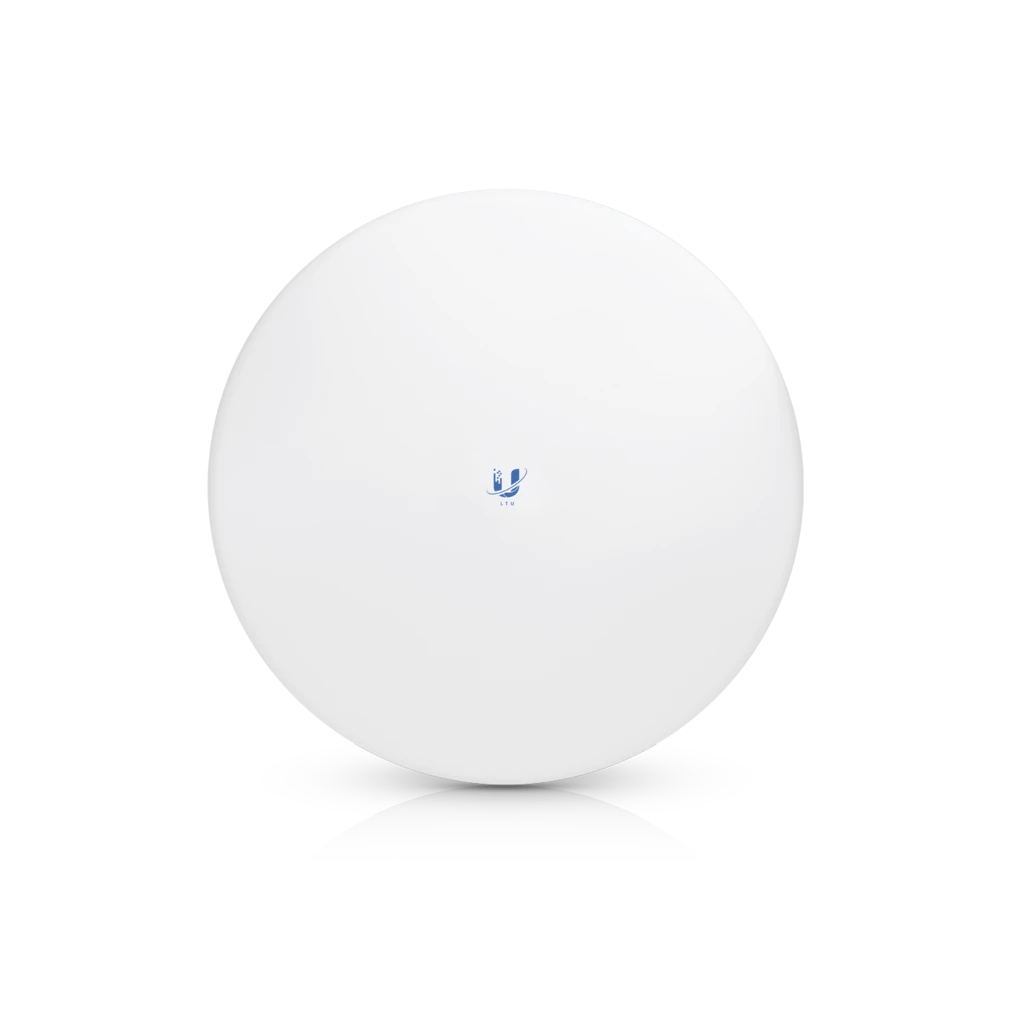

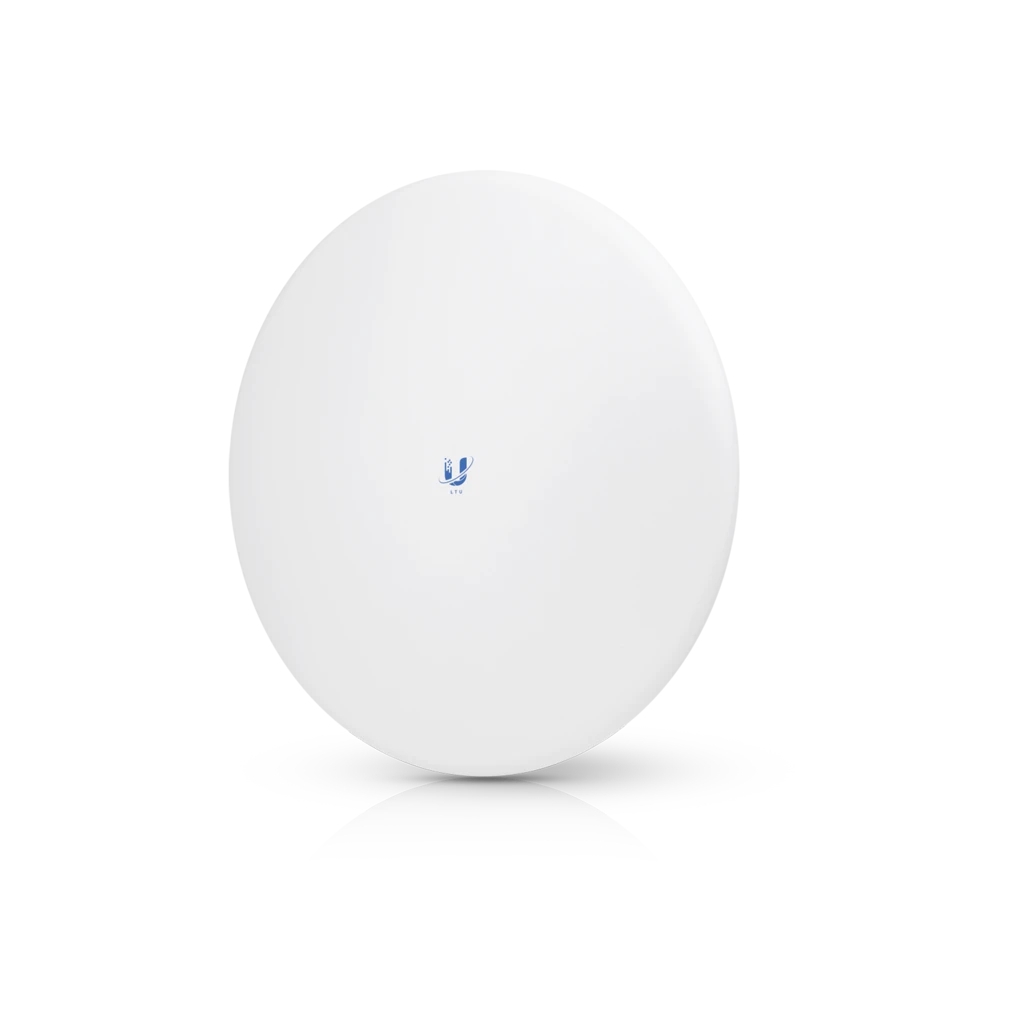

UBIQUITI 5 GHz PtMP LTU Client Radio with Advanced RF Performance (LTU-PRO)

MPN: LTU-PRO
Order code: LTU-PRO
Quick code: #2119

1x Gigabit PoE in LAN Port | Proprietary Ubiquiti ® LTU Processor | Integrated 24 dBi Dish Antenna | 10/20/30/40/50 MHz Channel Width Flexibility | Integrated GPS | Range up to 25 km

Price exc. VAT: Price inc. VAT: For orders (total sum):
138.37£ 166.04£ >0£
137.17£ 164.60£ >300£
134.79£ 161.75£ >1000£
Qty:


Features:

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:

  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Automatic power adjustments
  • Router mode support

Functions in a PtMP environment with the LTU-Rocket as the basestation

Auto Power Adjustments
By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.


Signal Control
The LTU Pro's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.


Convenient Configuration
To manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro. Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro.


Integrated GPS
Built‑in GPS improves synchronization and allows map and Fresnel
views on the Dashboard.

Specification:

Dimensions 316.5 x 316.5 x 174.3 mm
(12.46 x 12.46 x 6.86")
Weight 1.3 kg
(2.87 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 9W

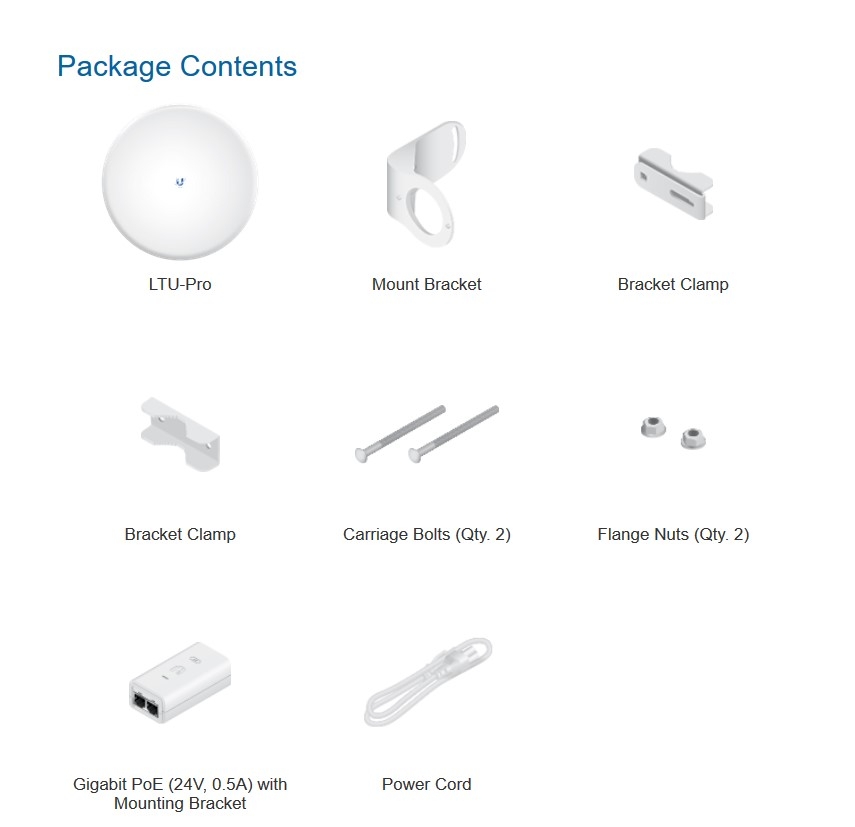

Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 -26V
Max. Conducted TX Power 22 dBm (per Chain)
Gain 24 dBi
Beamwidth 14°
Sidelobe Level -10 dB
Front-to-Back Ratio 27 dB

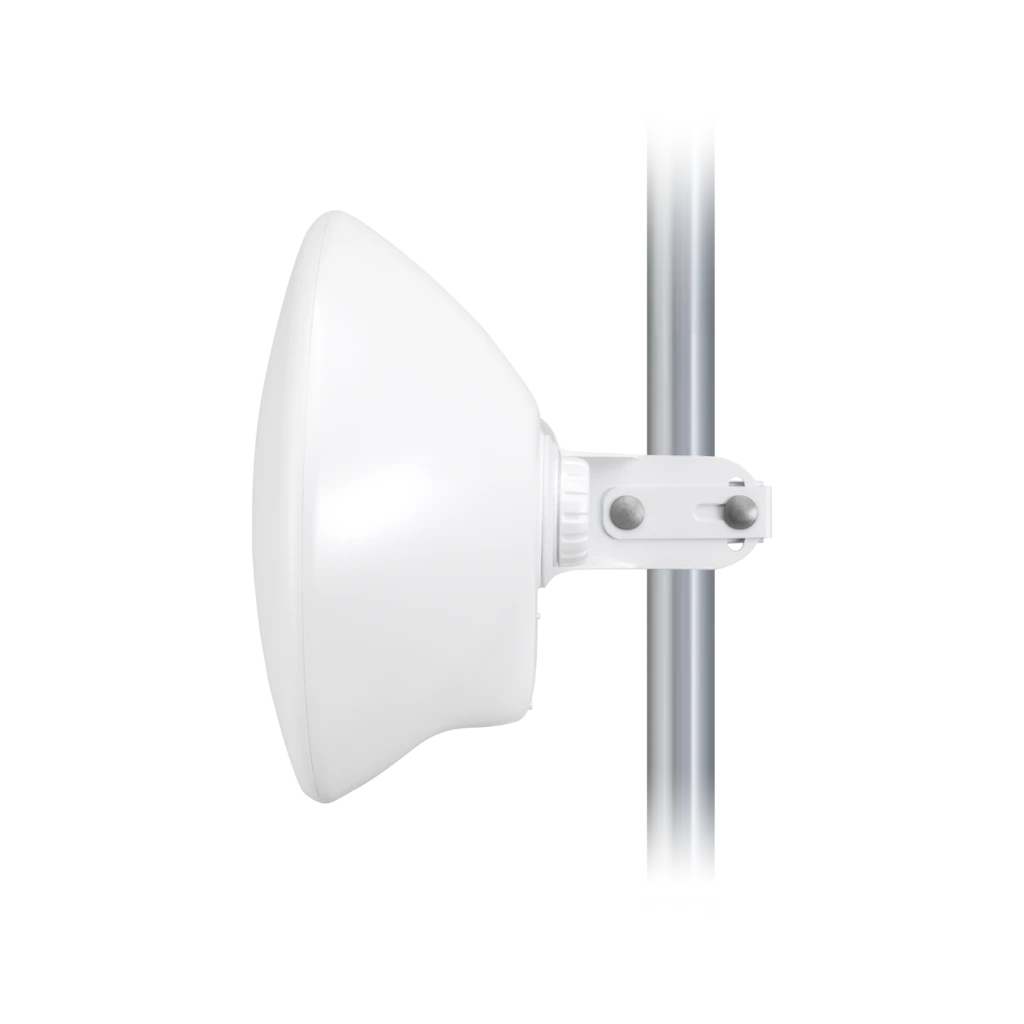

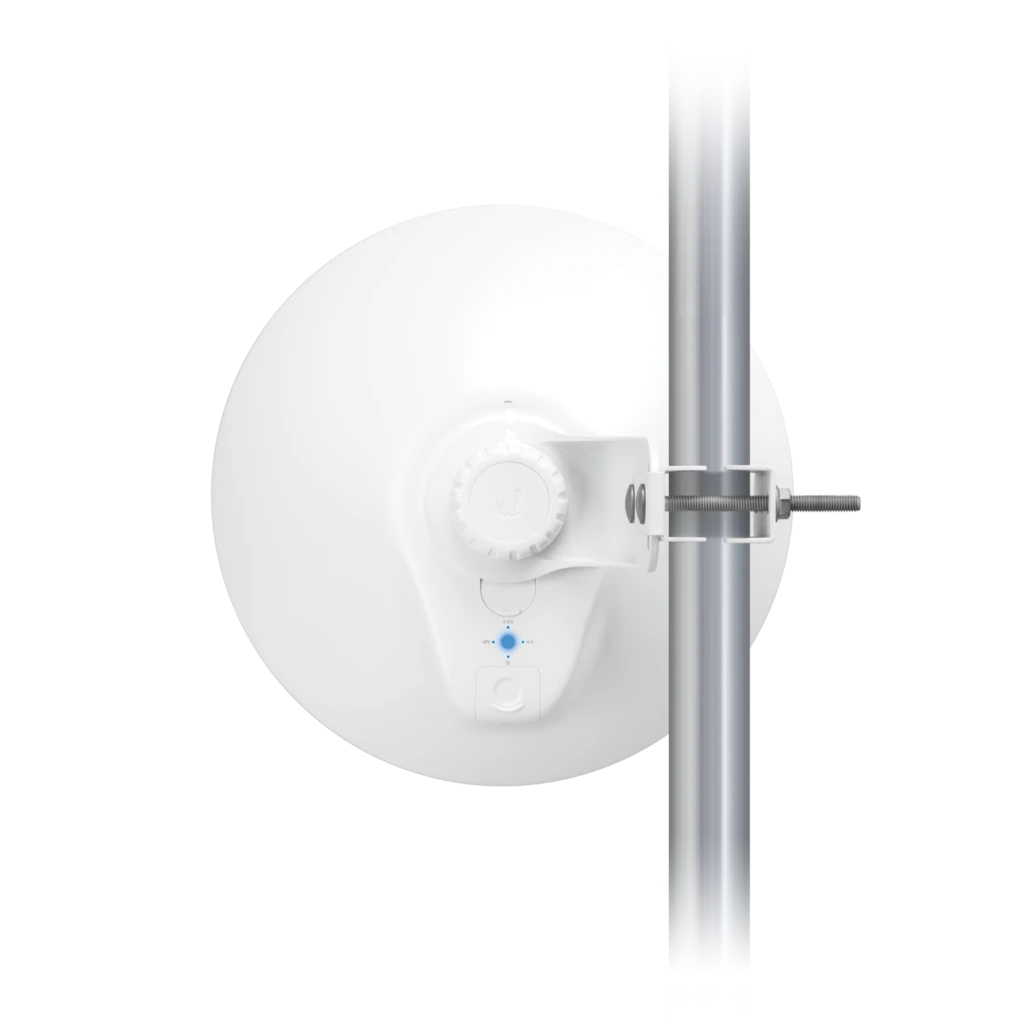

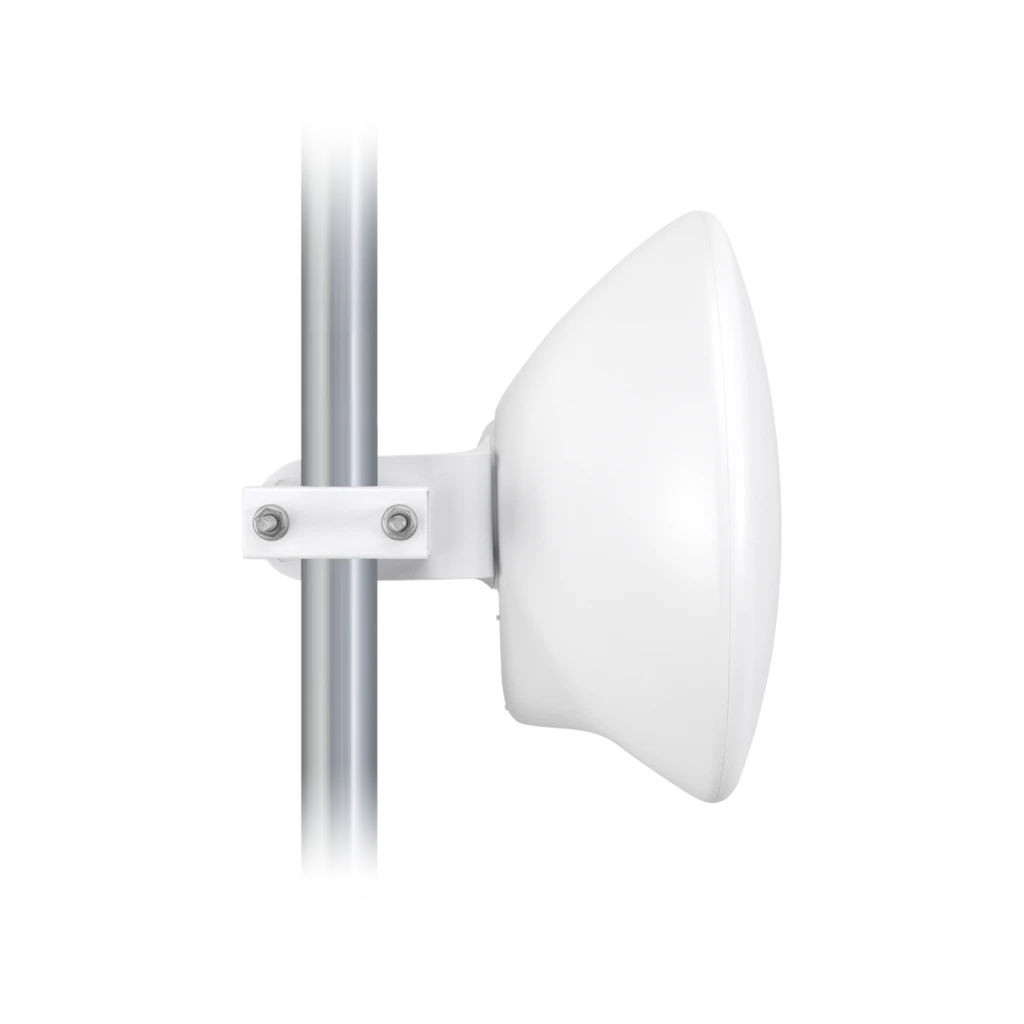

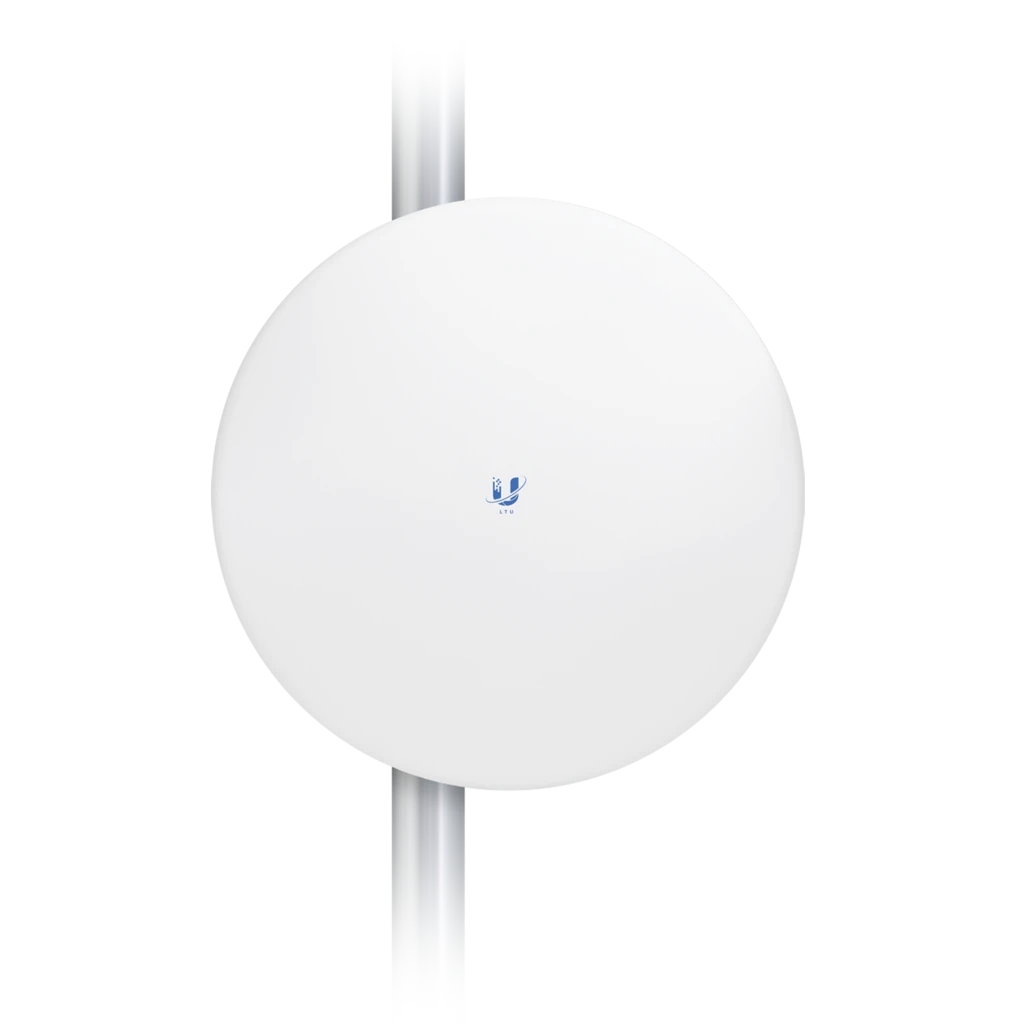

Mounting Pole-Mount (Kit Included)
Wind Loading 150 N @ 200 km/h
(33.72 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -5 to 40° C
(23 to 104° F)
Operating Humidity 10 -90% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 2400 -2483.5*
4800 -6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 -5250
5250 -5350
5470 -5725
5725 -5850
EU 2400 -2483.5
5150 -5875
