UBIQUITI 5 GHz PtMP LTU™ Client Radio, LTU Lite (LTU-Lite)

MPN: LTU-Lite
Order code: LTU-Lite
Quick code: #2310

1x Gigabit PoE in LAN Port | Proprietary Ubiquiti ® LTU Processor | Integrated 13 dBi Antenna | 10/20/30/40/50 MHz Channel Width Flexibility | Range up to 10 km

Price exc. VAT: Price inc. VAT: For orders (total sum):
73.26£ 87.91£ >0£
72.59£ 87.11£ >300£
71.92£ 86.30£ >1000£
Qty:


Features:

Featuring an integrated antenna, the LTU Lite is a compact, cost-effective subscriber station utilizing the 5 GHz radio band. It functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

Proprietary LTU Technology
Based on Ubiquiti’s LTU technology, the LTU Lite is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps (1+ Gbps with future firmware upgrade) of real TCP/IP throughput and modulation rates of up to 4096QAM (Available with future firmware upgrade).

CPE Modes
The LTU Lite supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

Frequency Split
The LTU Lite can use different frequencies for TX and RX to avoid interference.

Convenient Mount Options
The LTU Lite is designed for quick yet reliable mounting on a pole or on a wall. All necessary mounting hardware is include.

Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include:
• 10 MHz
• 20 MHz
• 30 Mhz
• 40 MHz
• 50 MHz
• Up to 100 MHz (Available with future firmware upgrade)

Auto Power Adjustments
By default, the Auto Output Power option allows the LTU Lite to set the output power (EIRP) to the appropriate level.

Signal Control
The LTU Lite's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.

Convenient Configuration
To manage the LTU Lite, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Lite.
Within the LTU Configuration Interface, you can manually configure the LTU Lite or manage it from the AP side using the Find My AP feature. The LTU Lite will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Lite.


Specification:

Dimensions

153 x 84 x 39.5 mm
(6.02 x 3.31 x 1.56")

Weight

250 g (8.82 oz)

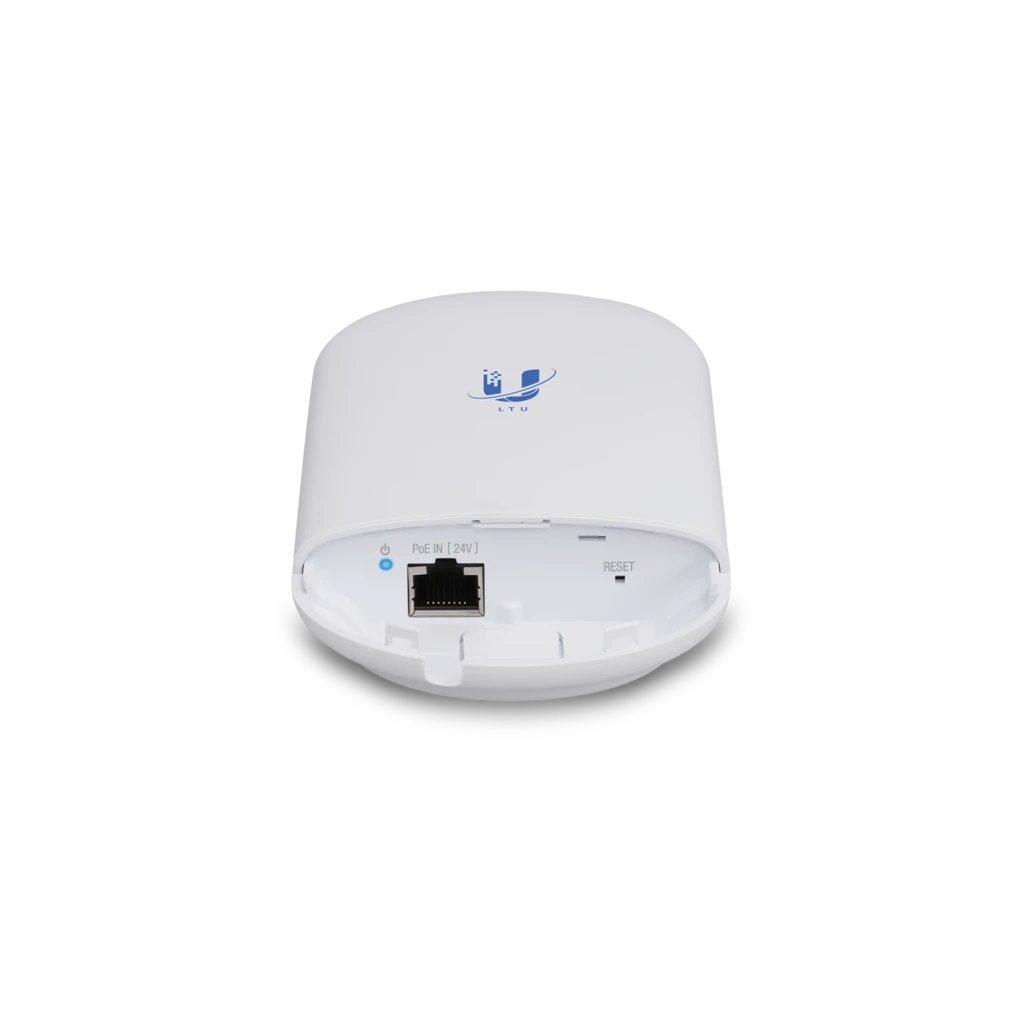

Networking Interface

(1) 10/100/1000 Ethernet Port

Enclosure

Outdoor UV Stabilized Plastic

Max. Power Consumption

8.5W

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

Power Method

Passive PoE 2-Pair (Pairs 4, 5+; 7, 8-)

Supported Voltage Range

22 - 26V

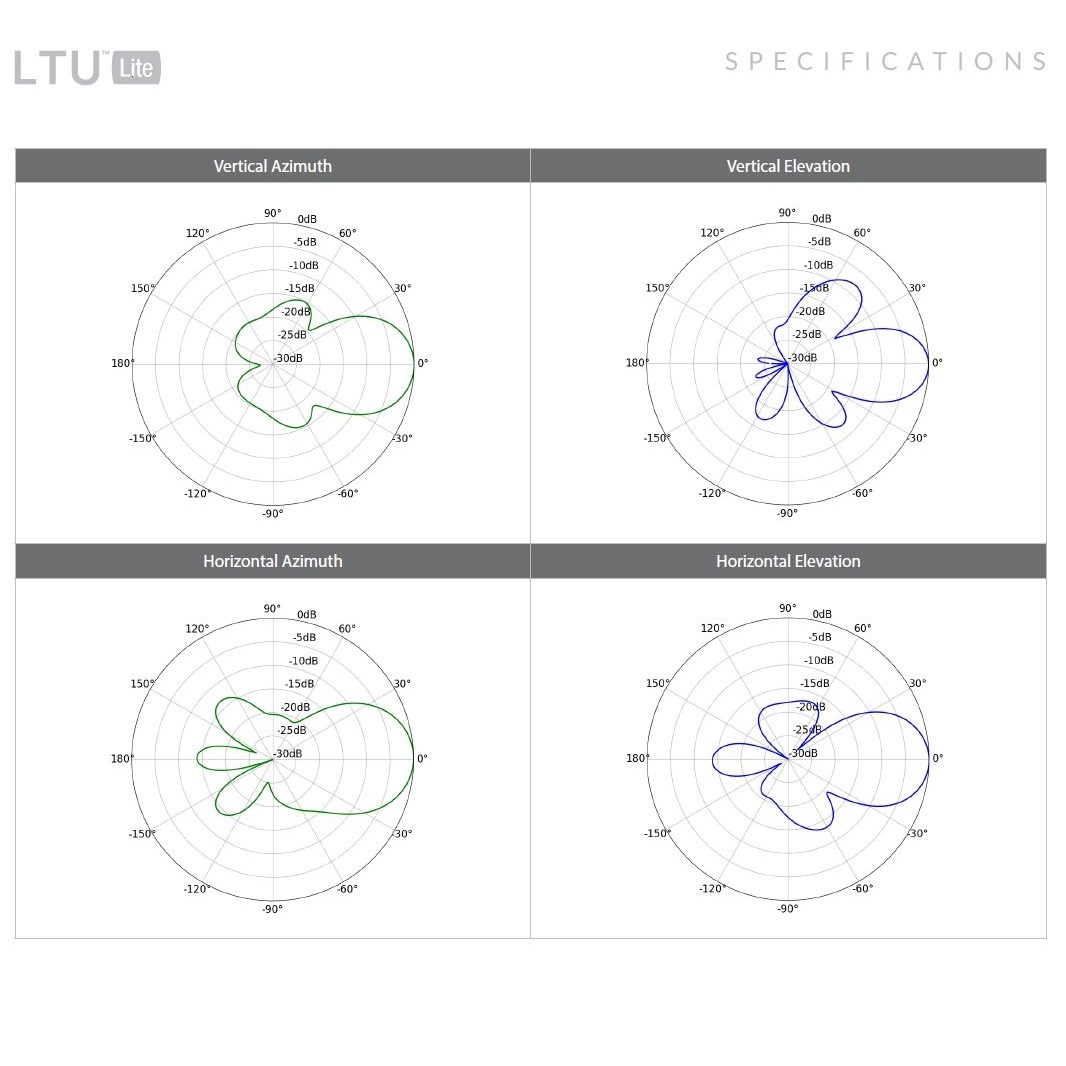

Gain

13 dBi

Mounting

Pole Mount

Wall Mount (Kit Included)

Wind Survivability

200 km/h (125 mph)

Wind Loading

20 N @ 200 km/h
(4.5 lbf @ 125 mph)

ESD/EMP Protection

± 24kV Contact / Air

Operating Temperature

-40 to 60° C (-40 to 140° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Operating Frequency (MHz)

Worldwide

4800 - 6200*

US/CA

U-NII-1

5150 - 5250

U-NII-2A

5250 - 5350

U-NII-2C

5470 - 5725

U-NII-3

5725 - 5850



Bluetooth LE Management Radio (MHz)

Worldwide

2400 - 2483.5
