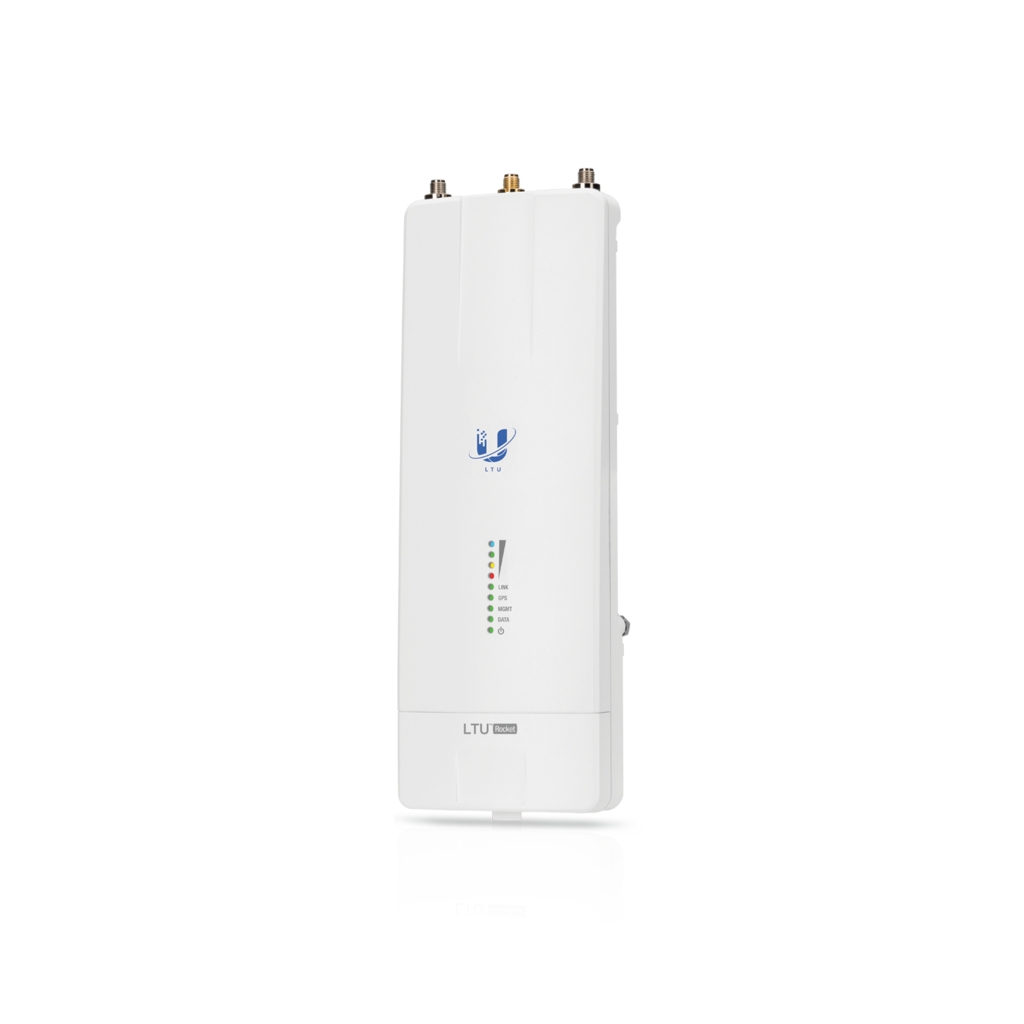

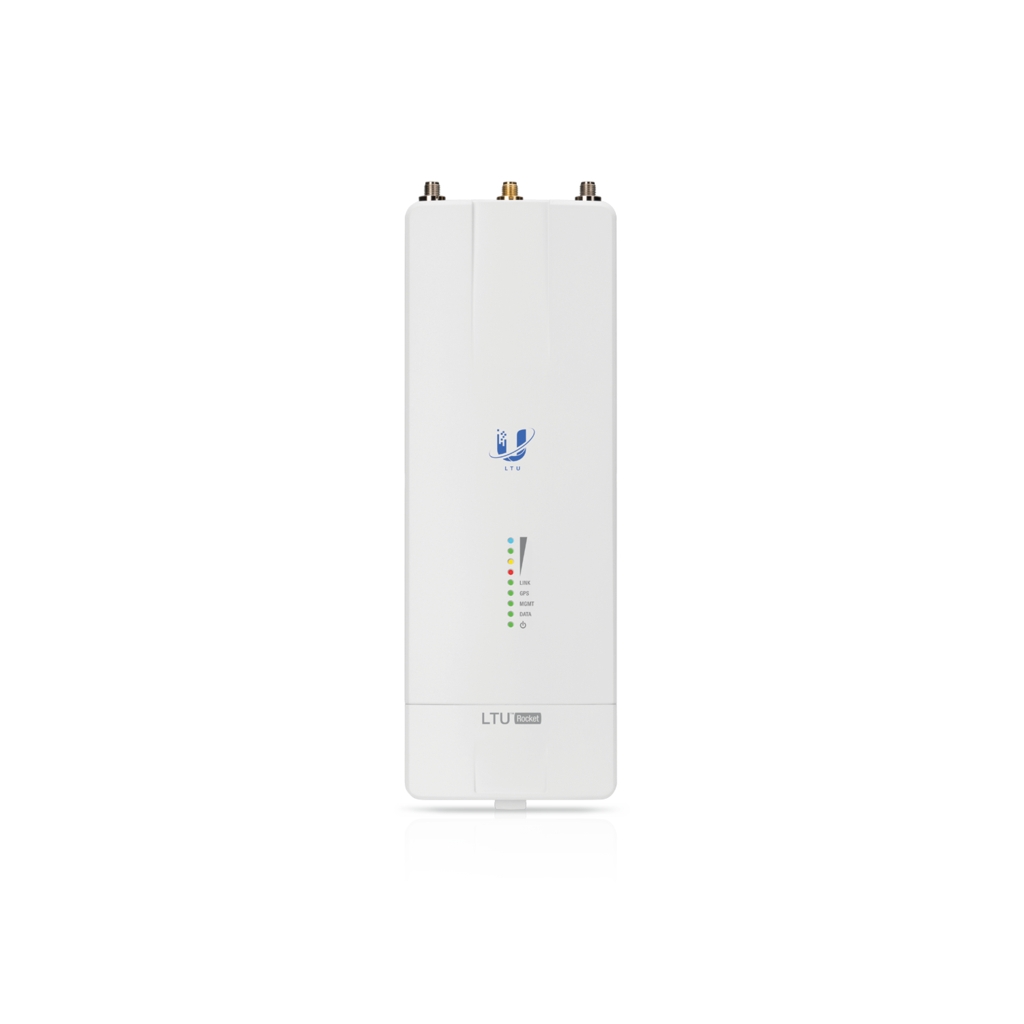

UBIQUITI 5 GHz PtMP LTU BaseStation Radio (LTU-Rocket)

Order code: LTU-Rocket
Quick code: #2118

600+ Mbps Point-to-MultiPoint Performance | Up to 64 Client Connections per AP | Up to 2+ Mpps Performance | 2x RP-SMA Weatherproof (CH0, CH1), 1x SMA Weatherproof (GPS) connectors | 1x 10/100/1000 Ethernet Port | GPS Sync

Price exc. VAT: Price inc. VAT: For orders (total sum):
294.68£ 353.62£ >0£
291.98£ 350.38£ >300£
289.28£ 347.14£ >1000£
Qty:


Features:

Ubiquiti introduces the LTU Rocket®, the first Point-to-Multi-Point (PtMP) BaseStation radio in our LTU ™ product family. Operating in the 5 GHz frequency band, the LTU Rocket is a spectrally efficient, noise-resilient PtMP AP specifically designed for wireless ISPs (WISPs). Primary features of the LTU Rocket include:
• 600+ Mbps PtMP performance
• Up to 64 client connections per AP
• 2+ Million pps
• Proprietary RF filtering

Superior Performance
LTU is a new, proprietary technology withcustom silicon and radio design that break through the limitations of 802.11 Wi-Fi technology. This enables LTU to deliver far superior performance over previous airMAX products that are based on 802.11 Wi-Fi. The LTU Rocket is designed for WISPs from the ground floor up. Its core communications processing engine enables low latency, long-range capability, DFS flexibility, highe constellations, better power output, and improved receive sensitivity.

Seamless Compatibility
The LTU Rocket is designed to be paired with a variety of Ubiquiti antennas to suit the needs of each installation. The radio includes a mounting bracket that allows it to be used with a 5 GHz airMAX® Sector antenna or airMAX Omni antenna for a complete 5 GHz PtMP BaseStation. You can even pair three LTU Rocket radios with the airPrism® 5 GHz 3x30° HD Sector Antenna for co-location deployments. The LTU Rocket also works with any CPE device in the LTU family, such as the LTU-Pro.

Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel
frequency configurations anywhere within the radio band to avoid
local interference. Channel width options include:
• 10 MHz
• 20 MHz
• 30 MHz
• 40 MHz
• 50 MHz
• Up to 100 MHz*


Auto Power Adjustments
By default, the Auto Output Power* option allows the LTU Rocket toset the output power (EIRP) to the appropriate level.

Frequency Split
The LTU Rocket can use different frequencies for TX and RX to avoidinterference.

Signal Control
The LTU Rocket's target TX output power controls each station's TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.

Convenient Configuration

To manage the LTU Rocket, you have two options: the LTU
Configuration Interface and Ubiquiti Network Management System
(UNMS™). Either option lets you manually configure the LTU Rocket.

The LTU Rocket can also be used to automatically configure the
stations. On each station, use the Find My AP feature to scan for
APs using the same channel bandwidth, select the appropriate
LTU Rocket, and then use it to configure the station.

Integrated GPS
Built-in GPS improves synchronization and allows map and Fresnelviews on the Dashboard.

Specification:

LTU-Rocket
Dimensions 244 x 82 x 48 mm
(9.61 x 3.23 x 1.89")
Weight 0.468 kg
(16.5 oz)
Enclosure Diecast Aluminum and Polycarbonate

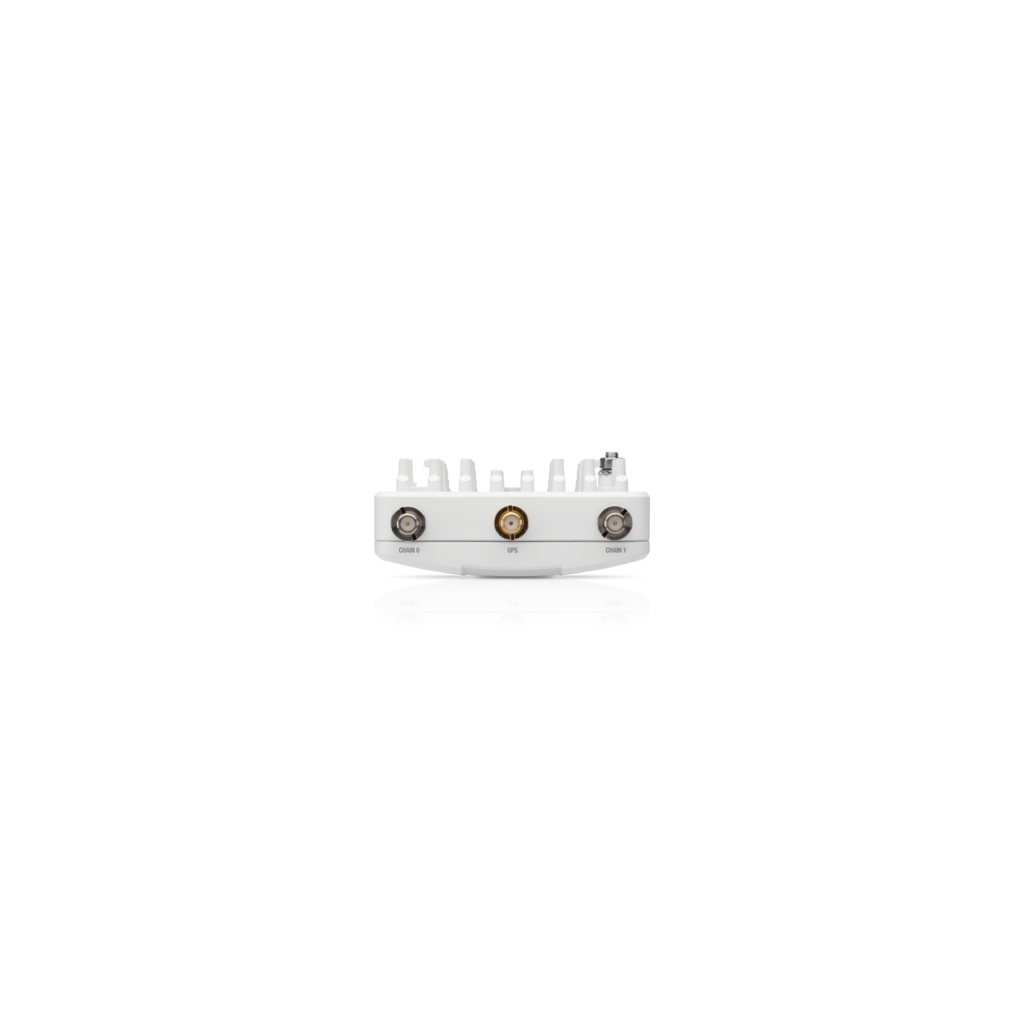

RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Proprietary 4-Pair Passive PoE
Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-
Max. Power Consumption 15W
Voltage Range +18 to +54VDC*

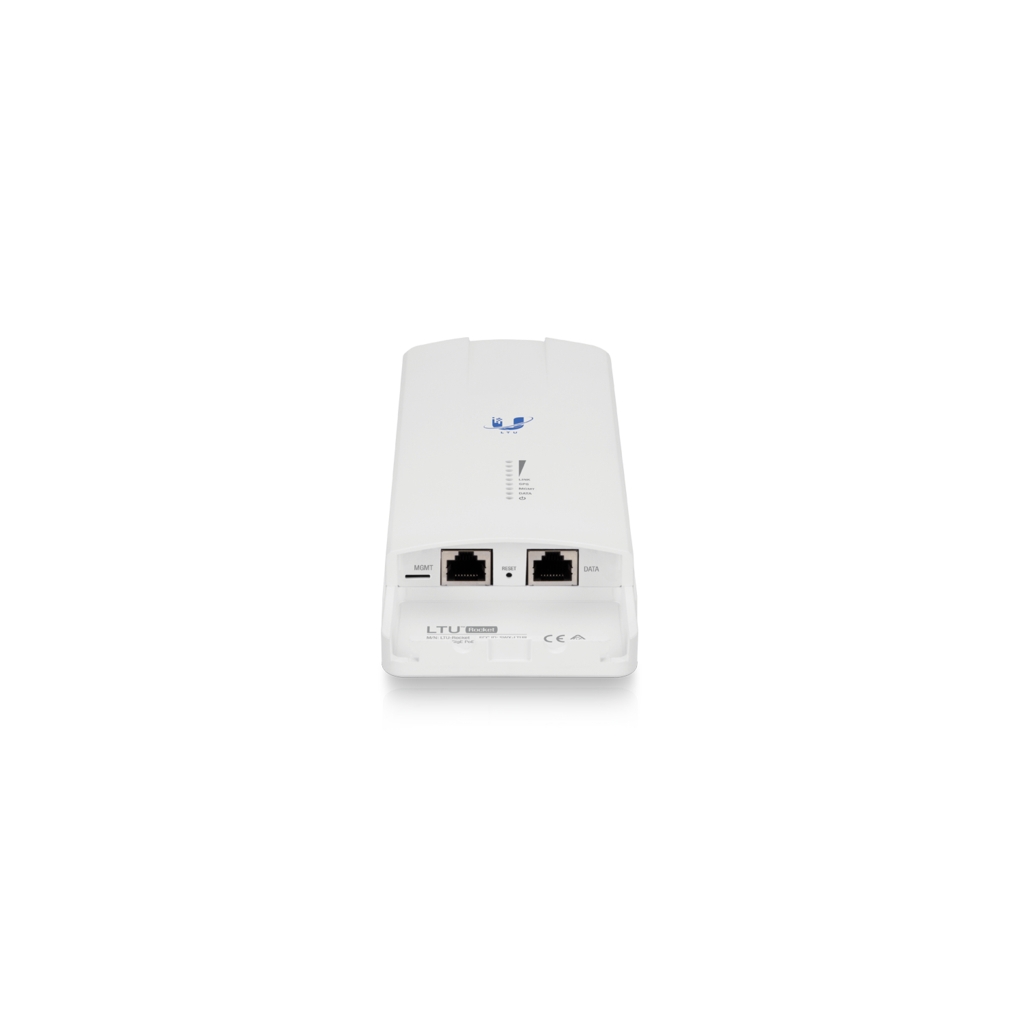

Networking Interface (1) 10/100/1000 Ethernet Port
Mounting Integrated Pole Mount (Included)
Rocket Mount Compatible
GPS Pole Mount (Included)
Operating Temperature -40 to 55° C
(-40 to 131° F)
Weatherproofing IP672**
Certifications FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
System
Maximum Throughput 675.84 Mbps ***, ****
Maximum Range 100+ km***
Packets per Second 2+ Million
Encryption WPA2-PSK (AES)
Forward Error Correction LDPC
Uplink/Downlink Ratio 25/75, 33/67, 50/50
OS airOS LTU
Wireless Modes AP
Frequency Range MHz
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
EU 5150 - 5875
Worldwide 4900 - 6200
Max. Conducted TX Power 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy < 2 ppm
Channel Bandwidth 10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles


* Full range depends on Ethernet cable length.
** After installation of IP67 upgrade kit (included).
*** Values may vary depending on the environmental conditions.
**** 1+ Gbps with future firmware upgrade.
