UBIQUITI 5 GHz airMAX® AC Long-Range CPE with InnerFeed® Technology (LBE-5AC-LR)

Order code: LBE-5AC-LR
Quick code: #1774

High-Gain, Directionl, 2x2 MIMO antenna, 26dBi gain, 1x Gigabit LAN, Throughput: 450+ Mbps

Price exc. VAT: Price inc. VAT: For orders (total sum):
77.60£ 93.12£ >0£
76.93£ 92.32£ >300£
75.59£ 90.71£ >1000£


Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management.

Improved Noise Immunity

The LiteBeam 5AC Gen 2 directsRF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost‑effective to deploy.

The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges. There are two models available:
LBE-5AC-Gen2. This model  features a robust mount with separate azimuth and elevation adjustments.
LBE-5AC-LR. Designed for long-range applications, the LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).



Dimensions: 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")

   Without Mount - 1.360 kg (2.998 lb)
   With Mount - 1.735 kg (3.825 lb)

Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V ± 10%
Gain: 26 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
LEDs: Power, Ethernet

Channel Sizes:
   PtP Mode - 10/20/30/40/50/60/80 MHz
   PtMP Mode - 10/20/30/40 MHz

Enclosure Characteristics: Reflector (Aluminum) / Plastic: PC

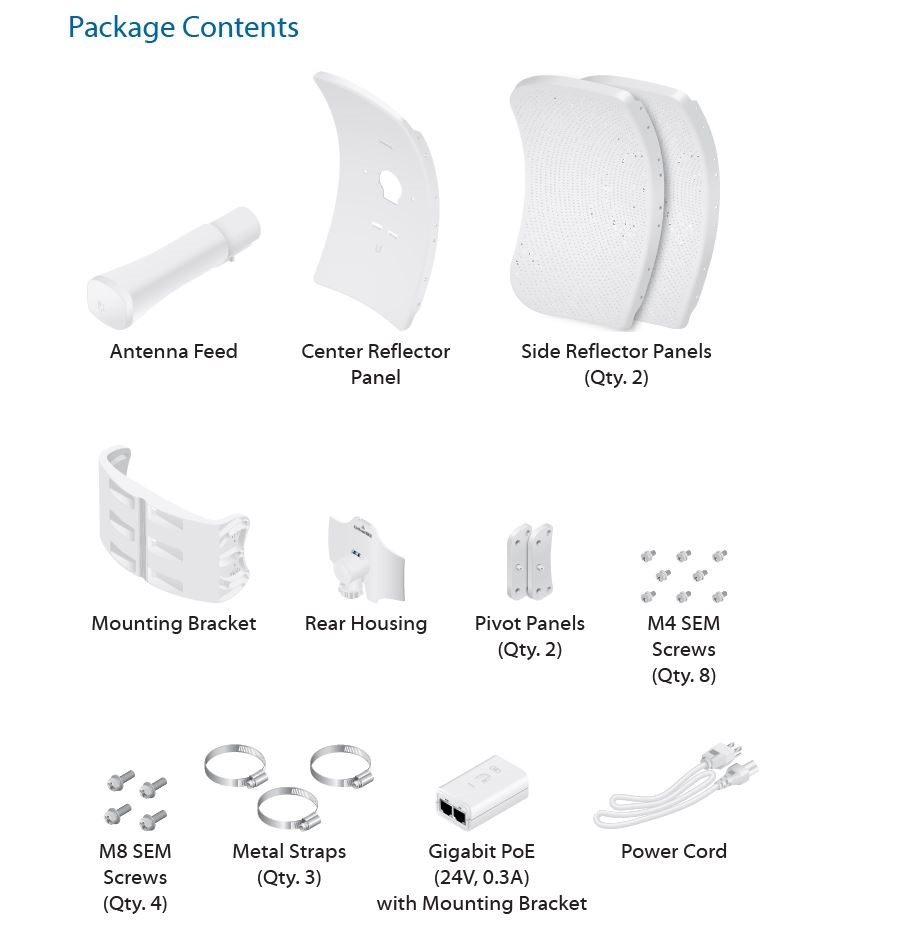

Mounting: Pole-Mounting Kit (Included)
Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: ± 24 kV Contact / Air
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz): 5150 - 5875

Management Radio (MHz): 2412 - 2472
