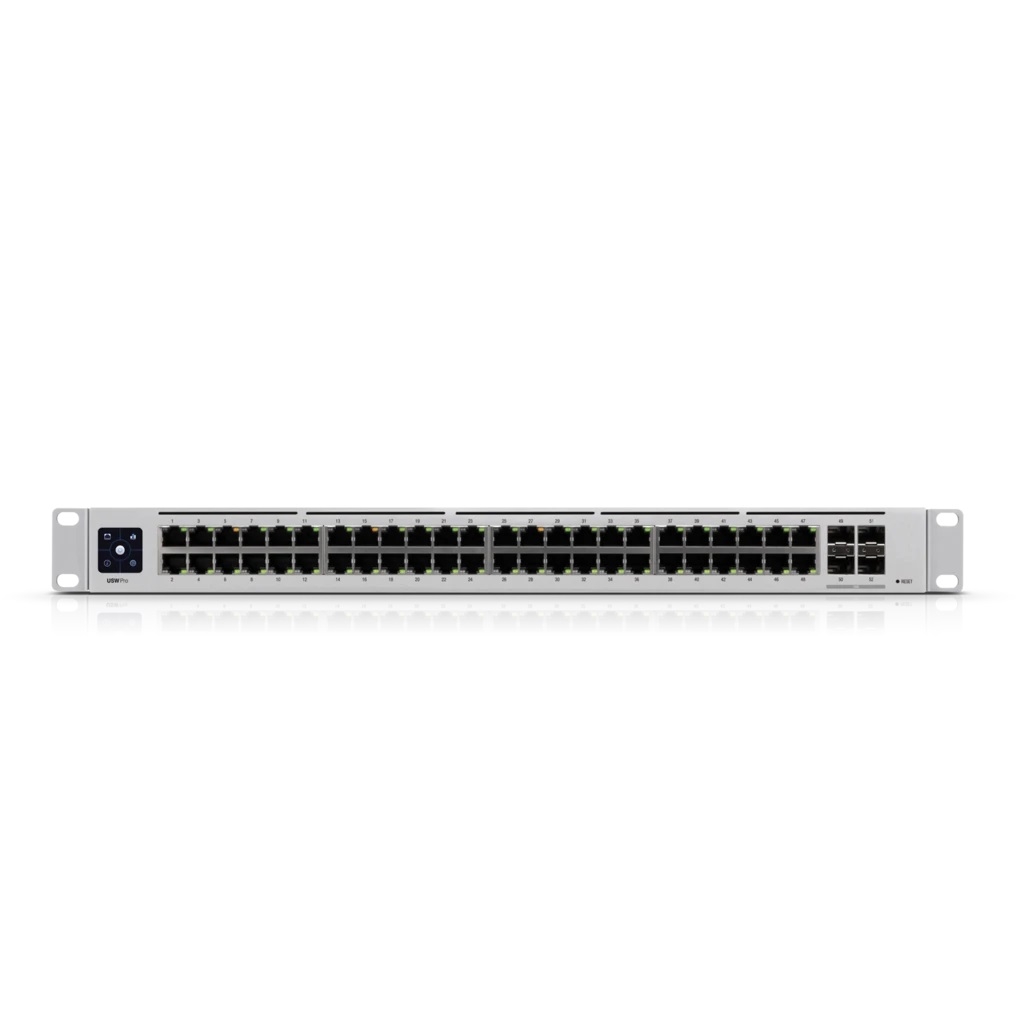

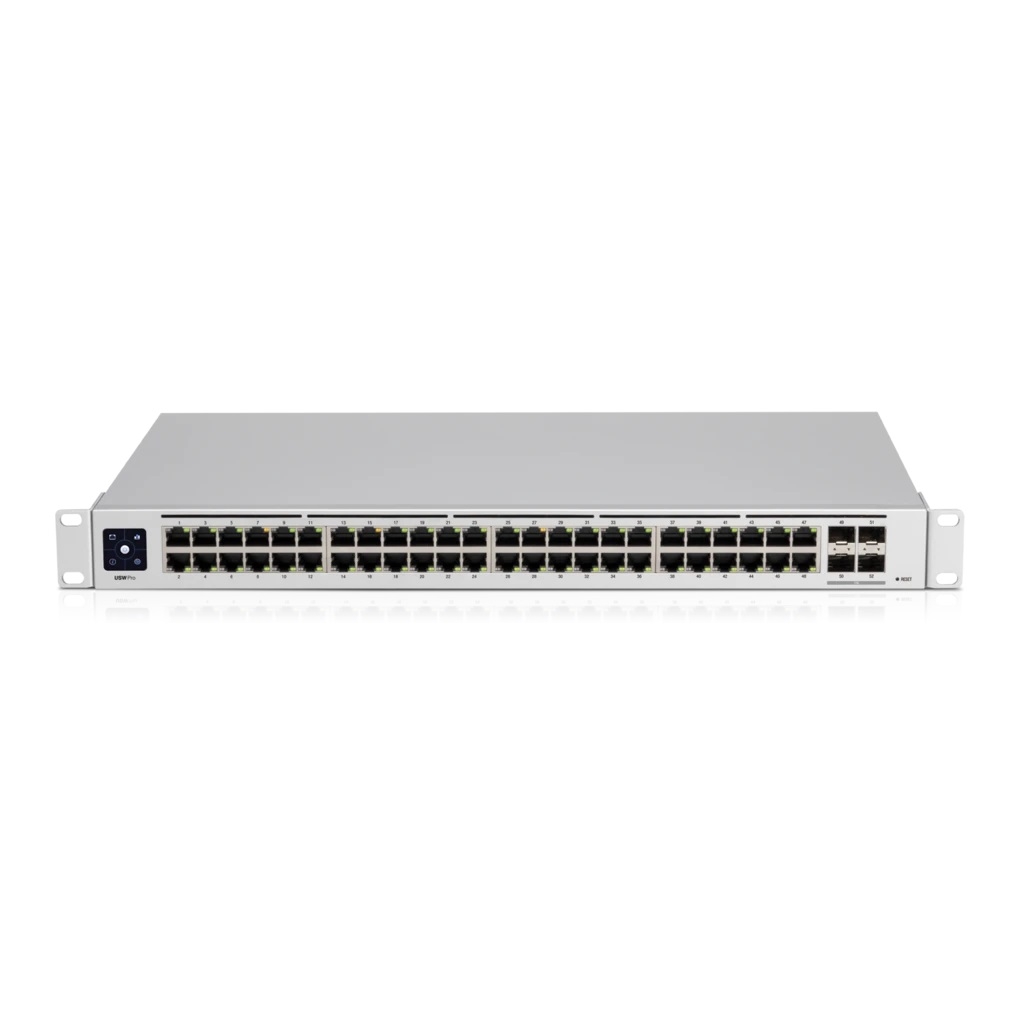

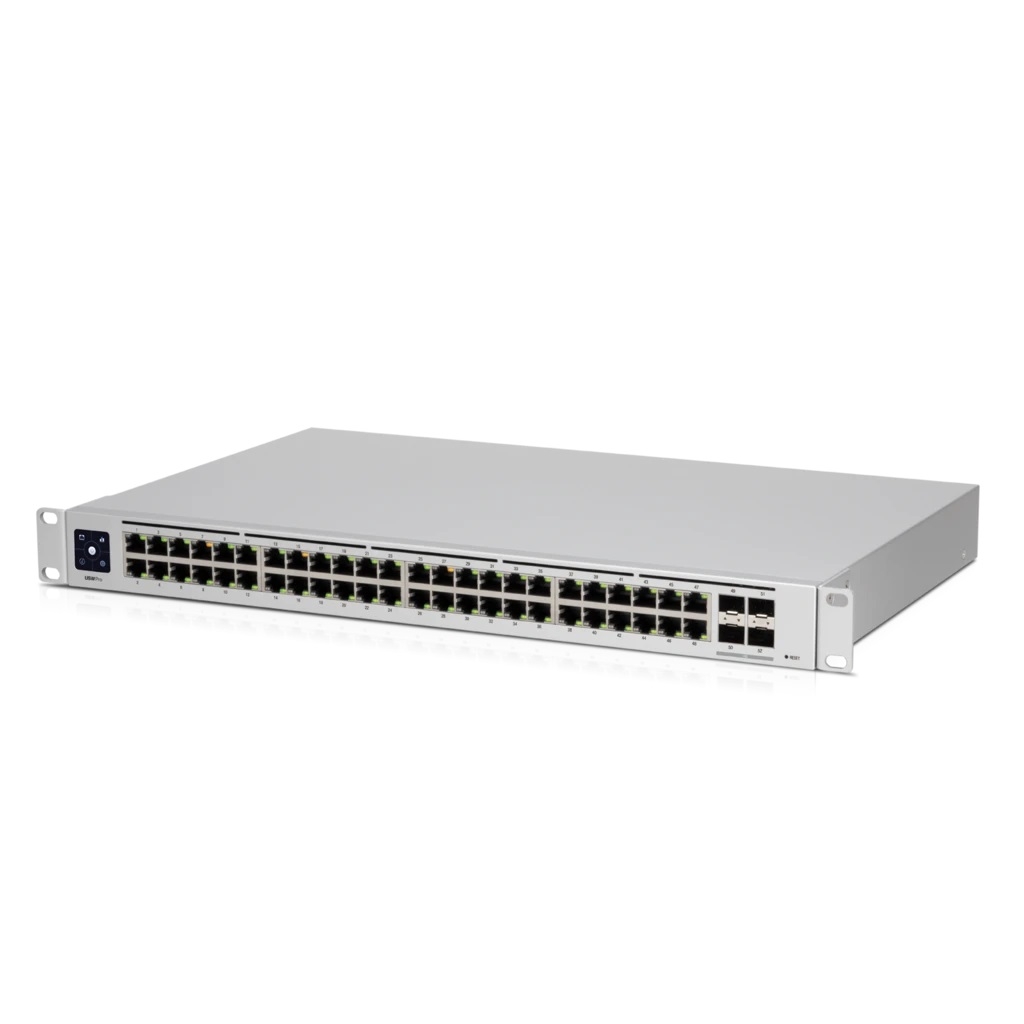

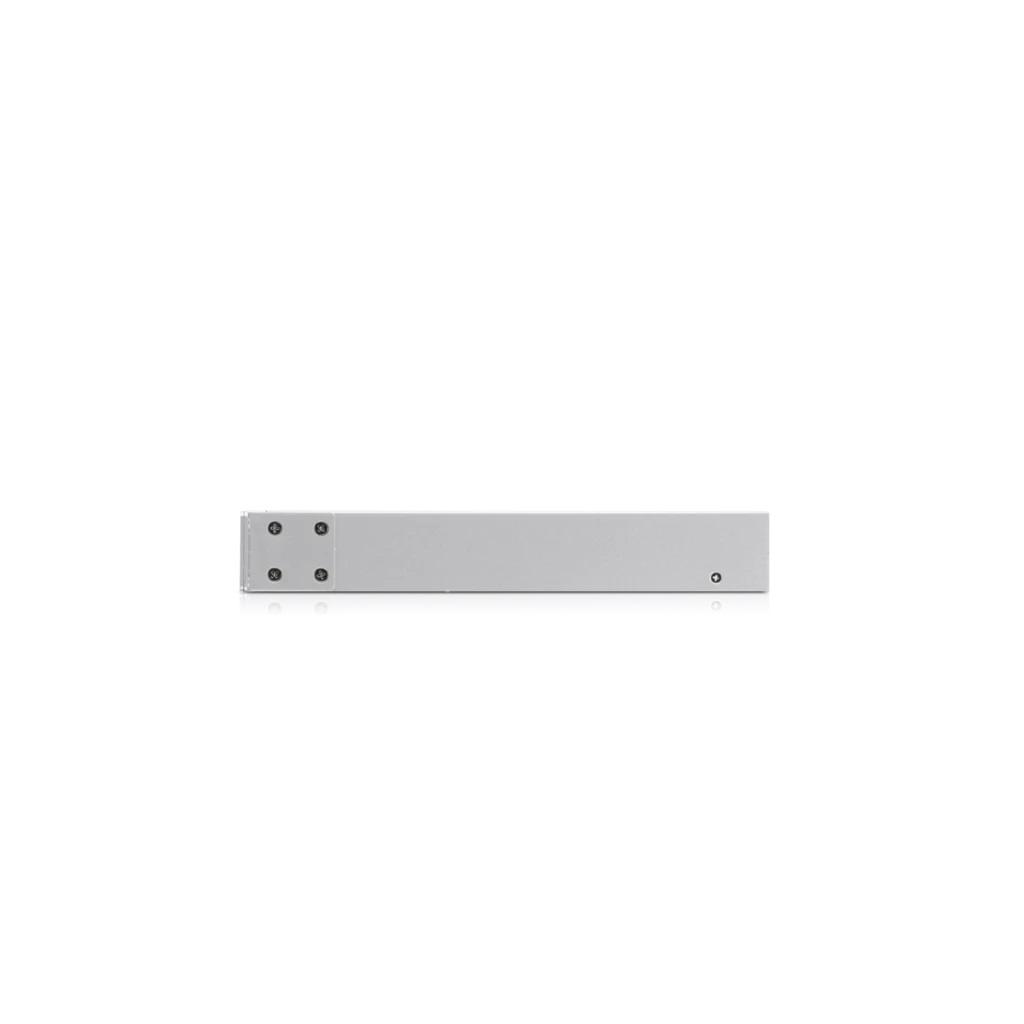

UBIQUITI UniFi 48 Ports Gigabit Switch Pro Gen2 (USW-Pro-48)

MPN: USW-Pro-48
Order code: USW-Pro-48
Quick code: #3063

48x Gigabit RJ45 ports | 4x SFP+ ports | Layer 3 Support | 1.3" Color Touchscreen Display

Price exc. VAT: Price inc. VAT: For orders (total sum):
460.12£ 552.14£ >0£
455.90£ 547.08£ >300£
451.67£ 542.00£ >1000£
Qty:


Features:

Overview
Expand and power your network with the UniFi® Pro Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
   • USW-Pro-24 24 RJ45 ports with 2 SFP+ ports
   • USW-Pro-48 48 RJ45 ports with 4 SFP+ ports

Fanless, Silent Cooling
The passive cooling design allows the UniFi Pro Switch to be located in any workspace.

Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro Switch offers Layer 3 capabilities, such as inter‑VLAN routing, static routing, and DHCP server functionality.

Switching Performance
The UniFi Pro Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Power Supply Redundancy
The UniFi Pro Switch supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup.

Features:

  • (48) Gigabit RJ45 ports
  • (4) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller

Specification:

Dimensions 442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
With Brackets
4.00 kg (8.82 lb)
4.09 kg (9.02 lb)
Interfaces
Networking
Management

(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method
Universal Input
USP RPS DC Input

100-240VAC, 50/60 Hz
11.5VDC, 5.22A
Power Supply AC/DC, Internal, 60W
Voltage Range 100 to 240VAC
Max Power Consumption 60W
LEDs
RJ45 Data Ports
SFP+ Data Ports

Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
