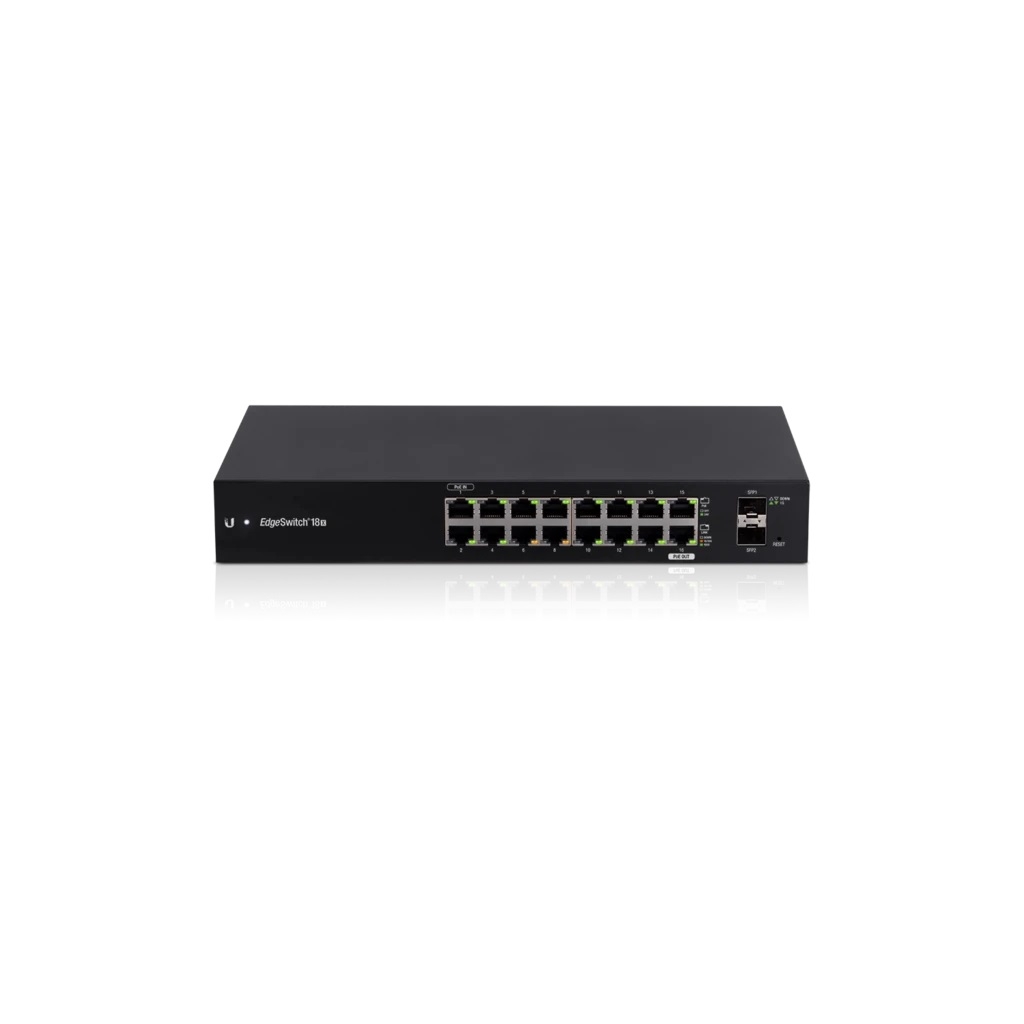

UBIQUITI 18-Port (2 SFP) Managed Switch EdgeSwitch 18X (ES-18X)

MPN: ES-18X
Order code: ES-18X
Quick code: #2439

16x Gigabit LAN Ports | 2x SFP Ports | Supports PoE Input on Port 1 (Software-selectable PoE Passthrough on Port 16) | Non-Blocking 18 Gbps Throughput | Metal casing

Price exc. VAT: Price inc. VAT: For orders (total sum):
131.06£ 157.27£ >0£
129.86£ 155.83£ >300£
128.66£ 154.39£ >1000£
Qty:


Features:

Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the Ubiquiti® Network Management System (UNMS™).

  • (16) Gigabit RJ45 ports
  • (2) SFP ports
  • Supports PoE passthrough on port 16 (software-selectable)
  • Powered by 24V passive PoE or external 24V AC/DC adapter

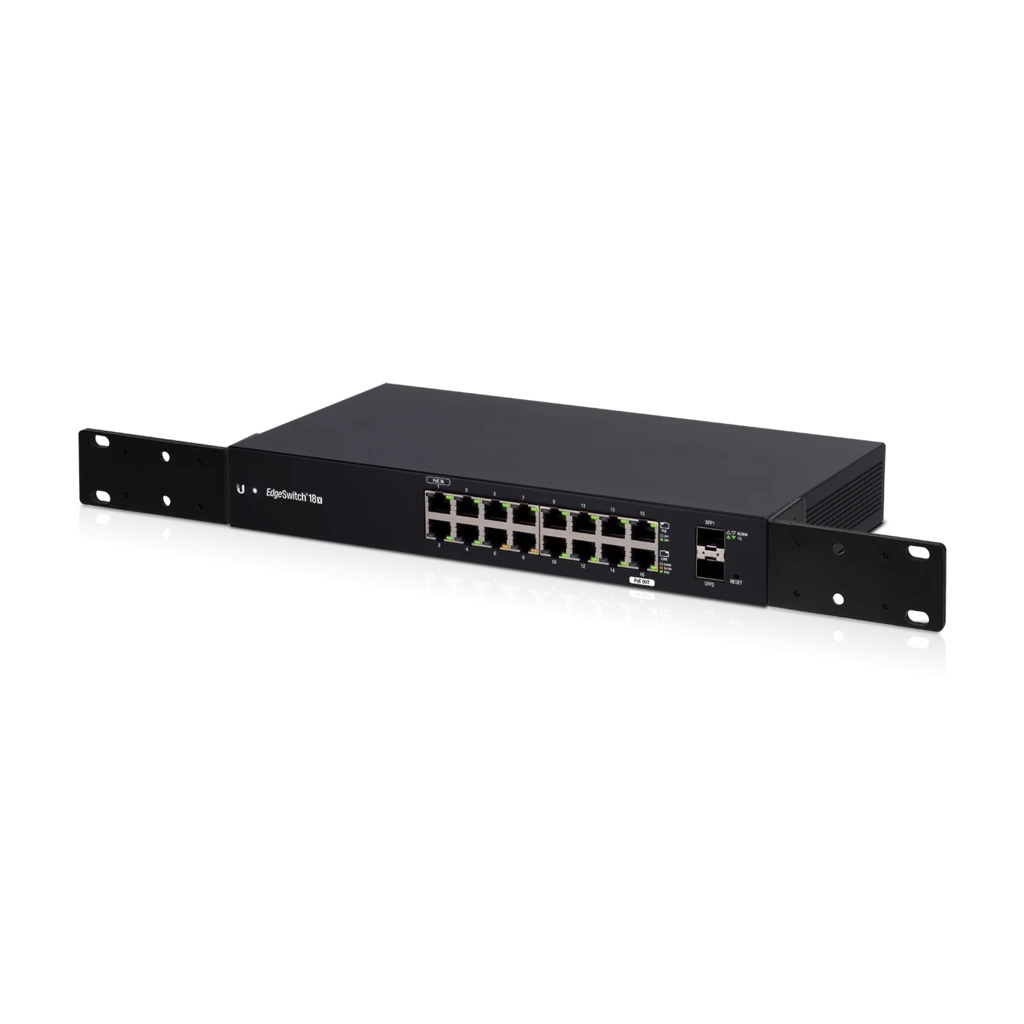

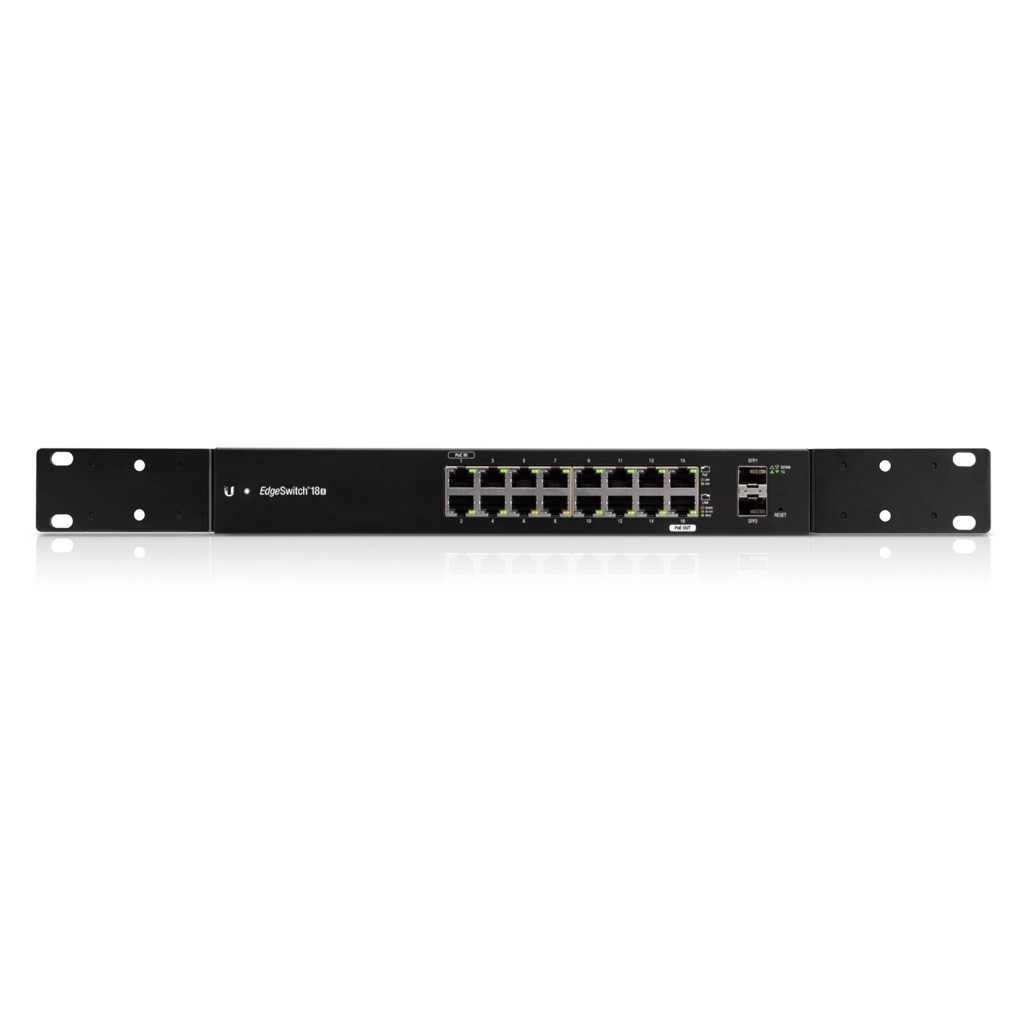

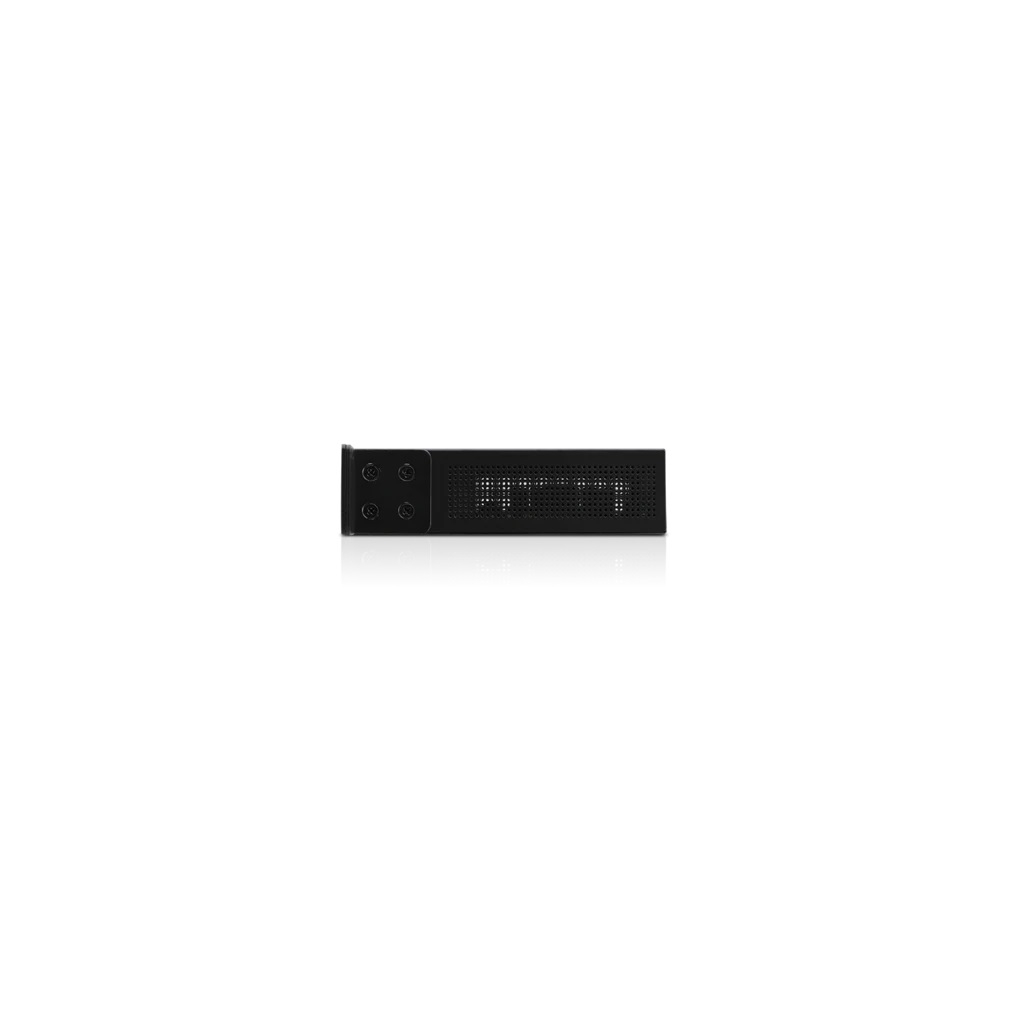

  • Wall or rack-mountable (bracket included)

Specification:

Mechanical
Dimensions 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7")
Weight
Without Mount
With Mount

1.15 kg (2.54 lb)
1.43 kg (3.15 lb)
Enclosure Material Metal
Mount Material Metal Metal
Hardware
Processor MIPS 4Kc, 500 MHz
System Memory 128 MB DDR3
On-Board Flash Storage SPI 16 MB
Total Non-Blocking Throughput 18 Gbps
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Max. Power Consumption 14W (Excludes PoE Output)
ESD/EMP Protection Air: ± 16 kV, Contact: ± 8 kV
Power Method External AC/DC Adapter
24V Passive PoE
Power Supply 24VDC, 1.0A Power Adapter (Included)
24V Passive PoE
Supported Voltage Range 9 - 30VDC
Networking Interfaces (16) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports
PoE Interfaces (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-)
Management Interface Ethernet In-Band
Passive PoE Max Wattage per Port 15W
Passive PoE Voltage Range 24V
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 - 90% Noncondensing
Certi cations CE, FCC, IC
LEDs
System (1) White/Blue
Ethernet Green 1G, Amber: 10/100 Mbps
SFP Green 1G
Software
Mode Layer 2 Ethernet Switch
VLAN 4K VLANs
QoS (16) Priority Queues per User Port and Traf c Classi cation
Jumbo Frame 10 KB
PoE Enable/Disable Passive PoE
Other TFTP Recovery
Ubiquiti Specic Features Ubiquiti Discovery
Minimum Software Requirements Web Browser (Chrome Recommended)
