UBIQUITI 10 Ports 10 GbE and 2 Ports 10G SFP+ PoE+++ Switch Pro XG 10 PoE (USW-Pro-XG-10-PoE)
2x 10 Gbps SFP+ Ports (10G/1G) | 10x 10 Gbps 802.3 PoE+++ RJ45 LAN ports (10G/5G/2.5G/1G/100M) |400W total PoE capacity | 1.3" Touchscreen with AR switch management | Layer 3 | SmartPower RPS | Etherlighting™
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 566.06£ | 679.27£ | >0£ |
| >300£ | ||
| 560.81£ | 672.97£ | >1000£ |
Features:

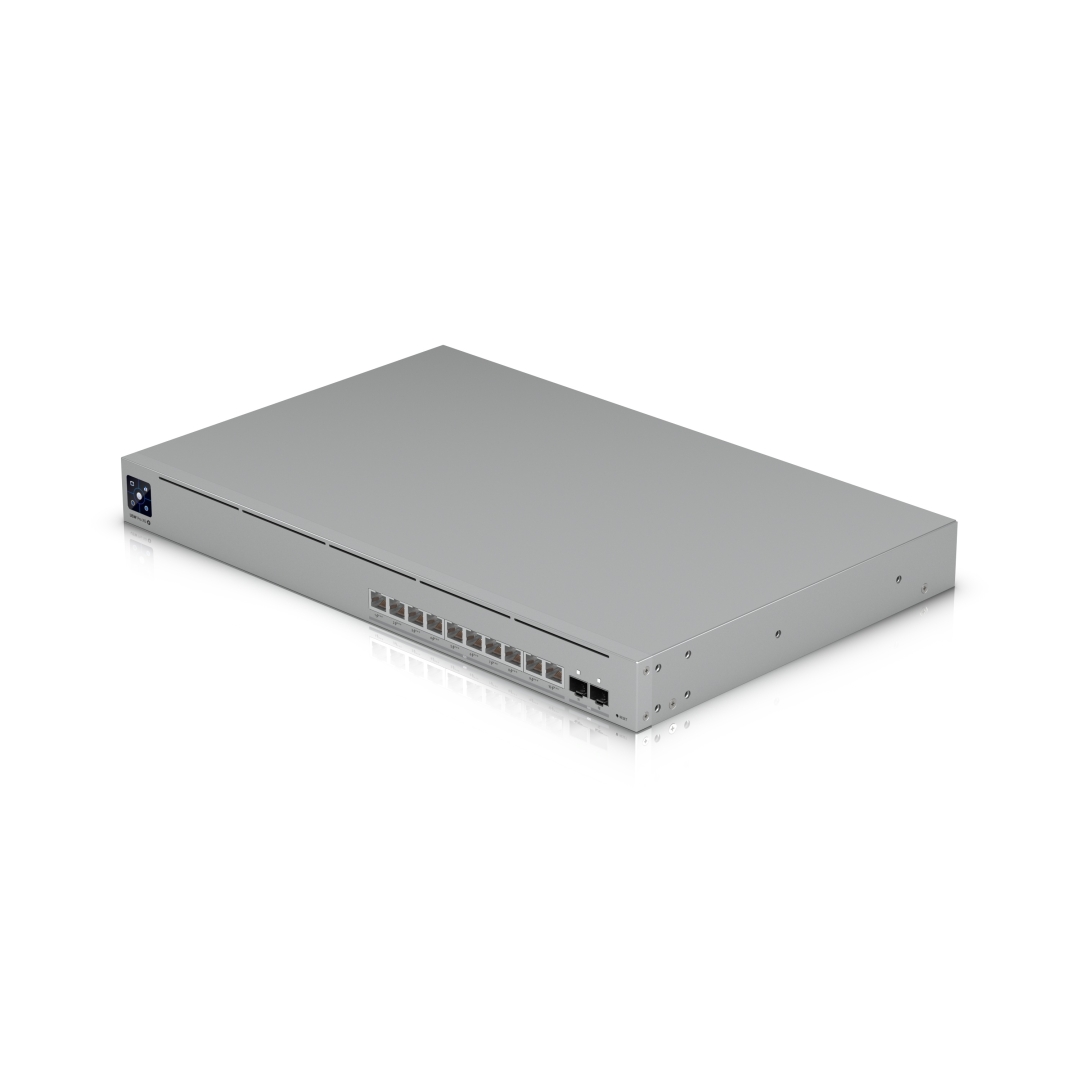

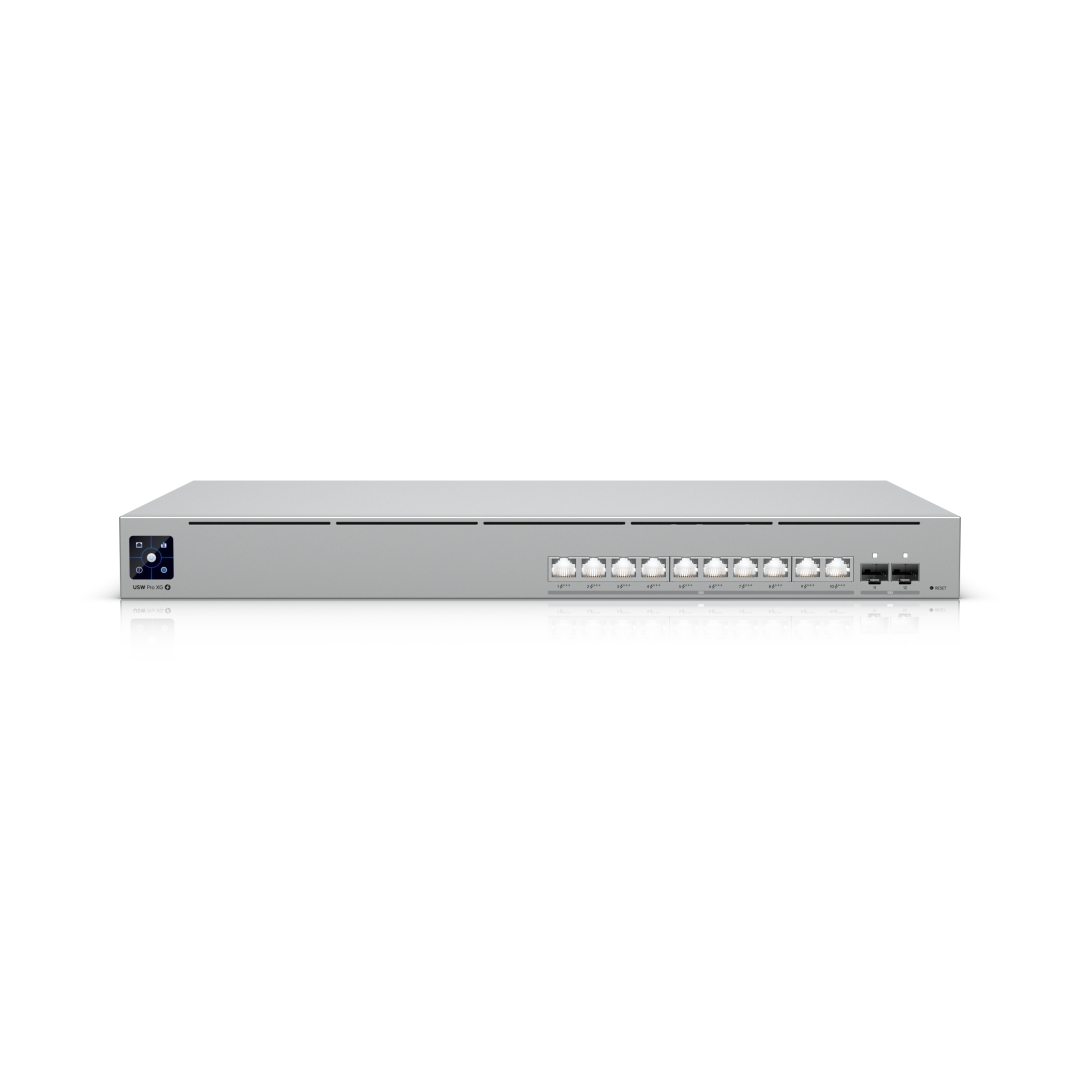

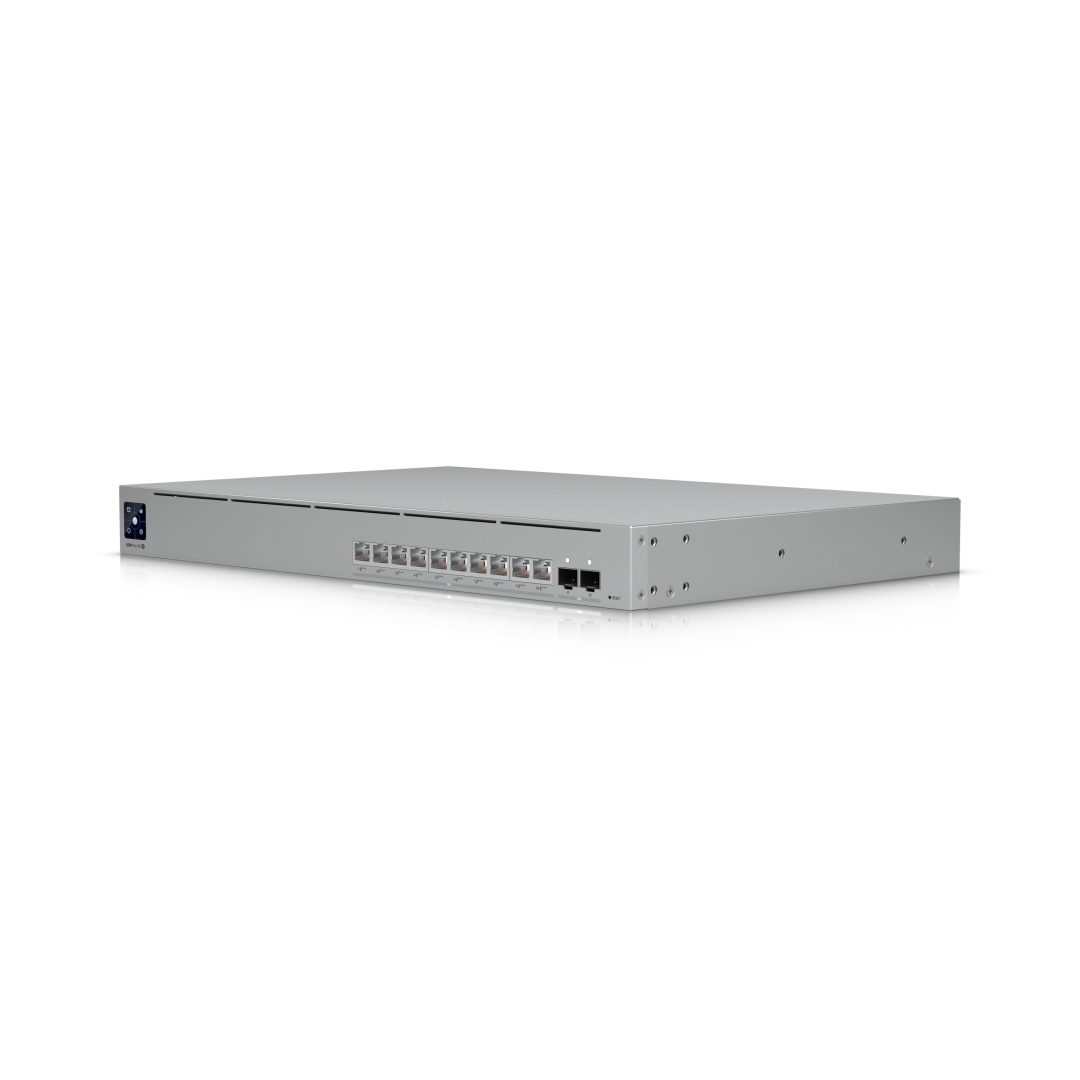

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports
Specification:

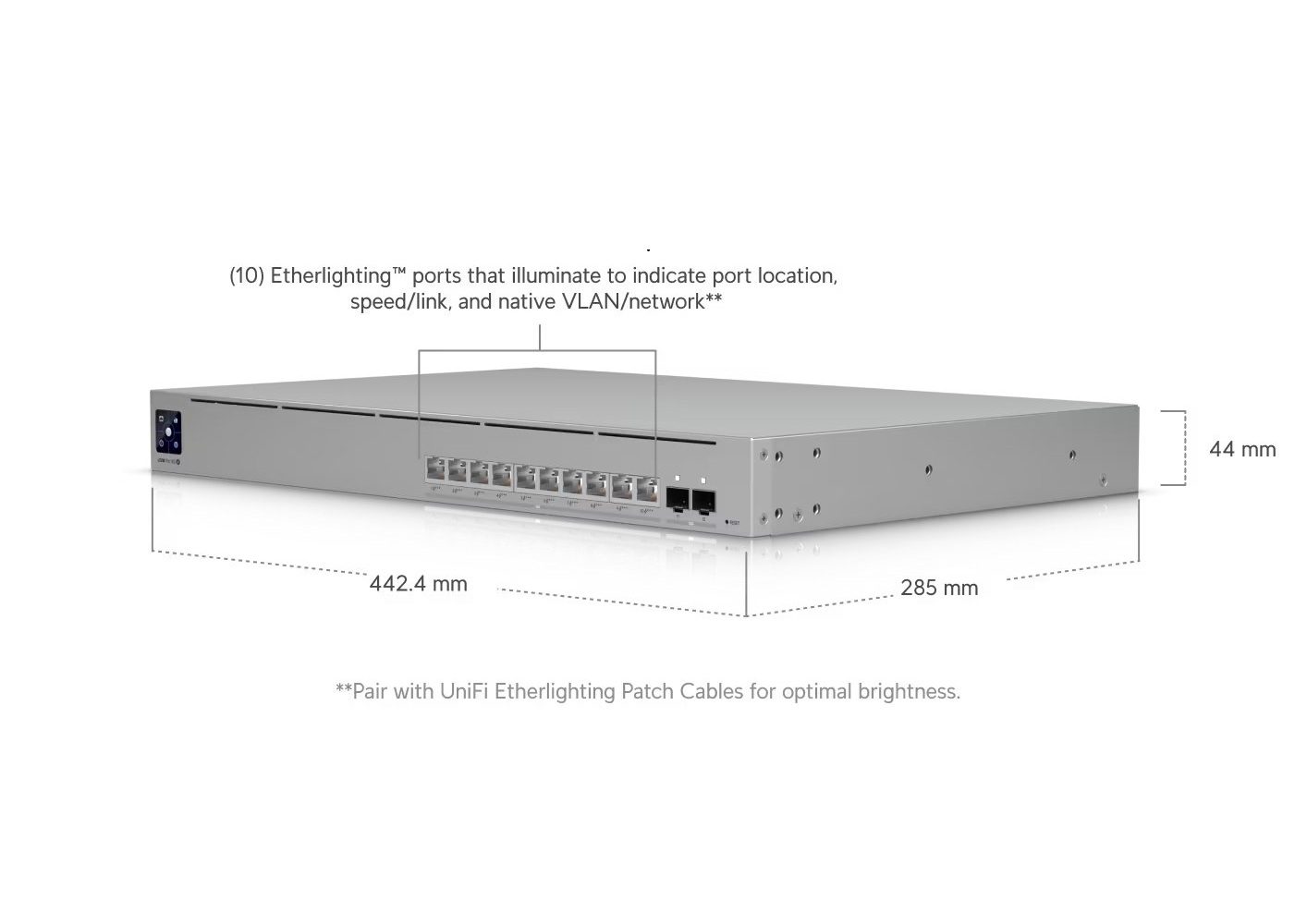

Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")

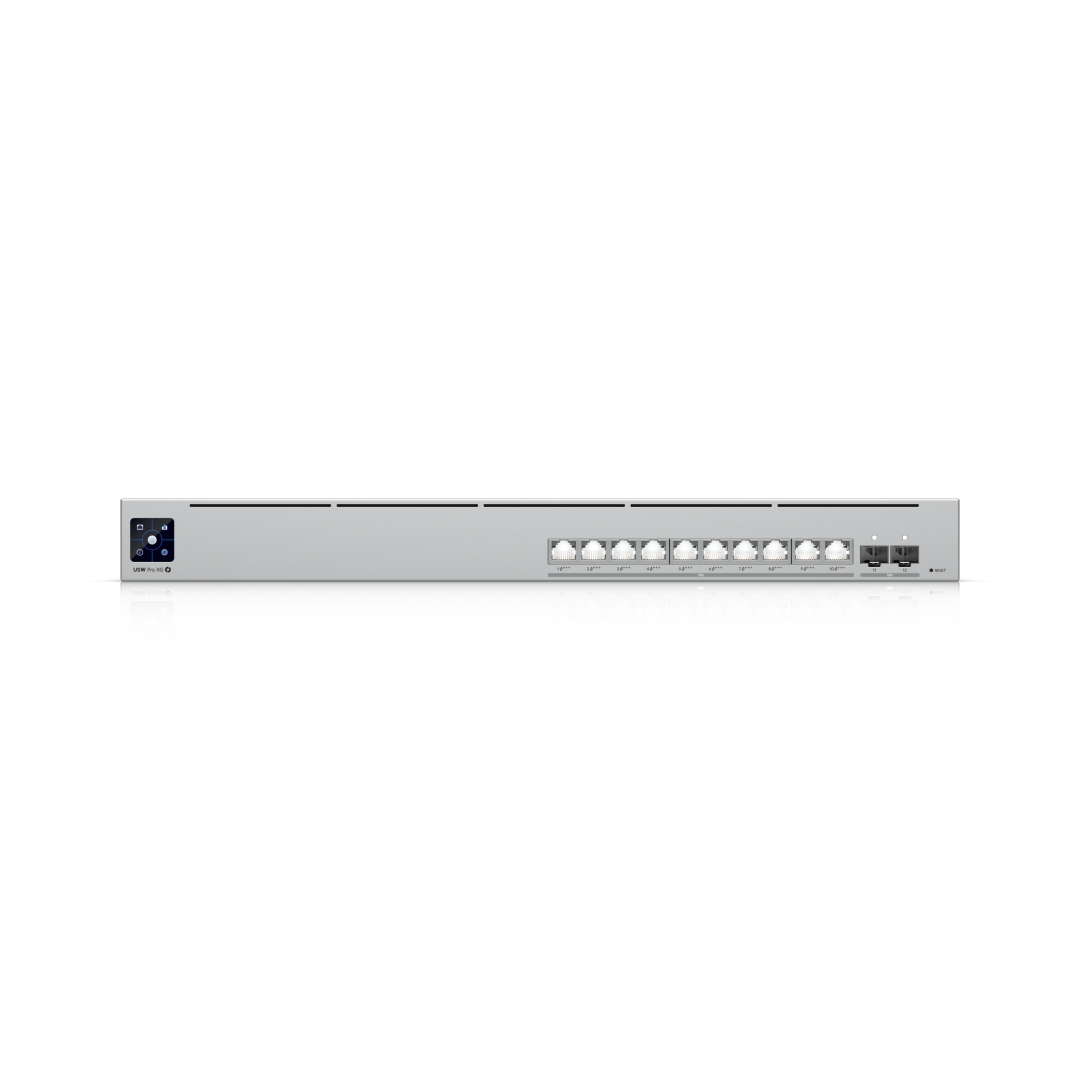

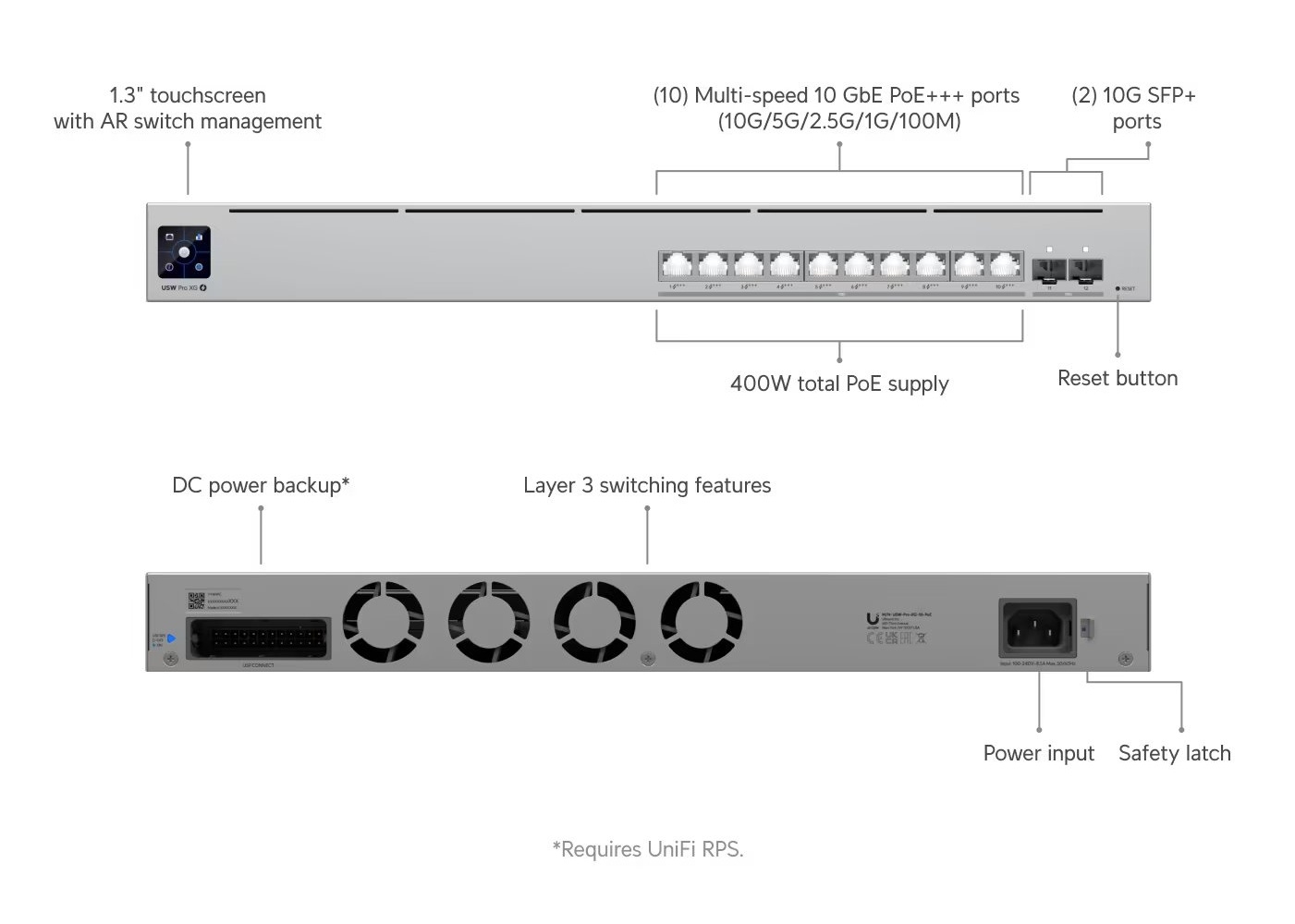

Port Layout:
10 GbE RJ45: 10 (All PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
Max. PoE Output: Up to PoE+++ (802.3bt Type 4, Class 8)
Total PoE Availability: 400W
Redundancy: DC Power Backup (With UniFi RPS)
Layer 3: ✓
Form Factor: Rack mount (1U)
Etherlighting™: ✓
Performance
Switching Capacity: 240 Gbps
Total Non-Blocking Throughput: 120 Gbps
Forwarding Rate: 179 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:
ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size: 2 MB
Access Lists:
IPv4: 128
MAC: 128
Layer 3 Features
DHCP Server (Local Networks): ✓
DHCP Relay: ✓
Inter-VLAN Routing (Local Networks): ✓
Static Routing (Local Networks): ✓
LACP Port Aggregation: ✓
STP & RSTP: ✓
QoS (DSCP): ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs & Device Isolation: ✓
DHCP Snooping & Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs & Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓
Hardware
PoE Ports:
PoE+++: 10
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Max. Power Consumption:
65W (Excluding PoE output)
520W (Including PoE output)

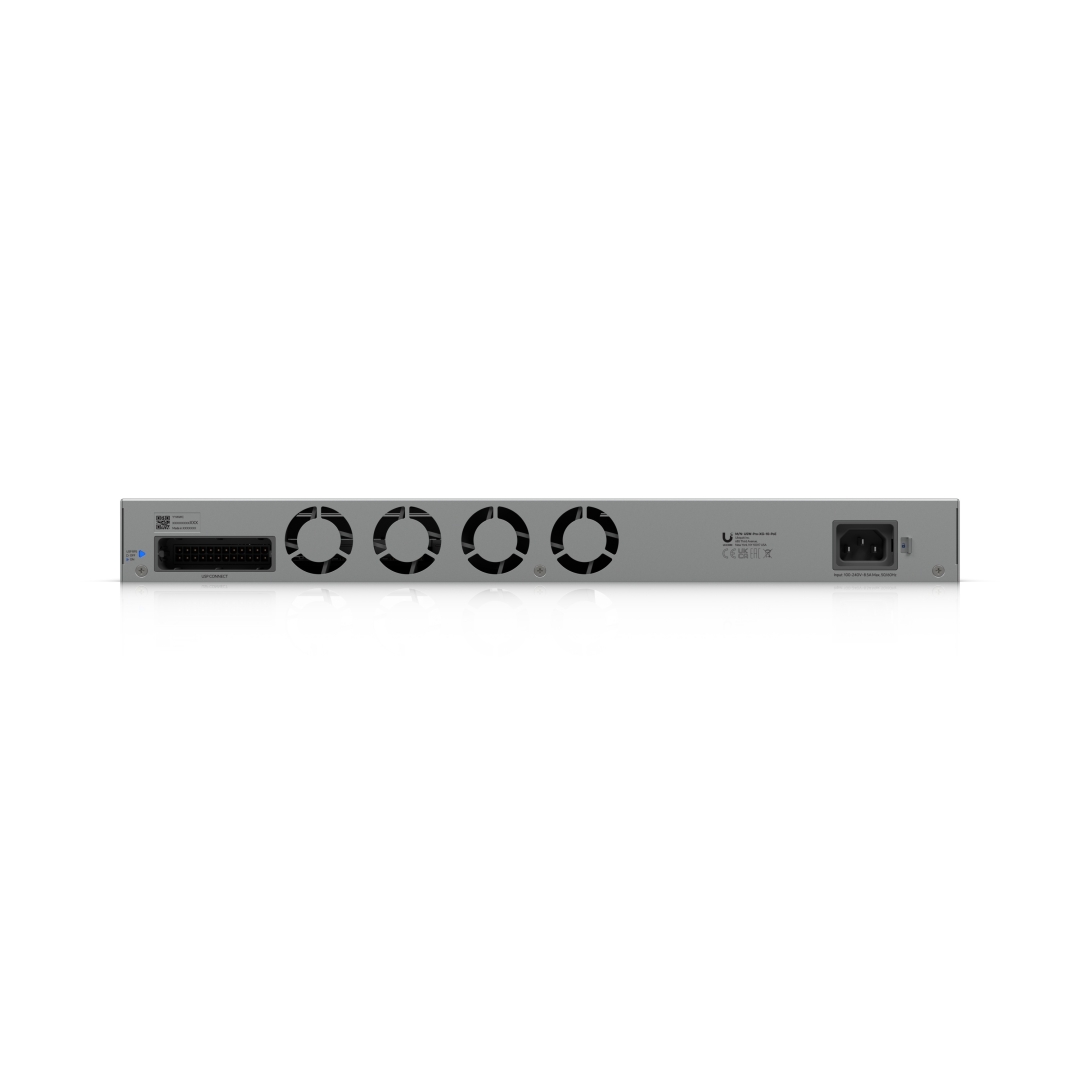

Power Method:
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 550W
Supported Voltage Range: 100—240V AC
Management:
Ethernet
AR

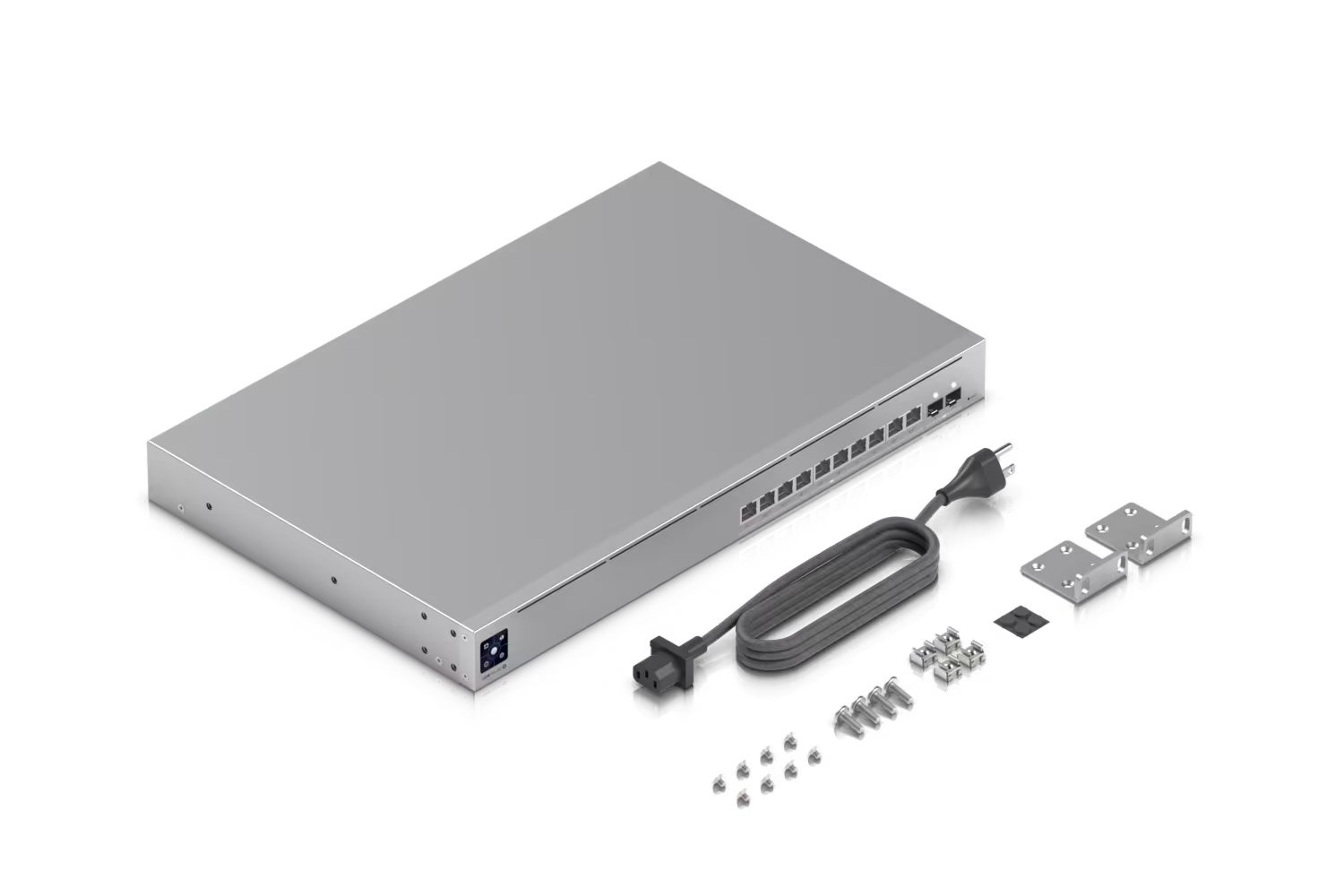

Weight:
Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2"")
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™:
Ethernet: ✓
SFP+: ✓
LEDs:
RPS: ✓
System: ✓
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements:
UniFi Network: Version 9.1.120 and later
