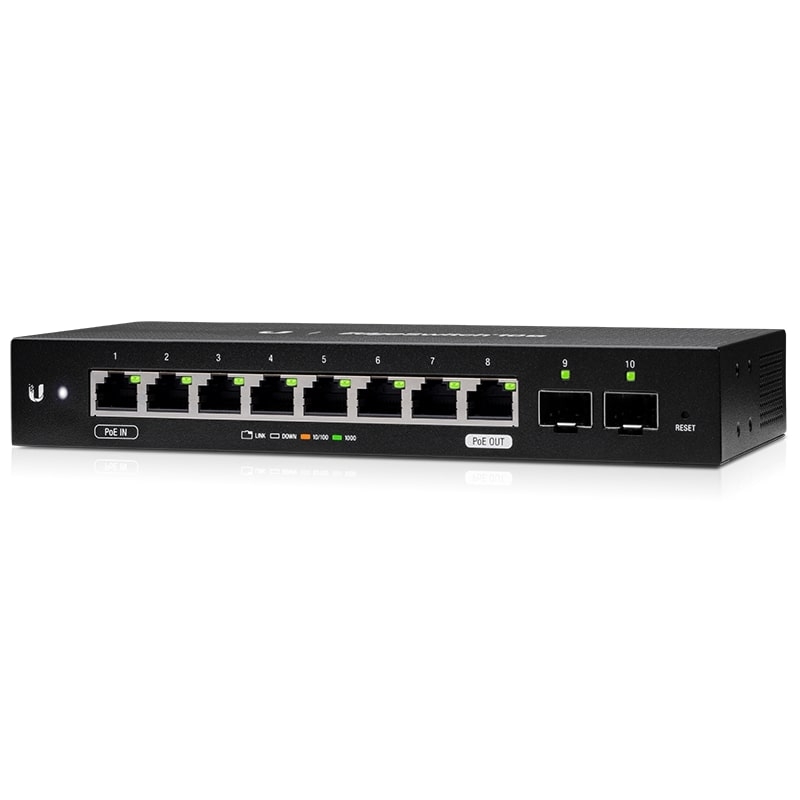

UBIQUITI 10-Port (2 SFP) Managed Switch EdgeSwitch 10X (ES-10X)
8x Gigabit LAN Ports, 2x SFP Ports, Supports PoE Input on Port 1, Software-selectable PoE Passthrough on Port 8, Non-Blocking 10 Gbps Throughput, EdgeSwitch XP Configuration Interface, Tough Full Metal and Rubber Casing
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Optimized for WISP Deployments
Ubiquiti Networks introduces the EdgeSwitch® 10X and EdgeSwitch 10XP, their most affordable managed switches with SFP ports.

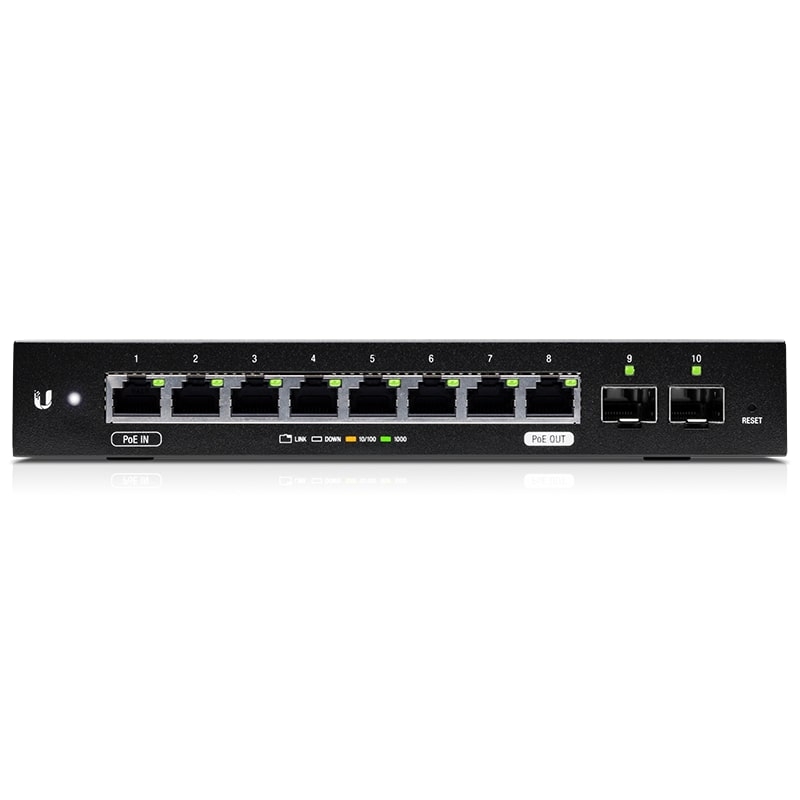

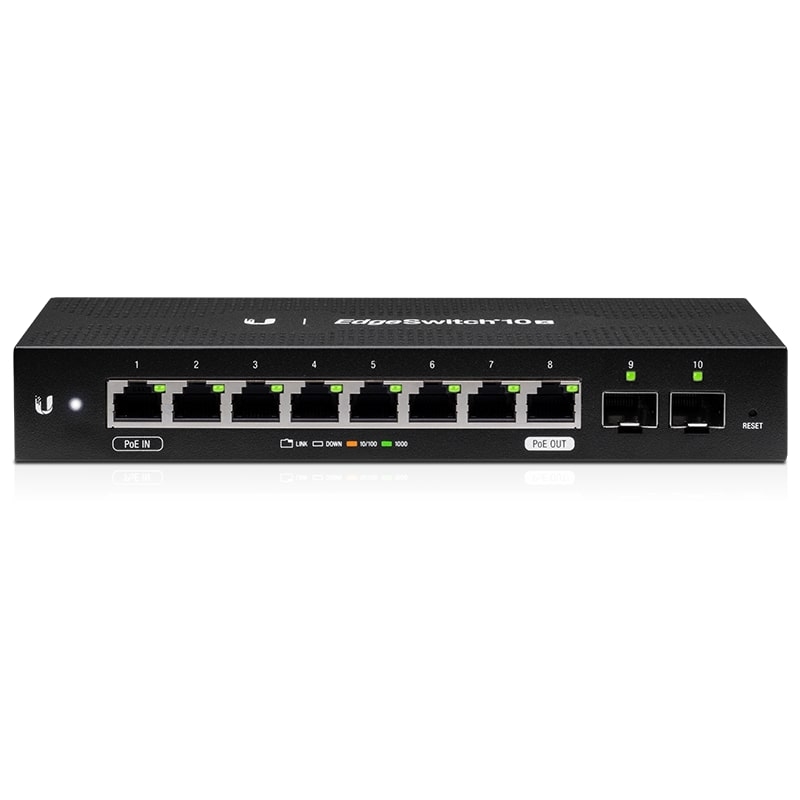

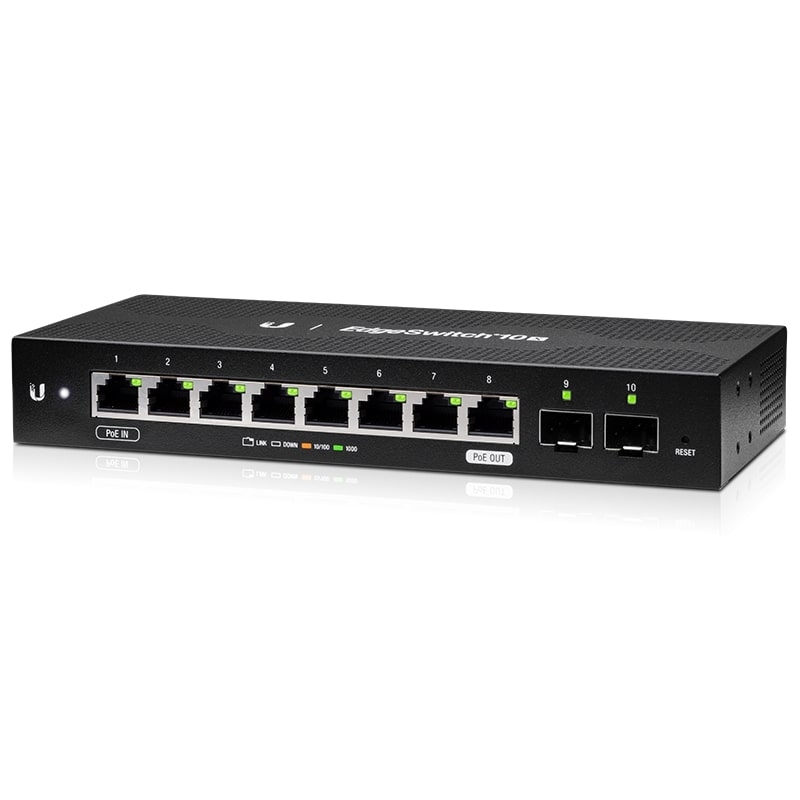

For the EdgeSwitch 10X, model ES‑10X, eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and 24V PoE passthrough on port 8. Two SFP ports offer fiber connectivity.
For the EdgeSwitch 10XP, model ES‑10XP, eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity.
Delivering top price/performance value, the EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of advanced Layer 2 switching features and protocols.
For its total, non-blocking throughput, the EdgeSwitch supports up to 10 Gbps.
The EdgeSwitch includes two SFP ports, providing up to 1 Gbps uplinks.
To simplify your infrastructure, the EdgeSwitch 10XP offers configurable 24V passive PoE on all RJ45 ports, while the EdgeSwitch 10X offers configurable 24V PoE passthrough on port 8.
The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered EdgeMAX® devices across multiple networks and sites.
Comprehensive User Interface
Sporting an updated design for an improved user experience, the EdgeSwitch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
The EdgeSwitch provides a variety of advanced features, including:
• Port Monitoring
• Virtual Local Area Network (VLAN) Configuration
• Spanning Tree Protocol (STP, MSTP and RSTP)
• Device Discovery Tool
• Jumbo Frame Support
• DHCP Snooping
• Port Isolation
• Ping Watchdog
• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Supports PoE Input on Port 1
• Software-selectable PoE Passthrough on Port 8
• Powered by 24V Passive PoE or External AC/DC Adapter
• DC Jack Supports Battery Backup with EdgePower™ (sold separately)
• Wall- or Rack-Mountable (Use the optional ER-RMKIT for rack-mounting)
Dimensions: 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight: 500 g (1.10 lb)
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Max. Power Consumption (Excluding PoE Output): 8W

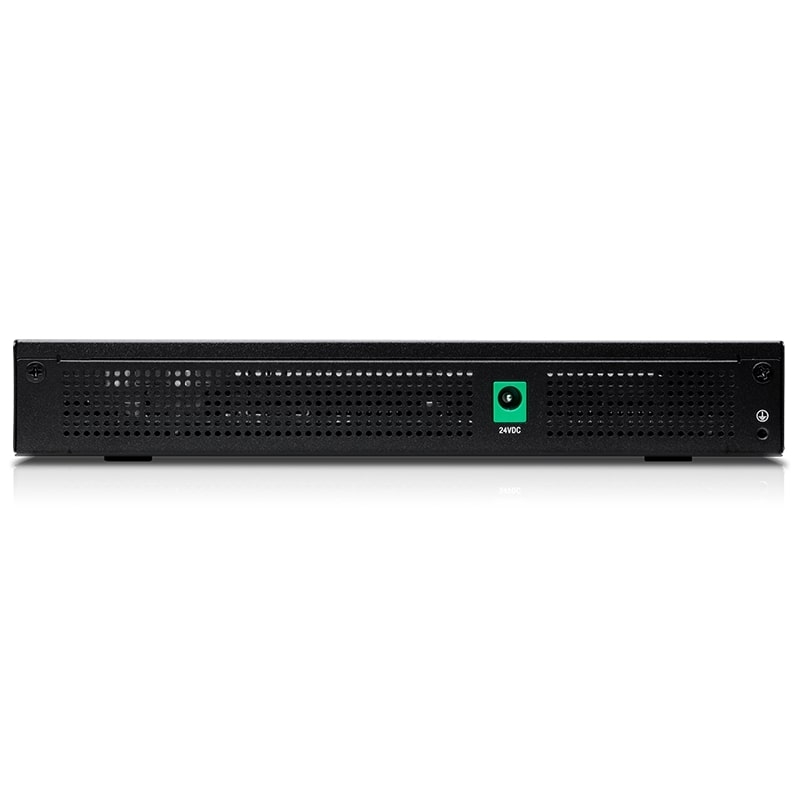

Power Method: 24VDC, 1A or 24V Passive PoE
Supported Voltage Range: 9 - 30VDC

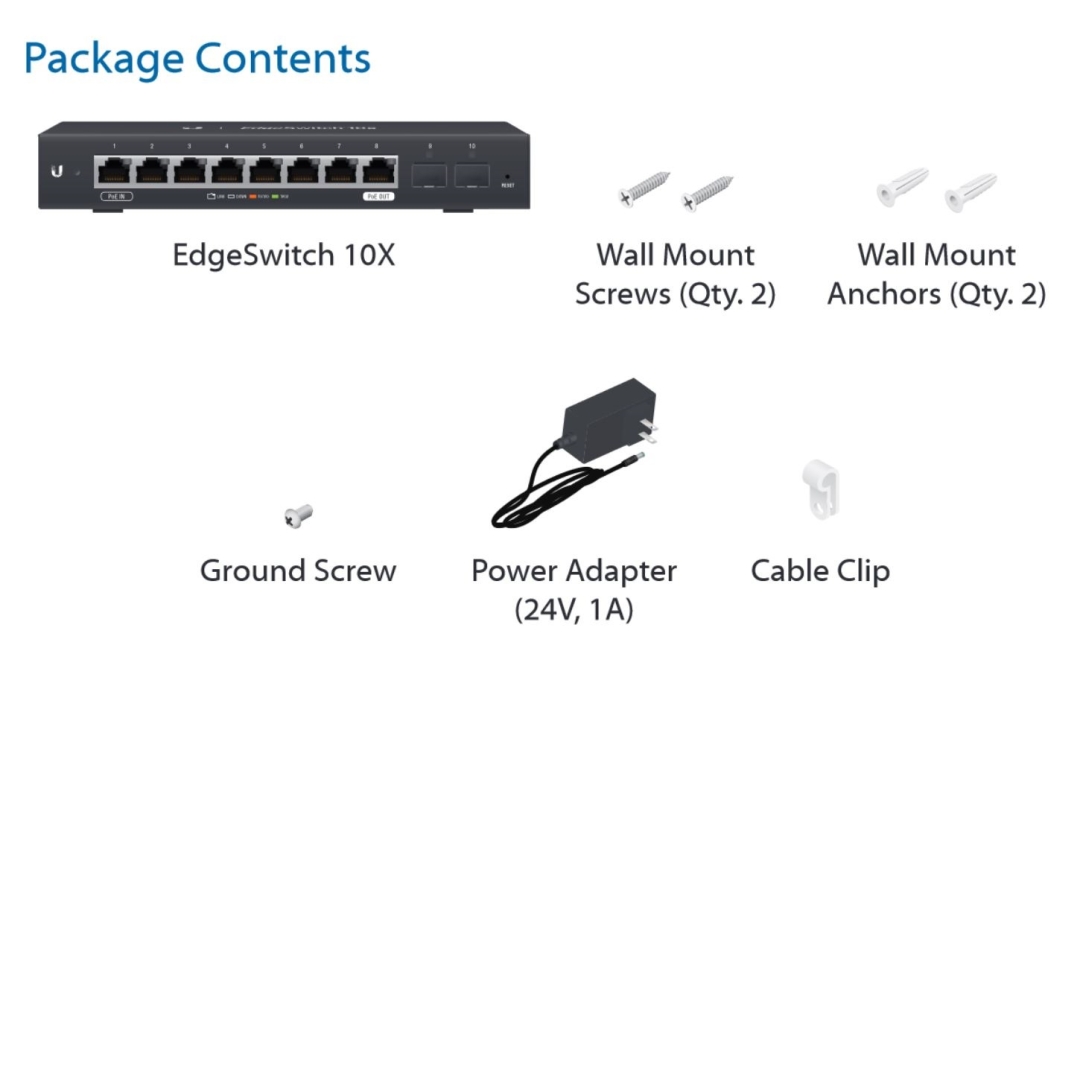

Power Supply: 24VDC, 1A Power Adapter (Included) or 24V Passive PoE
LEDs Per Port:
System - Status
RJ45 Data Ports - Link/Speed/Activity
SFP Data Ports - Link/Activity
(8) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface: Ethernet In-Band
Certifications: CE, FCC, IC
Rackmount: Yes (Use the optional ER-RMKIT for rackmounting, sold separately)
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Operating Temperature: -10 to 50° C (14 to 122° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
PoE (Port 8)
PoE Interface: 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. Passive PoE Wattage per Port: 15W
24V Passive PoE Voltage Range: 24V
