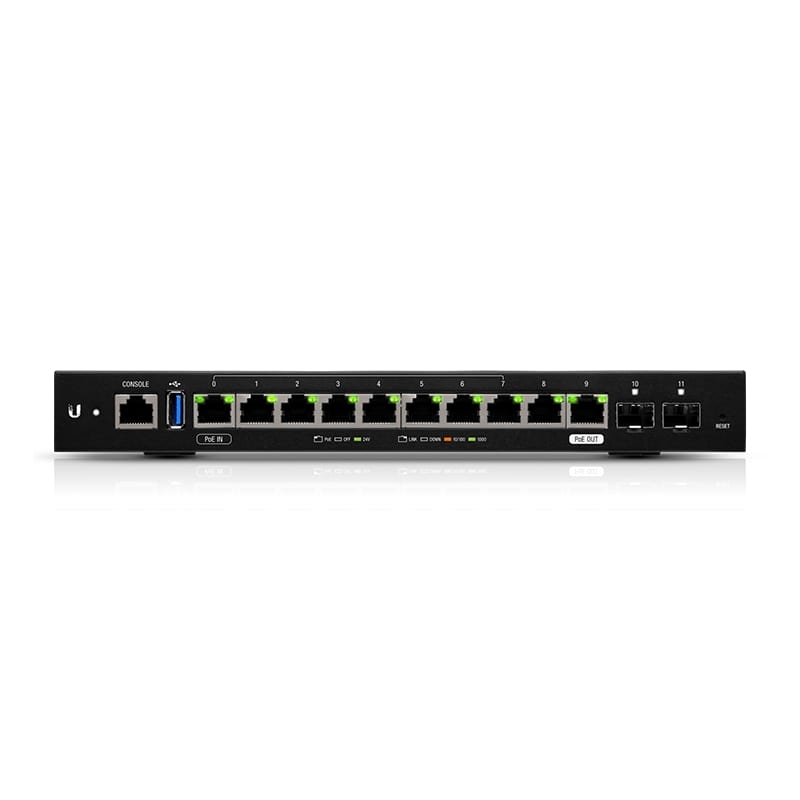

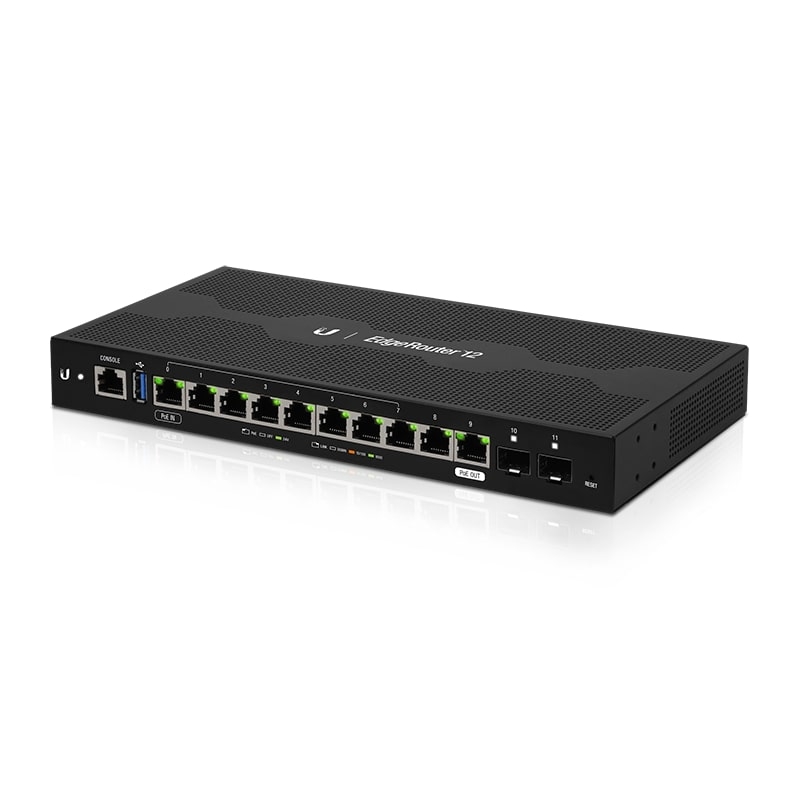

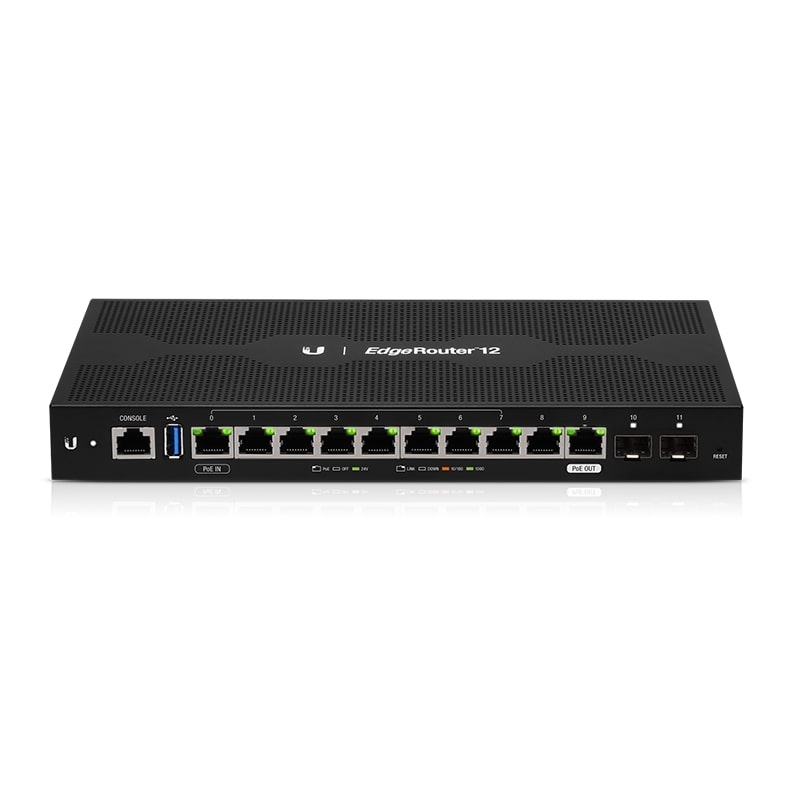

UBIQUITI EdgeRouter 12 (ER-12)
10x Gigabit RJ45 routing ports, 24V PoE input on port 0, 24V PoE passthrough option on port 9, Ports 0-7 can be configured for line-rate Layer 2 switching, 2x Gigabit SFP ports, 3.4 million packets per second for 64-byte packets, 6.8 Gbps for packets 1518 bytes or larger in size, Silent, fanless operation, Compact, durable metal case
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Advanced Routing. Technology for the Masses
Ubiquiti Networks introduces three new routers for the EdgeMAX® platform:
• EdgeRouter™ 4
• EdgeRouter 6P
• EdgeRouter 12
They join the array of cost-effective Gigabit routers:
• 3-Port EdgeRouter Lite
• 5-Port EdgeRouter PoE
• 8-Port EdgeRouter
• 8-Port EdgeRouter Pro
The EdgeRouter 4, 6P, and 12 are each capable of routing up to 3.4 million packets per second.
The EdgeRouter and EdgeRouter Pro route up to 2 million+ packets per second, and the EdgeRouter Lite and EdgeRouter PoE route up to 1 million packets per second.
The EdgeRouter 6P and PoE include configurable PoE ports to power airMAX® products, and the EdgeRouter 12 has a PoE input port and a PoE passthrough port.
For fiber uplinking, the EdgeRouter 4 and EdgeRouter 6P provide an SFP port. The EdgeRouter 12 features dual SFP ports, while the EdgeRouter offers two combination RJ45/SFP ports.
EdgeRouters combine carrier‑class reliability with enterprise‑level features in a compact and affordable unit.
Manage Your Network
DHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
Secure Your Network
Firewall Policies Organize the rules you apply in the order you specify. Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.
NAT Rules The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
Direct Traffic Flow
Interfaces Each port functions as an independent interface.
You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.
Routing Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
Dimensions: 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
Weight: 700 g (1.54 lb)
Max. Power Consumption: 20W (Excludes PoE Output)

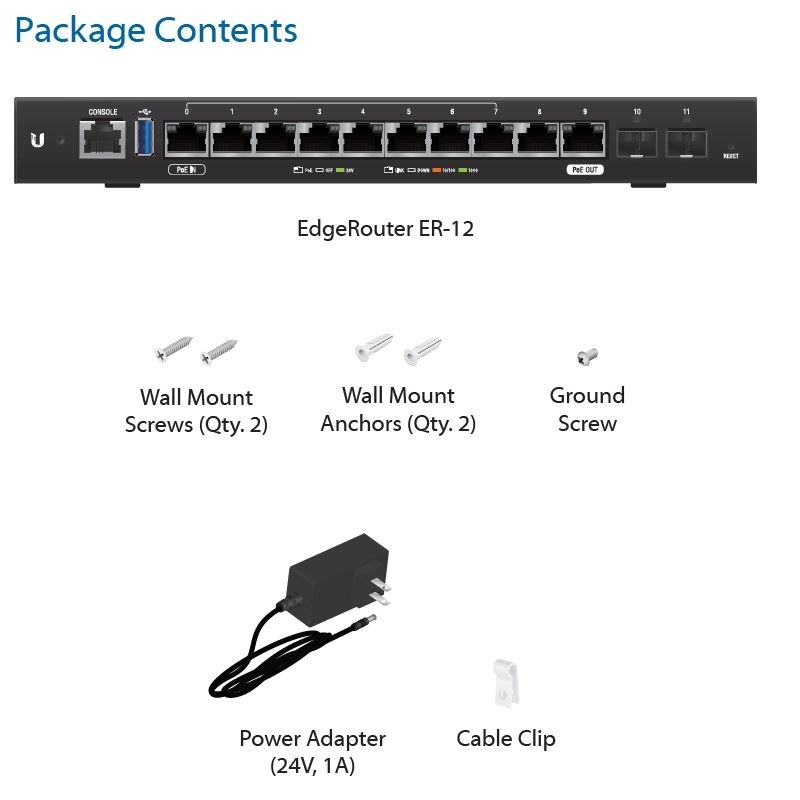

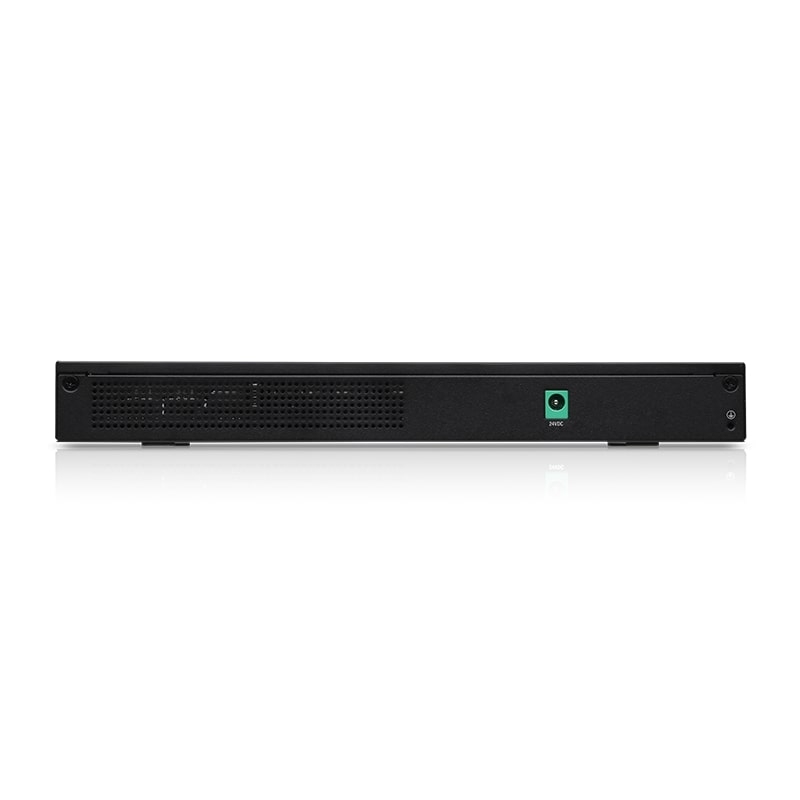

Power: External AC Power Adapter, 24W (24V, 1A) (Included), 24V Passive PoE
AC: 110 - 240VAC, 50/60 Hz
24V Passive PoE: 20 - 30V
Data Ports - Speed/Link/Activity, PoE (Ports 0 and 9 only)
SFP Data Port - Link/Activity
Management - (1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
Networking - (10) 10/100/1000 RJ45 Ports, (2) 1 Gbps SFP Ports
Layer 3 Forwarding Performance:
Packet Size: 64 Bytes - 3,400,000 pps
Packet Size: 1518 Bytes or Larger - 6.8 Gbps (Line Rate)
Processor: 4-Core 1 GHz, MIPS64
System Memory: 1 GB DDR3 RAM
On-Board Flash Storage: 4 GB eMMC, 8 MB SPI NOR
Mounting: Rack (With use of Rack Mount Kit, model ER-RMKIT) - Sold separately
Operating Temperature: -10 to 50° C (14 to 122° F)
Operating Humidity: 10 - 90% Noncondensing
Certifications: CE, FCC, IC
PoE In - (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out - (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
Passive PoE Max. Wattage Per Port: 20W (24V, 0.83A)
Passive PoE Output: DC/PoE Passthrough
