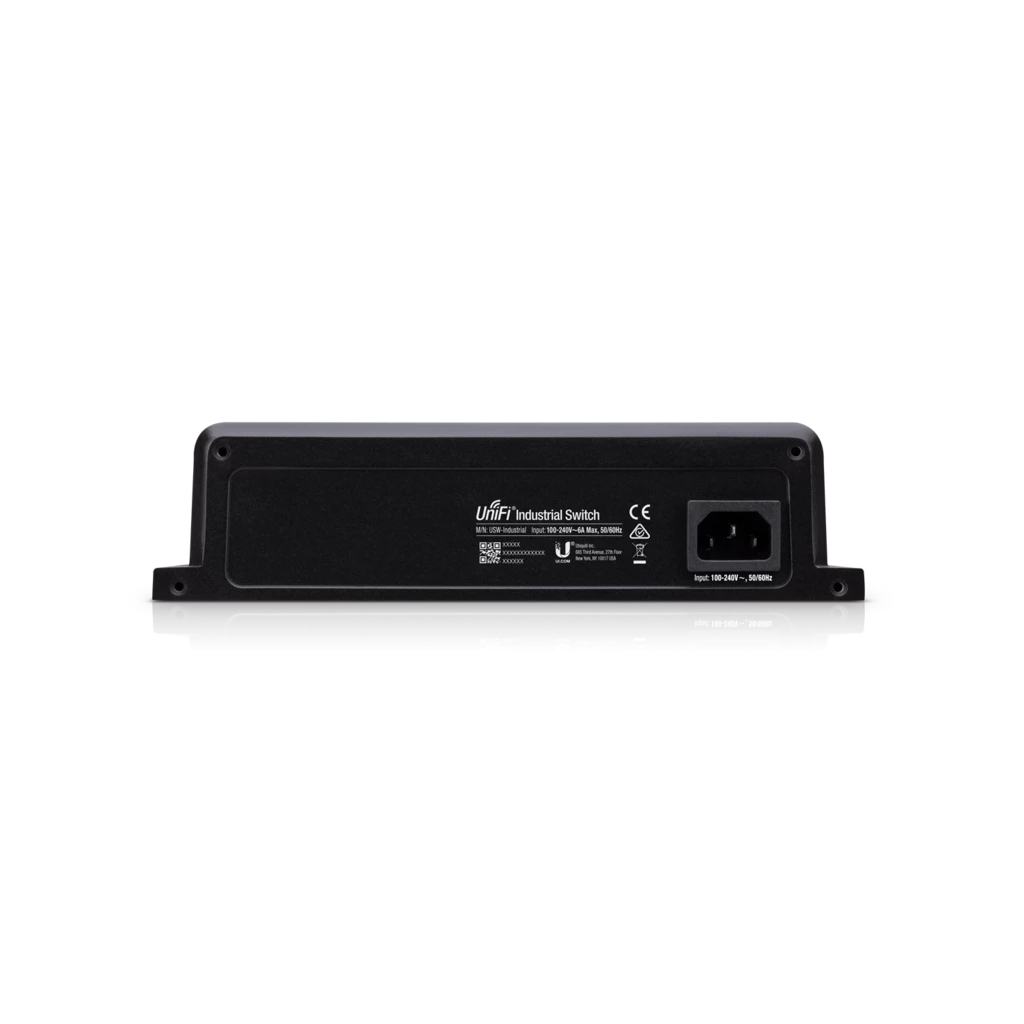

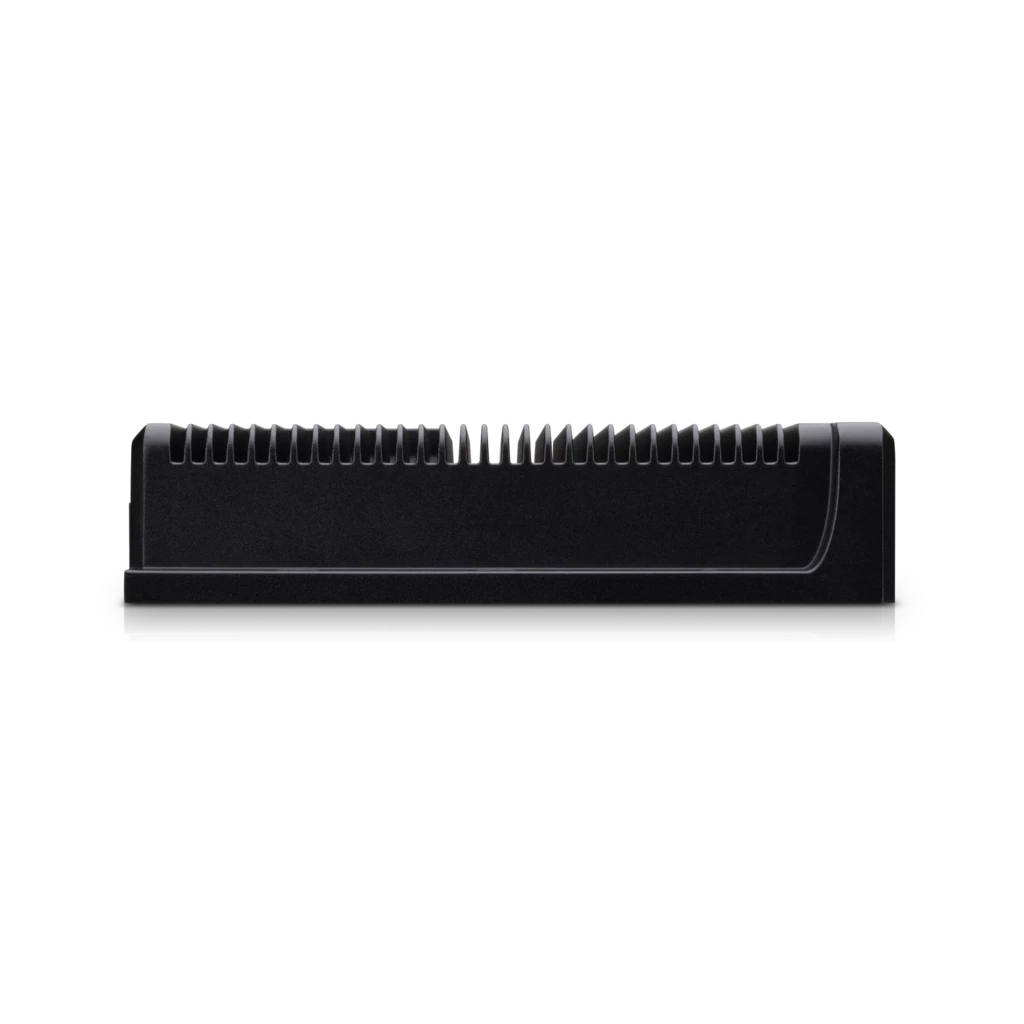

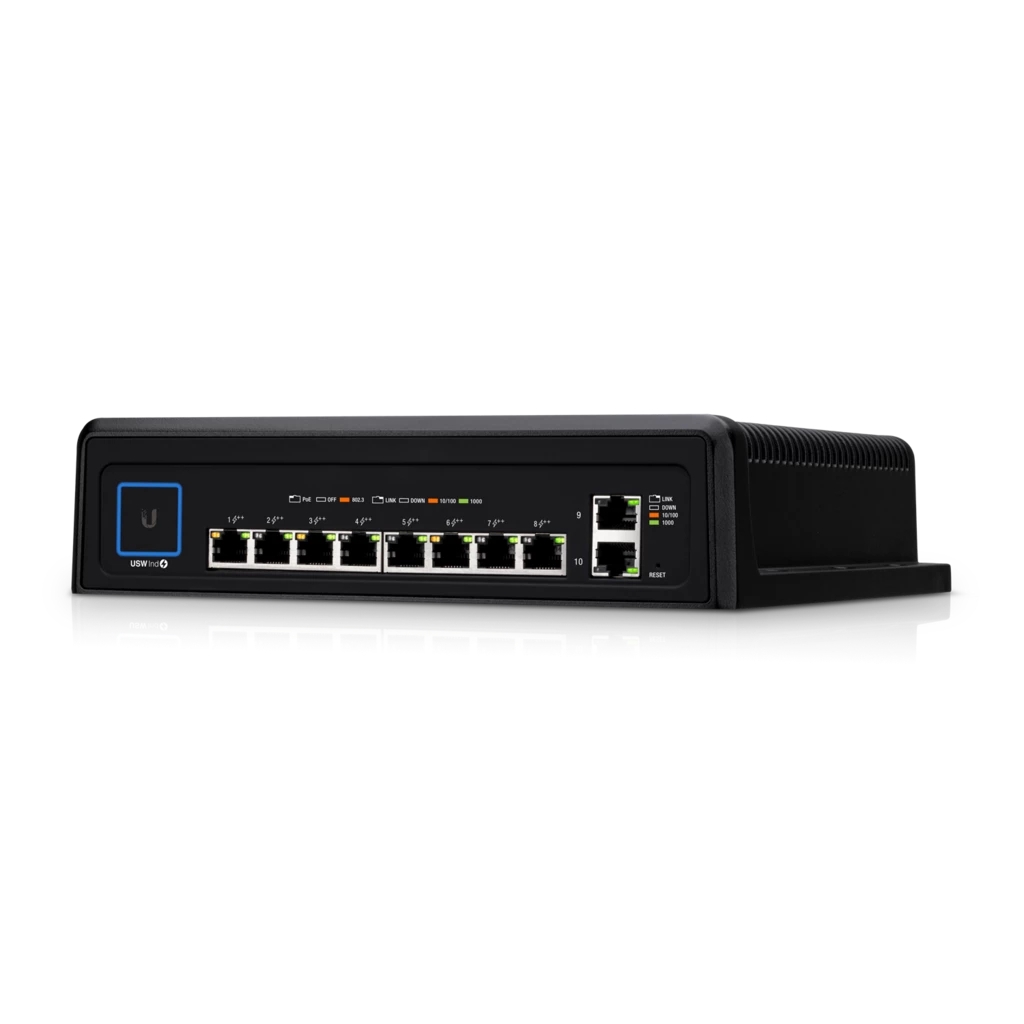

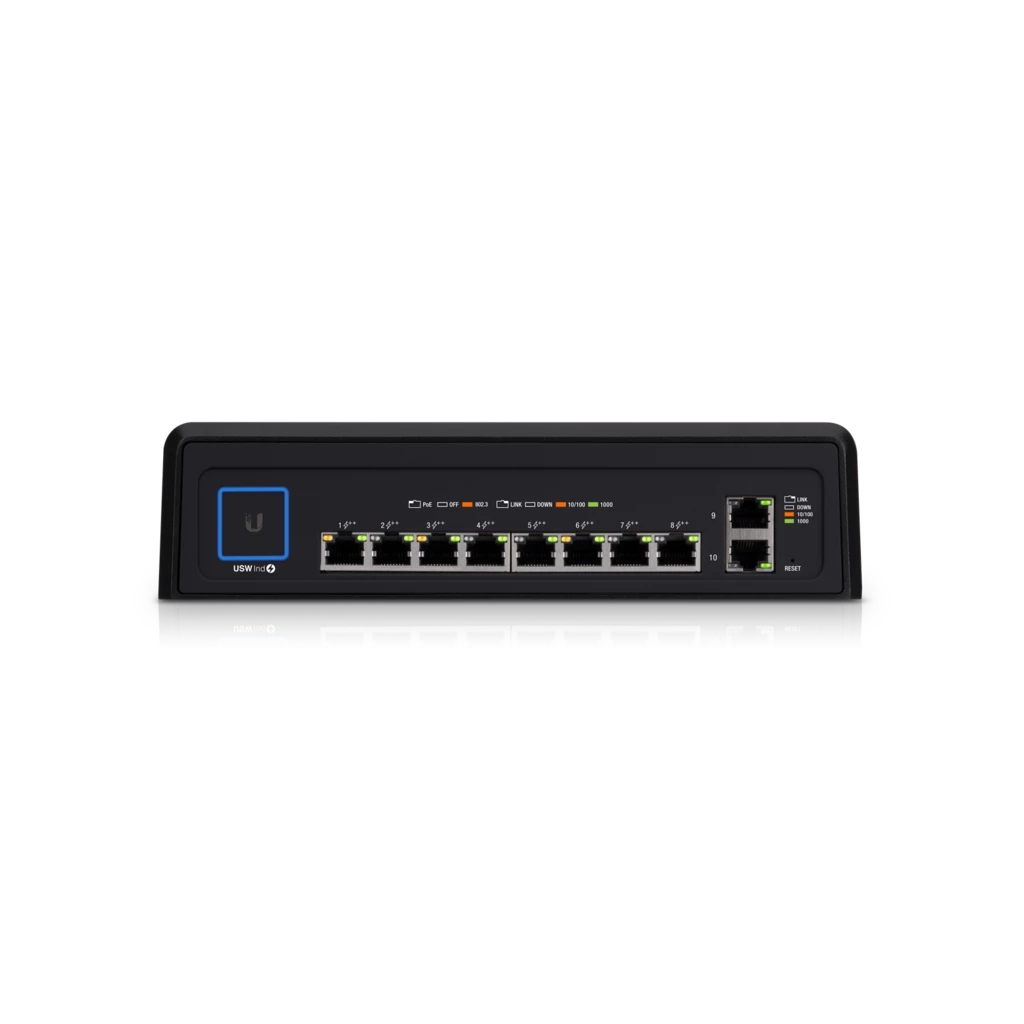

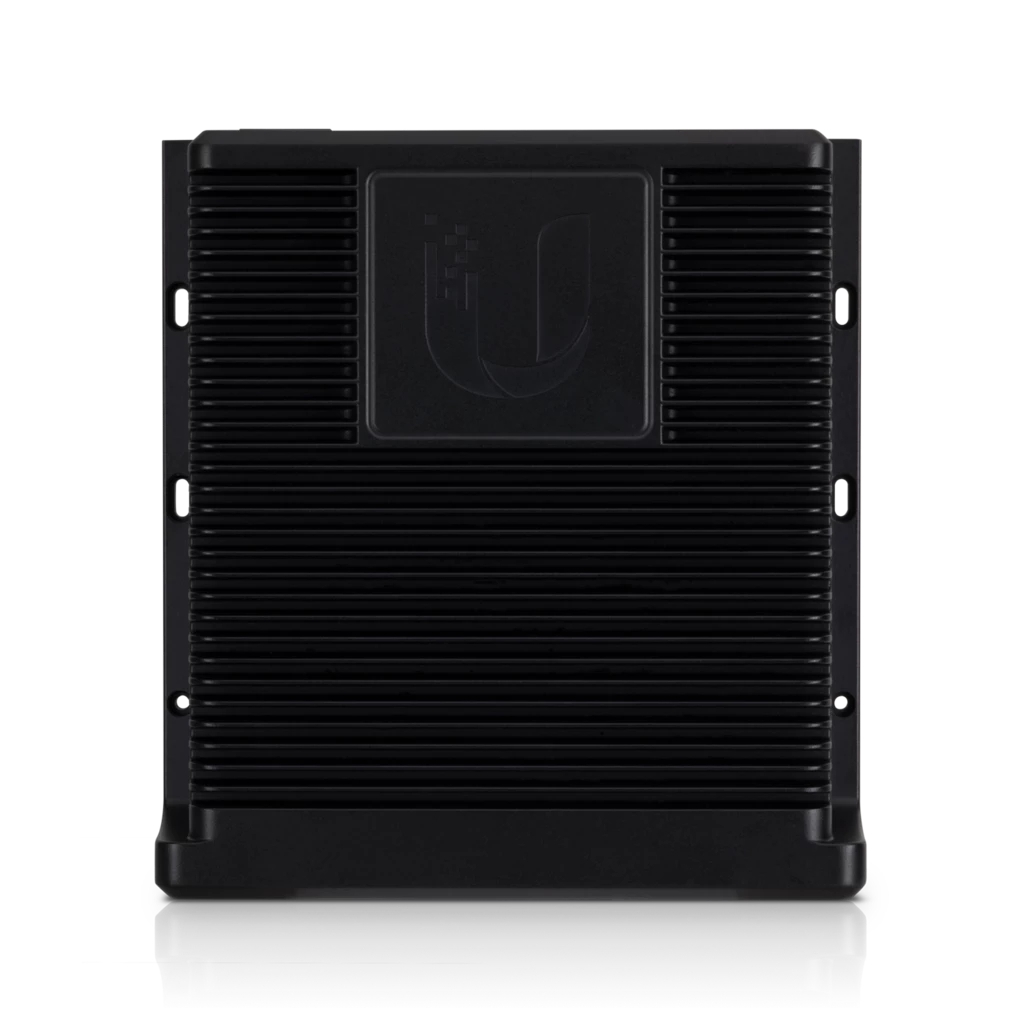

UBIQUITI 10-Port Durable Switch with High-Power 802.3bt PoE++ (USW-Industrial)
The UniFi® Industrial Switch is a managed, plenum-rated, Gigabit Layer 2 switch with auto-sensing 802.3bt PoE++ support.
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
Expand and power your network with theUniFi® Industrial Switch, part of the Ubiquiti®UniFi Enterprise System. The USW-Industrialis a configurable Gigabit Layer 2 switch withauto-sensing, highpower 802.bt PoE++.
The USW-Industrial offers the forwardingcapacity to simultaneously process traffic onall ports at line rate without any packet loss.
The USW-Industrial features ten Gigabit RJ45 ports to deliver robust performance and intelligent switching for enterprise networks. Eight of those ports offer 802.3bt PoE++ to provide up to 60W of power (per port) to your high-power PoE devices. Products requiring 802.3af or 802.3at PoE, such as mUniFi LED Panels, are also supported.
Ruggedized Industrial Design
The fanless USW-Industrial is plenum-rated so it can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature variations.
|Dimensions||254 x 235 x 60 mm (10 x 9.25 x 2.36")|
|Weight||3.85 kg (8.49 lb)|
|Enclosure Characteristics||Die-Cast Aluminum (ADC12)
with Black Powder Coated Finish
|Total Non-Blocking Throughput||10 Gbps|
|Switching Capacity||20 Gbps|
|Forwarding Rate||14.88 Mpps|
|Power Method||100 - 240 VAC, 50/60 Hz Universal Input|
|Power Supply||AC/DC, Internal, 450W DC|
|Supported Voltage Range||AC Input: 100 to 240VAC, Max. 6A|
|Max. Power Consumption
(Excluding PoE Output)
|ESD/EMP Protection||Air: ± 24 kV, Contact: ± 24 kV|
|Shock and Vibration||ETSI300-019-1.4 Standard|
Internal AC/DC @ 450W
Internal AC/DC @ 240W
-40 to 50° C (-40 to 122° F)
-40 to 60° C (-40 to 140° F)
|Operating Humidity||5 to 95% Noncondensing|
|PoE Interfaces||PoE++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
|Max. PoE Wattage per Port by PSE||802.3bt 60W|
|Voltage Range 802.3 PoE Mode||50-57V|
|Max. Total PoE Power Budge||430W|
