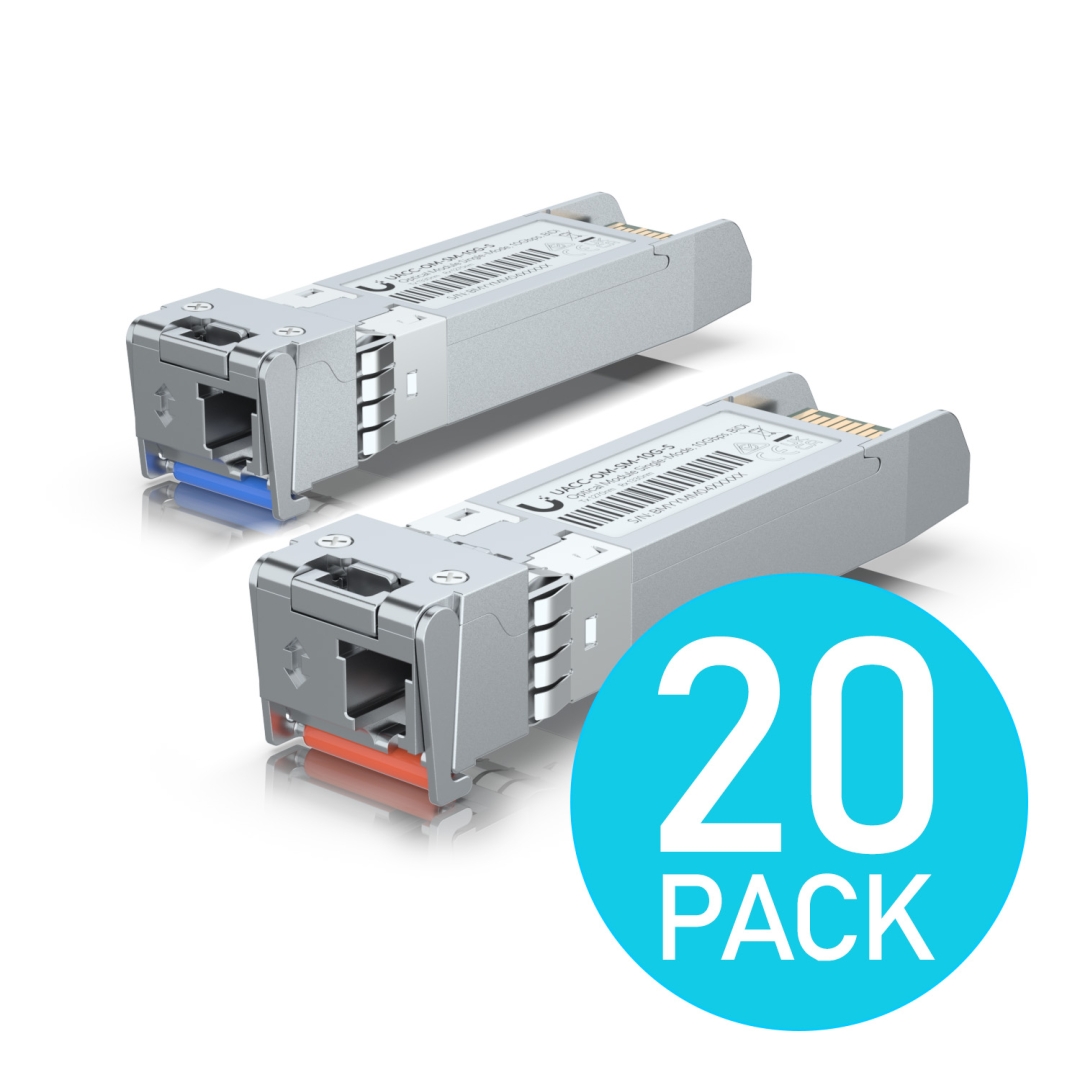

UBIQUITI 10 Gbps Bidirectional Single-Mode Optical Module, 20-pack (10 pairs) (UACC-OM-SM-10G-S-20)
MPN:
UACC-OM-SM-10G-S-20
Order code:
UACC-OM-SM-10G-S-20
Quick code:
#4977
EAN:
0810010076977
Up to 10 Gbps speed | Up to 10 km distances
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 1079.34£ | 1295.21£ | >0£ |
| >300£ | ||
| >1000£ |
Features:

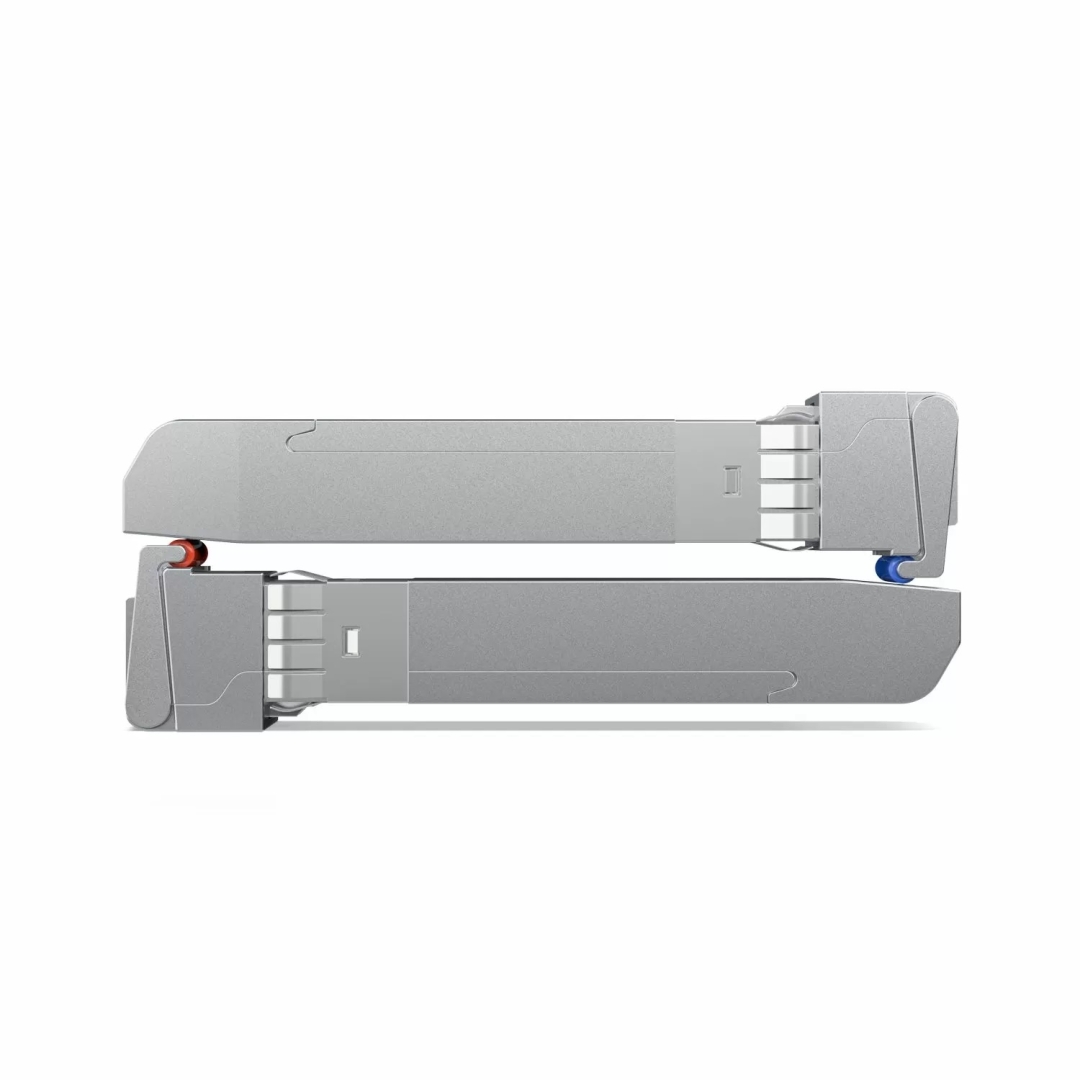

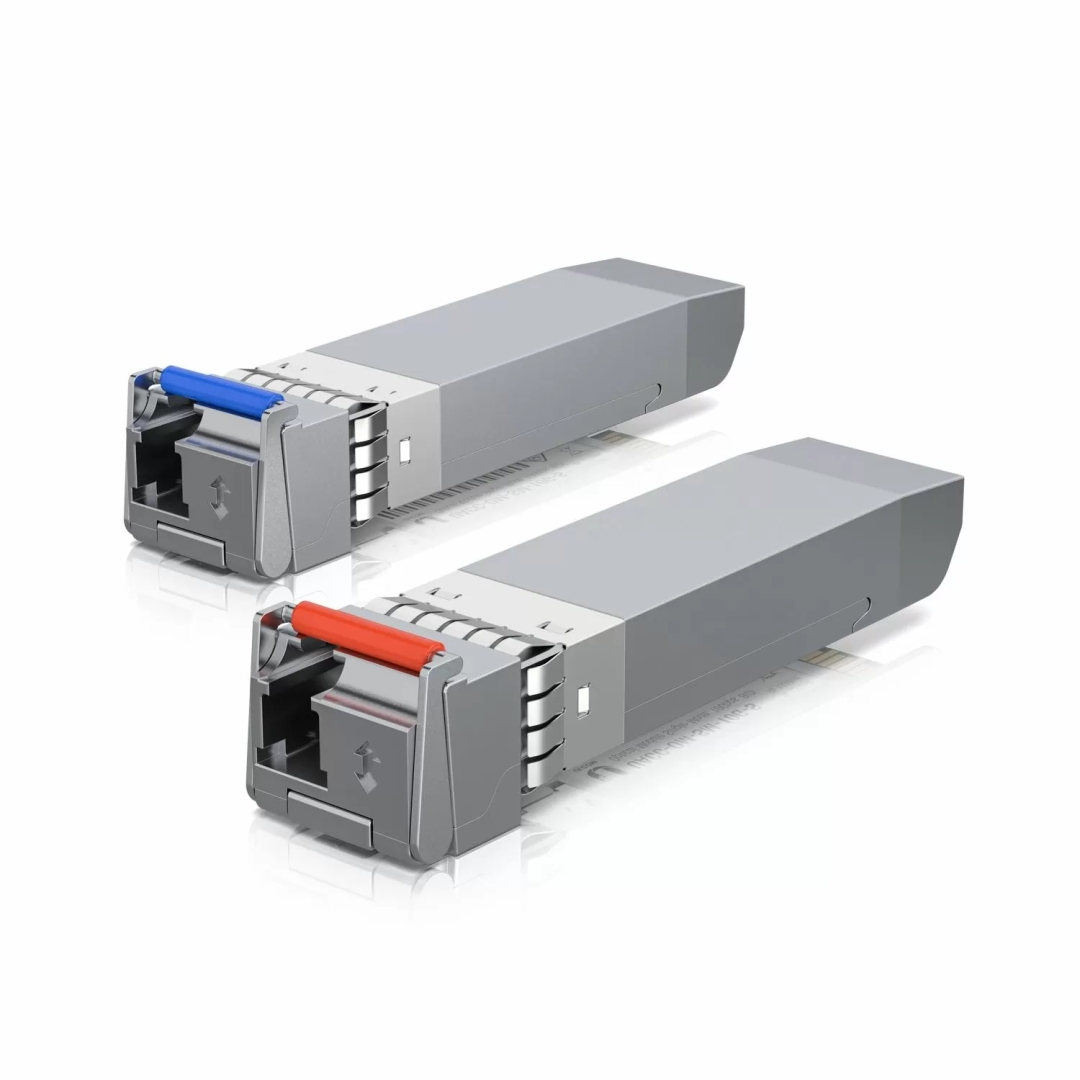

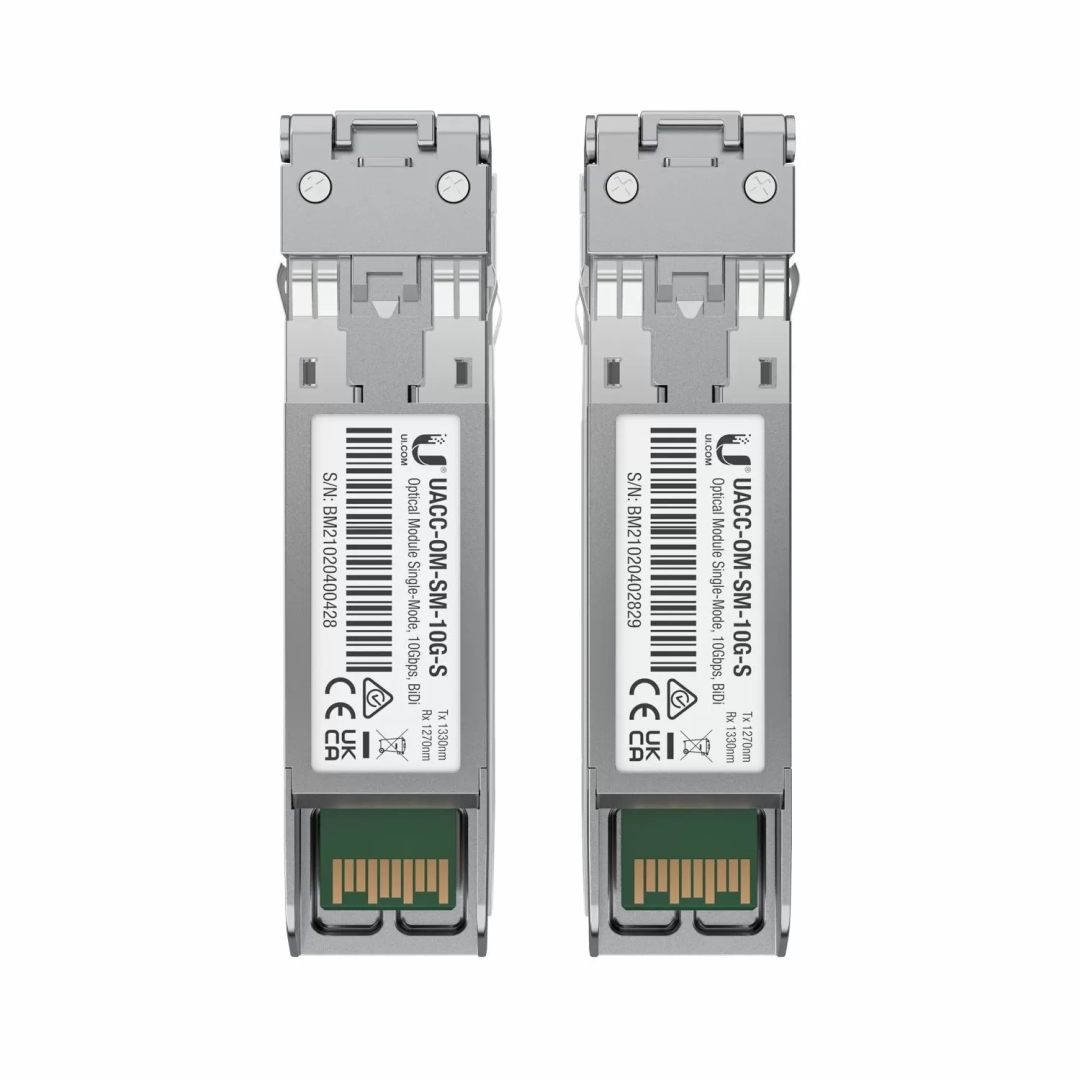

The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.
Features:
- 10 Gbps throughput
- Simplex LC connector
- Supports connections up to 10 km (Fiber cable is not included)
Specification:
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | Yes |
| TX Wavelength* | Blue Latch: 1270 nm Red Latch: 1330 nm *Must be used in pairs (blue latch and red latch). |
| RX Wavelength* | Blue Latch: 1270 nm Red Latch: 1330 nm *Must be used in pairs (blue latch and red latch). |
| Data Rate | 10 Gbps |
| Max. Power Consumption | 1W |
| Cable Distance | 10 km |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
