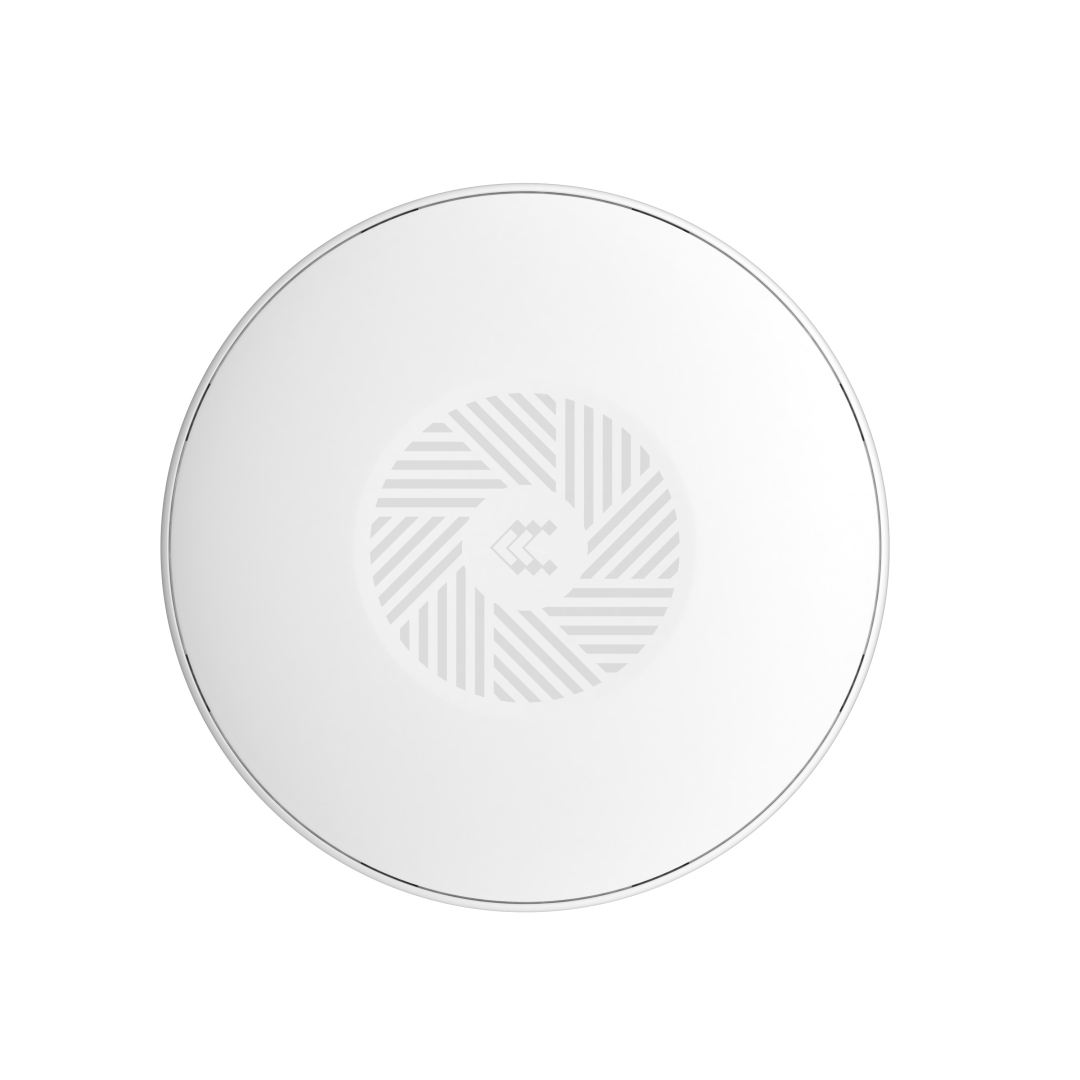

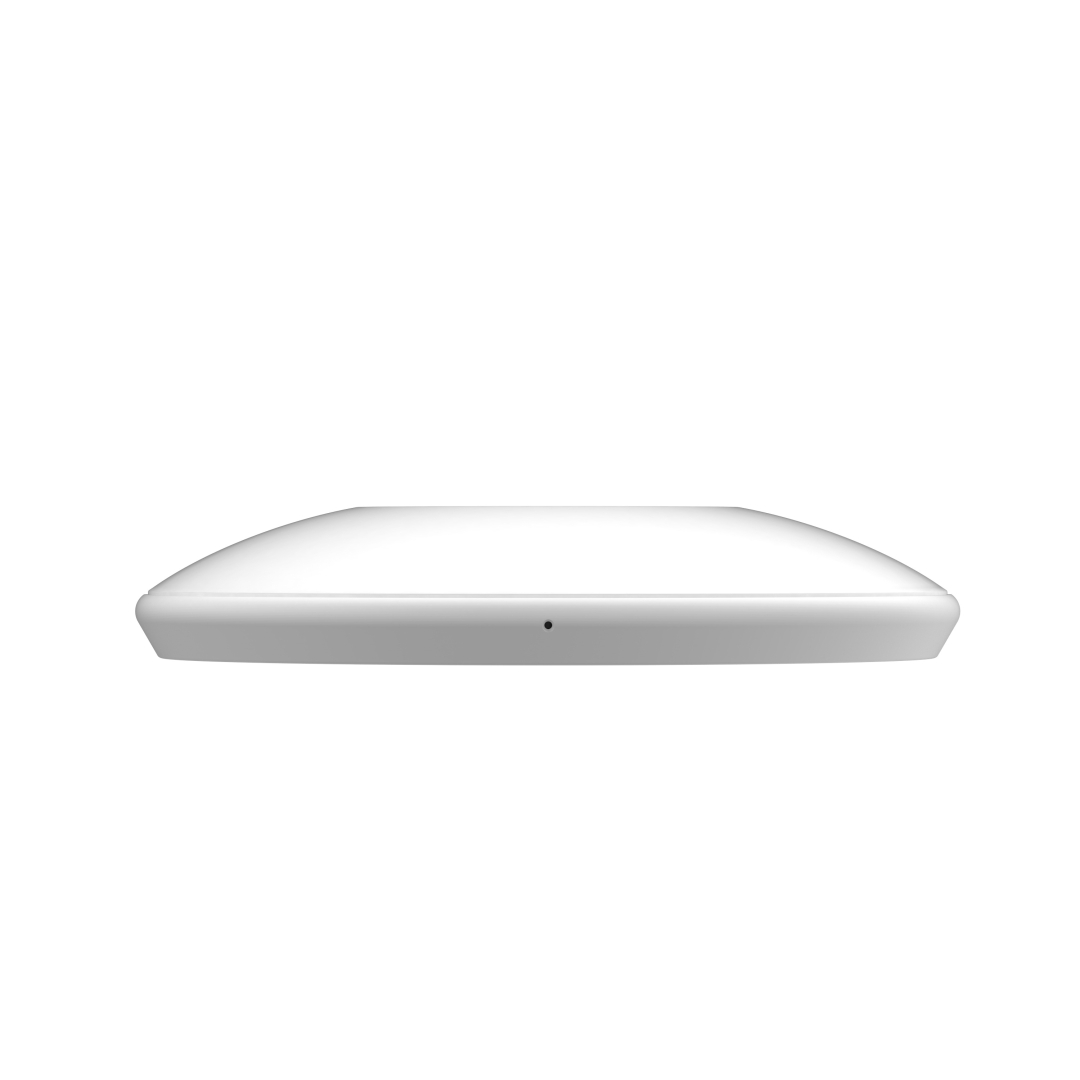

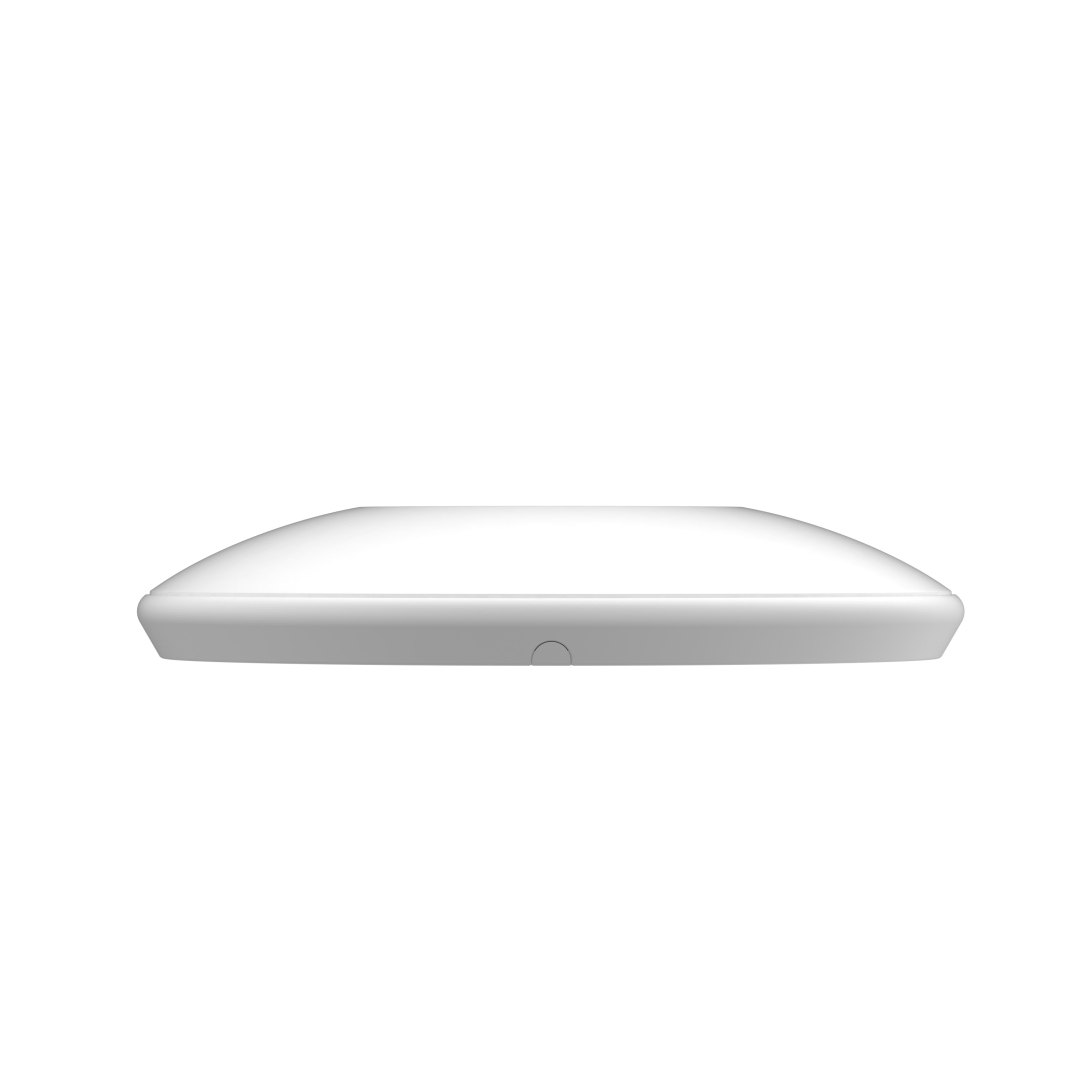

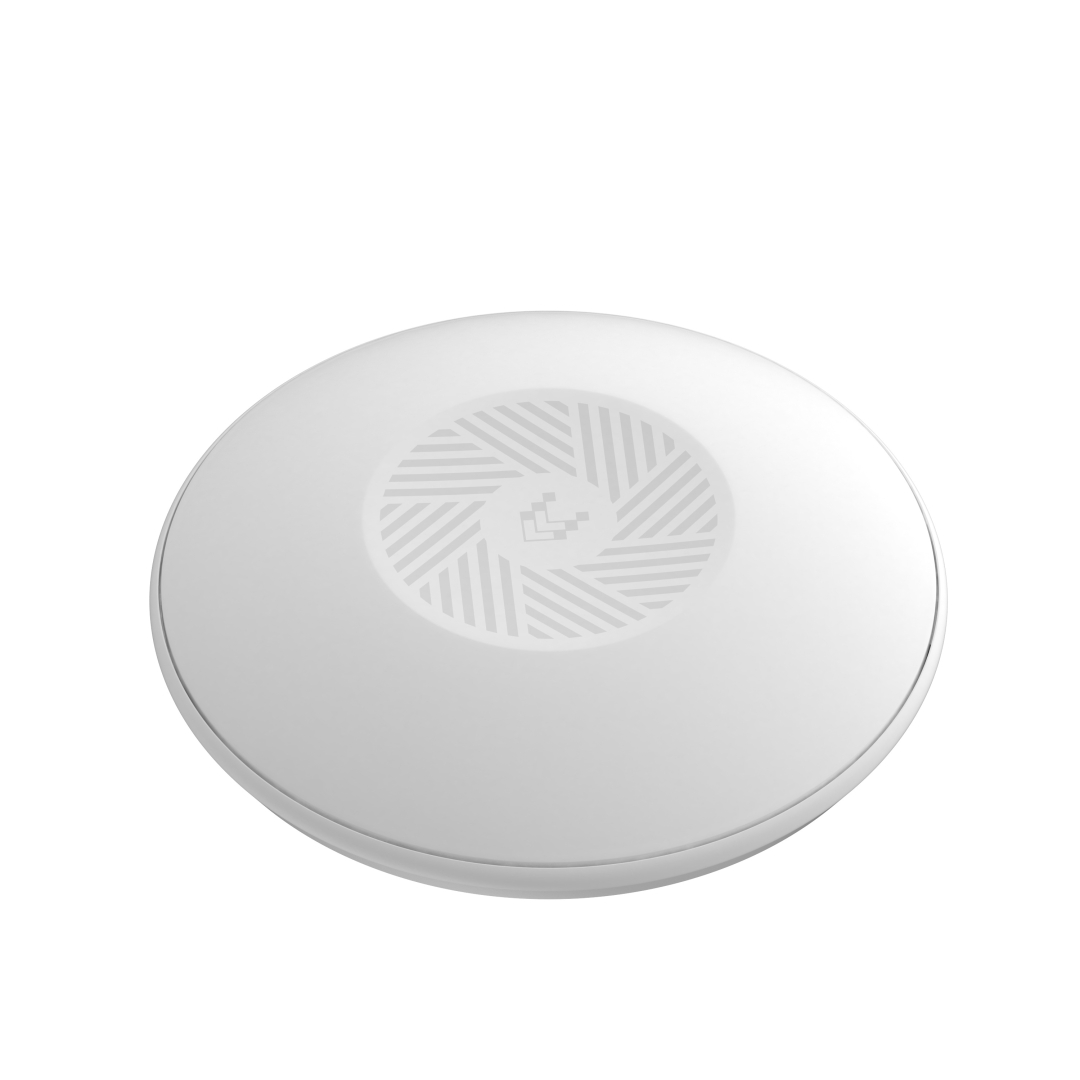

TELTONIKA Wi-Fi 6 Access Point (TAP400)

Features:

The TAP400 is a high-performance Wi-Fi 6 access point designed for SMBs that need fast, efficient wireless coverage and simple centralized management. Experience ultra-fast throughput with the dedicated 2.5 GbE uplink and multi-user efficiency of Wi-Fi 6. The device ensures network continuity and seamless expansion with Fast Roaming and Mesh. All network configuration, monitoring, and troubleshooting can be handled remotely via Teltonika RMS, allowing you to seamlessly reach and control other devices on the network. Upgrade your business to high-performance connectivity that covers every corner.

WI-FI 6
Robust wireless network for optimal multi-user efficiency

CENTRALISED CONTROL
Configure, monitor, and troubleshoot remotely via RMS

Wi-Fi MANAGEMENT
Manage multiple devices and visualize your setup with the network map

ALWAYS-ON COVERAGE
Stay online and extend coverage with Fast Roaming and Mesh

Specification:

Wireless
Wireless mode: 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID: SSID stealth mode and access control based on MAC address
Wi-Fi users: Up to 512 simultaneous connections
Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter: Allowlist, blocklist
Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
Ethernet: 1 x RJ45 port 100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Network protocols: TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, IPsec, PPP, HTTP, TTPS
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0: Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security
Authentication: SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
VLAN: Tag-based VLAN separation
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
802.1x: Port-based network access control client

Data to Server
Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

API
Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
Email: Receive email message status alerts of various services
JSON-RPC: Management API over HTTP/HTTPS
Wi-Fi Scanner: Wi-Fi Scanner scans and collects information about wireless devices in surrounding area
RMS: Teltonika Remote Management System (RMS)

System Characteristics
CPU: Mediatek, Dual-Core, 1.3 Ghz
RAM: 512 MB, DDR3
FLASH storage: 16MB SPI NOR Flash, 512MB SPI NAND Flash

Firmware/Configuration
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation
Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Power
Connector: RJ45 Socket
Input voltage range: 44.0 – 57.0 V, surge protection >64.4 VDC 10us max
PoE standards: 802.3af PoE Class 3
Power consumption: Idle: < 7 W / Max: < 11 W

Physical Interfaces
Ethernet: 1 x RJ45 port, 100/1000/2500 Mbps
Status LEDs: 1 x Power LED (can be turned off from web-UI)
Antennas: 3 x Internal for 2.4 GHz Wi-Fi and 5 GHz Wi-Fi antennas
Antennas specifications: 3x 2400 - 2500 MHz, peak gain < 4.33 dBi & 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional
Reset: Reboot/User default reset/Factory reset button

Physical Specification
Casing material: UV stabilized plastic, aluminum
Dimensions (W x H x D): Ø 158 mm x 31.4 mm
Weight: 285 g
Mounting options: AP mounting bracket (for ceiling mount)

Operating Environment
Operating temperature: 0 °C to 50 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, UKCA, CB, EAC, UCRF, RCM, FCC, IC, WEEE

EMC Emissions & Immunity
Standards:
    EN 55032:2015+A11:2020
    EN 55035:2017+A11:2020
    EN 61000-3-3:2013+A1:2019+A2:2021
    EN IEC 61000-3-2:2019+A1:2021
    EN 301 489-1 V2.2.3
    EN 301 489-17 V3.2.4
ESD: EN 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014
DIP: EN IEC 61000-4-11:2020

RF
Standards: EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1

Safety
Standards:
    IEC 62368-1:2018
    EN IEC 62368-1:2020+A11:2020
    EN IEC 62311:2020

Package contains:
   - Access Point TAP400
   - QSG (Quick Start Guide)
   - Wi-Fi Information sticker
   - Packaging box
