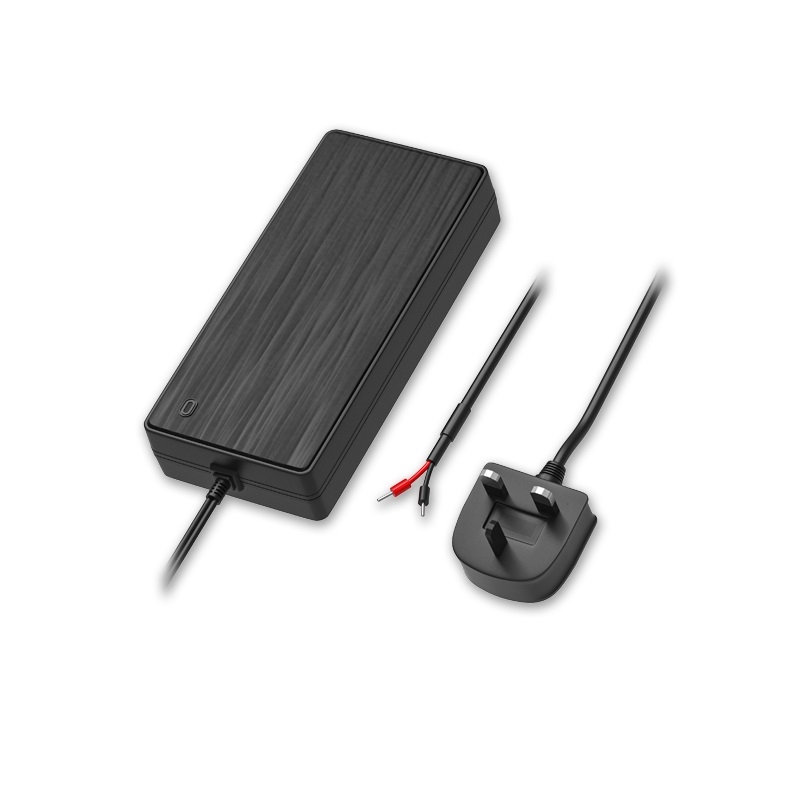

TELTONIKA 2-PIN 250W Power Supply, UK type (PR320UKA)
MPN:
PR320UKA
Order code:
PR320UKA
Quick code:
#3747
Output Voltage: 54V, Output Current: 4.62A, Output Power: 249.48W
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 71.67£ | 86.00£ | >0£ |
| 71.03£ | 85.24£ | >300£ |
| 70.39£ | 84.47£ | >1000£ |
Features:
Compatible with TSW200 switch.
Specification:
| GENERAL | |
| Input voltage | 100 - 240 VAC |
| Input frequency | 50/60 Hz |
| Input current | 3.9 A |
| Input connector | UK (Type G) |
| Output voltage | 54 V |
| Output current | 4.62 A |
| Output connector | 2-PIN, with cord end terminals |
| Weight | 910 g |
| ADDITIONAL | |
| Input voltage absolute maximum rating | 90 - 262 VAC |
| Input frequency absolute maximum rating | 47 - 63 Hz |
| Maximum input inrush current | 60 A |
| Output voltage absolute maximum rating | 51.3 - 56.7 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 1500 VAC |
| Certification | Safety: IEC62368-1 (CB Scheme), BS EN 62368-1:2014+A11 EMC: EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012 EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004 |
