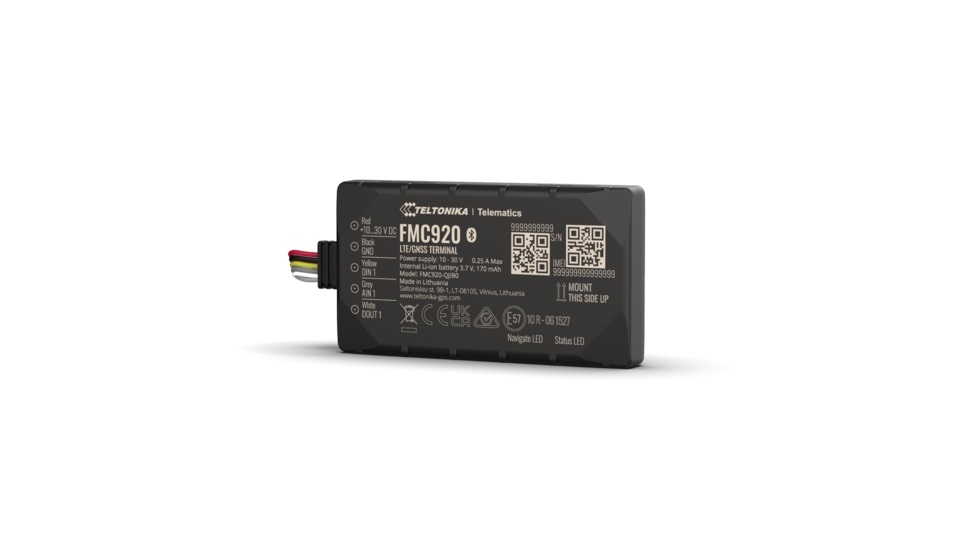

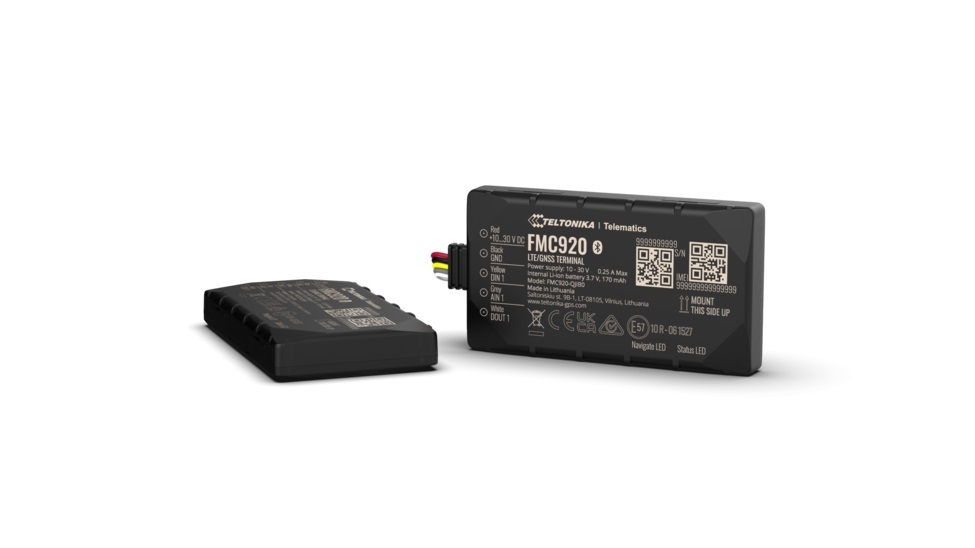

TELTONIKA Small and Smart 4G LTE Cat 1 Tracker (FMC920)

Features:

Teltonika FMC920 is a small and smart tracker with Bluetooth® connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.
The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device  usage scenarios with temperature, humidity, liquid level monitoring and many more.
All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.

Future-proof network support
Reliable 4G LTE Cat 1 network coverage with fallback to 2G – guaranteed future-proof network support for your fleet

Extensive remote monitoring possibilities
Blocking engine remotely among the numerous available fleet control measures

Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces

Specification:

Module
Name: FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500
Technology: LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 tracking channel, 99 acquisition channel
Tracking sensitivity: -165 dBM
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: LTE Cat 1, GSM
2G bands:GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer:
   LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
   LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
   GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support: SMS (text/data)

Power
Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse: 3A, 125V
Power consumption:
   At 12V < 2 mA (Ultra Deep Sleep)
   At 12V < 3 mA (Deep Sleep)
   At 12V < 8 mA (Online Sleep)
   At 12V < 12 mA (GPS Sleep)
   At 12V < 28 mA (nominal)

Bluetooth®
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Operating environment
Operating temperature (with battery): -20 °C to +40 °C
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Storage temperature (with battery): -20 °C to +60 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
   -20 °C to +45 °C for 1 month
   -20 °C to +35 °C for 6 months

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal GSM High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification & approvals
Regulatory: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH
