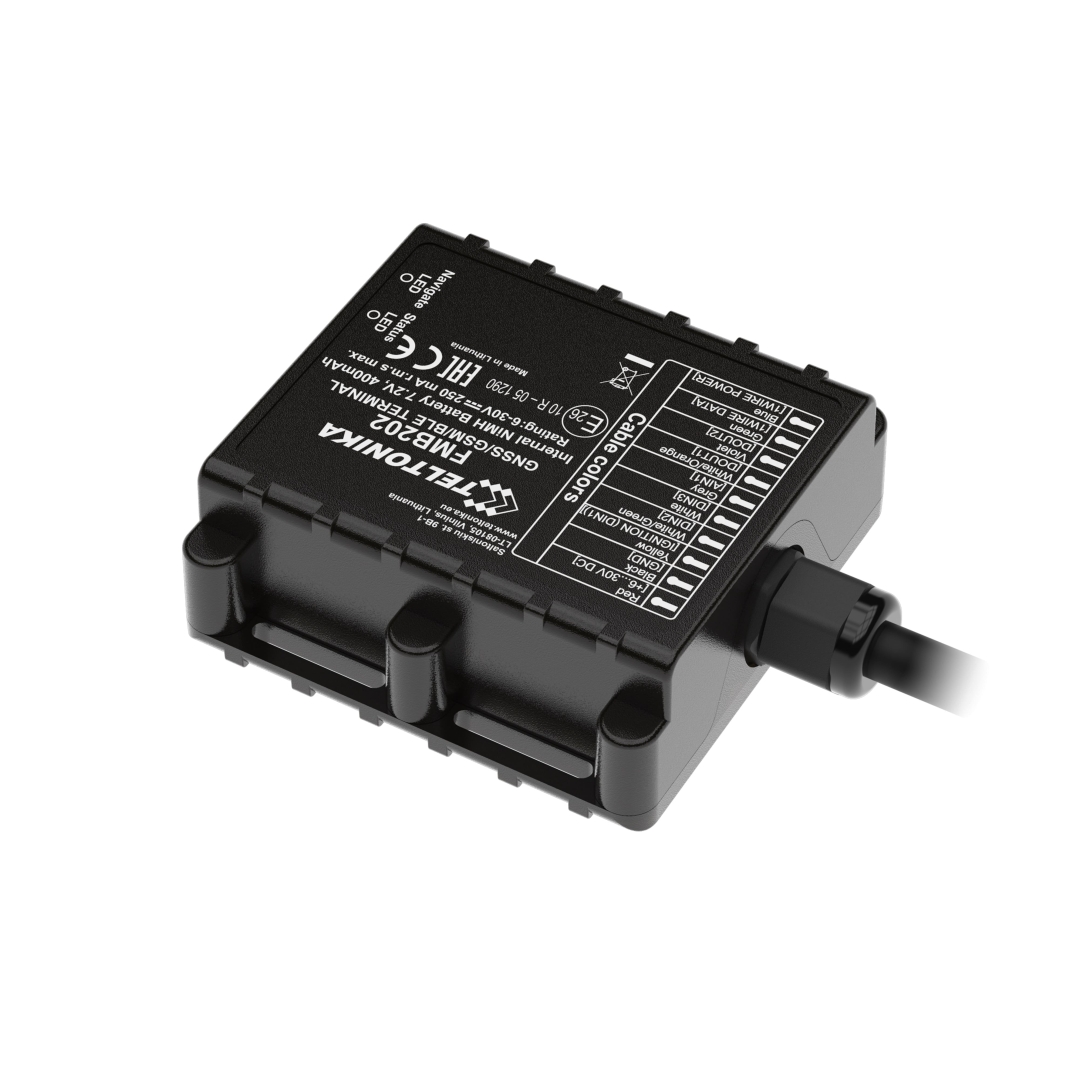

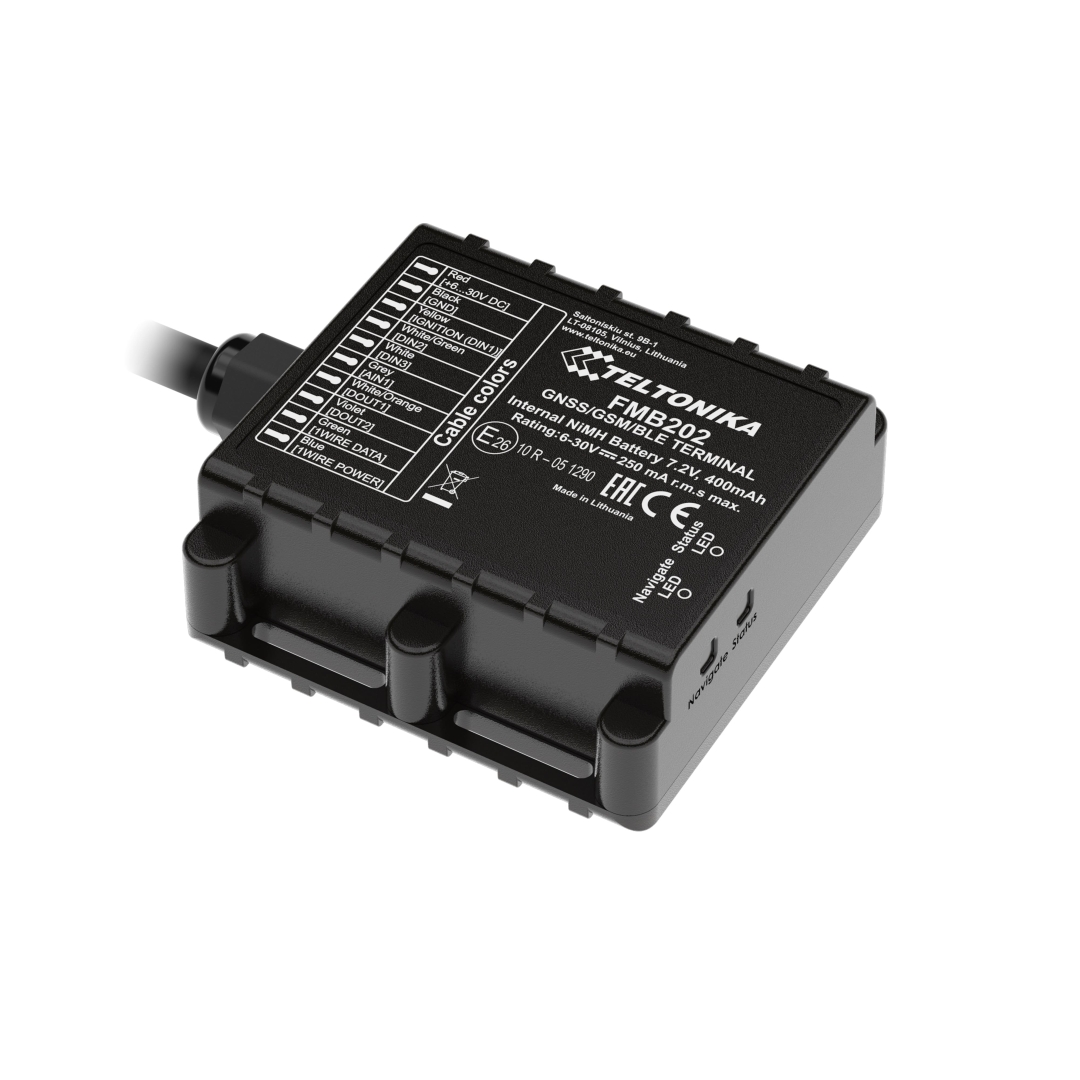

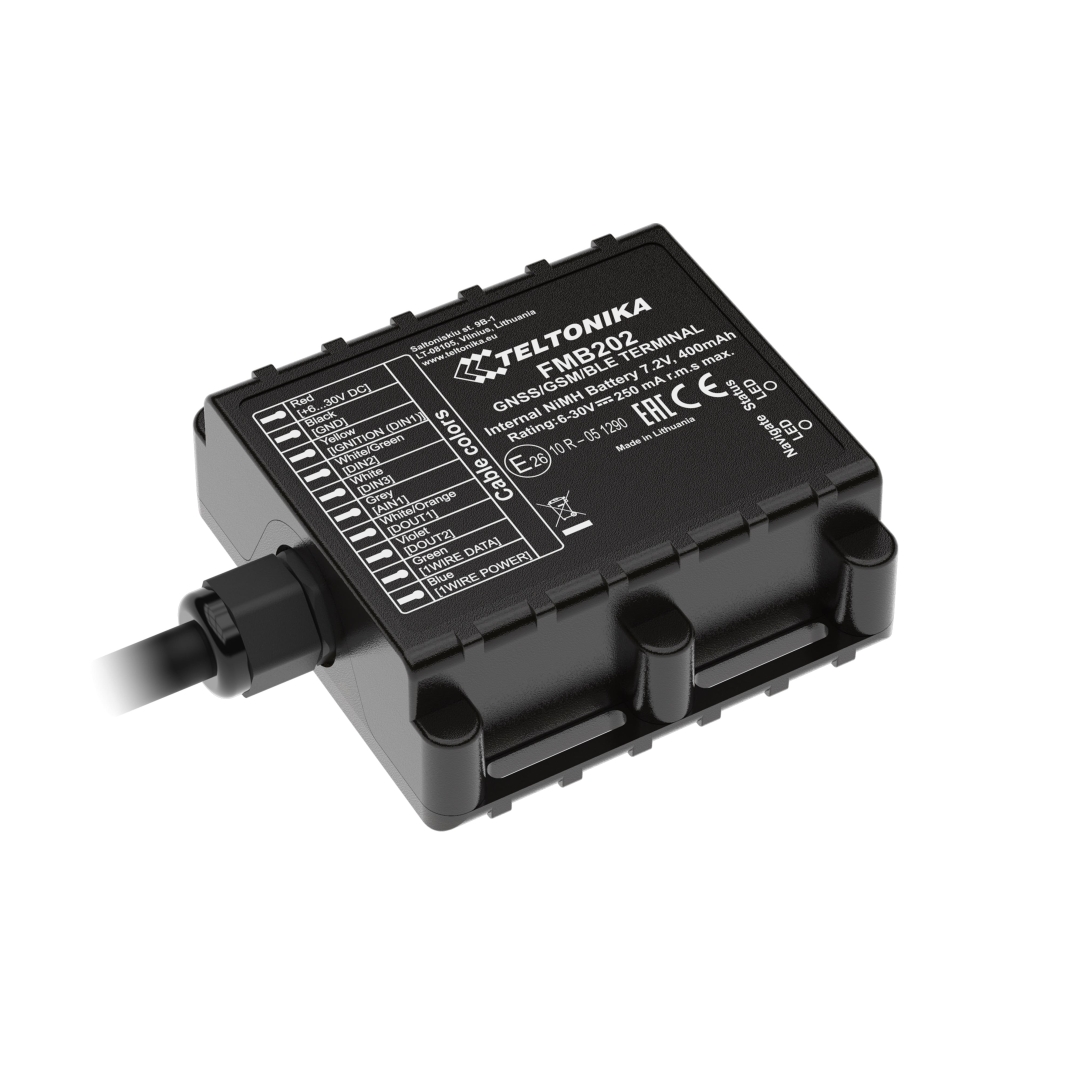

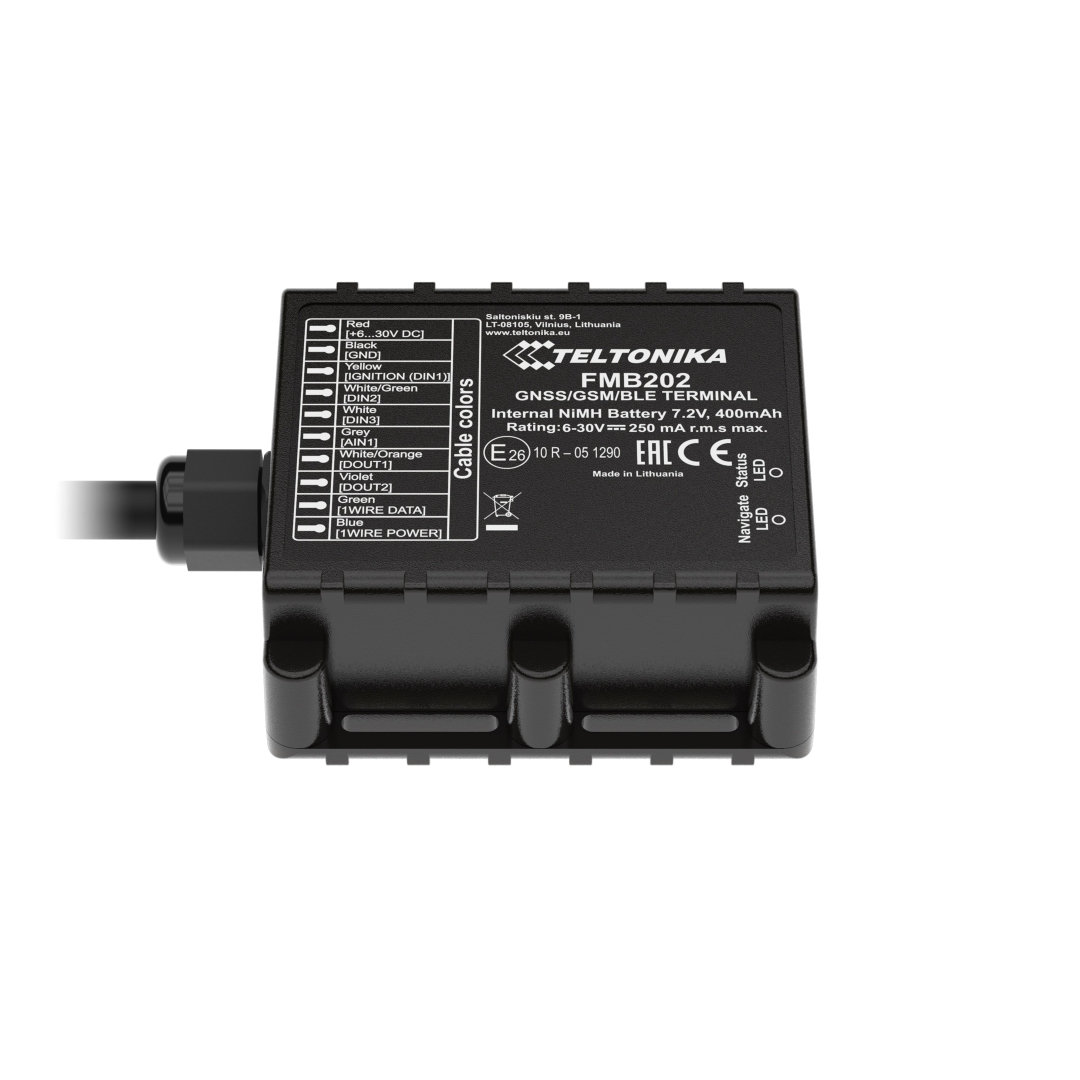

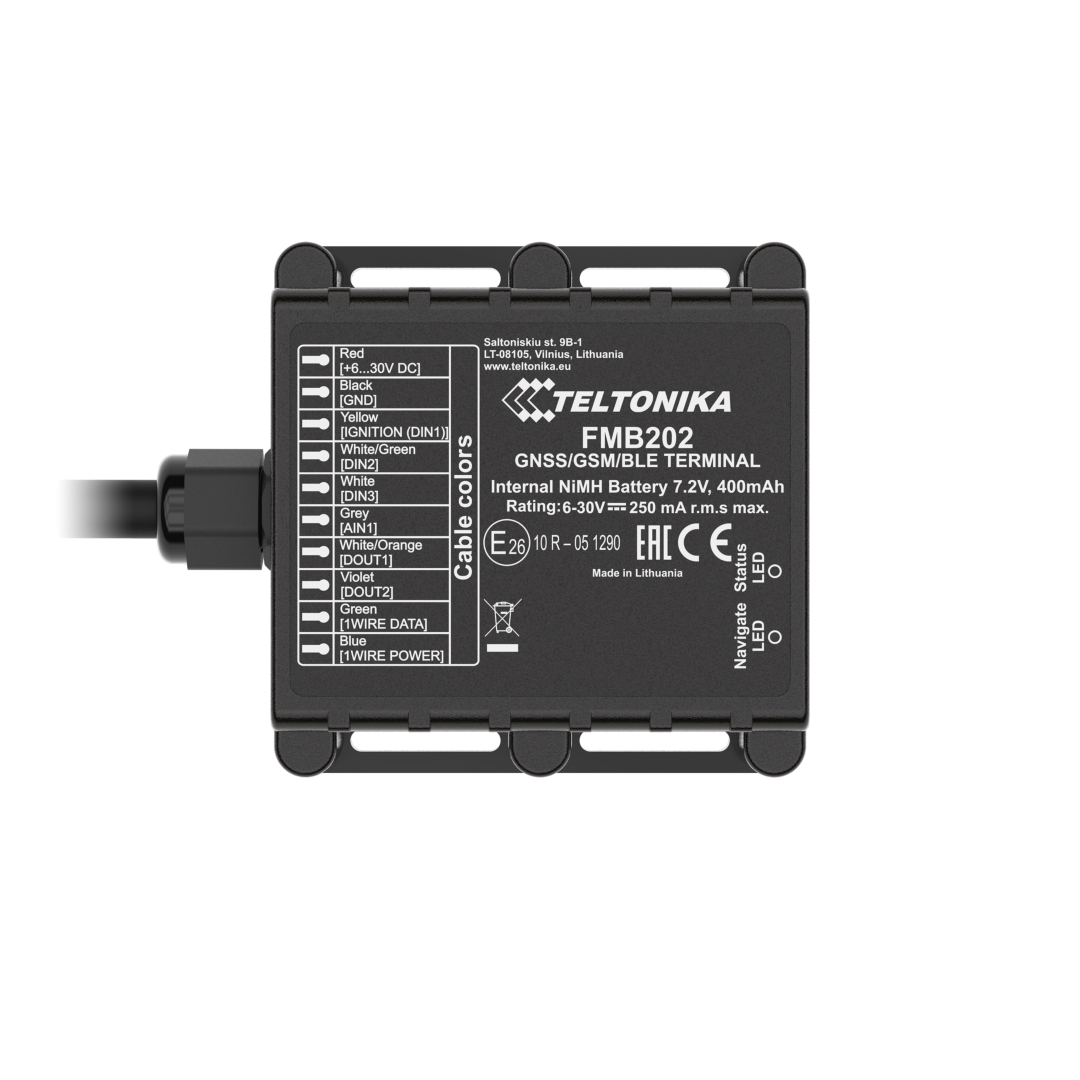

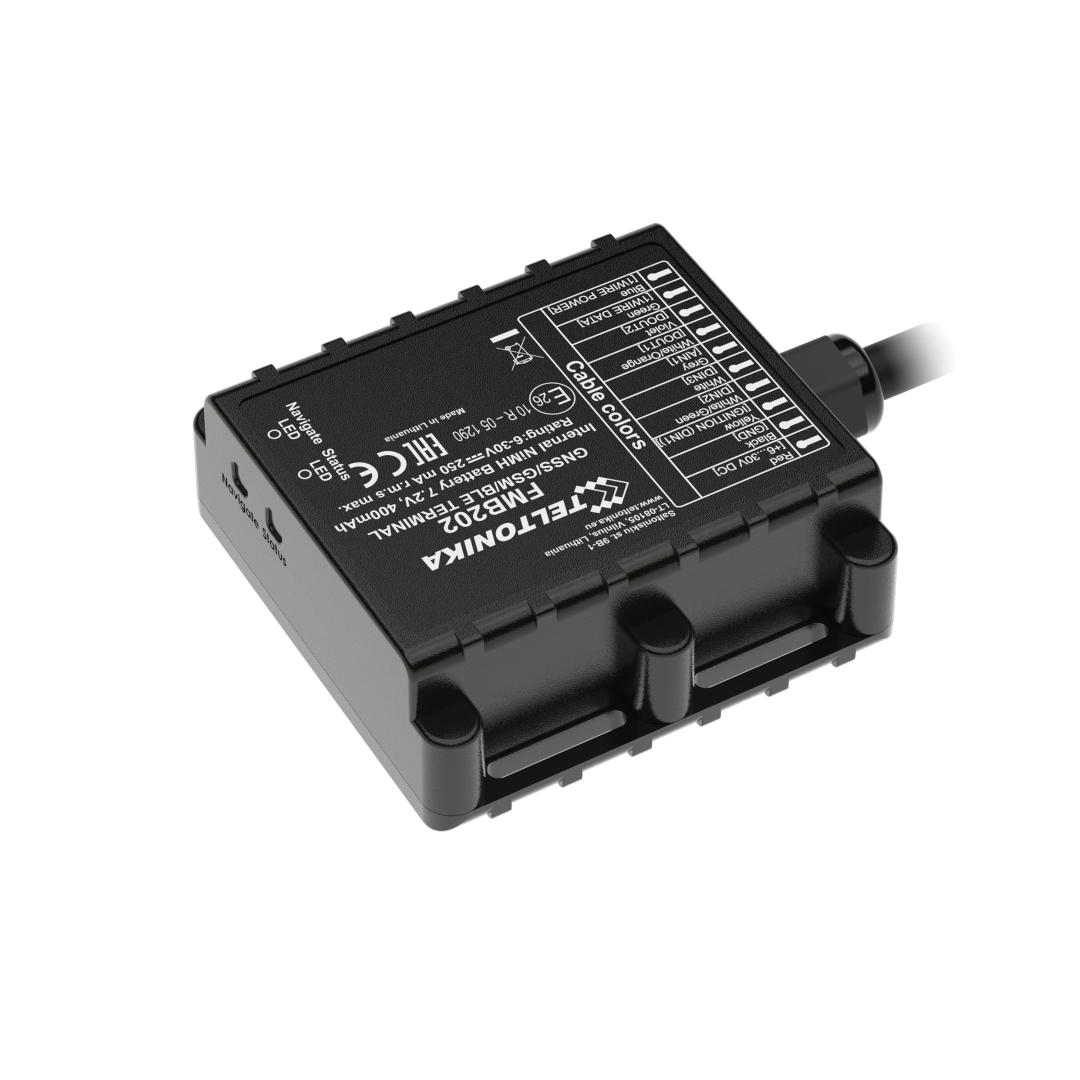

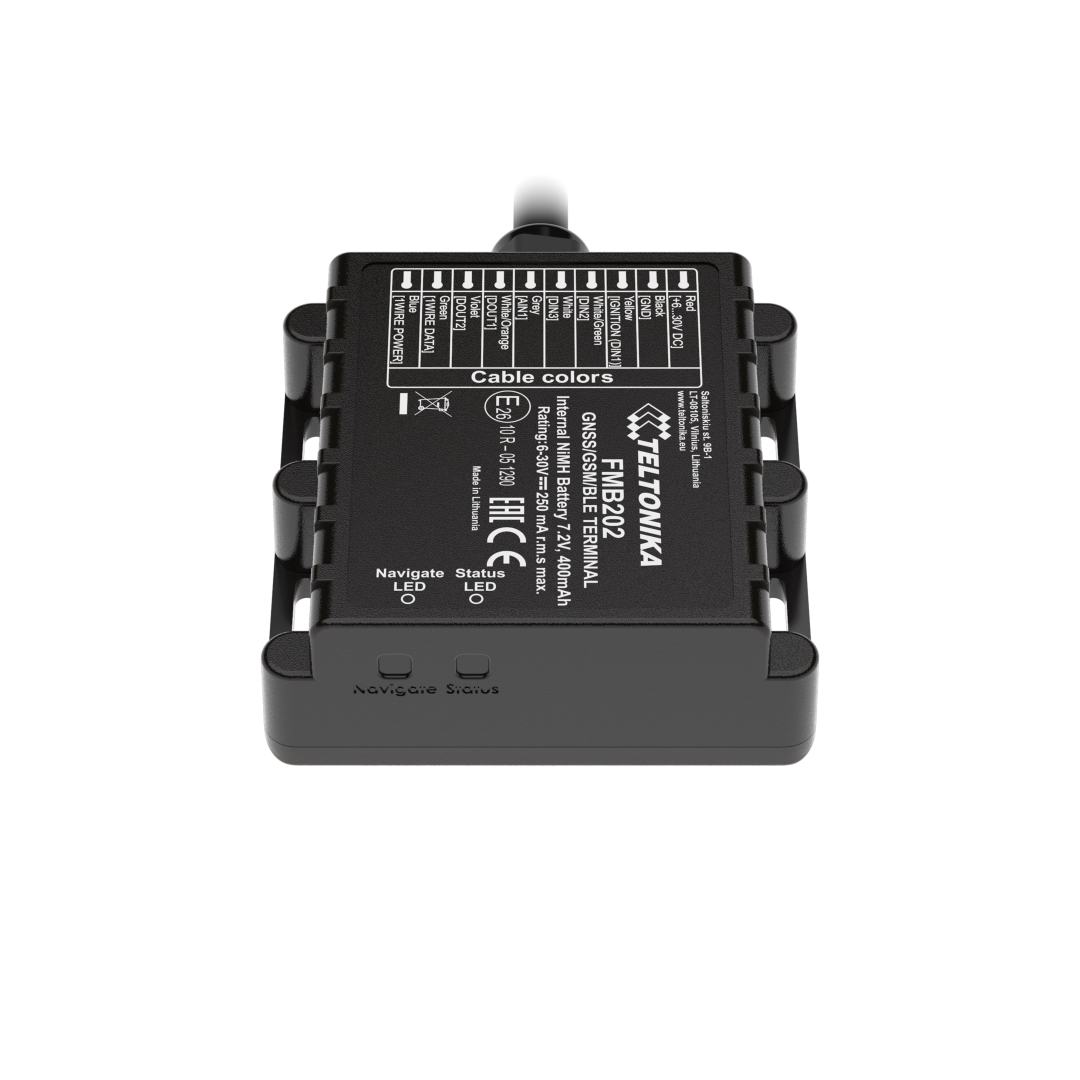

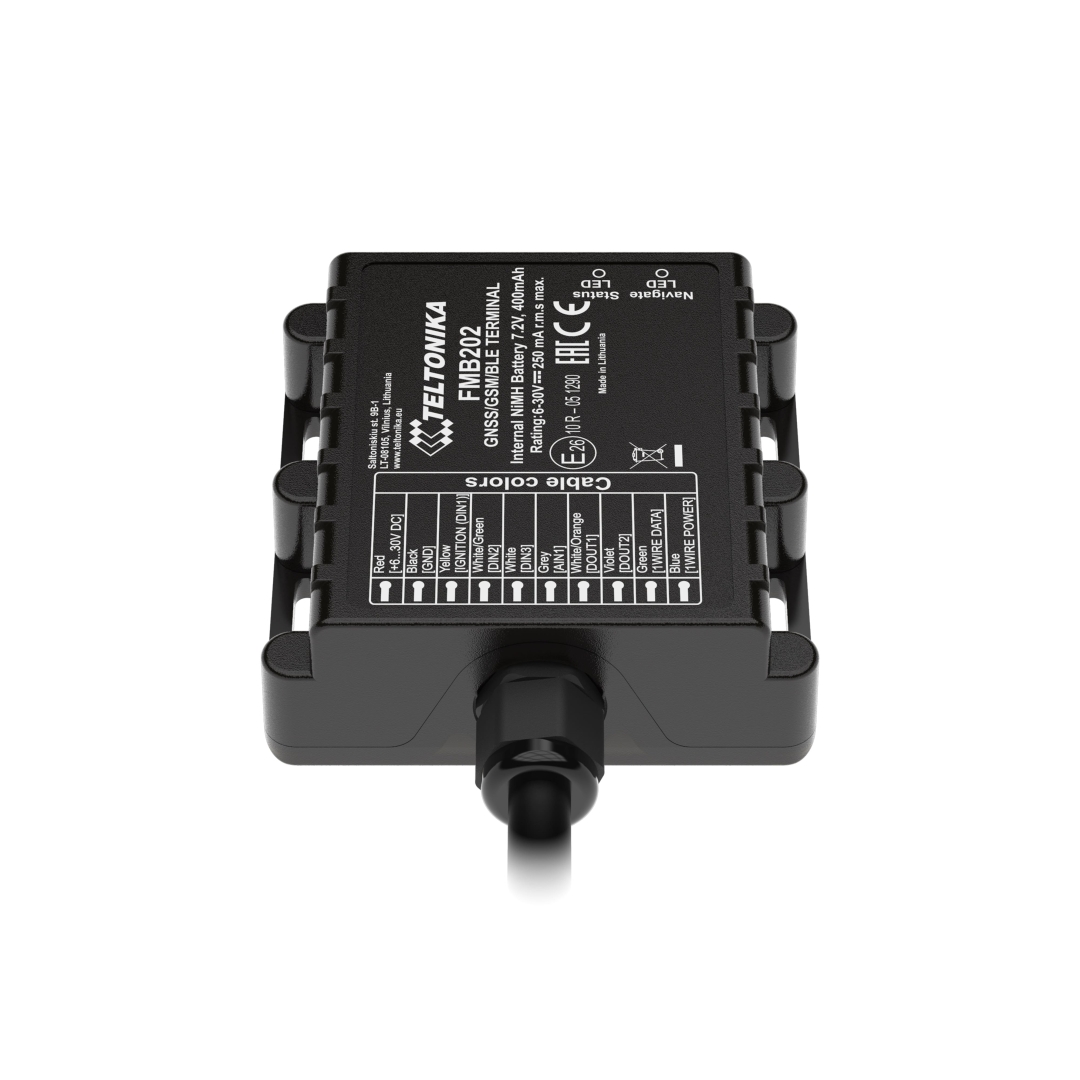

TELTONIKA Small and professional waterproof tracker with internal high gain GNSS/GSM antenas, Bluetooth and high capacity internal Ni-MH battery (FMB202)

MPN: FMB202
Order code: FMB202
Quick code: #2398

1-Wire® interface to monitor temperature data and RFID/iButton tags | Digital Input/Output for remote monitoring and control | Allows device to work without external power source | 6-30 V External voltage range | Bluetooth for external devices and Low Energy sensors | Classifies the degree of protection against solid objects and water

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
39.30£ 47.16£ >0£
38.95£ 46.74£ >300£
38.60£ 46.32£ >1000£
Qty:


Features:

Teltonika FMB202 is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FMB202 with NiMH battery can work up to 2 days in power saving mode. FMB202 is perfectly suitable for agriculture, delivery, refrigerated transport, trailers tracking, security & emergency services and even more. 6-30V power supply makes FMB202 suitable for motorbikes and water transport.

Learn more on wiki page

Specification:

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GPS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Input voltage range 6 - 30 V DC with overvoltage protection
Internal Back-up battery 400 mAh Ni-MH battery (2.88 Wh)
Power consumption At 12V < 1,9 mA (Ultra Sleep)
At 12V < 3,7 mA (Deep Sleep)
At 12V < 4 mA (Online Sleep)
At 12V < 11,6 mA (GPS Sleep)
At 12V < 27,6 mA (nominal)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Digital Inputs 3
Digital Outputs 2
Analog Inputs 1
1WIRE DATA 1
1WIRE POWER 1
GNSS antenna Internal High Gain
Cellular antenna Internal GSM High Gain
USB Micro-USB
LED indication 2 status LED lights
SIM SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 72,5 x 73 x 27,3 mm (L x W x H)
Weight 205 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery storage temperature -20 °C to +45°C
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring LLS (Analog), OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
CERTIFICATION & APPROVALS
Regulatory CE/RED, E-Mark, EAC, RoHS, REACH
