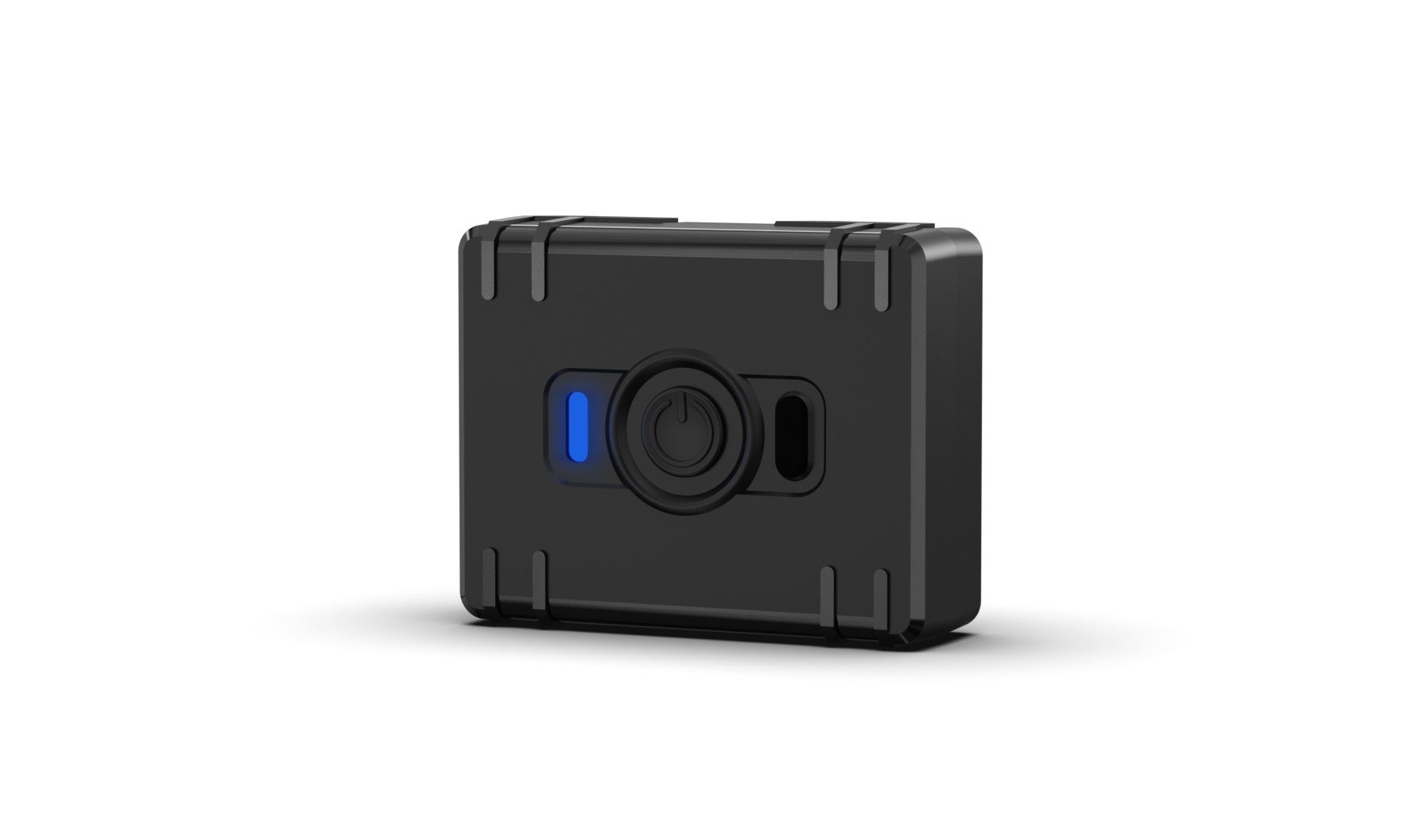

TELTONIKA Mini asset tracker with 4G LTE Cat 1 connectivity (ATC700)

Features:

TRACK, CHARGE, REPEAT
The device comes with a 1,000 mAh rechargeable battery to provide reliable power and uninterrupted tracking

BACK-UP POWER SUPPORT
Compatibility with power banks ensures device operation during prolonged activities or in remote locations

VARIOUS BUTTON USAGE OPTIONS
A multi-action button can be set to activate tracking, act as a panic button, or switch between tracking intervals

EFFORTLESS INSTALLATION, RELIABLE OPERATION
Fast device set-up without any wires and protection in extreme weather conditions with the IP68-rated casing

Specification:

Model name: ATC700-QJAE0

Module
Name: ATC700-QJAE0: EG915U-EU
Technology: LTE CAT 1/GSM/GPRS/GNSS

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU
Receiver: 135 tracking/acquisition channels
Tracking sensitivity: -165 dBM
Position Accuracy: < 1.8 m CEP
Warm start: < 25 s
Hot start: < 1 s

Cellular
Technology: LTE CAT 1/GSM
2G bands: GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD: B1/B3/B5/B7/B8/B20/B28
Data transfer:
    LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
    GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power:
    Class 4 for GSM850/900: 33±4dBM
    Class 1 for GSM1800/1900: 30±2dBM
    Class 3 for LTE-FDD: 23±2dBM
Data support: SMS (TEXT, PDU), Network protocols (TCP, UDP)

Data codec
Codec support: Codec 8 Extended

Power
Internal battery: 1000 mAh Li-Po battery, 3.7V (3.7Wh)

Physical specification
Dimensions: 62.2 x 54.2 x 20.3 mm (L x W x H)
Weight: 71 g

Operating environment
Operating temperature: -20 °C to +60 °C
Storage temperature (with battery):
    -10 °C to +25 °C for 1 month
    0 °C to +25 °C for longer than 3 months
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP65 (internally tested, not certified). IP68 - in development.
Battery charge temperature: 0°C to +45°C
Battery discharge temperature: -20°C to +60°C
Battery storage conditions:
    -10 °C to +50 °C for 1 month
    -10 °C to +35 °C for 3 months
    0 °C to +30 °C for 1 year

Interface
GNSS antenna: Internal High Gain
Cellular antenna: Internal High Gain
USB: 2.0 USB Type-C
LED indication: 1 status RGB LED light
SIM: Nano-SIM
Memory: 128MB internal flash memory

Features
Sensors: Accelerometer
Scenarios: Movement-based tracking, Periodic tracking, Scheduler, Alarm button, Power bank support, Configurable LED indication
Sleep modes: Online sleep, Power off sleep
Configuration and firmware update: FOTA WEB, Teltonika Configuration Tool (TCT)
SMS: Configuration, Debug
GPRS commands: Configuration, Debug
Time Synchronization: GNSS, NITZ, NTP

Certification & approvals
Regulatory: CE RED, UKCA, E-Mark, RCM
