TELTONIKA LTE Cat6 Industrial Cellular Router, UK type (RUTX11)

MPN: RUTX11
Order code: RUTX11-UK
Quick code: #1804

4x Gigabit LAN, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE, Carrier Aggregation, Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system, EU type power supply

Price exc. VAT: * Price inc. VAT: * For orders (total sum):
235.00£ 282.00£ >0£
Apply for trade discounts >300£
>1000£
Qty:
* special prices for trade customers


Features:

Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.

Learn more on wiki page

Specification:

MOBILE

Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed): 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list: Operator black/white list
Multiple PDN (planed): Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display

WIRELESS

Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID: ESSID stealth mode

ETHERNET

WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
BLUETOOTH
Bluetooth LE: Bluetooth low energy (LE) for short range communication

NETWORK

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forwards, traffic rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing: Balance your Internet traffic over multiple WAN connections
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port based and tag based VLAN separation
Mobile quota control: Set up custom data limits for both SIM cards
WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs

MONITORING & MANAGEMENT

WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP: SNMP (v1, v2, v3), SNMP trap
JSON-RPC: Management API over HTTP/HTTPS
Modbus (planed): Modbus TCP status/control, master and slave modes
MQTT: MQTT Broker, MQTT publisher
RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU: Quad-core ARM Cortex A7, 717 MHz
RAM: 256 MB, DDR3
FLASH memory: 256 MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided (planed)

LOCATION TRACKING

GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA: NMEA 0183
Server software: Supported server software: TAVL, RMS
Mobile Network Geolocation: Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing: Configurable multiple geofence zones

USB

Data rate: USB 2.0
Applications: Samba share (planed), custom scripts (planed)
External devices: Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats: FAT, FAT32, NTFS

INPUT/OUTPUT

Input: 1 x Digital Input
Output: 1 x Digital Output
Events: SMS, Email, RMS

POWER

Connector: 4 pin industrial DC power socket
Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption: 11 W Max

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

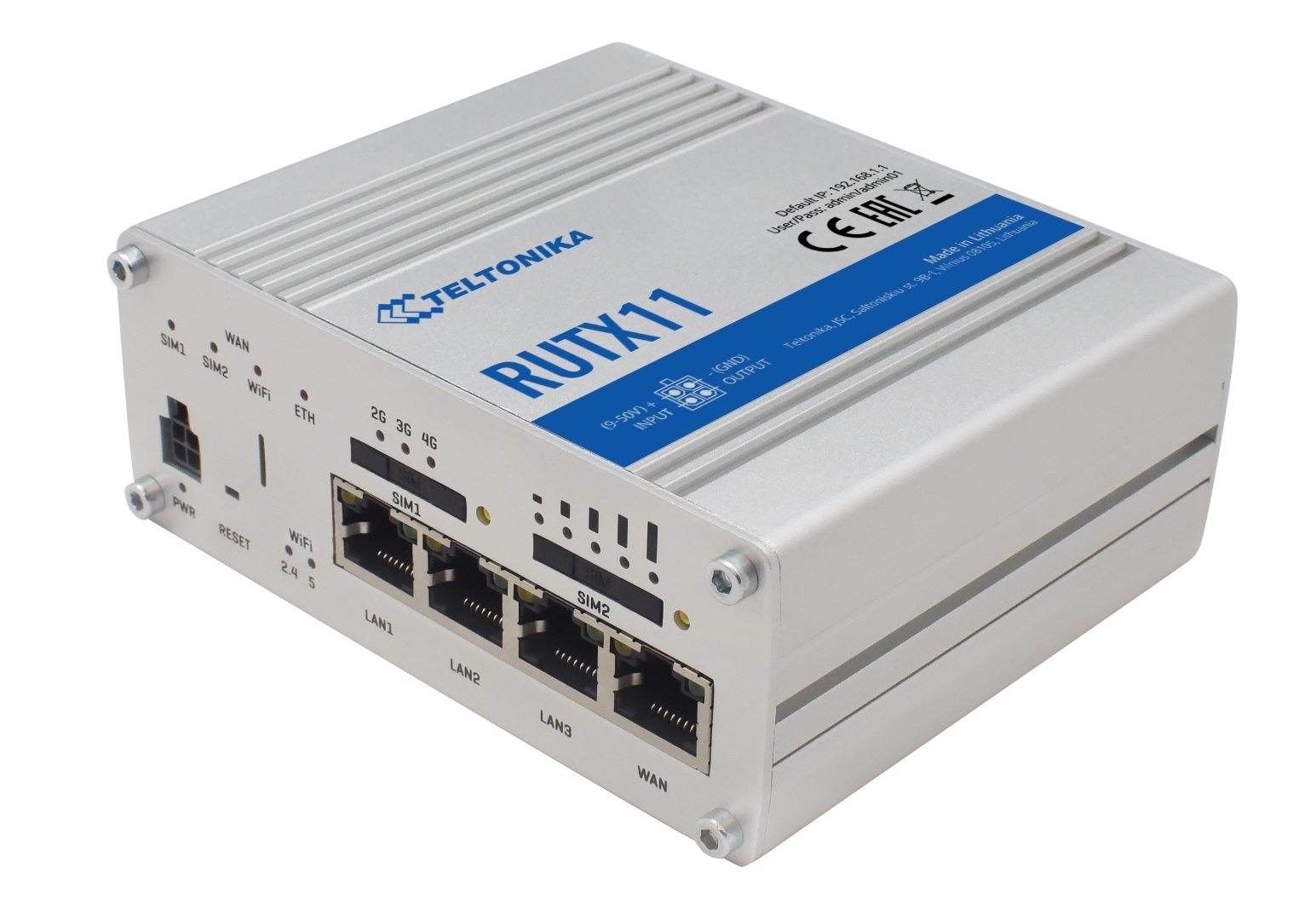

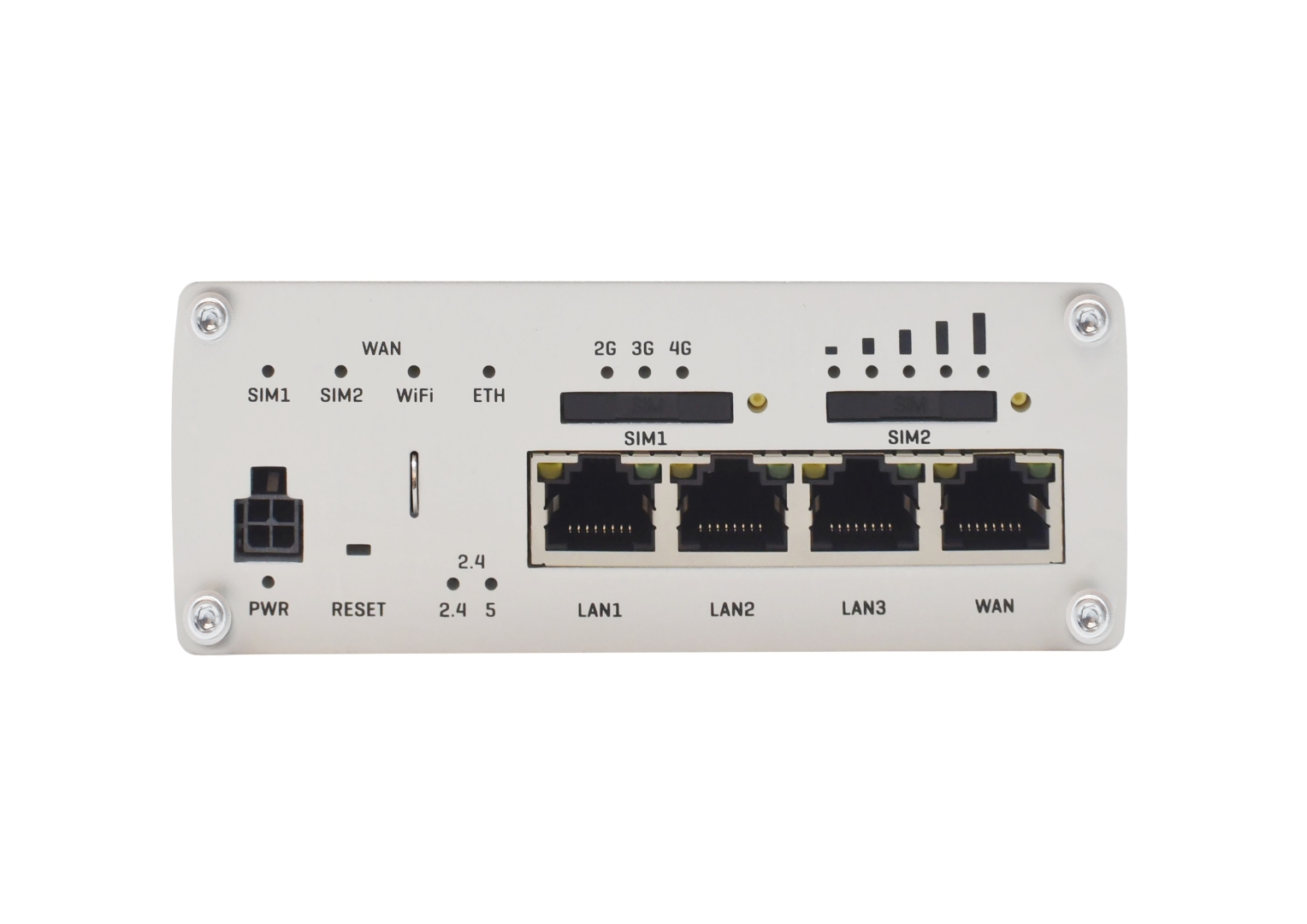

Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs: 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power: 4 pin DC connector

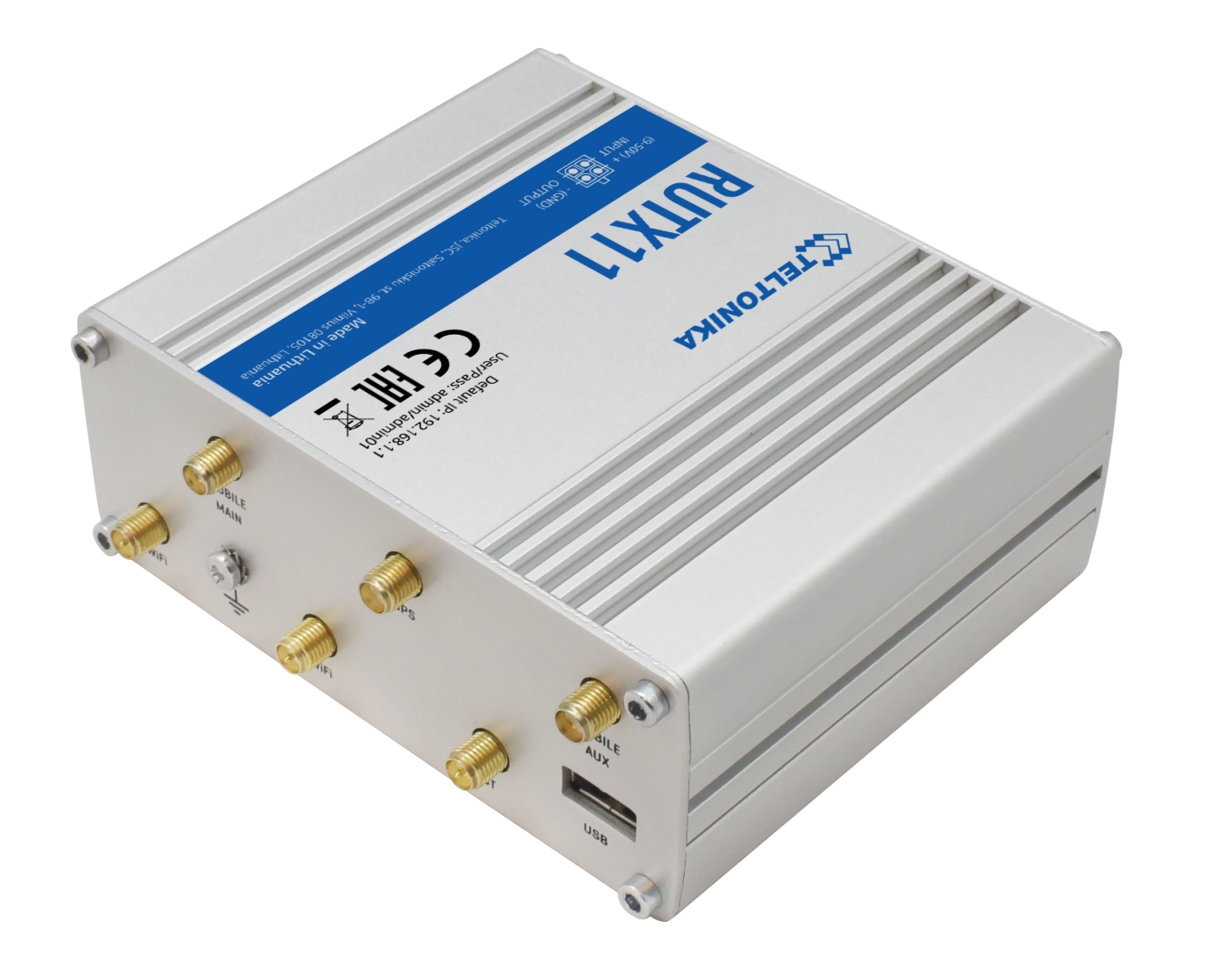

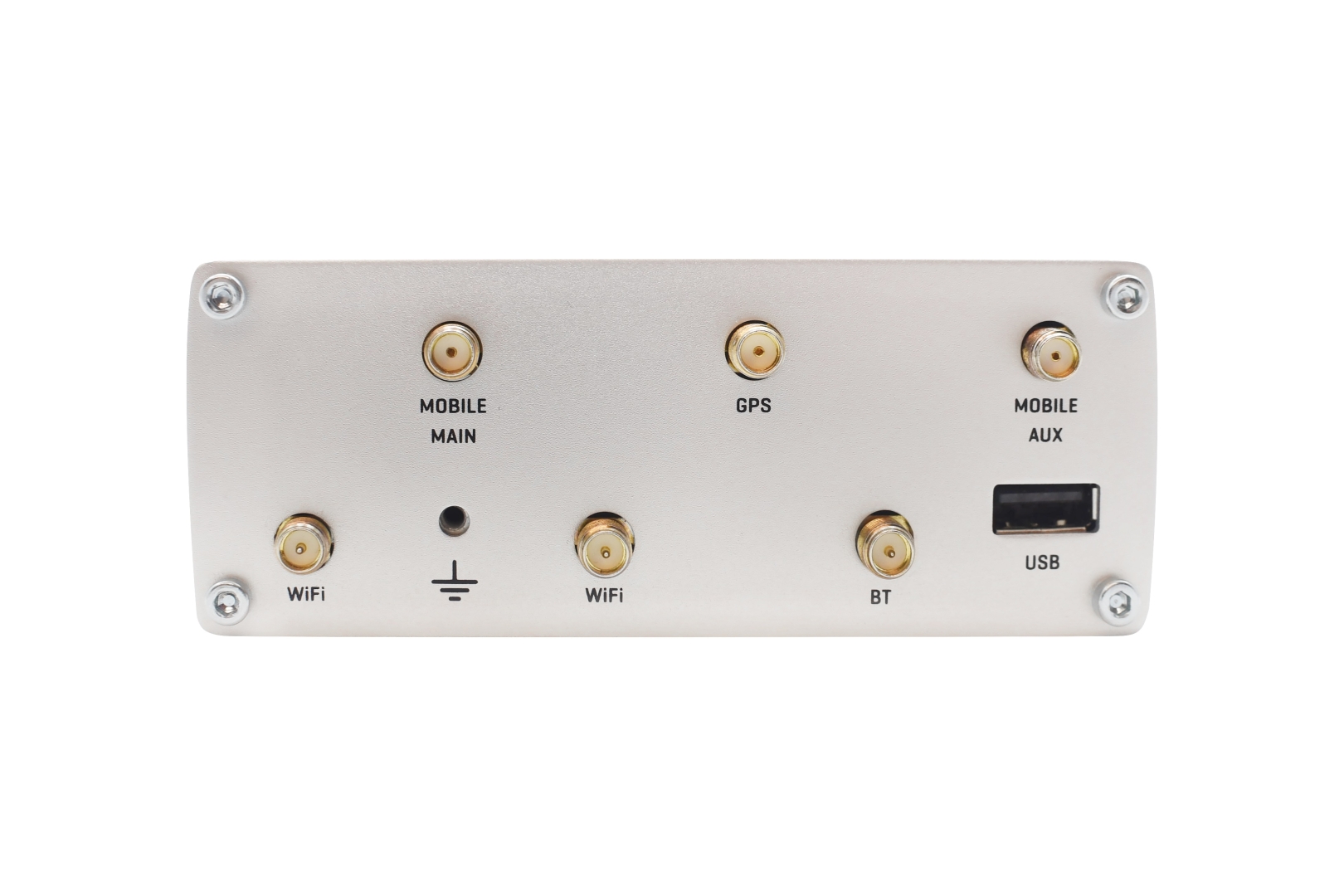

Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB: USB A port for external devices
Reset: Factory reset button

PHYSICAL SPECIFICATION

Casing material: Full aluminium housing
Dimensions: 115 mm x 95 mm x 44 mm (H x W x D)
Weight: 456 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30

Standard package contains

  • Router RUTX11

  • PSU

  • 2 x LTE antennas (swivel, SMA male)

  • 2 x WiFi antennas (swivel, RP-SMA male)

  • 1 x GNSS antenna (adhesive, SMA Male)

  • 1 x Bluetooth antenna (magnetic, RP-SMA male)

  • Ethernet cable (1.5 m)

  • QSG (Quick Start Guide)

  • Packaging box
