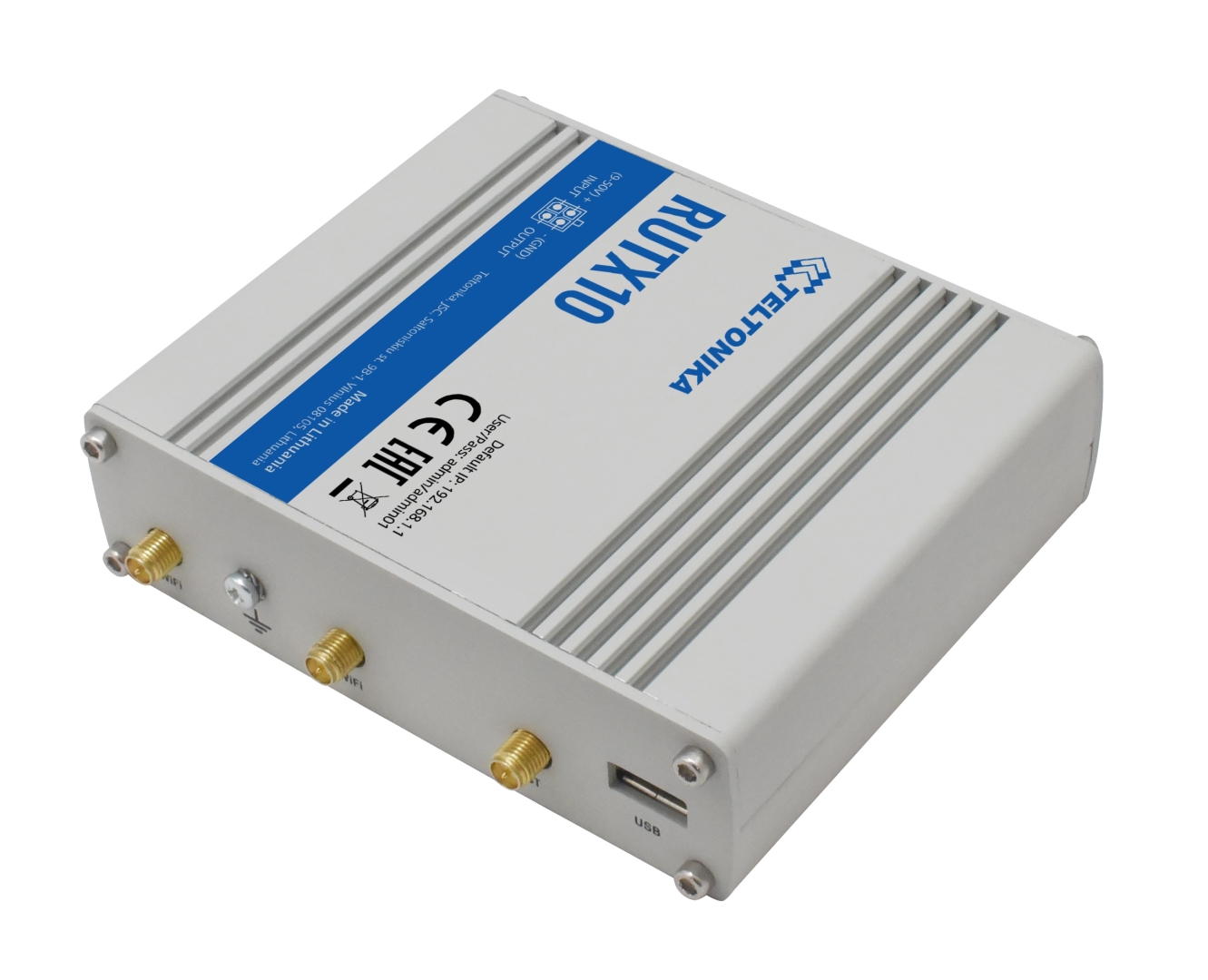

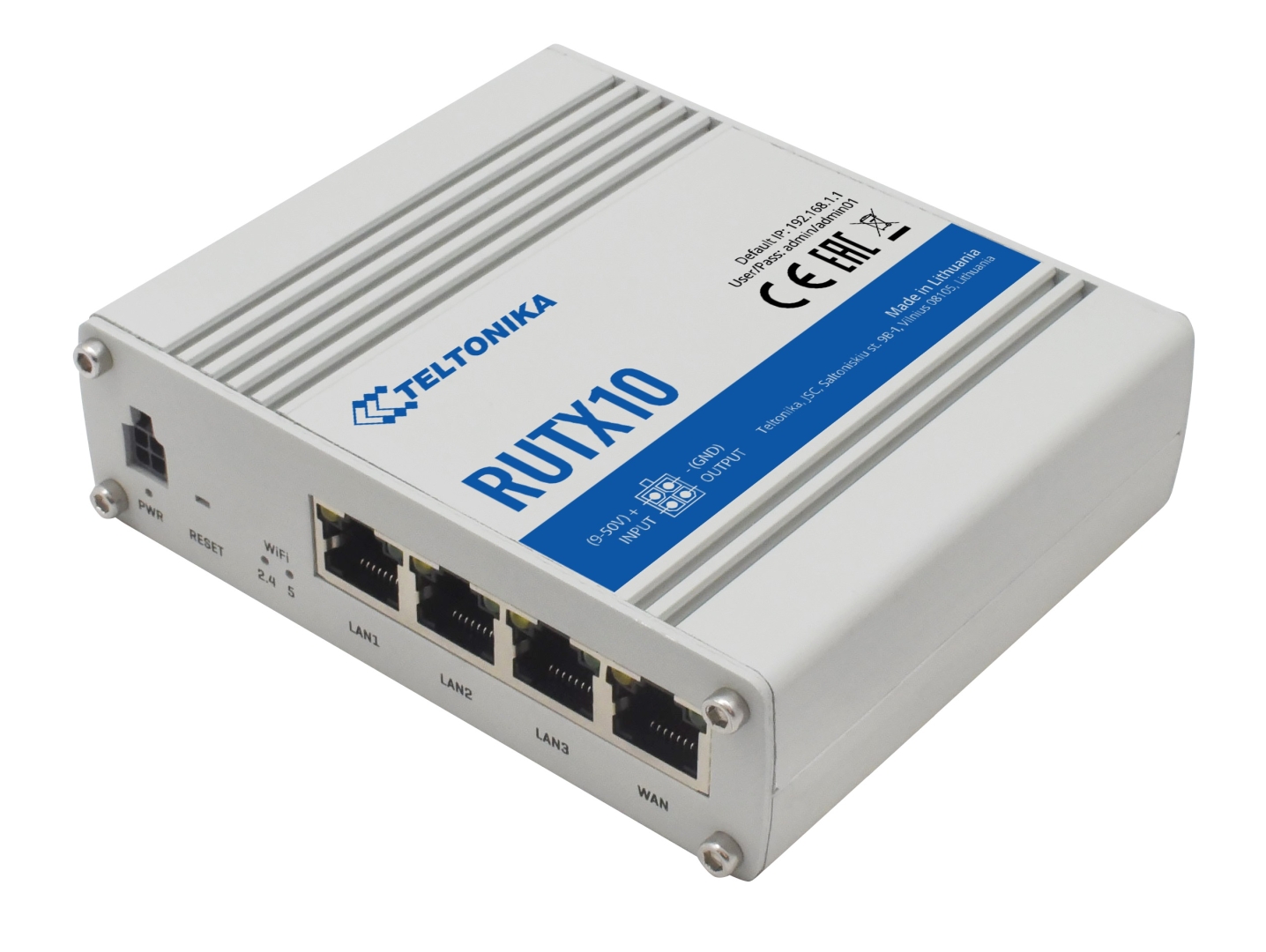

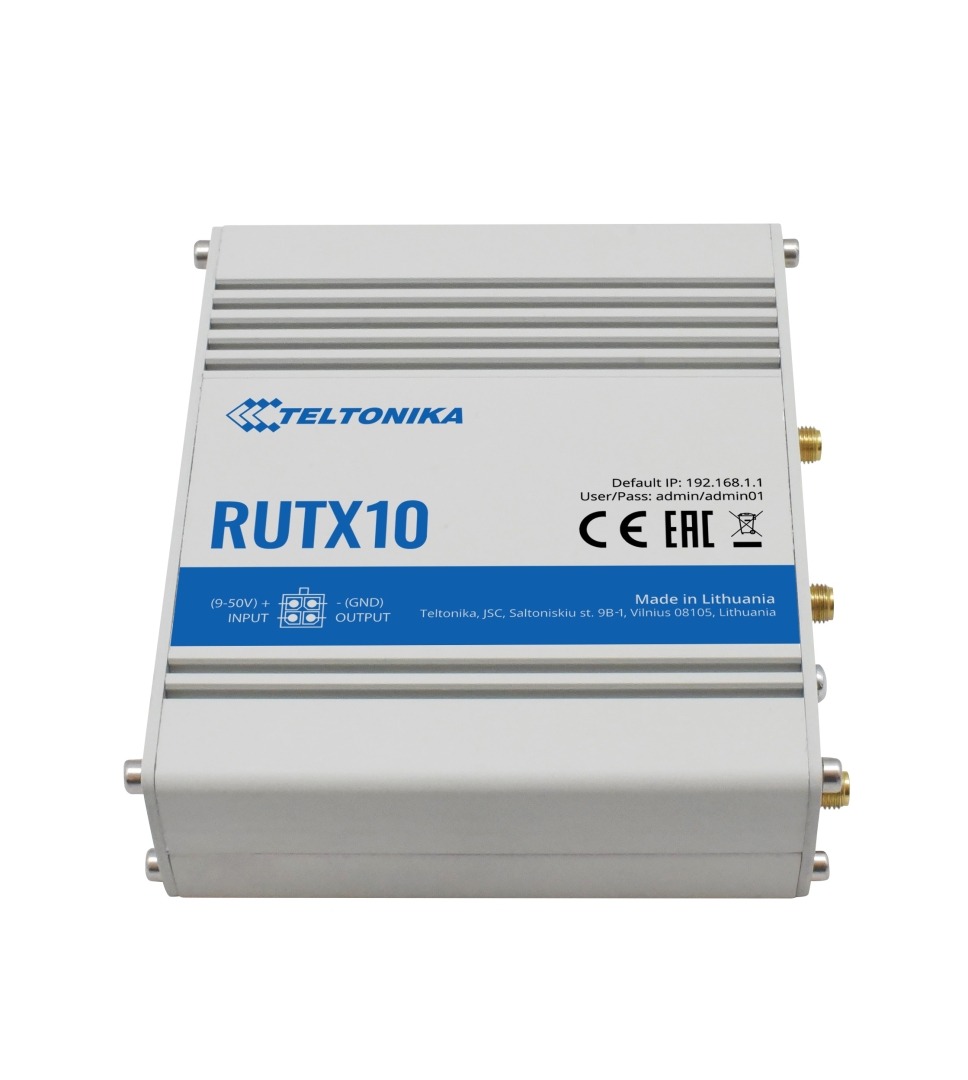

TELTONIKA Industrial VPN WiFi Router, UK type (RUTX10)

MPN: RUTX10
Order code: RUTX10-UK
Quick code: #1803

4x Gigabit LAN, Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps, Quad core ARM Cortex A7 CPU, 717 MHz, Bluetooth LE, Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system, EU type power supply

new
Price exc. VAT: * Price inc. VAT: * For orders (total sum):
118.00£ 141.60£ >0£
Login for discounted prices >300£
>1000£
Qty:
  In stock
* better prices only for registered customers


Features:

Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.

Learn more on wiki page

Specification:

ETHERNET

WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

WIRELESS

Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID: ESSID stealth mode

BLUETOOTH

Bluetooth LE: Bluetooth low energy (LE) for short range communication

NETWORK

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP (planed), SSL v3, TLS, ARP, VRRP (planed), PPP, PPPoE, UPNP, SSH, SNMP, DHCP, Telnet (optional), MQTT
VoIP passthrough support: H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forwards, traffic rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: VRRP (planed)
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port based and tag based VLAN separation
WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs

MONITORING & MANAGEMENT

WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
JSON-RPC: Management API over HTTP/HTTPS
Modbus (planed): Modbus TCP status/control, master and slave modes
RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU: Quad-core ARM Cortex A7, 717 MHz
RAM: 256 MB, DDR3
FLASH memory: 256 MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided (planed)

USB

Data rate: USB 2.0
Applications: Samba share (planed), custom scripts (planed)
External devices: Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats: FAT, FAT32, NTFS

INPUT/OUTPUT

Input: 1 x Digital Input
Output: 1 x Digital Output
Events: SMS, Email, RMS

POWER

Connector: 4 pin industrial DC power socket
Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption: 11 W Max

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)

Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs: 8 x LAN status LEDs, 1 x Power LED
Power: 4 pin DC connector
Antennas: 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth
USB: USB A port for external devices
Reset: Factory reset button

PHYSICAL SPECIFICATION

Casing material: Full aluminium housing
Dimensions: 115 mm x 95 mm x 32 mm (H x W x D)
Weight: 357 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
