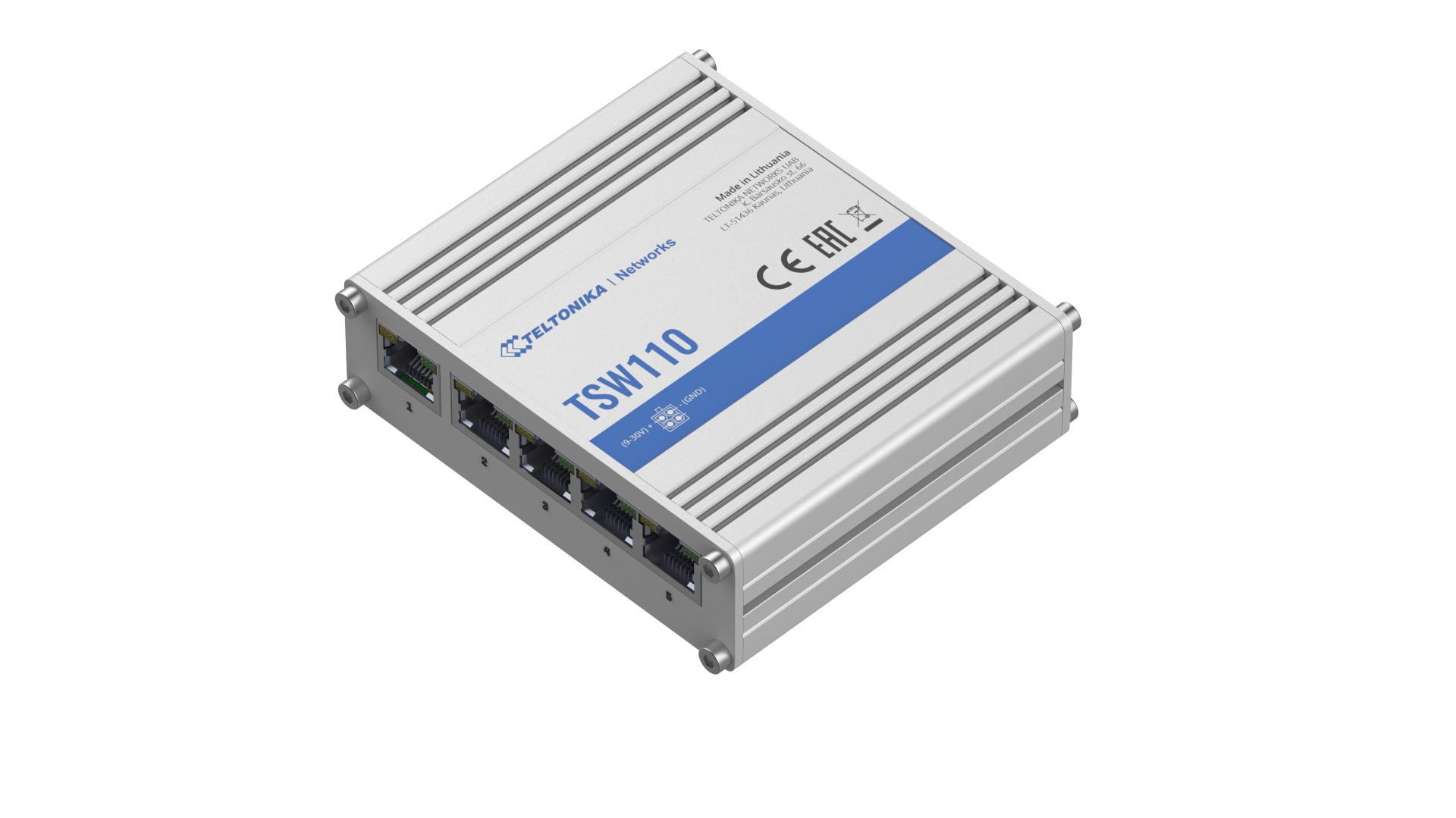

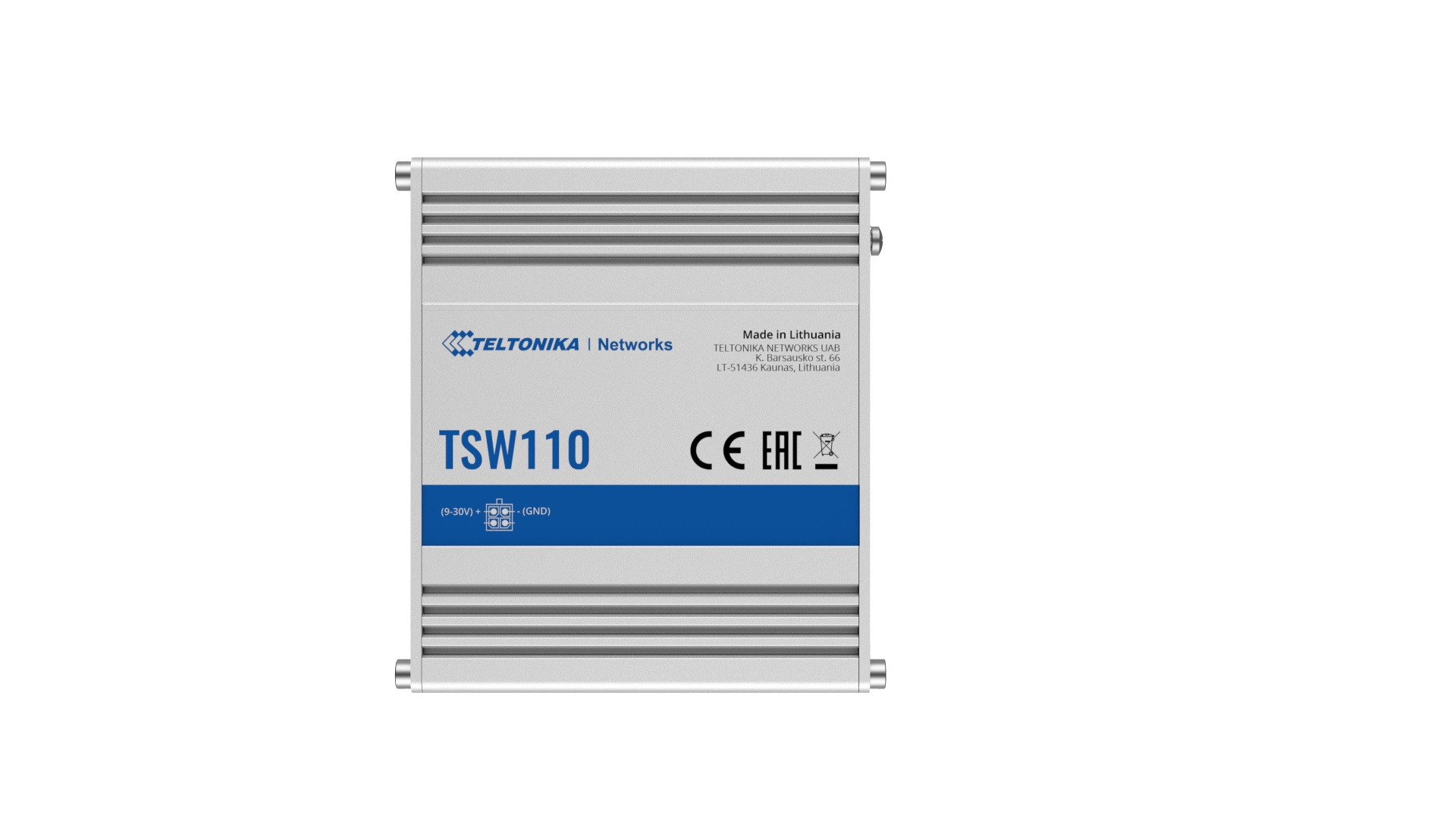

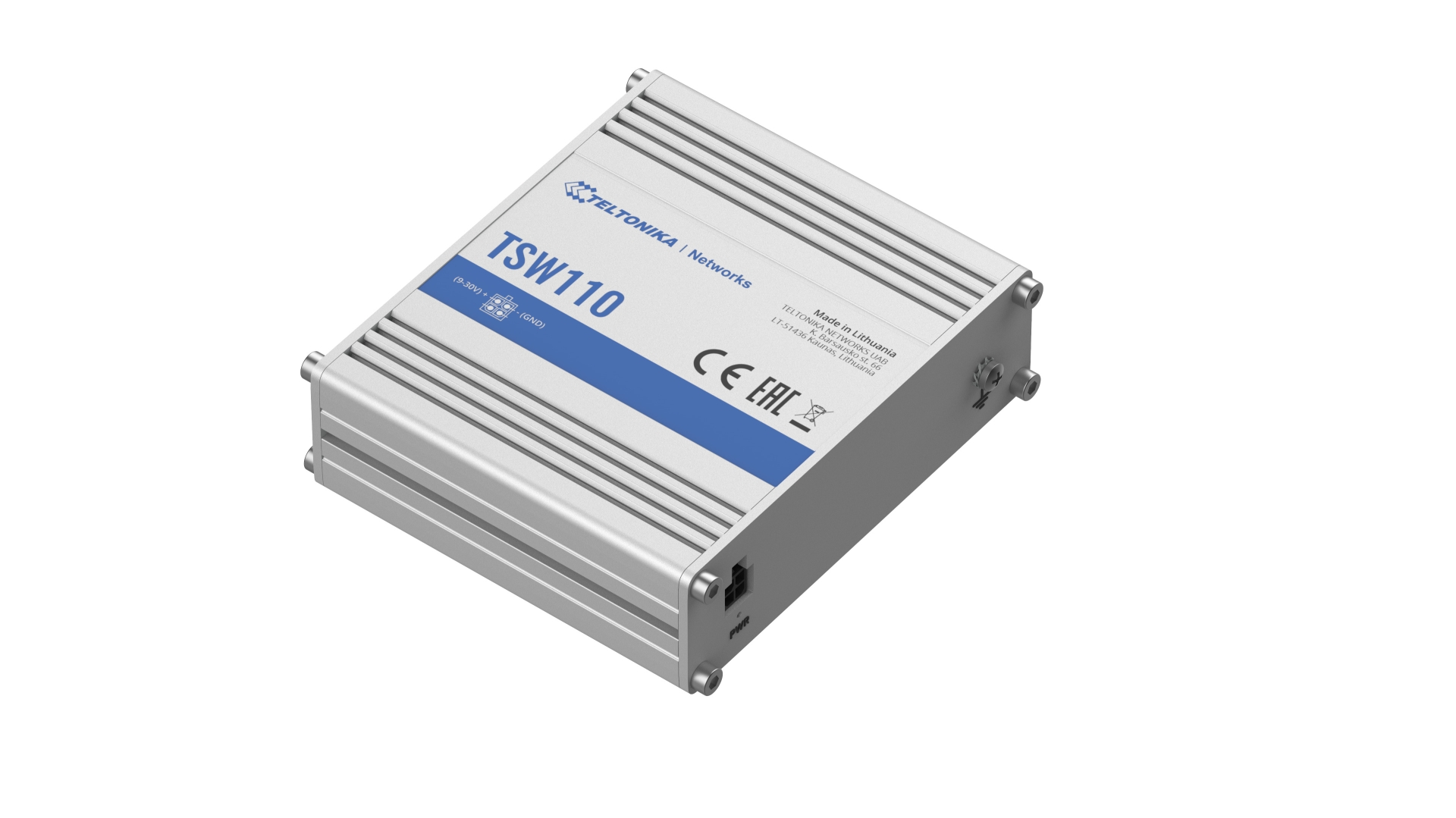

TELTONIKA Industrial L2 unmanaged switch, UK version (TSW110)

MPN: TSW110000030
Order code: TSW110-UK
Quick code: #3120

5x Gigabit LAN ports | Passive PoE in | 4 pin industrial DC power socket | Full aluminum housing | DIN rail or wall mounting (additional kit needed), flat surface placement

new
Price exc. VAT: * Price inc. VAT: * For orders (total sum):
36.00£ 43.20£ >0£
Apply for trade discounts >300£
>1000£
Qty:
* better prices only for registered customers


Features:

TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.

Possible to power up through the first LAN port.

It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.

It offers a wide range of supported power supply voltages (9-30 V).

Ideal for professional high bandwidth applications to provide reliable data connection.

Specification:

ETHERNET
LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
Jumbo frame support 9216 bytes
MAC address table size 2K entries
Connector 4 pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption (idle/max) < 0.4 W/ <1.8 W
PHYSICAL INTERFACES (PORTS, LEDS)

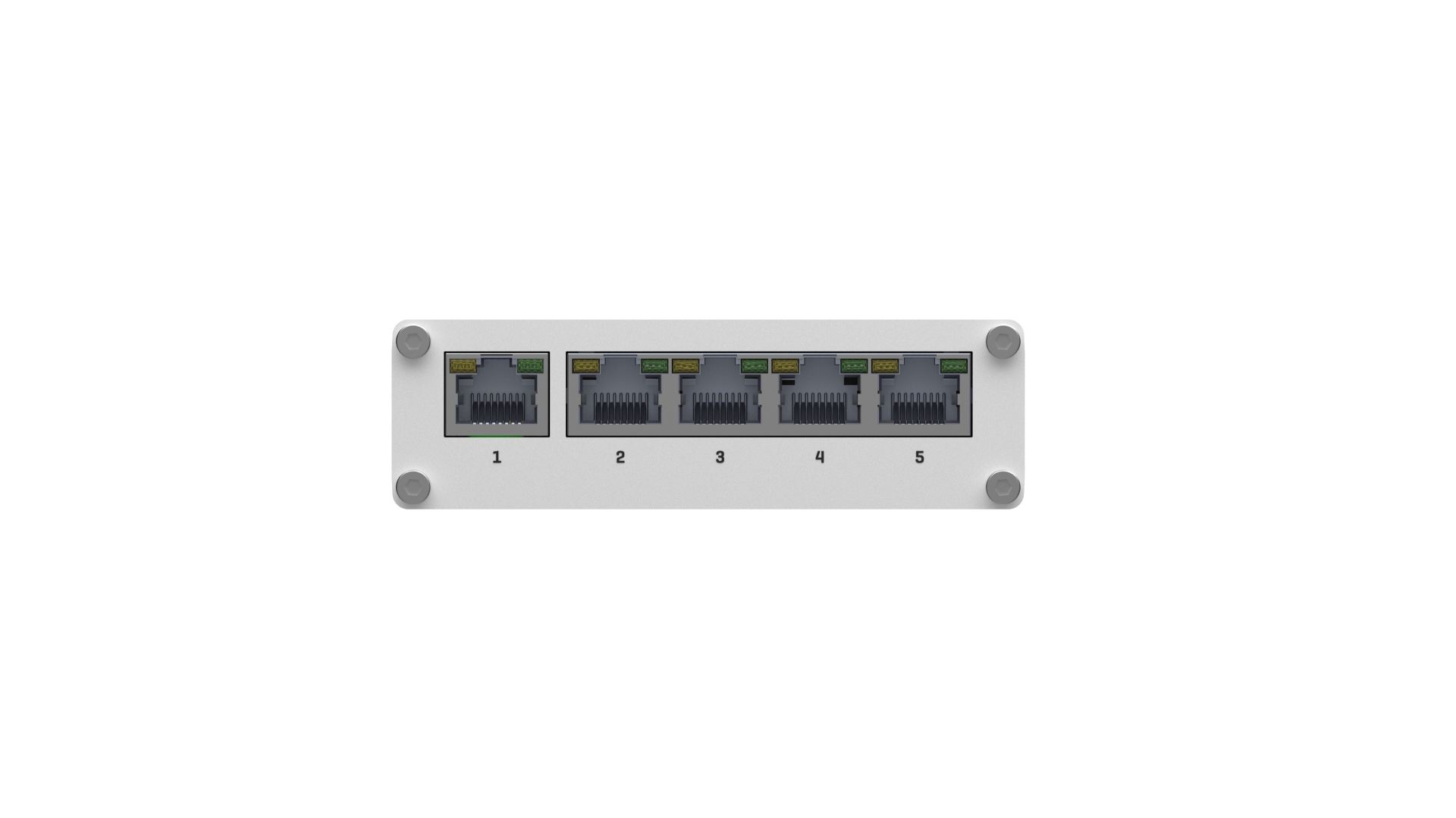

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x LAN status LED’s

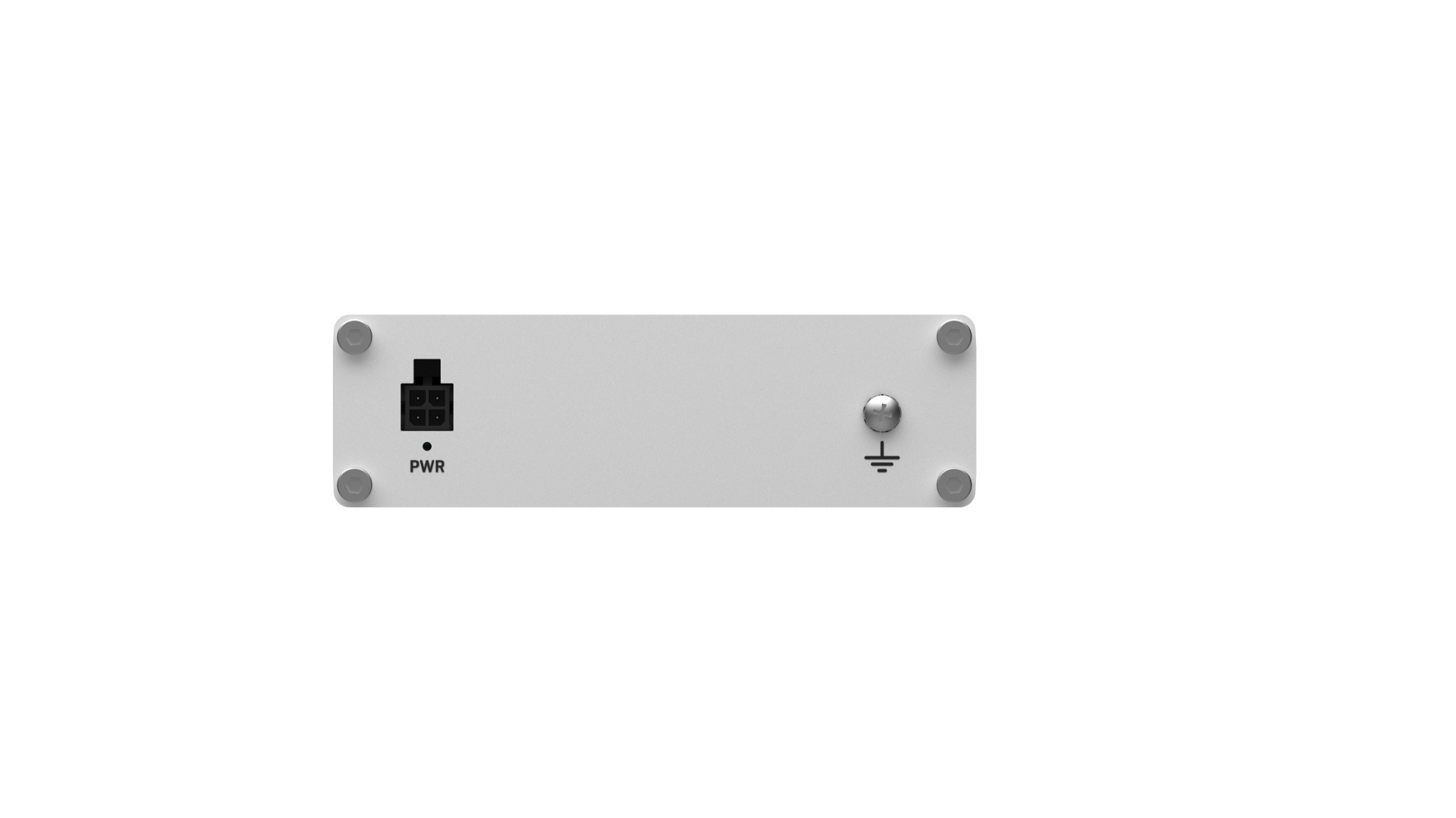

Power 1 x 4 pin DC connector
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 227 g
Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing

Standard package contains

  • TSW110
  • 9 W Euro PSU
  • QSG (Quick Start Guide)
  • Packaging box
