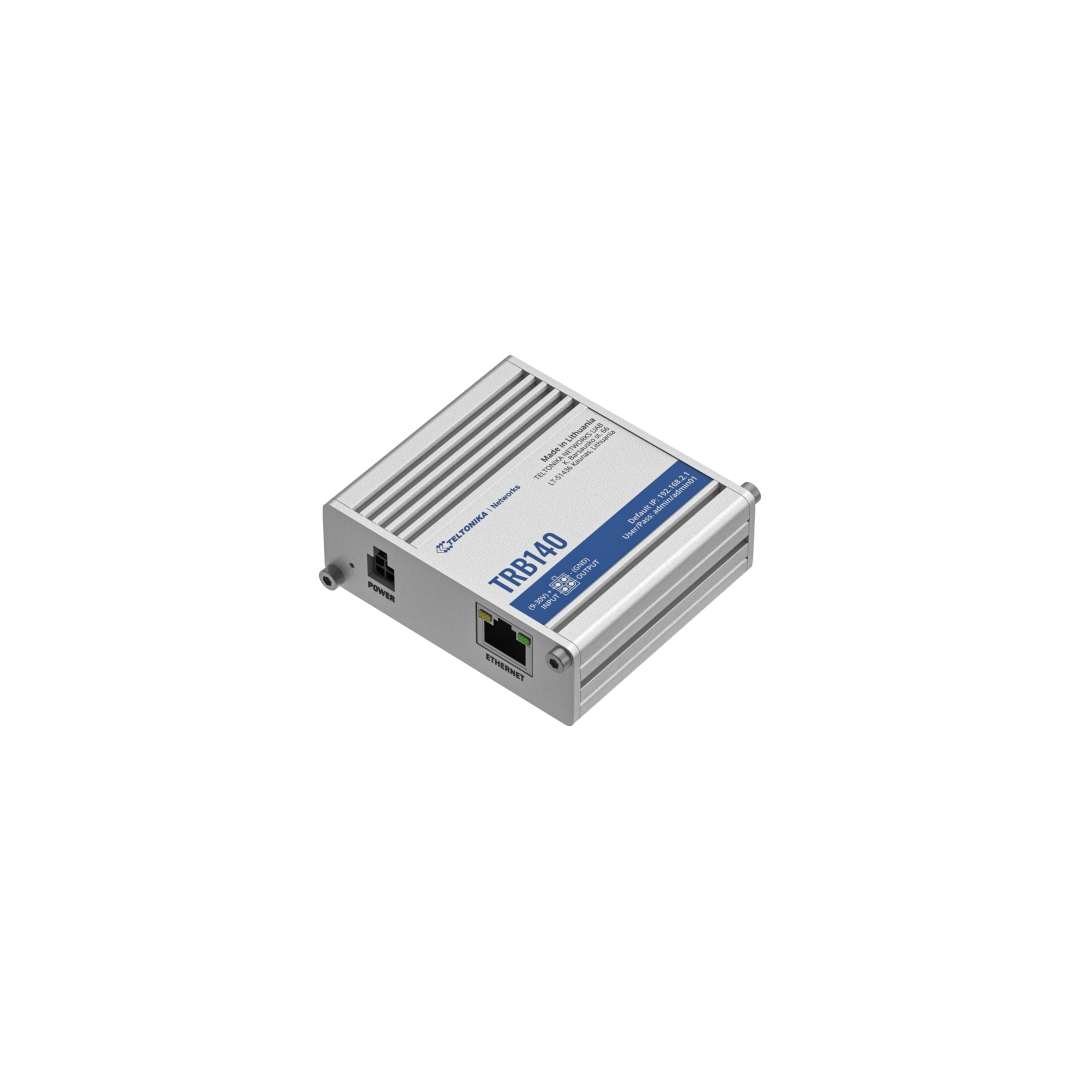

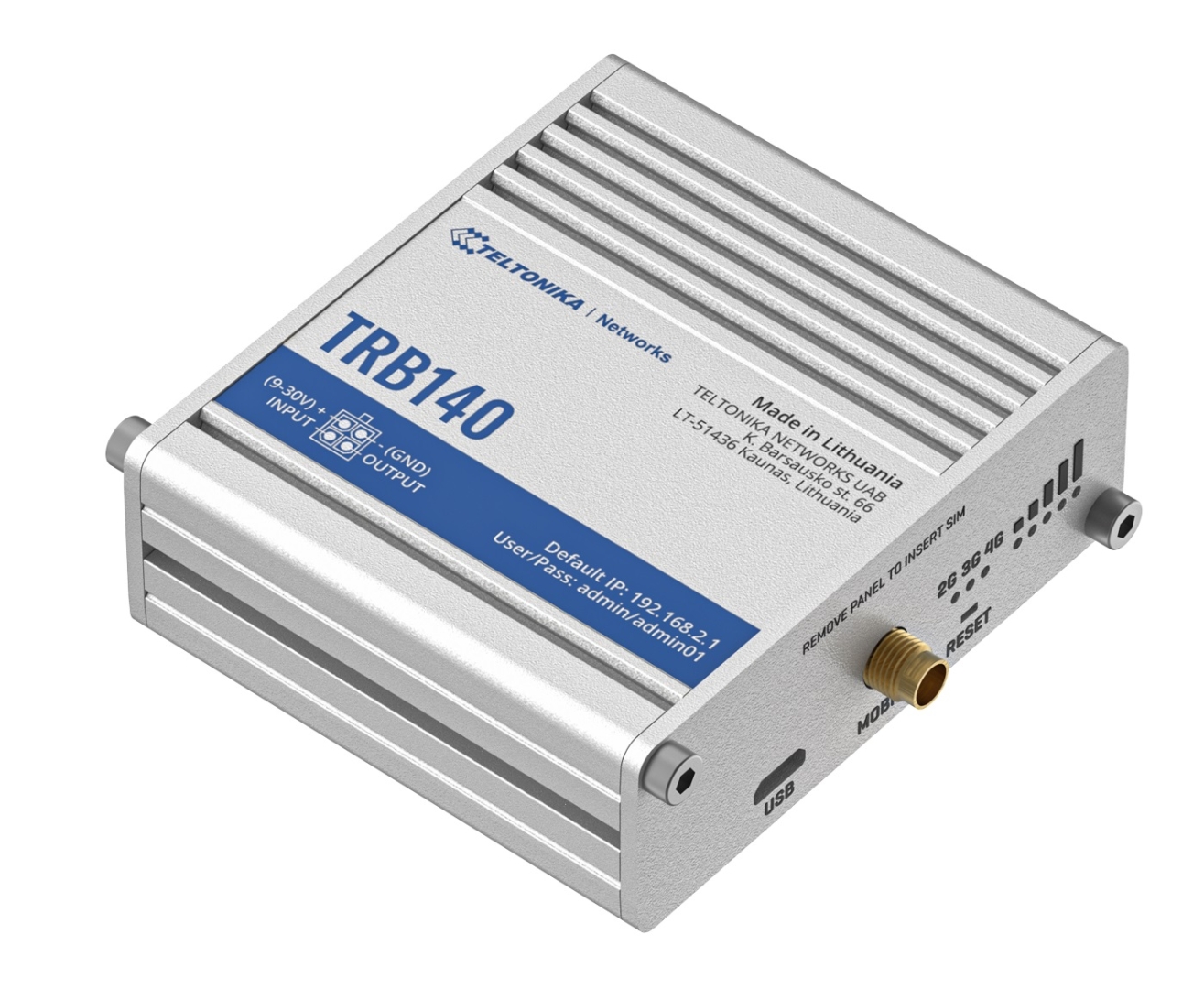

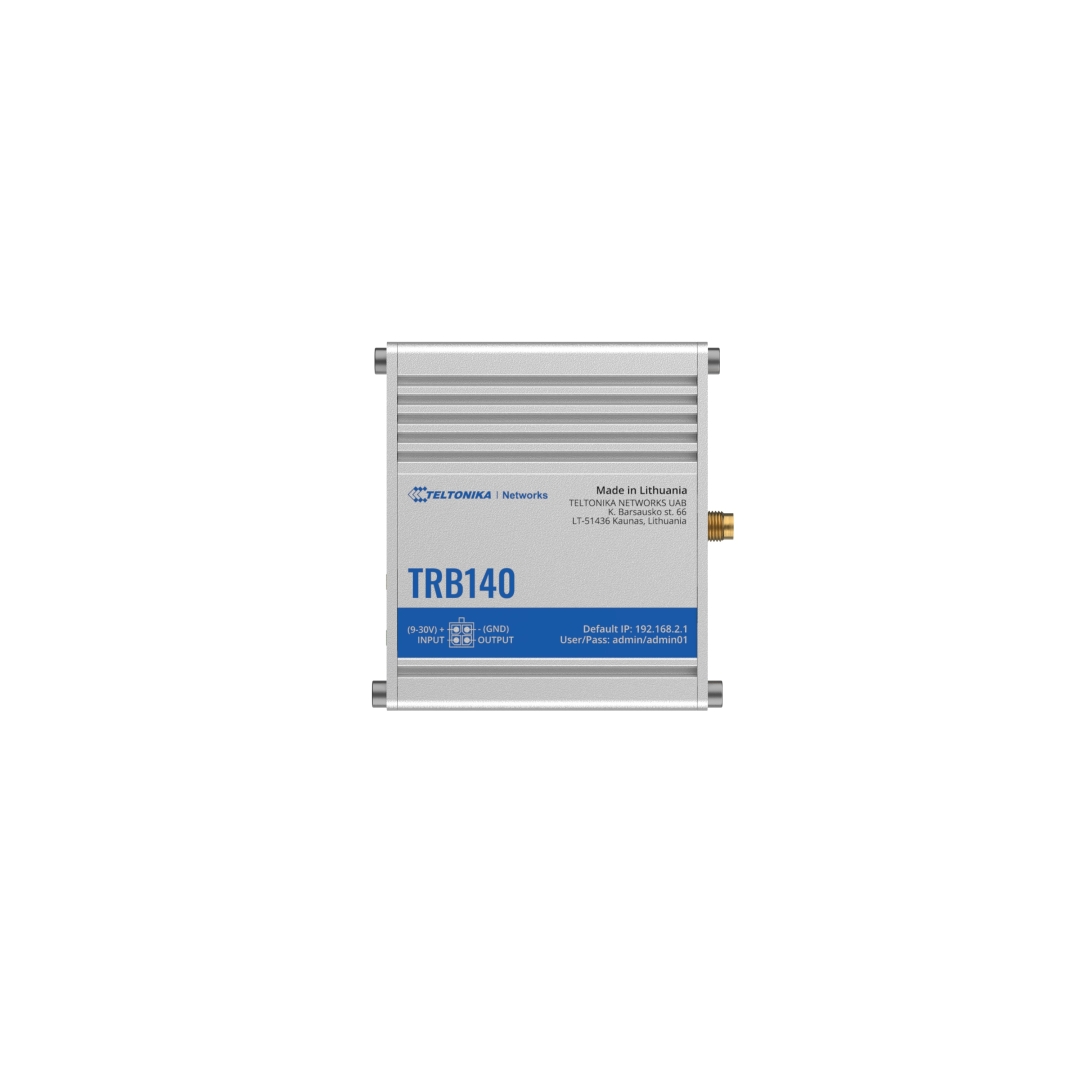

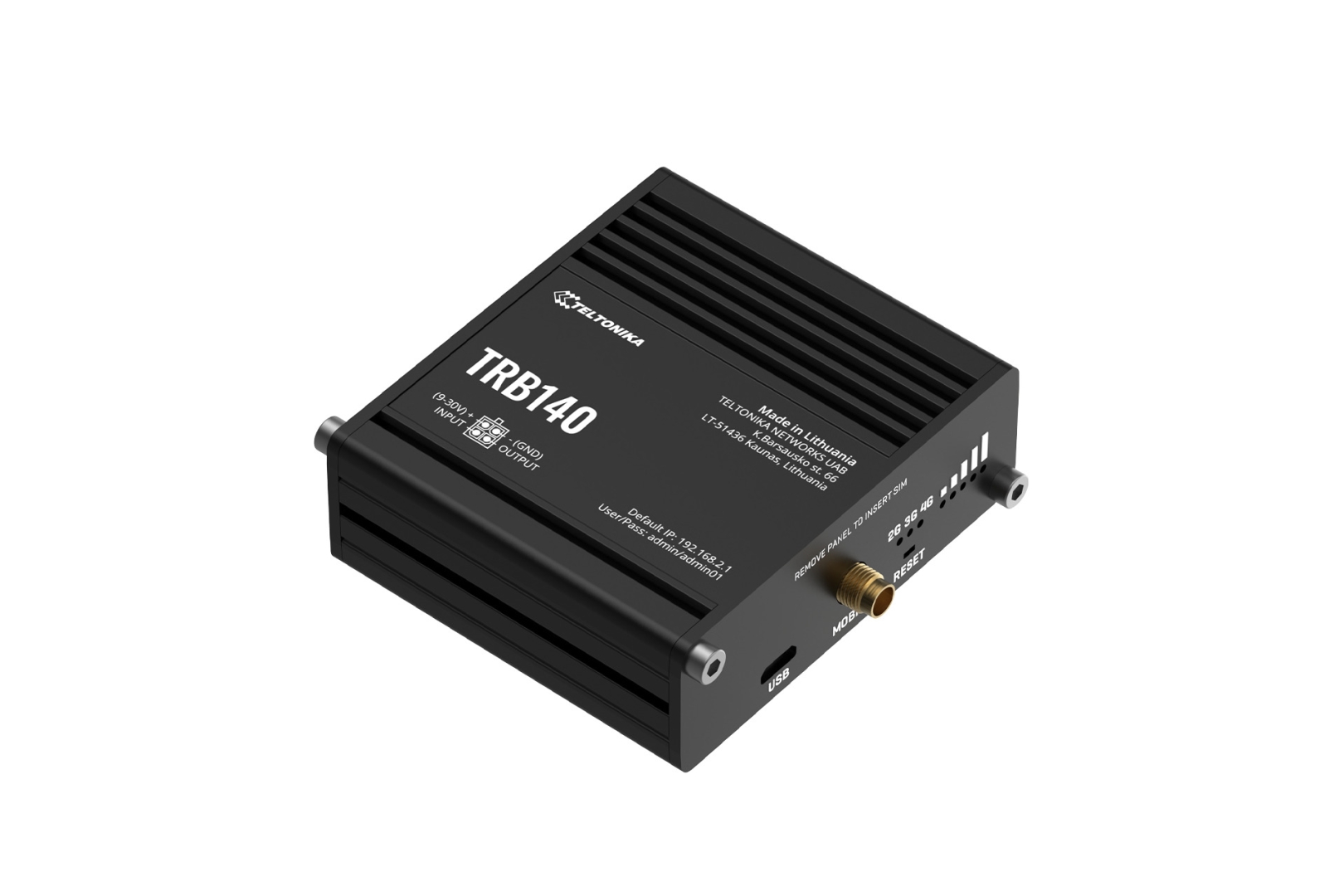

TELTONIKA industrial Ethernet to 4G LTE IoT gateway, UK version (TRB140-UK)

MPN: TRB140005000
Order code: TRB140-UK
Quick code: #2030

LTE Cat 4 with speeds up to 150 Mbps, 9-30V range of power supply voltages, 1x LAN port, digital Inputs/outputs, micro USB port

Price exc. VAT: * Price inc. VAT: * For orders (total sum):
77.00£ 92.40£ >0£
Apply for trade discounts >300£
* better prices only for registered customers


Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

Learn more on wiki page



Mobile: LTE(Cat4)/3G/2G
SIM slot: Mini SIM (2FF)
Antenna connector: 1 x SMA for LTE

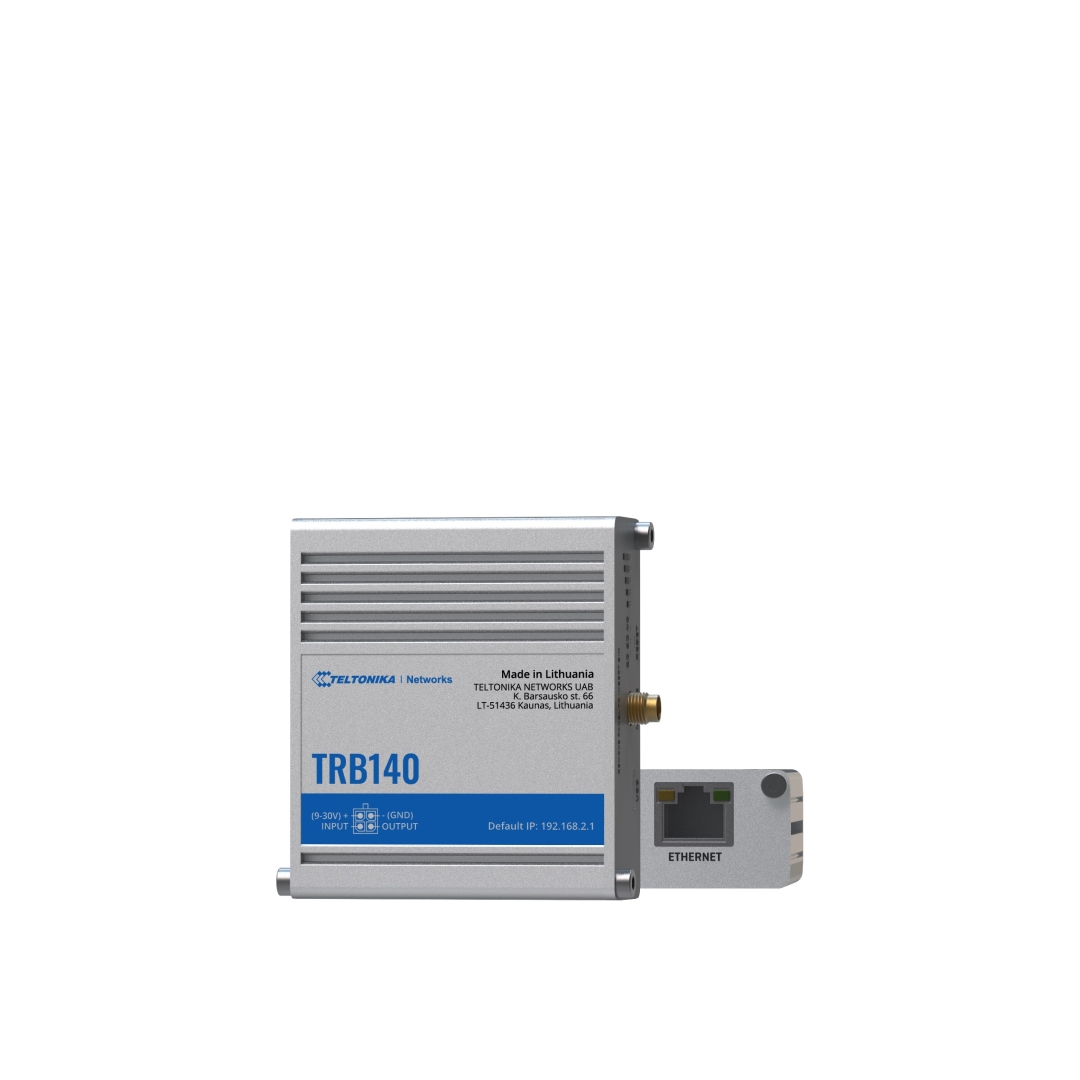

Ethernet: 1 x 10/100/1000 Mbps
Input/Output: 2 x Digital Input/Output (configurable)
CPU: ARM Cortex-A7 1.2 GHz CPU
RAM: 128 MB (50 MB available for userspace)
Flash: 512 MB (70 MB available for userspace)
Input voltage range: 9 - 30 VDC

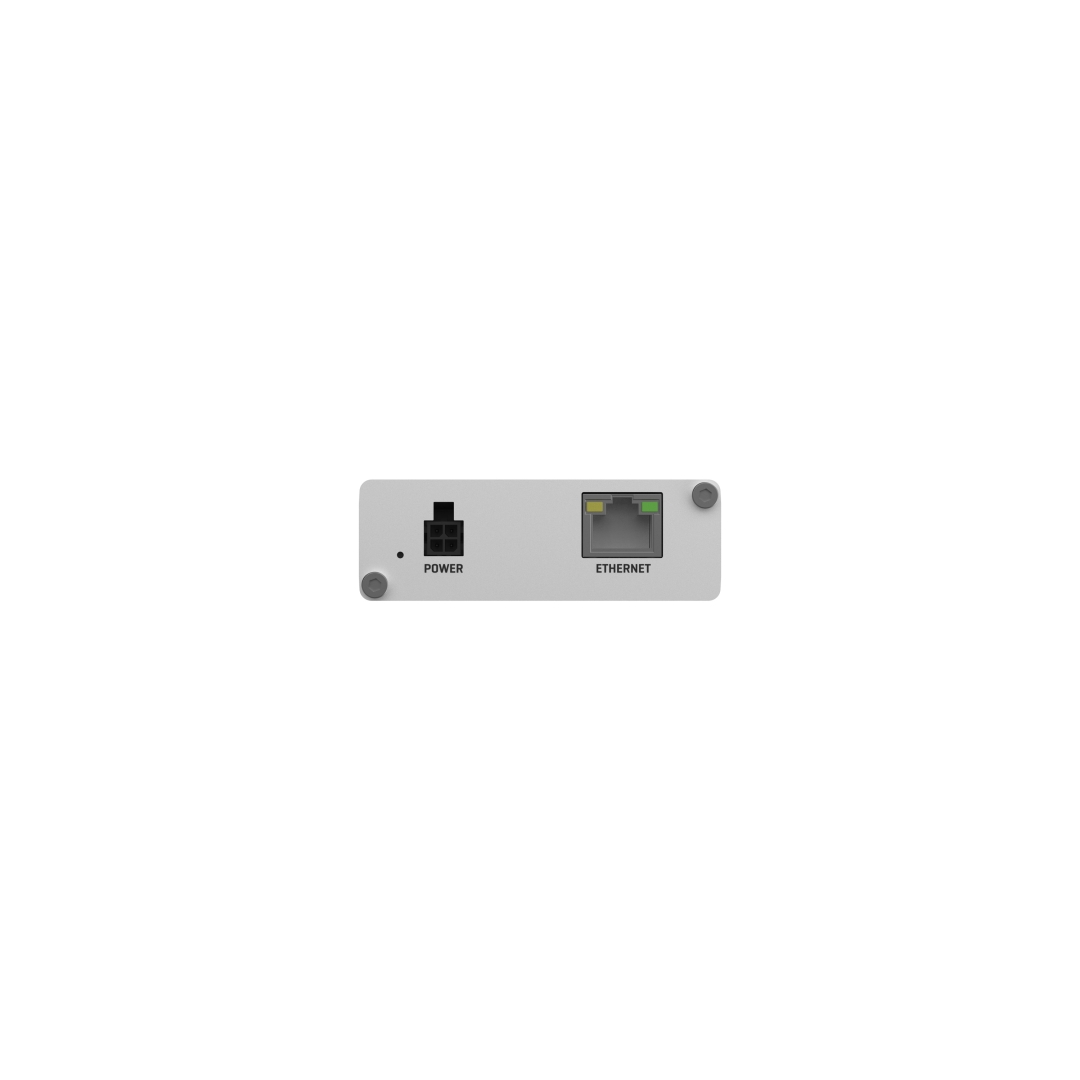

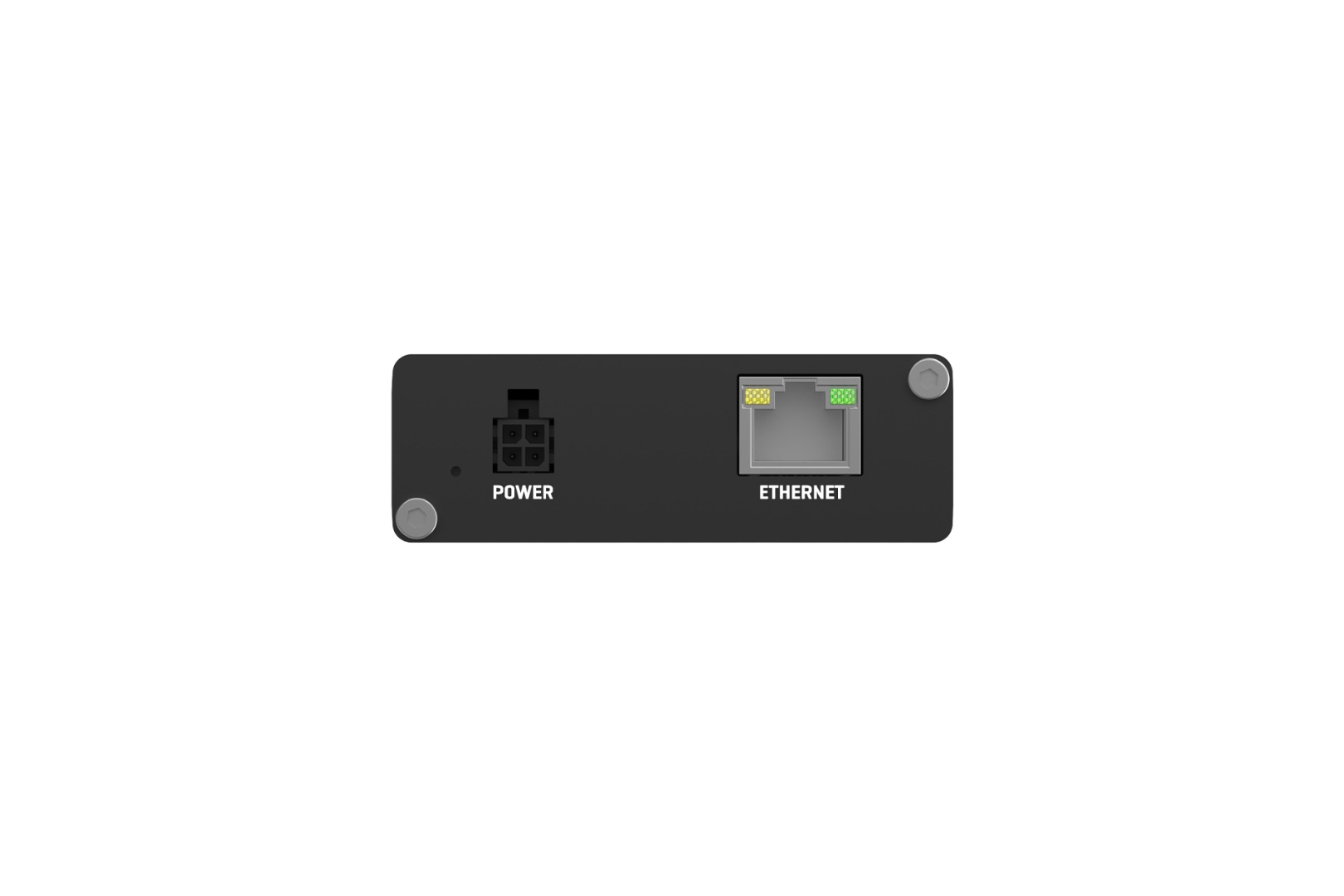

Power connector: 4 pin industrial DC power socket

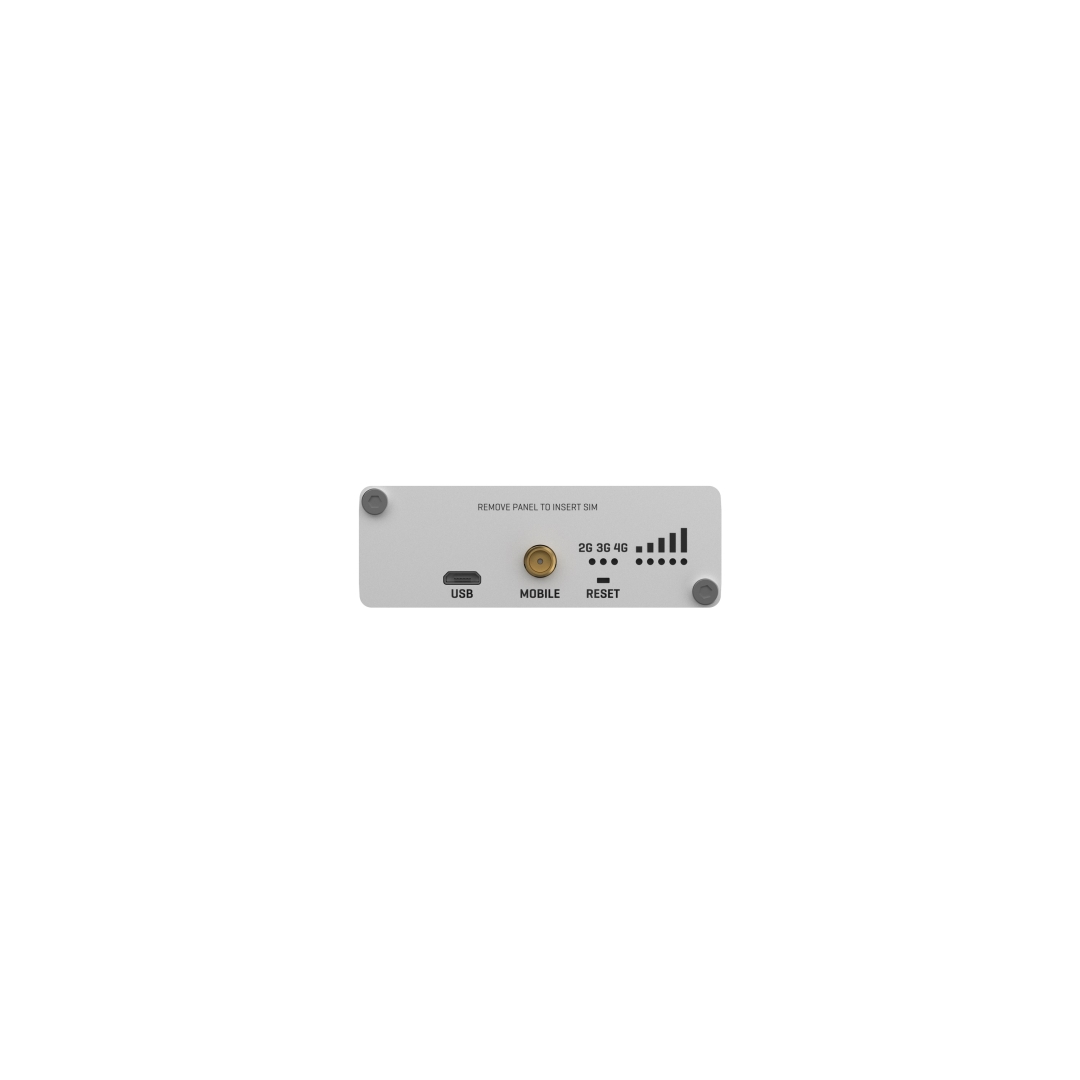

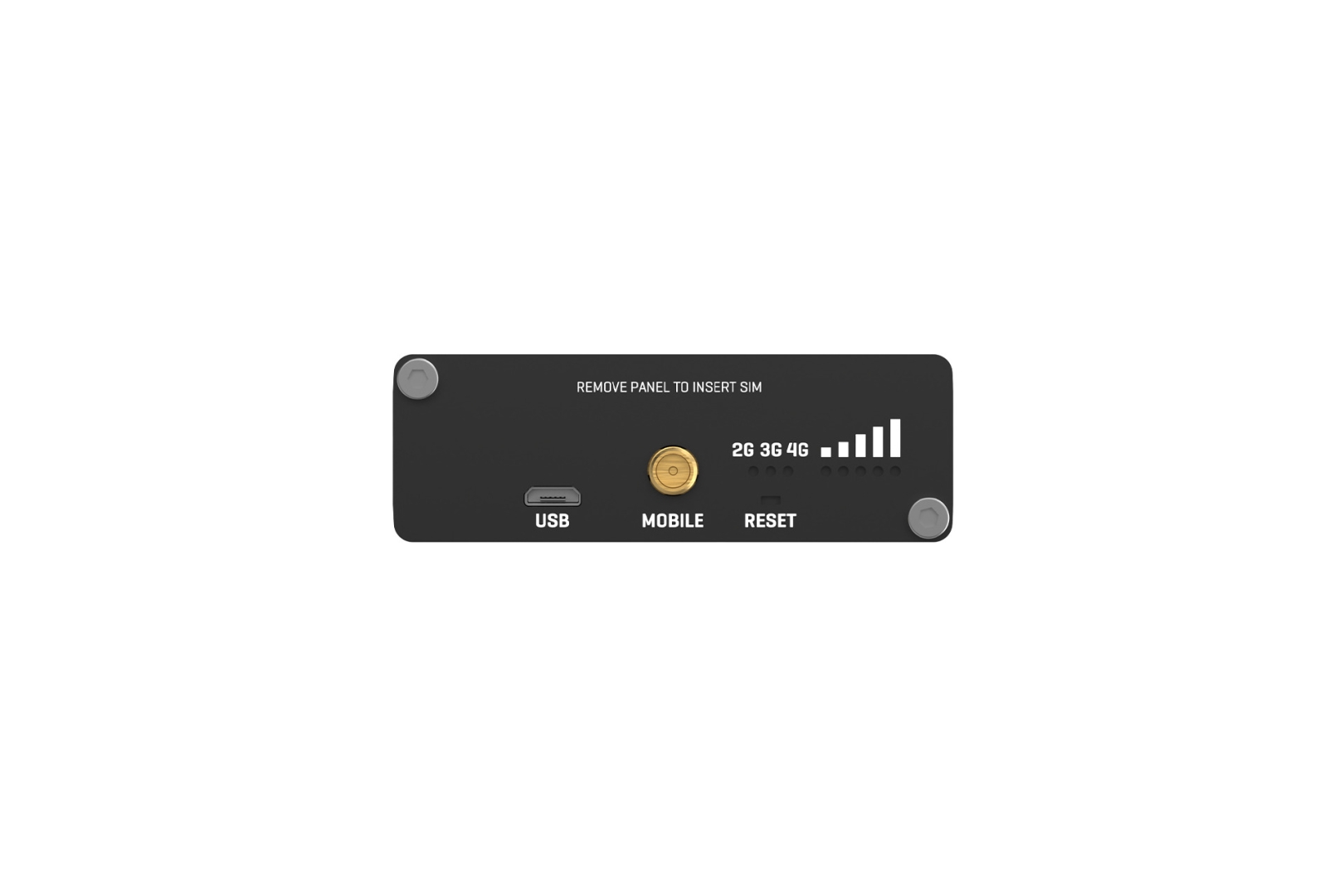

Configuration interface: Virtual NIC via Micro-USB connector
LED Indicators: Power, signal, network and data status LEDs


Operating System: Linux OS with Yocto SDK (offering high software customisation)
Network: NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported)
Remote management: RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
Status watchdogs: Ping reboot, periodic reboot
Additional features: Internet connectivity over USB virtual network interface

Mechanical & Environmental

Operating temperature: -40° C to 75° C
Storage temperature: -45° C to 80° C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing
Dimensions: 60 mm x 70 mm x 18 mm
Weight: 35.8 g

Standard package contains:
- TRB140 board
- Euro PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- LAN cable
- QSG (Quick Start Guide)
- Packaging box
