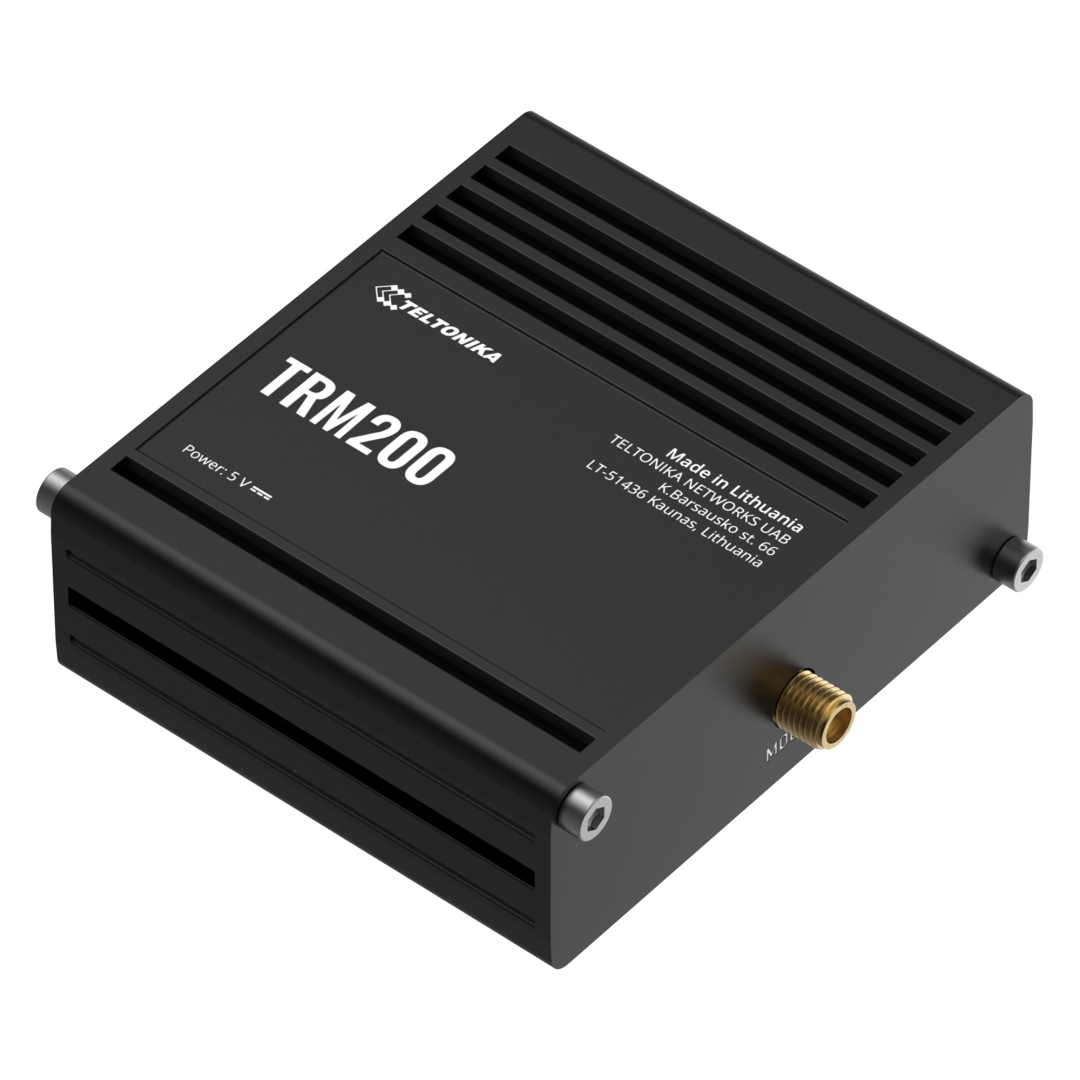

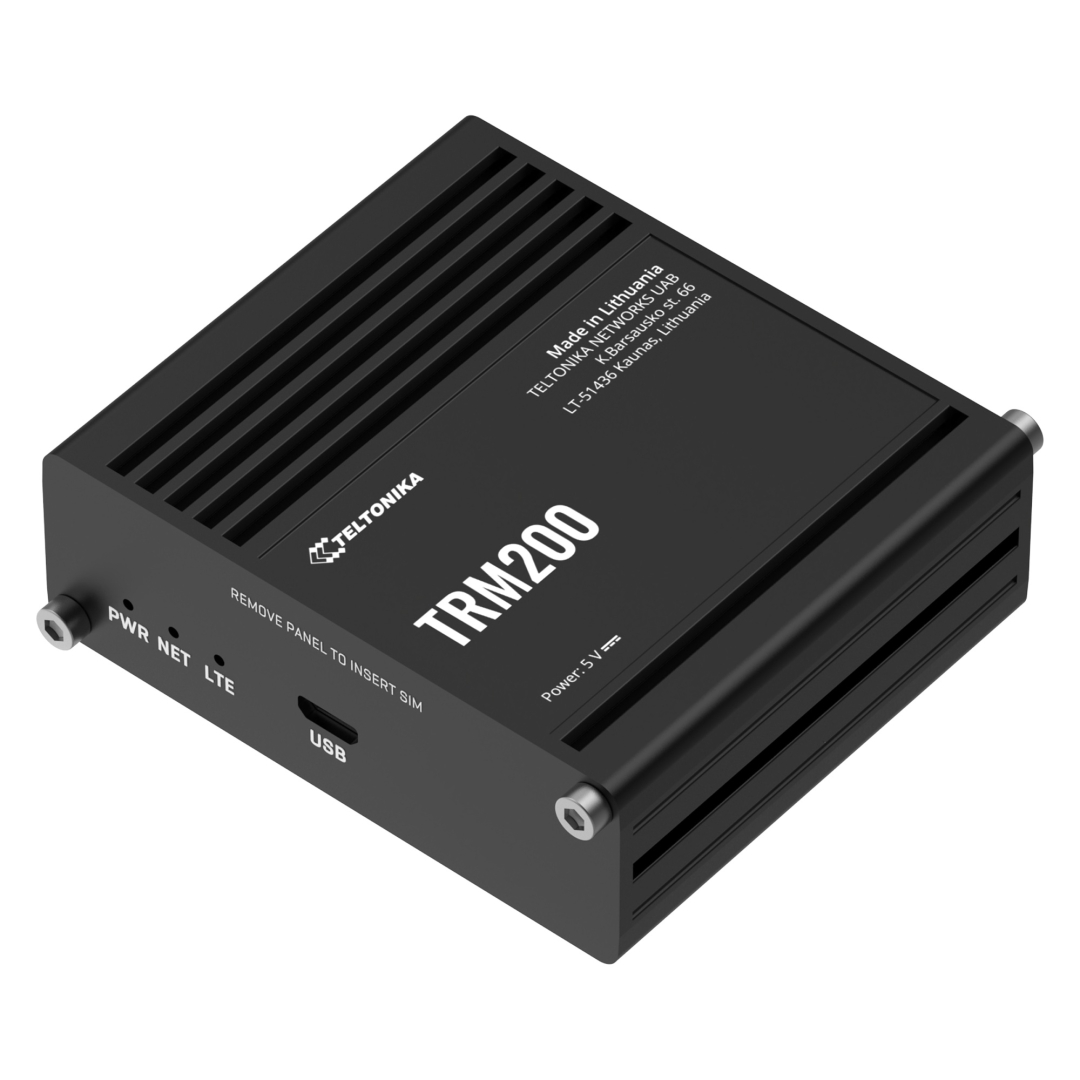

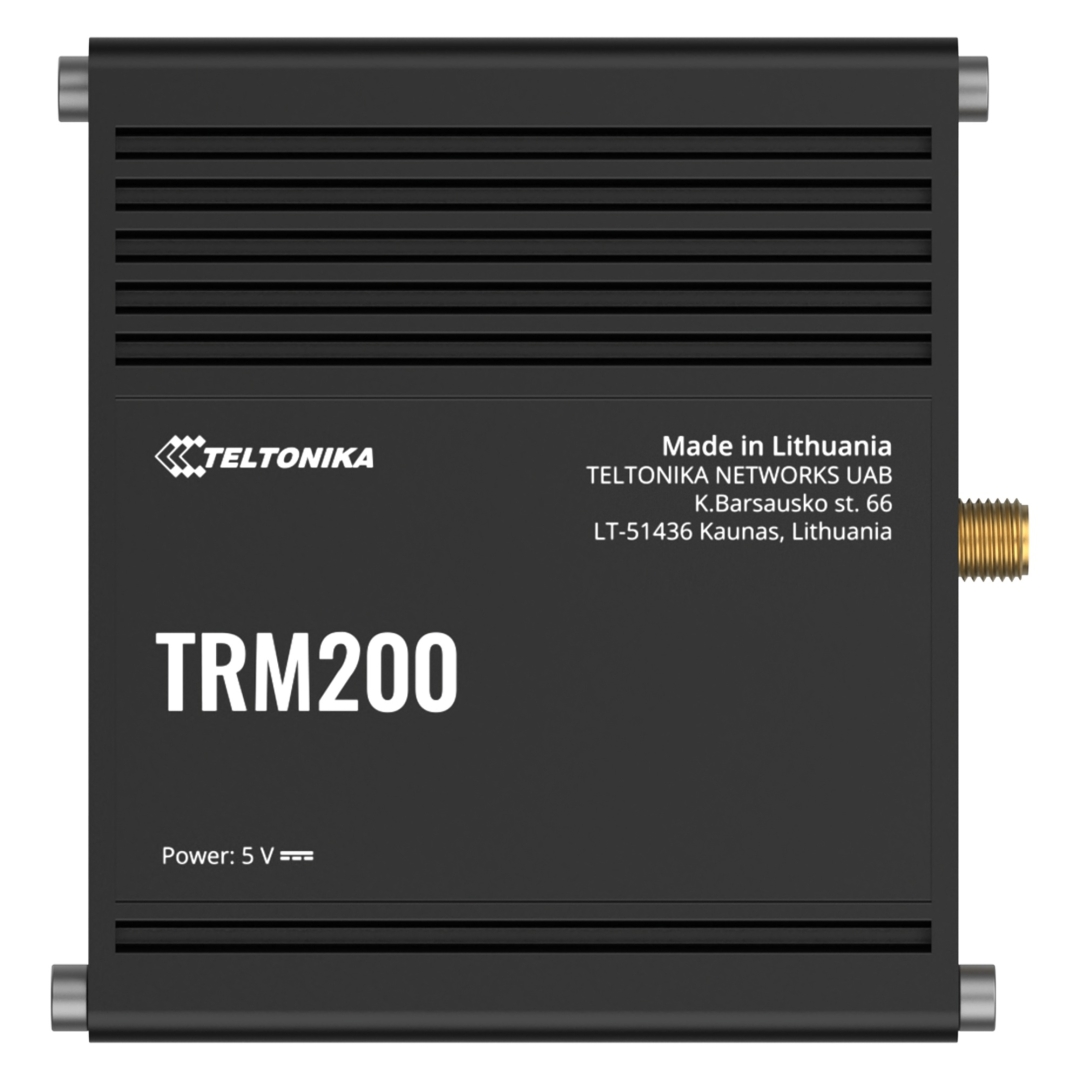

TELTONIKA Industrial 4G Cat 4 Modem (TRM200)
Connectivity: 4G Cat 4, 3G, 2G | Micro USB
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 55.47£ | 66.56£ | >0£ |
| 54.97£ | 65.96£ | >300£ |
| 54.48£ | 65.38£ | >1000£ |
Features:
The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.
Specification:
Mobile
Mobile module: 4G – Cat 4 up to 75 DL/50 UL Mbps, 3G – Up to 42 DL/5.76 UL Mbps, 2G – Up to 236.8 DL/ 236.8 UL kbps
3GPP Release: Release 9
Power
Connector: microUSB
Input voltage range: 5V - powered via microUSB
Power consumption: Idle: < 0.9 W, Max: < 3.2 W
Physical Interfaces

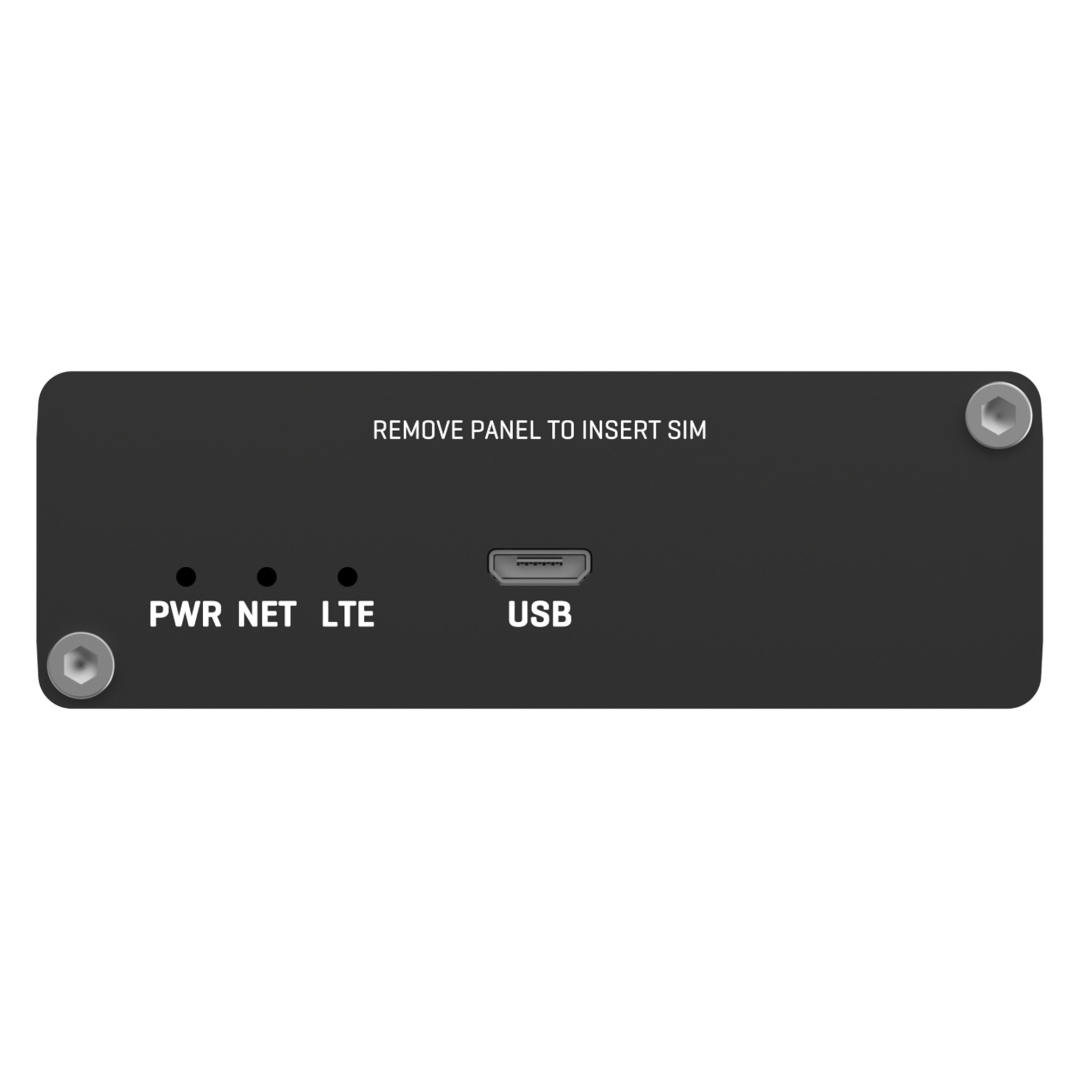

Status LEDs: 1 x Power LED, 1 x Network LED, 1 x Mobile LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power: 1x microUSB

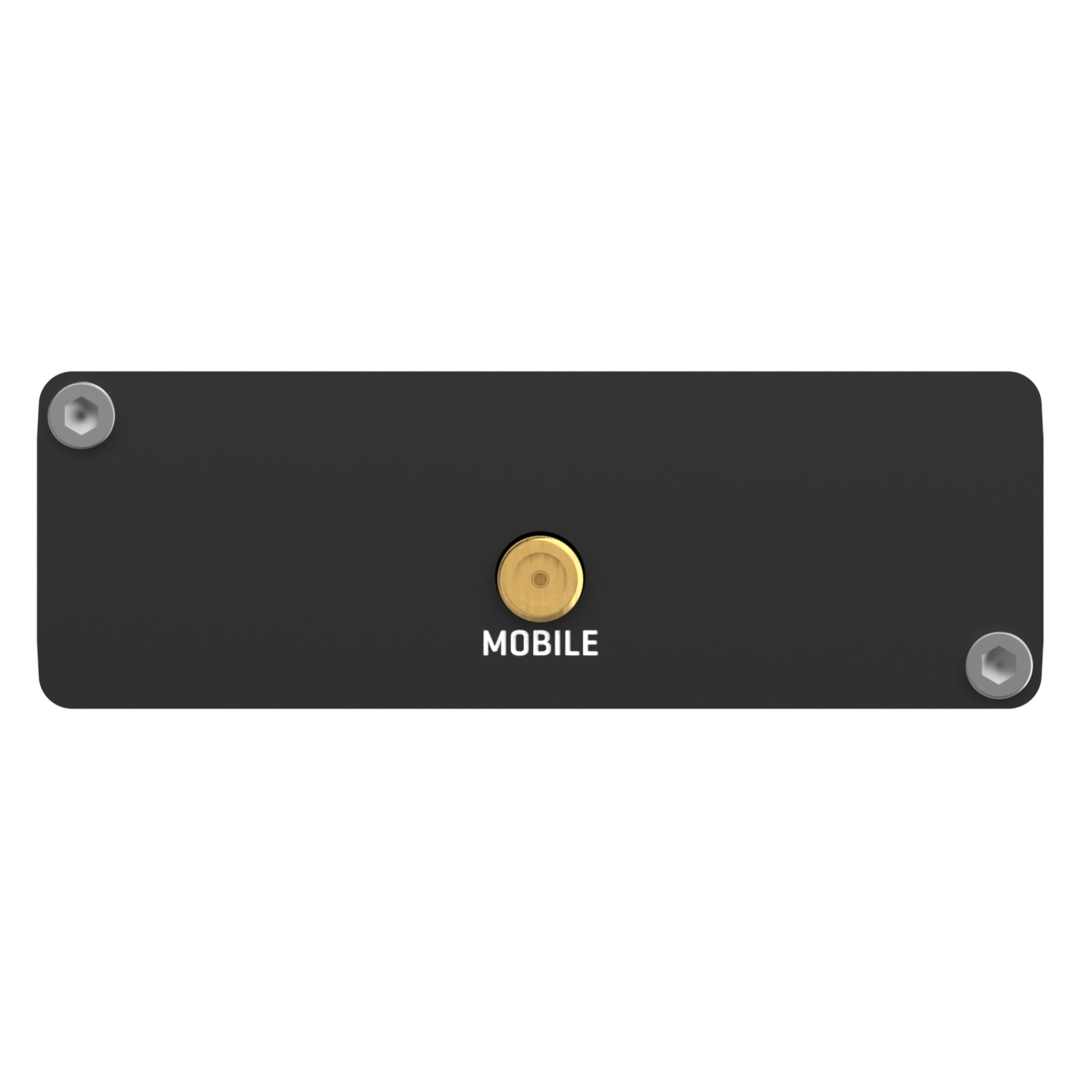

Antennas: 1 x SMA for Mobile
Physical Specification
Casing material: Aluminium housing
Dimensions (W x H x D): 74.5 x 25 x 64.5 mm
Weight: 274 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
TRM Software
TRM SOFTWARE USB Driver RUT#03: Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0
NDIS Driver: Windows 7/8/8.1/10
Regulatory & Type Approvals
Regulatory: CE, UKCA, CB, EAC, UCRF, WEEE
Standard package:
- TRM200
- 1x Mobile antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1x hex key
- QSG (Quick Start Guide)
- Packaging box
