TELTONIKA Industrial 24-Port PoE+ L2+ Managed Switch (SWM282)

Features:

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

PoE+
Deliver power and data through 24 PoE+ ports with up to 30W per port

L2+
Advanced routing protocols & VLAN segmentation

Cloud-Enabled
Shipped with 2 years of RMS Management

Protocols
Profinet, MRP, and EtherNet/IP for mixed industrial environments

Specification:

Ethernet
    Fiber
    4 x SFP ports
    IEEE 802.3 series standards
    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    ETH
    Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
INDUSTRIAL PROTOCOLS
    Profinet
    Profinet Class B conformance (available with optional order code)
Services
    EtherNet/IP
    Yes
    SNMP V2, V3
    Yes
    LLDP
    Yes
    Network Management
    802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Network
    Routing
    Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
    MRP
    MRP client role, MRP manager role
    L2 features
    Loop protection, Forwarding table, VLAN, STP/RSTP
    DHCP
    DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
    Port Settings
    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
    L3 Features
    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QoS
    QOS
    Port priority, DSCP priority, 802.1p priority, TOS
    Scheduling method
    SP/WFQ/WRR
    Bandwidth control
    Rate limiting, storm control
    Traffic Shaper
    Port-based shaping
Diagnostics
    Tools
    Cable diagnostic, ping, traceroute, nslookup
    Ping reboot
    Capability to restart PoE in a specific port
Security
    Authentication
    PAM — preshared key, Radius & TACACS+, IP & login attempts block
    VLAN
    Port VLAN separation
    802.1x
    Port-based network access control client and server
    MAC filtering support
    Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
API
    Teltonika Networks Web API (beta) support
    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
System Characteristics
    CPU
    Realtek, single core, 500MHz, MIPS-4KEc
    RAM
    128MB, DDR3
    FLASH storage
    16 MB serial flash
Firmware / Configuration
    WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA
    Update FW
    RMS
    Update FW/configuration for multiple devices at once
    Keep settings
    Update FW without losing current configuration
    Factory settings reset
    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
    Operating system
    TSWOS (OpenWrt based Linux OS)
    Supported languages
    Busybox shell, Lua, C, C++
    Development tools
    SDK package with build environment provided
    Package Manager
    The Package Manager is a service used to install additional software on the device
Performance Specifications
    Bandwidth (Non-blocking)
    56 Gbps
    Forwarding rate
    83.33 Mpps
    Packet buffer
    512 KB
    MAC address table size
    8K entries
    Jumbo frame support
    10000 bytes
POE OUT
    PoE+ ports
    Ports 1-24
    PoE standards
    IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
    PoE Max Power per Port (at PSE)
    30 W
    Total PoE Power Budget (at PSE)
    300 W

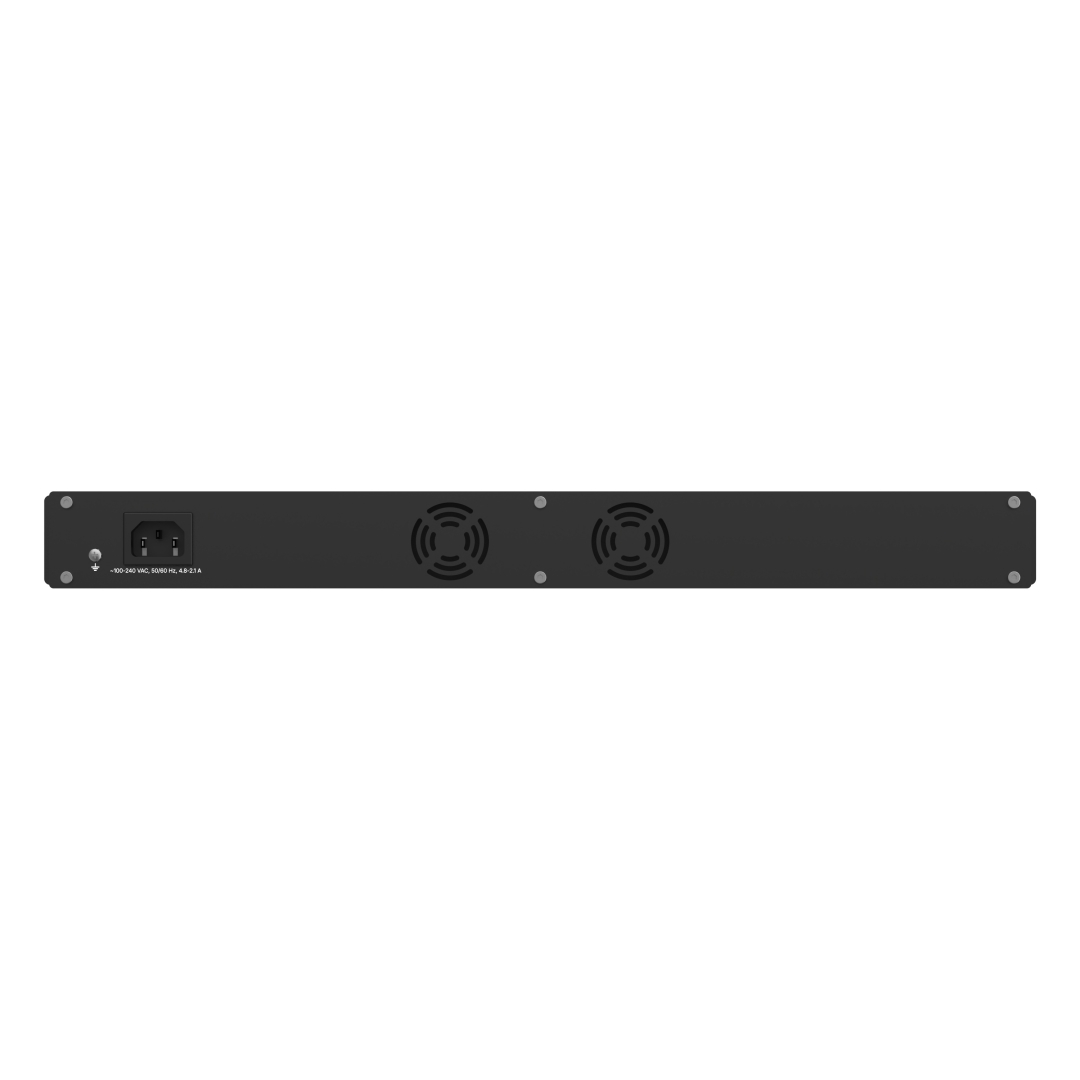

Power
    Connector
    C14 connector
    Input voltage range
    100-240 VAC, 50/60 Hz
    Power consumption
    Idle: 9 W / Max: 330 W / PoE Max: 300

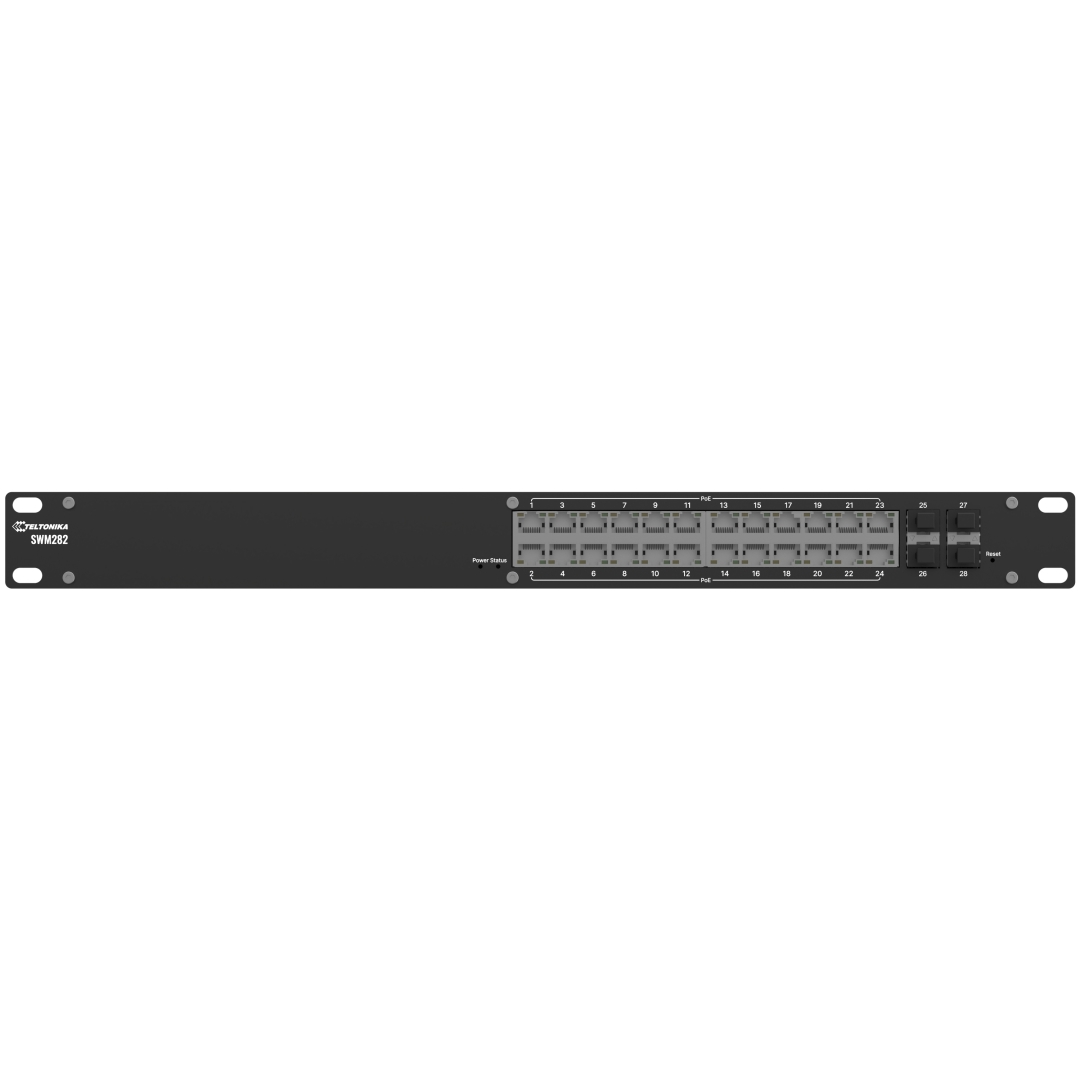

Physical Interfaces
    Ethernet
    24 x RJ45 ports, 10/100/1000 Mbps
    Fiber
    4 x SFP ports
    Status LEDs
    1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
    Power
    1 x C14 connector
    Reset
    Software reset button
    Other
    1 x Grounding screw
Physical Specification
    Casing material
    Anodized aluminum housing and panels
    Dimensions (W x H x D)
    483 x 44 x 234 mm
    Weight
    2291 g
    Mounting options
    Rack mounting kit
Operating Environment
    Operating temperature
    0 °C to 50 °C
    Operating humidity
    10% to 90% non-condensing
    Ingress Protection Rating
    IP30
Regulatory & Type Approvals
    Regulatory
    CE, UKCA, CB, RCM, FCC, IC
