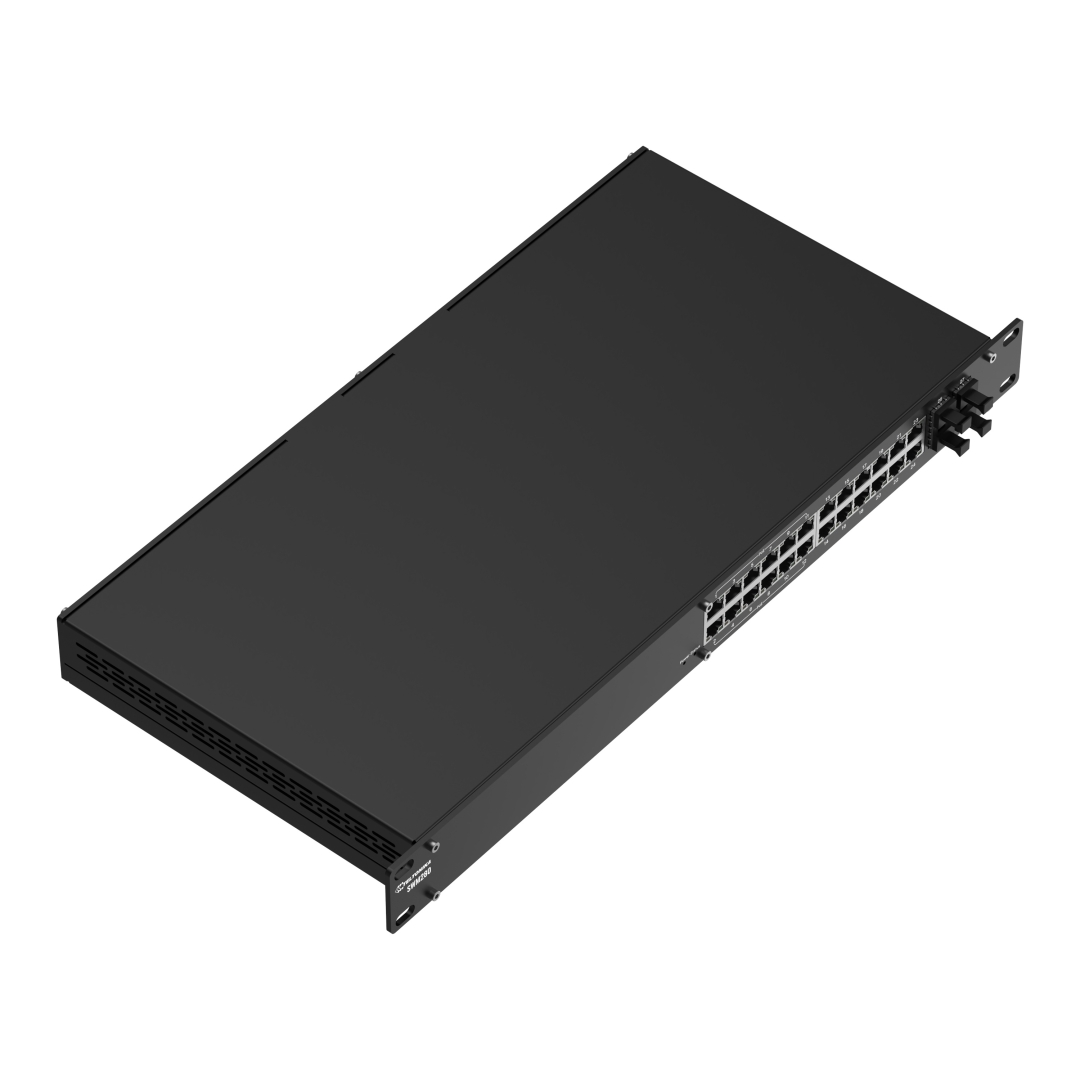

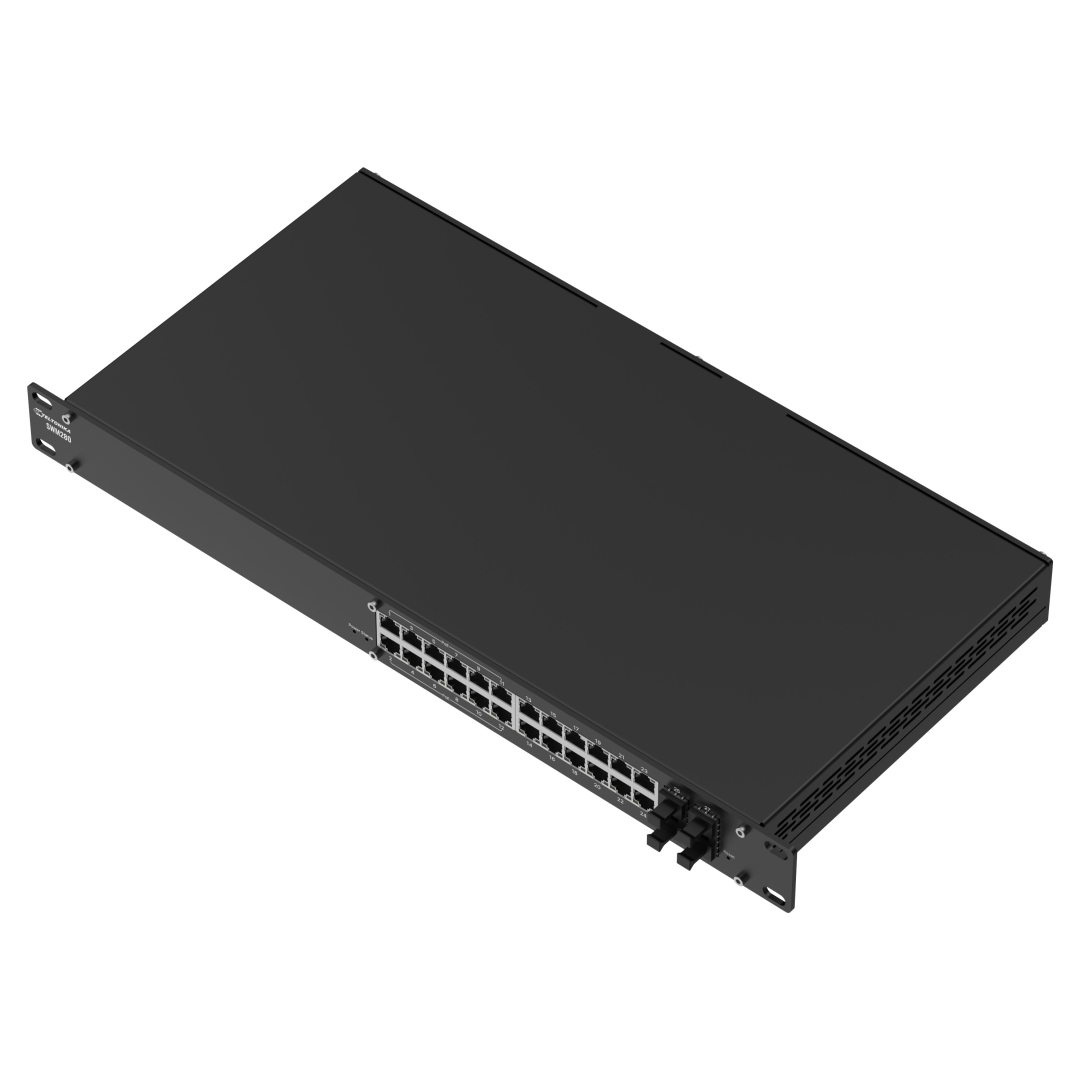

TELTONIKA Industrial 24-Port PoE+ L2+ Managed Switch (SWM280)

Features:

The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.

PoE+
Deliver power and data through 12 PoE+ ports with up to 30W per port

L2+
Advanced routing protocols & VLAN segmentation

Cloud-enabled
Shipped with 2 years of RMS Management

Protocols
Profinet, MRP, and EtherNet/IP for mixed industrial environments

Specification:

Ethernet
    Fiber:    4 x SFP ports
    IEEE 802.3 series standards:    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    ETH:    Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Industrial Protocols
    Profinet:    Profinet Class B conformance (available with optional order code)

Services
    EtherNet/IP:    Yes
    SNMP V2, V3:    Yes
    LLDP:    Yes
    Network Management:    802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network
    Routing:    Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
    MRP:    MRP client role, MRP manager role
    L2 features:    Loop protection, Forwarding table, VLAN, STP/RSTP
    DHCP:    DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
    Port Settings:    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
    L3 Features:    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoS
    QOS:    Port priority, DSCP priority, 802.1p priority, TOS
    Scheduling method:    SP/WFQ/WRR
    Bandwidth control:    Rate limiting, storm control
    Traffic Shaper:    Port-based shaping

Diagnostics
    Tools:    Cable diagnostic, ping, traceroute, nslookup
    Ping reboot:    Capability to restart PoE in a specific port

Security
    Authentication:    PAM — preshared key, Radius & TACACS+, IP & login attempts block
    VLAN:    Port VLAN separation
    802.1x:    Port-based network access control client and server
    MAC filtering support:    Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

API
    Teltonika Networks Web API (beta) support:    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics
    CPU:    Realtek, single core, 500MHz, MIPS-4KEc
    RAM:    128MB, DDR3
    FLASH storage:    16 MB serial flash

Firmware / Configuration
    WEB UI:    Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA:    Update FW
    RMS:    Update FW/configuration for multiple devices at once
    Keep settings:    Update FW without losing current configuration
    Factory settings reset:    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation
    Operating system:    TSWOS (OpenWrt based Linux OS)
    Supported languages:    Busybox shell, Lua, C, C++
    Development tools:    SDK package with build environment provided
    Package Manager:    The Package Manager is a service used to install additional software on the device

Performance Specifications
    Bandwidth (Non-blocking):    56 Gbps
    Forwarding rate:    83.33 Mpps
    Packet buffer:    512 KB
    MAC address table size:    8K entries
    Jumbo frame support:    10000 bytes

PoE Out
    PoE+ ports:    Port 1-12
    PoE standards:    IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
    PoE Max Power per Port (at PSE):    30 W
    Total PoE Power Budget (at PSE):    300 W

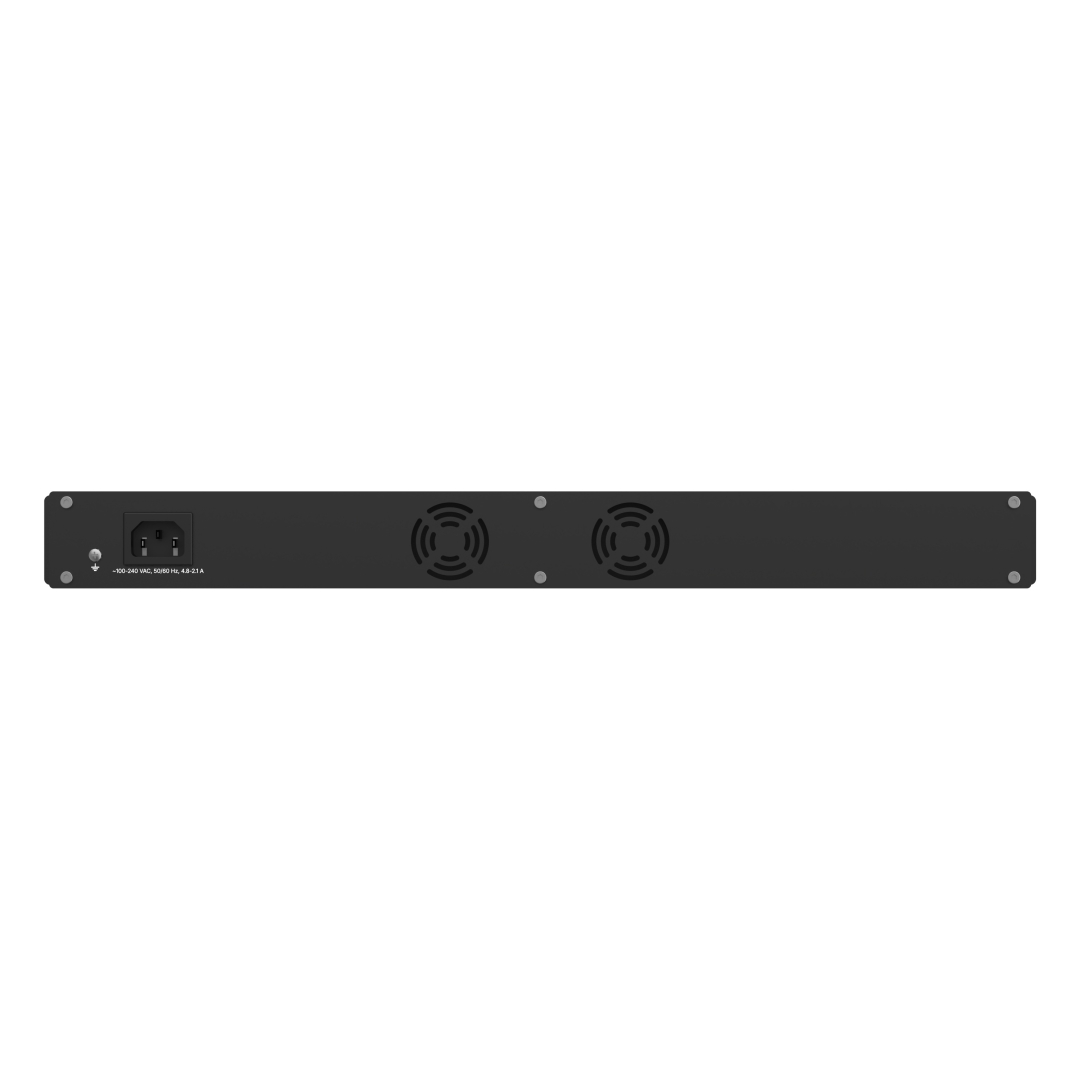

Power
    Connector:    C14 connector
    Input voltage range:    100-240 VAC, 50/60 Hz
    Power consumption:    Idle: 7.5 W / Max: 325 W / PoE Max: 300

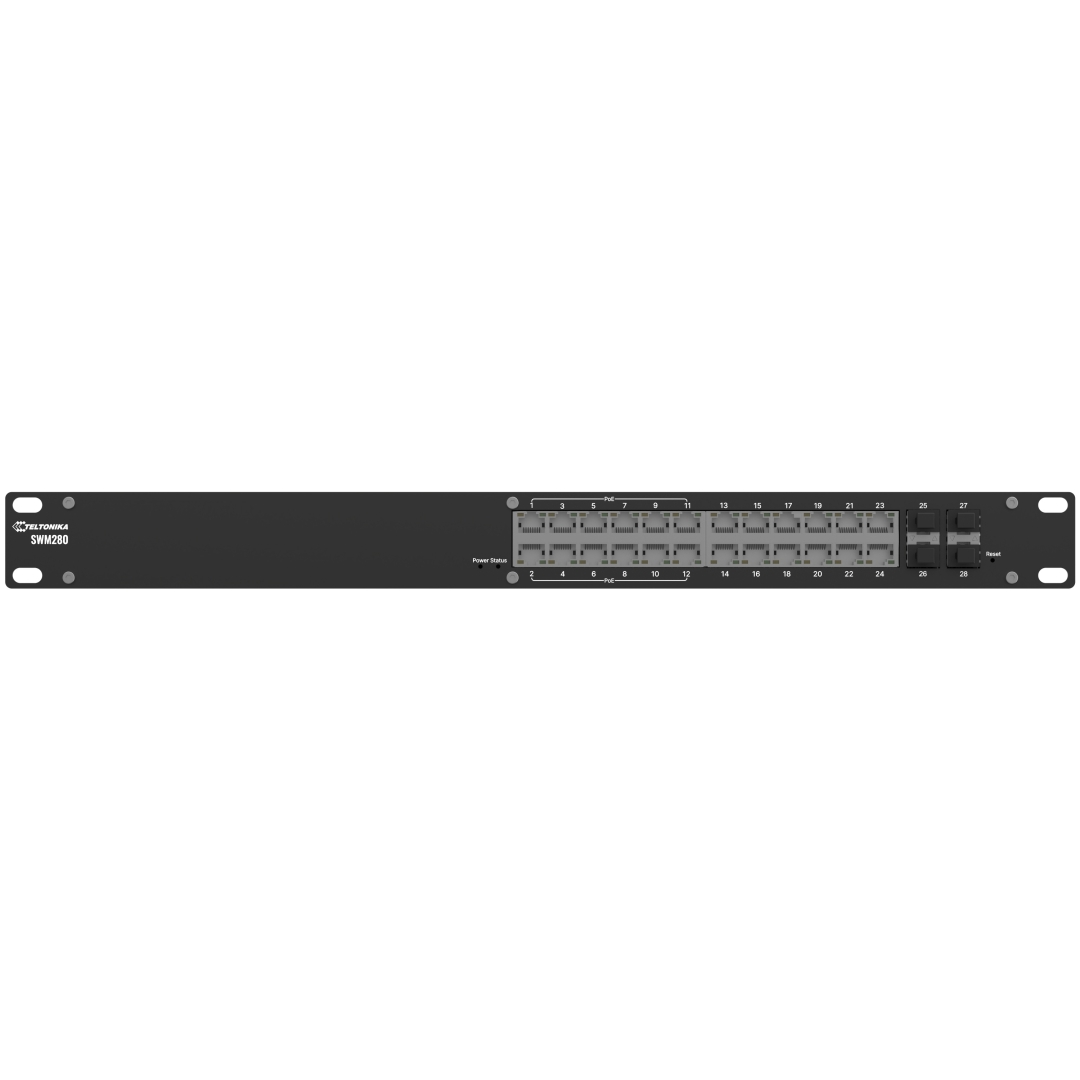

Physical Interfaces
    Ethernet:    24 x RJ45 ports, 10/100/1000 Mbps
    Fiber:    4 x SFP ports
    Status LEDs:    1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
    Power:    1 x C14 connector
    Reset:    Software reset button
    Other:    1 x Grounding screw

Physical Specification
    Casing material:    Anodized aluminum housing and panels
    Dimensions (W x H x D):    483 x 44 x 234 mm
    Weight:    1842 g
    Mounting options:    Rack mounting kit

Operating Environment
    Operating temperature:    0 °C to 50 °C
    Operating humidity:    10% to 90% non-condensing
    Ingress Protection Rating:    IP30

Regulatory & Type Approvals
    Regulatory:    CE, UKCA, CB, RCM, FCC, IC
