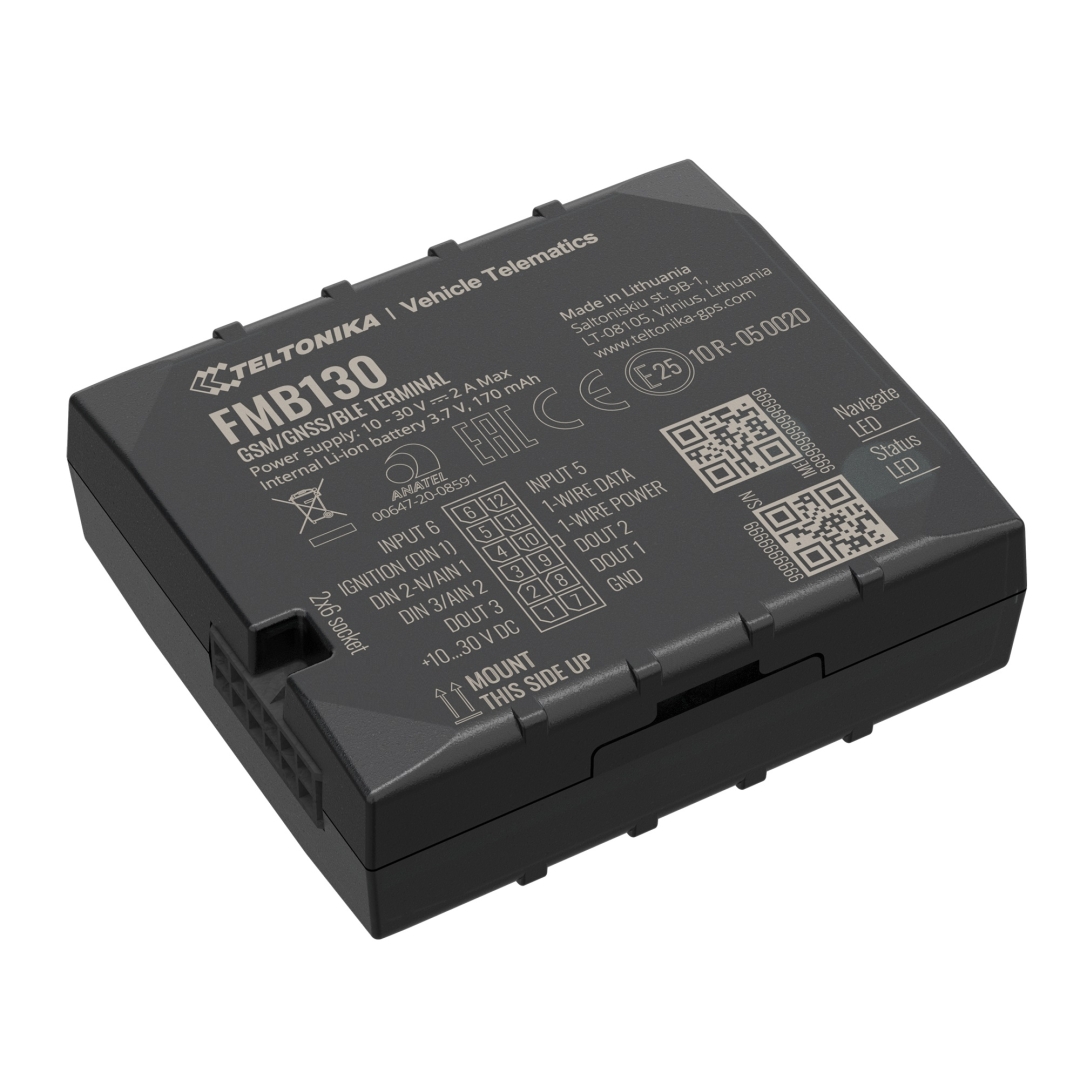

TELTONIKA GPRS/GNSS tracker with flexible inputs configuration (FMB130)

MPN: FMB130BSXW01
Order code: FMB130
Quick code: #2369

Configurable DIN/AIN for flexible remote monitoring and control | 1-Wire® interface to monitor temperature data and RFID/iBBluetooth for external devices and Low Energy sensorsutton tags | Negative input will allow easier installation of accessories | Allows device to work without external power source | Impulse inputs for fuel flow meters data reading | Bluetooth for external devices and Low Energy sensors

Price exc. VAT: Price inc. VAT: For orders (total sum):
27.58£ 33.10£ >0£
27.33£ 32.80£ >300£
27.09£ 32.51£ >1000£
Qty:


Features:

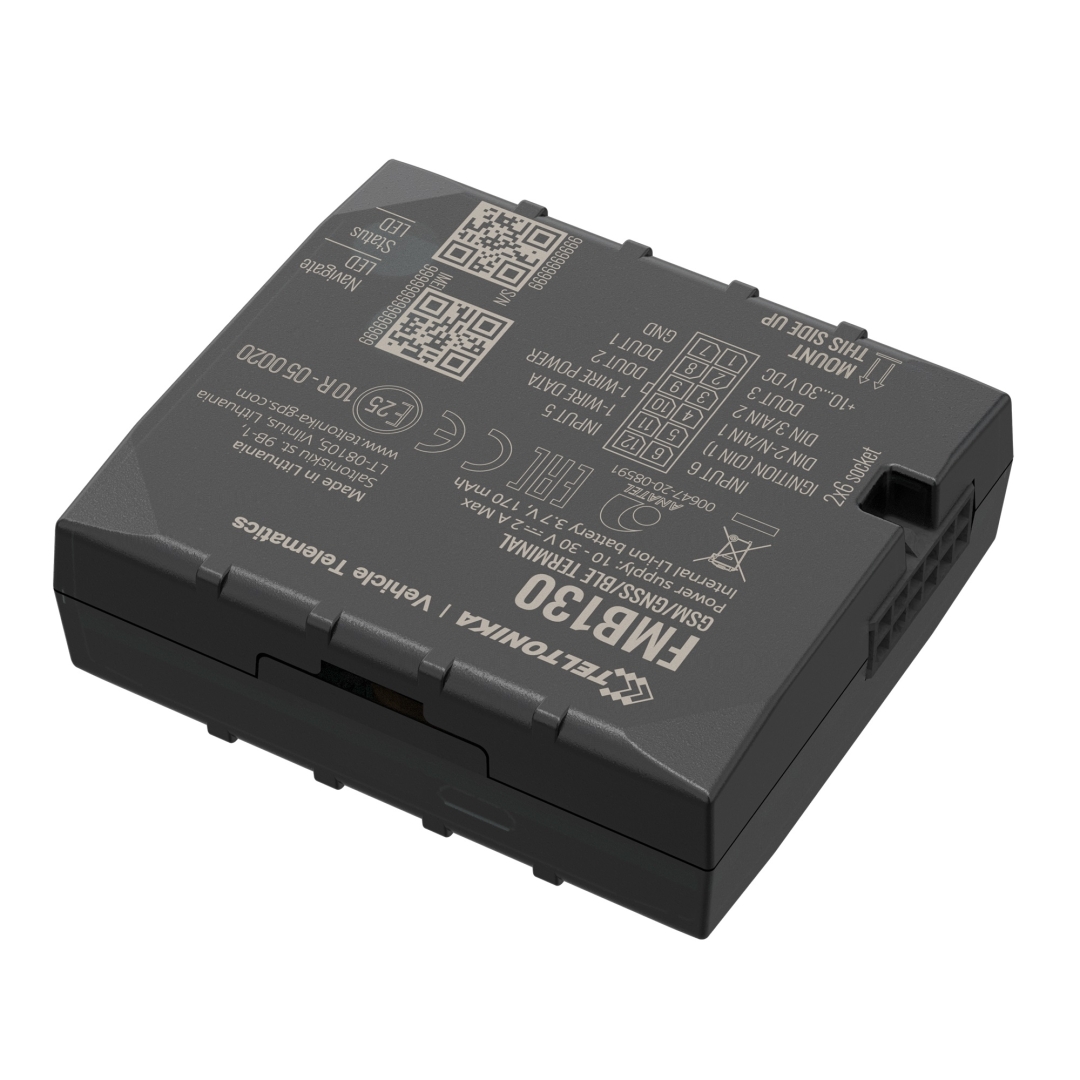

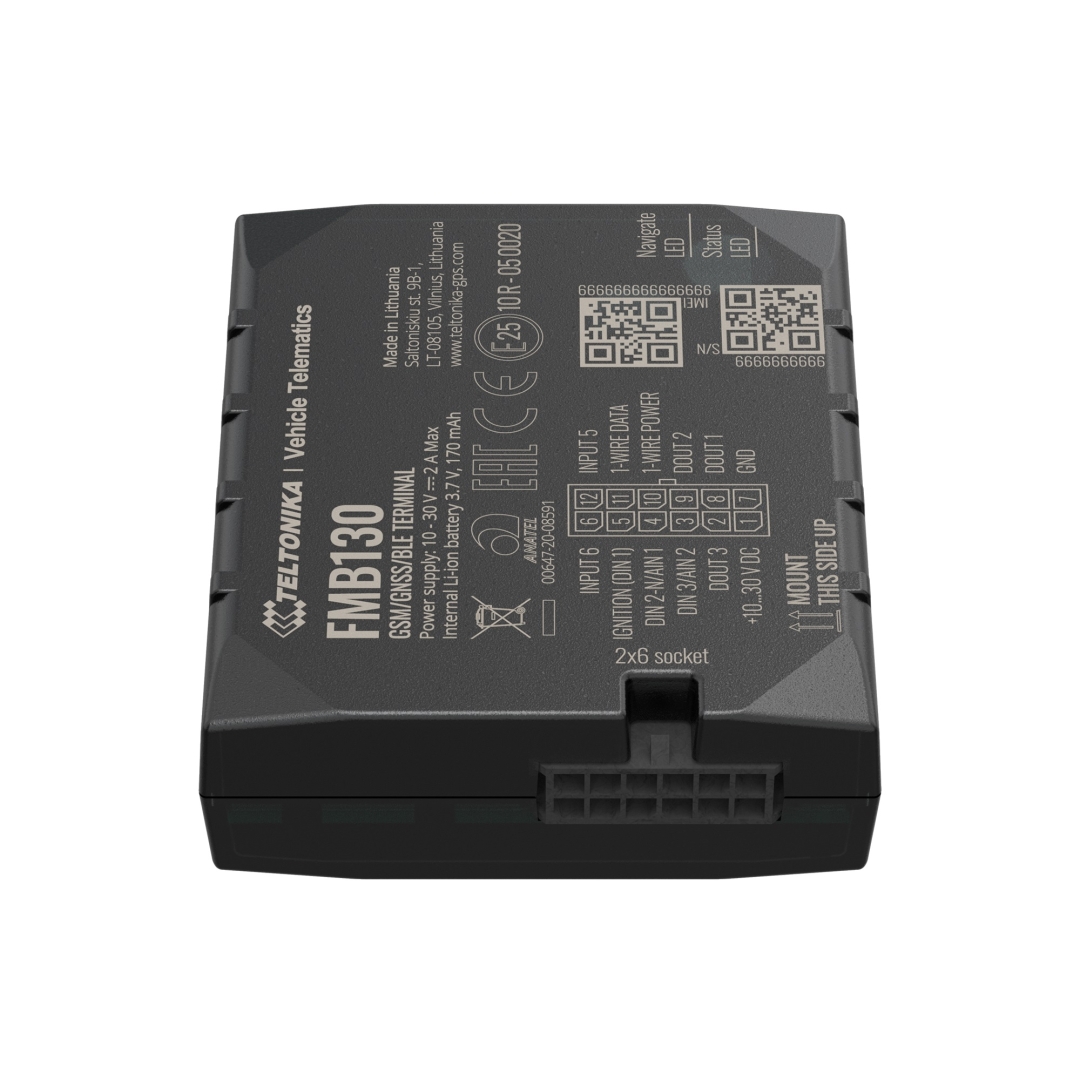

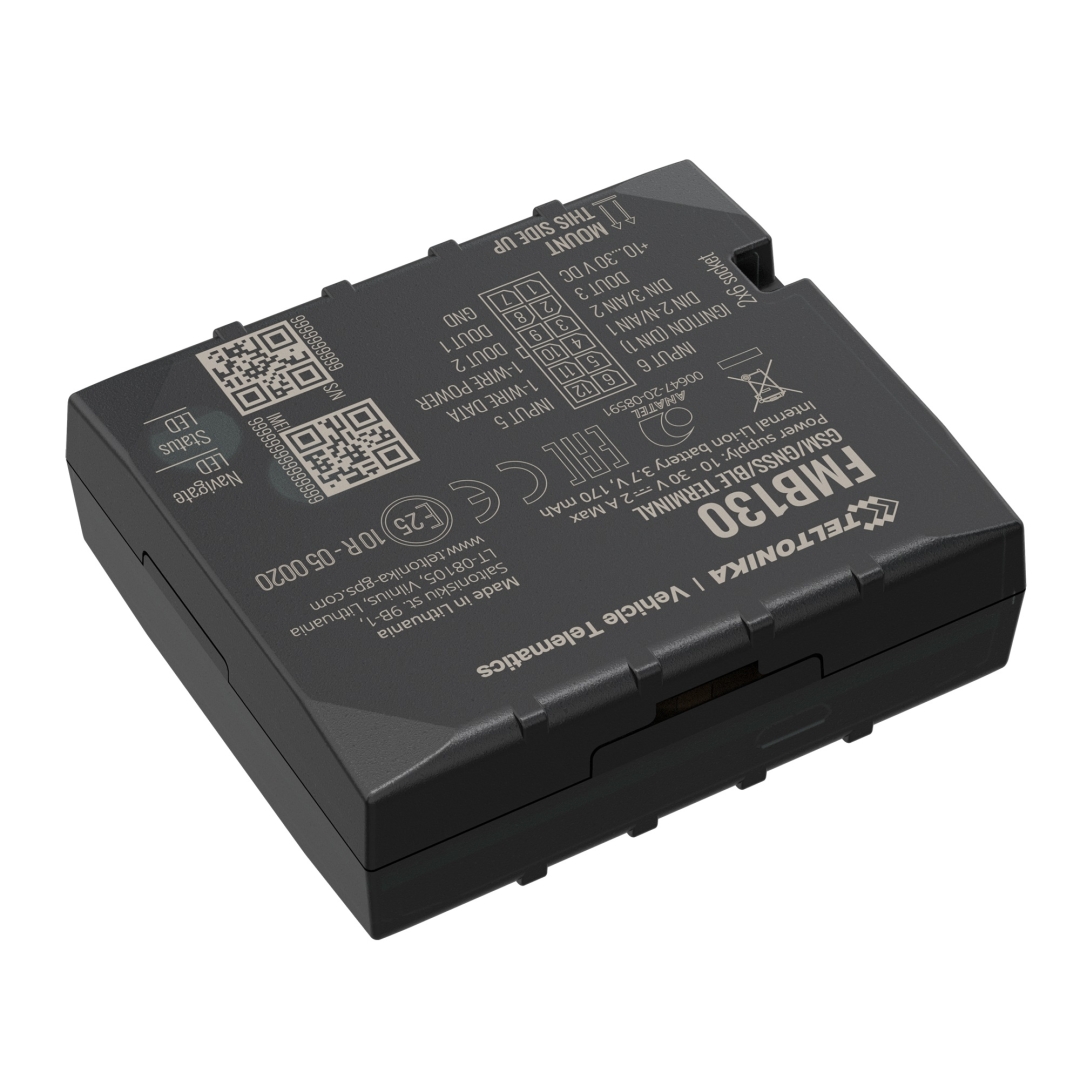

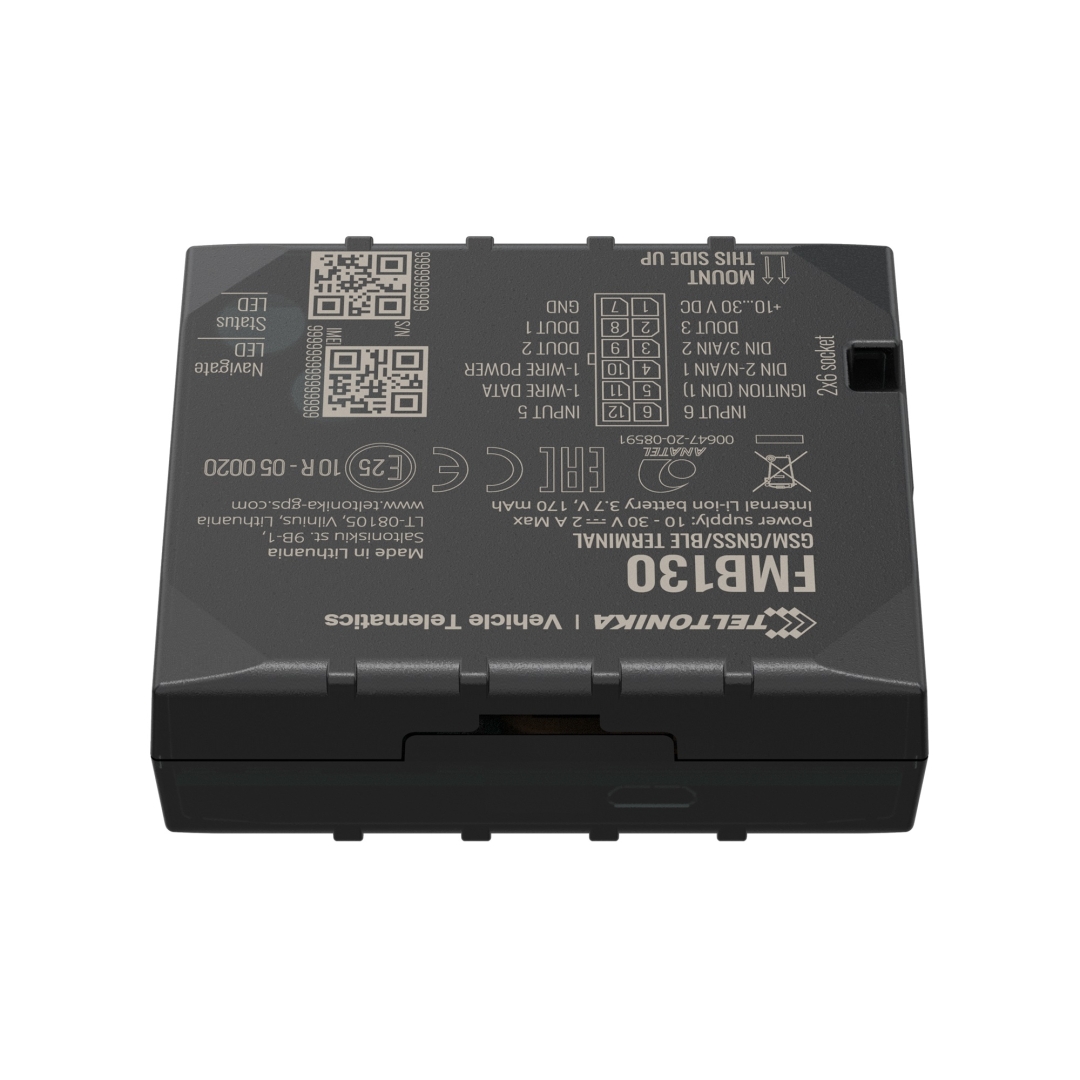

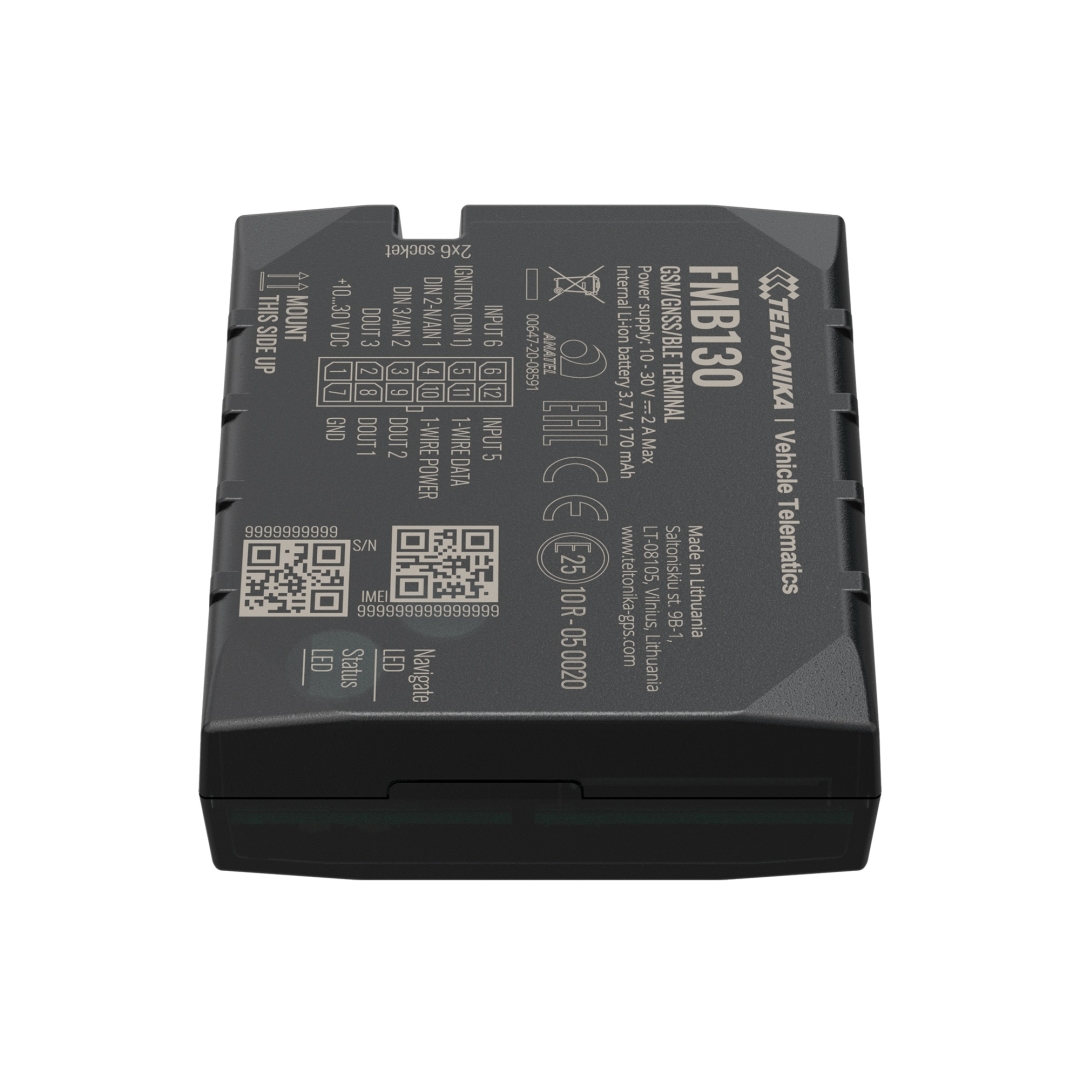

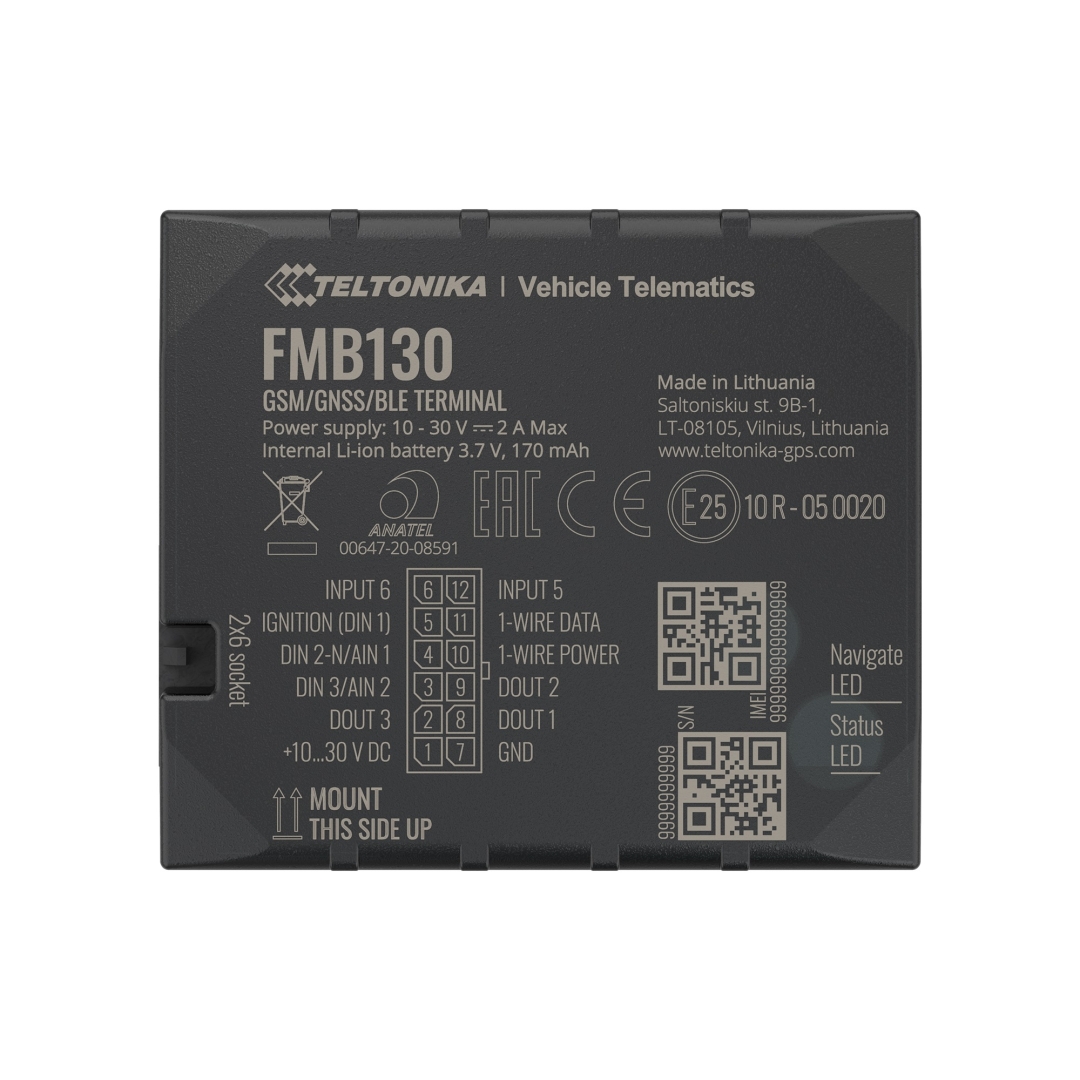

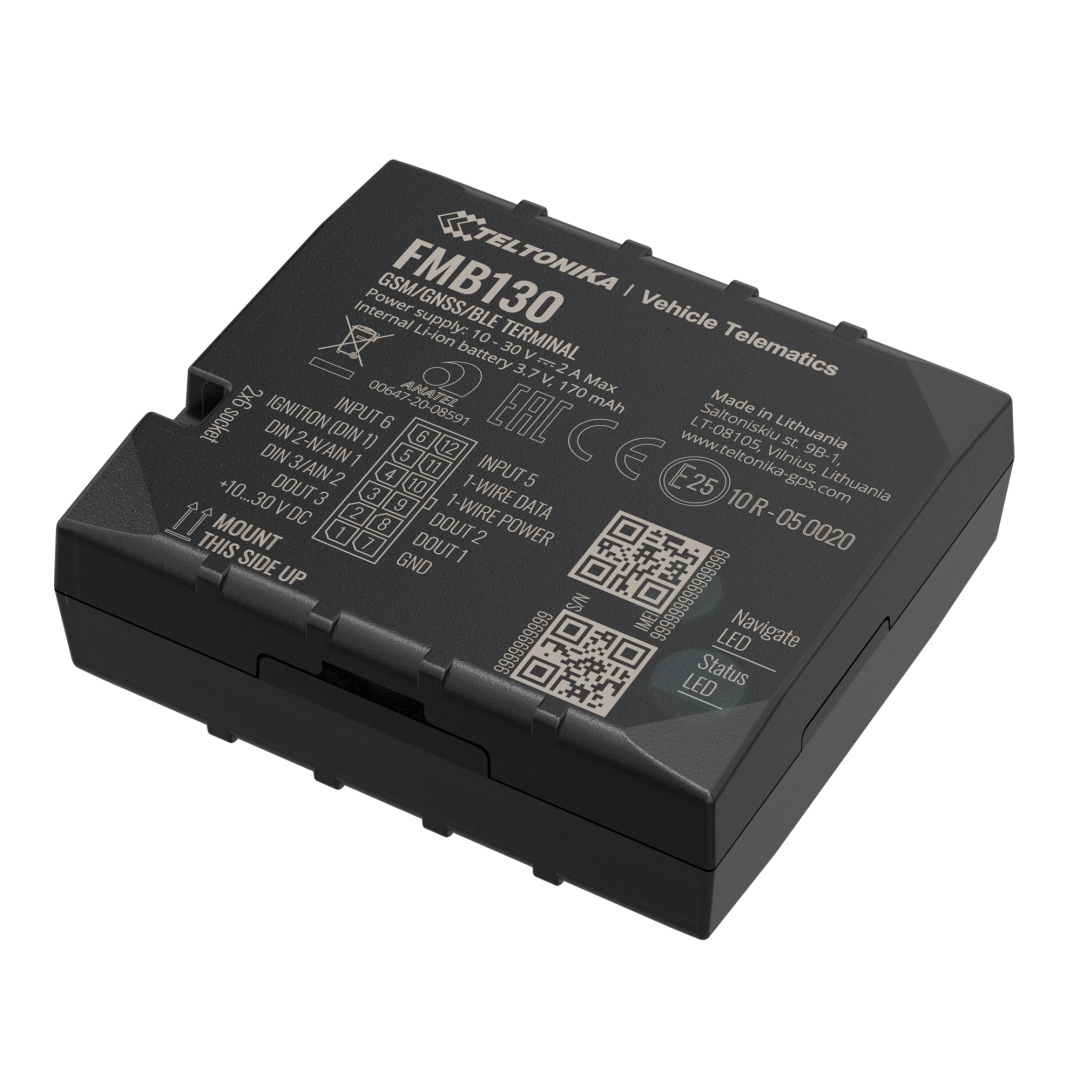

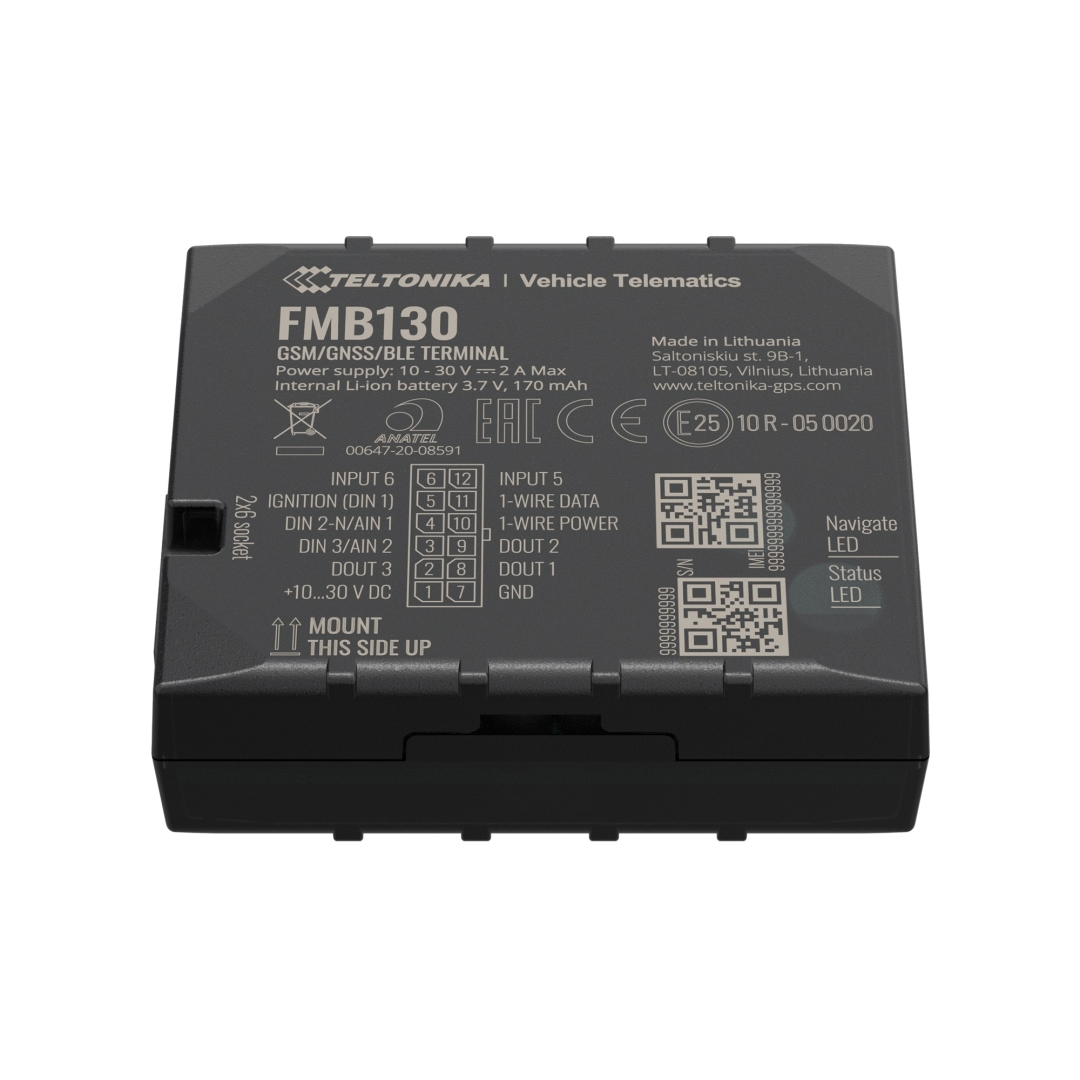

FMB130 is ADVANCED tracker with internal GNSS, GSM antennas, configurable digital/analogue inputs/negative input/impulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.

Teltonika keeps its promise to make IoT Easy. FMB130 device is the first device with negative input possibility. It allows you to save your precious integration time while connecting accessories like vehicle door sensor, alarm button, seatbelt detection and similar sensors or accessories.

Additionally, they have integrated possibility to enable Impulse Input for fuel flow meter data reading. Impulse based fuel usage control is much more accurate than different kind of fuel level sensors and enables possibility to be precise if needed. It is perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

They have also added one additional Digital Output. Now it is 3 of them in total! It is not surprising that DOUT is the most popular connection type on FMB1 family devices. It`s allows you to use simultaneously 3 different DOUT scenarios like: immobilizer, buzzer, alarm lights, door lock and others.

New FMB130 is the first advanced vehicle tracking system with programmable DIN/AIN/Negative/Impulse input. First input has following choices: Digital, Analog, Negative, Impulse. Second input may be Digital or Analog.

With these new features you can have one tracking system for much wider range of use cases.

Specification:

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature -0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter inputs 1
1-Wire 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
