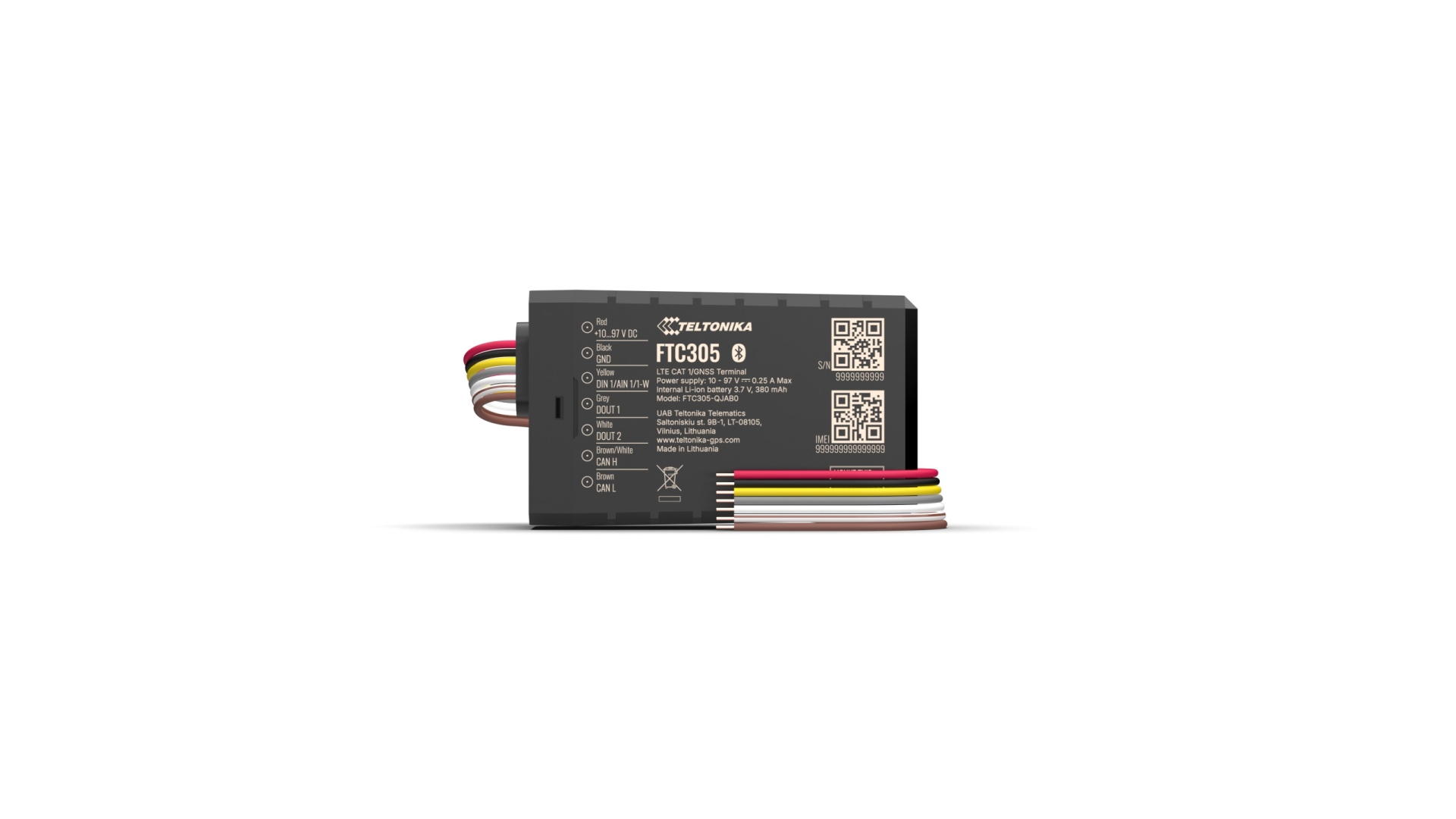

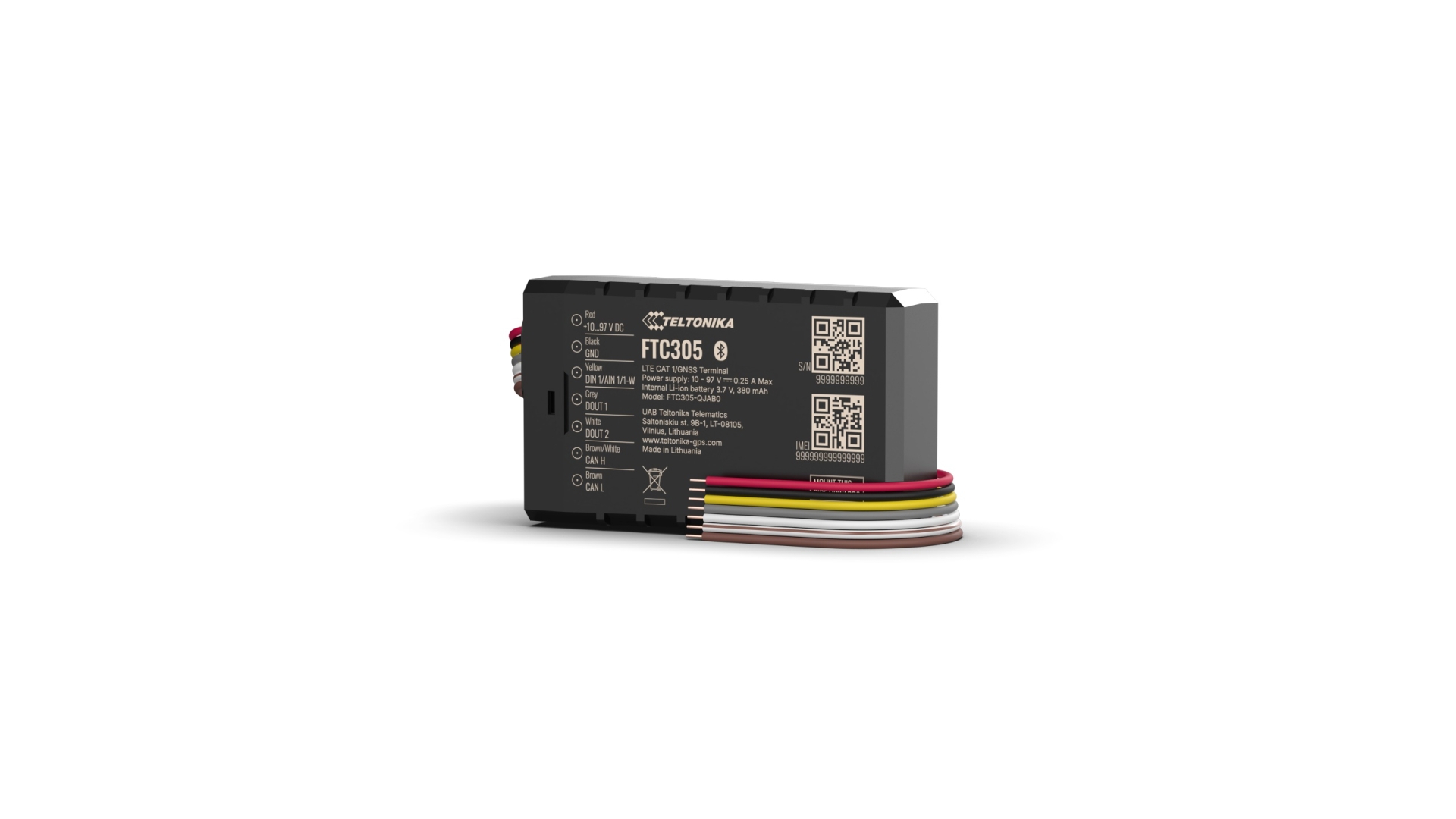

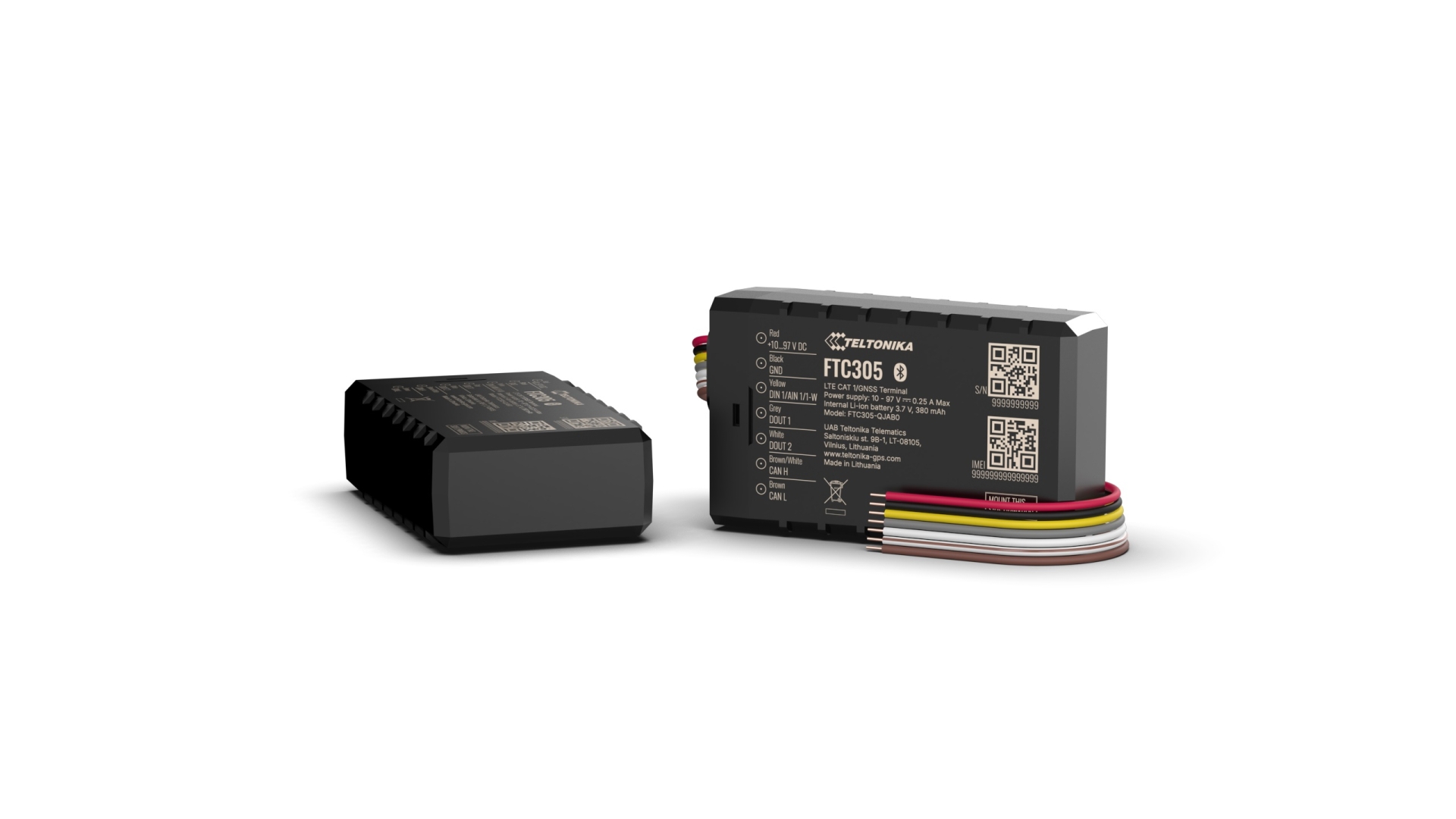

TELTONIKA Compact 4G LTE Cat 1 E-mobility Tracker (FTC305)

Features:

Compact 4G LTE Cat 1 e-mobility tracker with CAN data reading and flexible installation options

CAN DATA FOR E-MOBILITY EFFICIENCY
Get crucial CAN parameters and create a custom parameter database to enhance the operational efficiency of your e-mobility fleet

PERFECT FOR HIGH-VOLTAGE TRANSPORT AND MACHINERY
Solid 10-97 V power supply allows device integration in e-bikes, forklifts, shuttle cars, utility machinery, and other electric equipment

PROTECTION AGAINST DUST AND WATER
Robust yet small IP67-rated casing provides trusted protection against dust and resistance to water

TAILORED FOR FACTORY INSTALLATION
Unique no-casing version of FTC305 with external antenna and larger battery capacity for mounting inside e-bike and e-bicycle frames

Specification:

Model name
FTC305-QJAB0

Module
Name: FTC305-QJAB0: Quectel EG915U-EU, internal antennas, casing version
Technology: LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU
Receiver: L1: 75 channel
Tracking sensitivity: -165 dBM
Position Accuracy: < 1.8 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s

Cellular
Technology: LTE CAT 1/GSM
2G bands: GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28
Data transfer:
    LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
    GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power:
    Class 5 for GSM850/900: 30±5dBM
    Class 3 for GSM1800/1900: 29±5dBM
    Class 3 for LTE-FDD: 26±5dBM
Data support: SMS (TEXT, PDU), Network protocols (TCP, UDP)

Power
Input voltage range: 10 - 97 V DC
Internal Back-up battery: 380 mAh Li-ion battery 3.7 V (1.41 Wh)
Internal fuse: 3 A
Power consumption:
    At 12V < 40 mA (Nominal with no load)
    At 12V < 0.25 A Max (with full Load/Peak)

Bluetooth® Technology
Specification: 5.3 + LE*

Physical specification
Dimensions: 69 x 41 x 20.9 mm (L x W x H)
Weight: 76.8 g

Operating environment
Operating temperature: -30 °C to +85 °C
Storage temperature: -30 °C to +85 °C
Operating humidity: 65 ± 20% non-condensing
Ingress Protection Rating: IP67
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature: -10 °C to +25 °C for 3 or more months

Interface
Digital Inputs: 1
Digital Outputs: 2
Analog Inputs: 1**
1-Wire: 1***
CAN: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal High Gain
USB: 2.0 USB Type-C
LED indication: 2 status LED lights
SIM: Nano-SIM
Memory: 128MB internal flash memory

Data codec
Codec support: Codec 8 Extended

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands
Sleep modes: Online sleep, Deep sleep, Power off sleep****
Configuration and firmware update: FOTA WEB, Telematics Configuration Tool (TCT)
Time Synchronization: GNSS, NITZ, NTP
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage

* Available in future firmware releases
** Available in future firmware releases
*** Available in future firmware releases
**** Available in future firmware releases

Standard package:

• FTC305 tracker
• 7-pin main cable
• Packaging box with Teltonika branding
