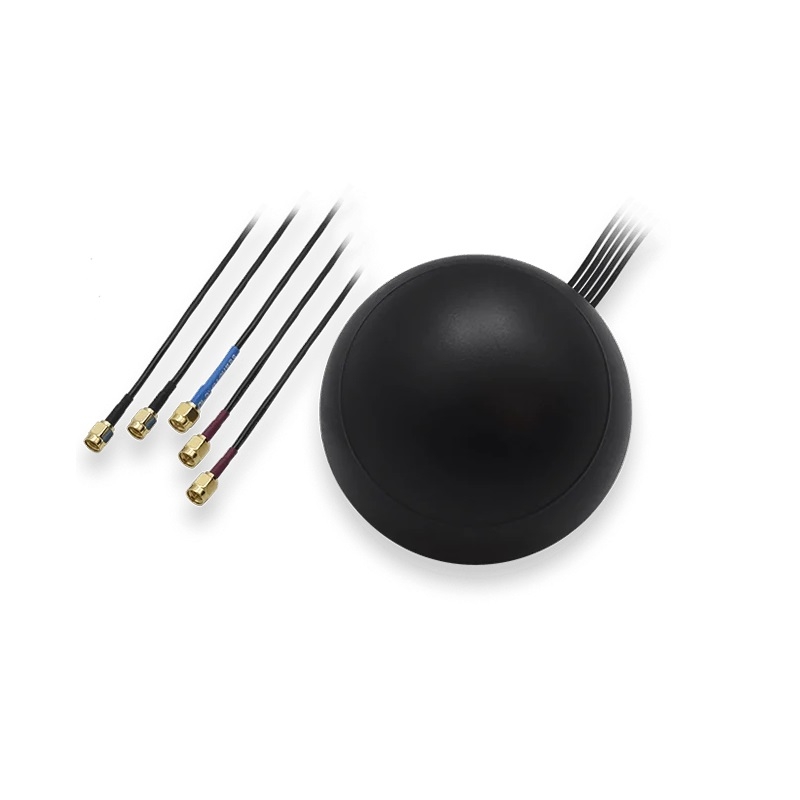

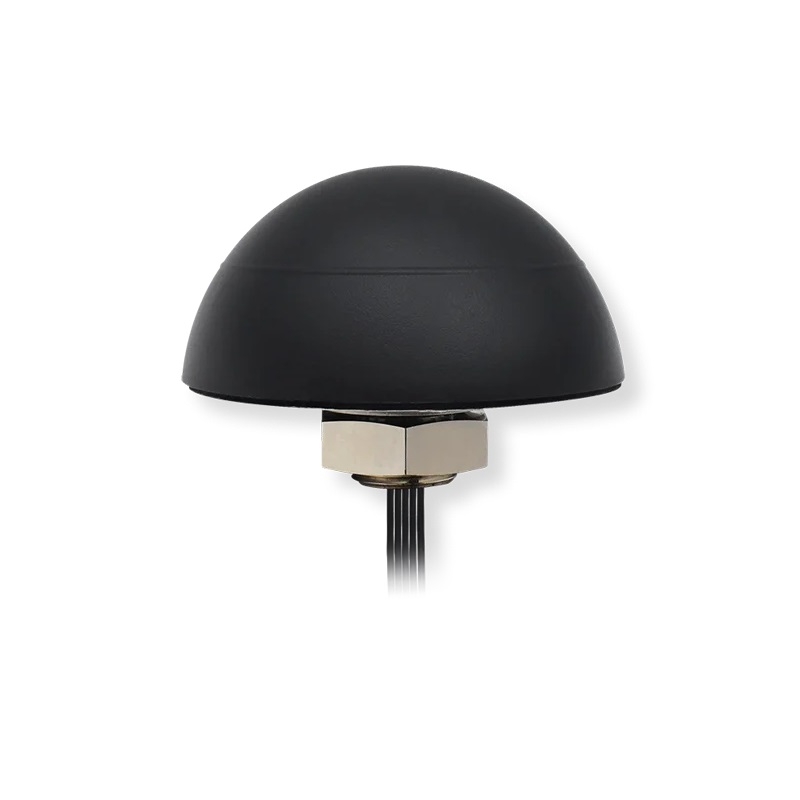

TELTONIKA COMBO MIMO Mobile/GNSS/WIFI ROOF SMA Antenna (003R-00253)

MPN: 003R-00253
Order code: 003R-00253
Quick code: #1685

All-in-One: 28 dB gain GNSS, 3 dBi gain LTE and 2 dBi gain WiFi waterproof antenna

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
35.66£ 42.79£ >0£
35.09£ 42.11£ >300£
34.51£ 41.41£ >1000£
Qty:
  In stock


Features:

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and some other Teltonika products

Specification:

GNSS Antenna

Frequency Range: 1575.42-1610 MHz
Polarization: RHCP
Impedance: 50 Ω
LNA Gain: 28±2 dB
LNA Noise Figure: < 1.5 dB
Supply Voltage: 3-5 VDC
Current Consumption: < 15 mA
LNA V.S.W.R: <2.0
Connector: SMA Male

LTE MIMO Antenna

Frequency Range: 698-960/1710-2690 MHz
Polarization: Linear
Gain: 3 dBi
V.S.W.R.: <3.0
Impedance: 50 Ω
Connector: 2x SMA Male

WiFi MIMO Antenna

Frequency Range: 2400-2483.5/4900-5825 MHz
Polarization: Linear
Gain: 2 dBi
V.S.W.R: <2.5
Impedance: 50 Ω
Connector: 2x RP SMA Male

Mechanical/Environmental

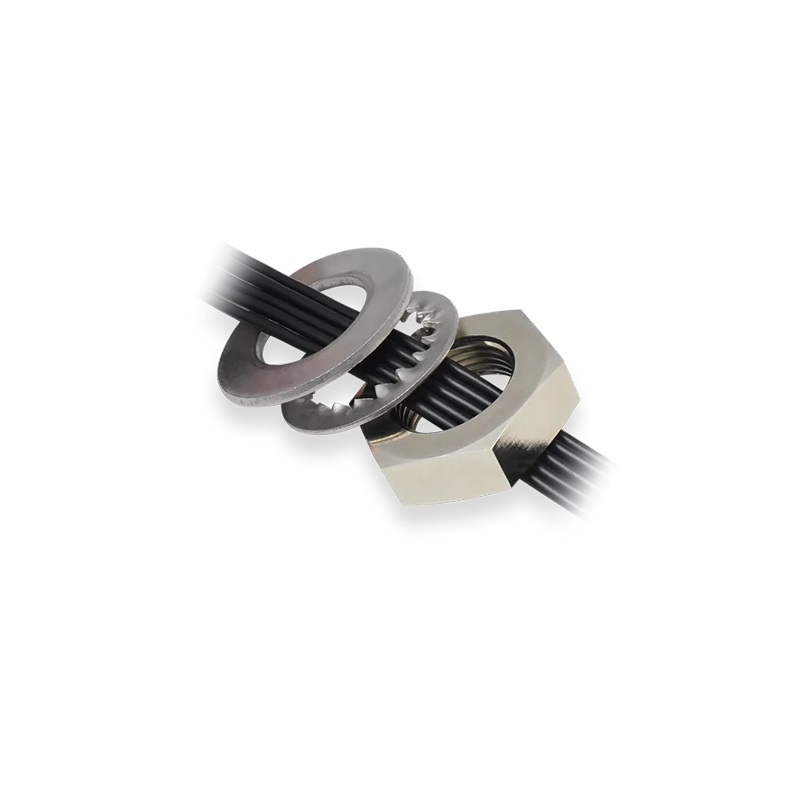

Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <550g
Housing Dimensions: Ø 110x55 mm
Cable: 5x RG174, 3000 mm
RoHS Compliant: Yes
