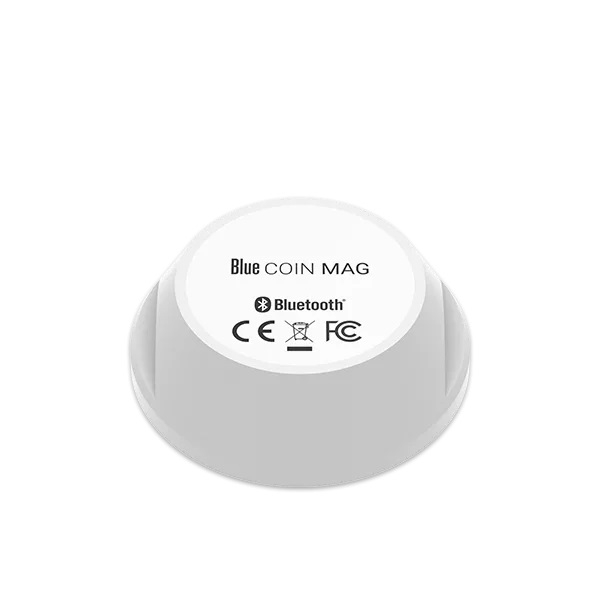

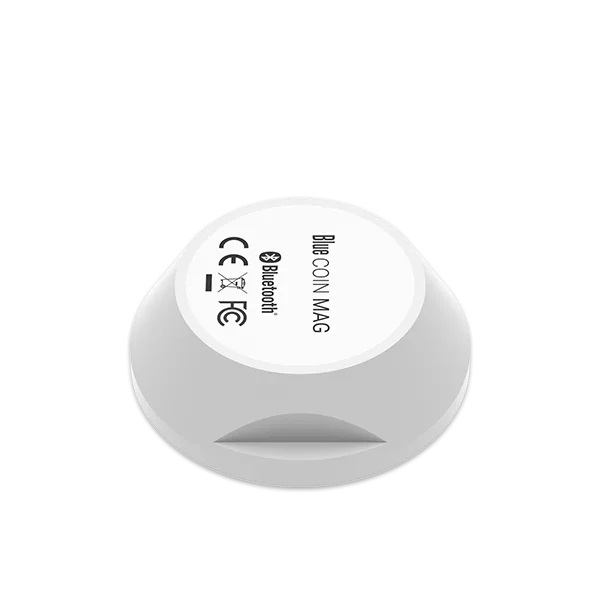

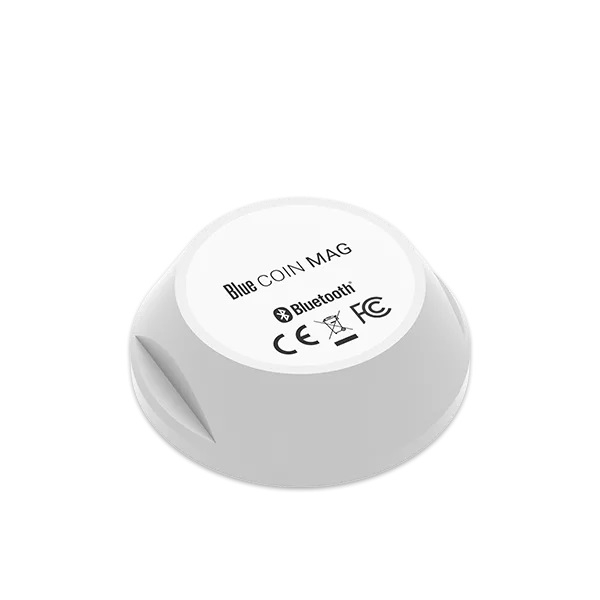

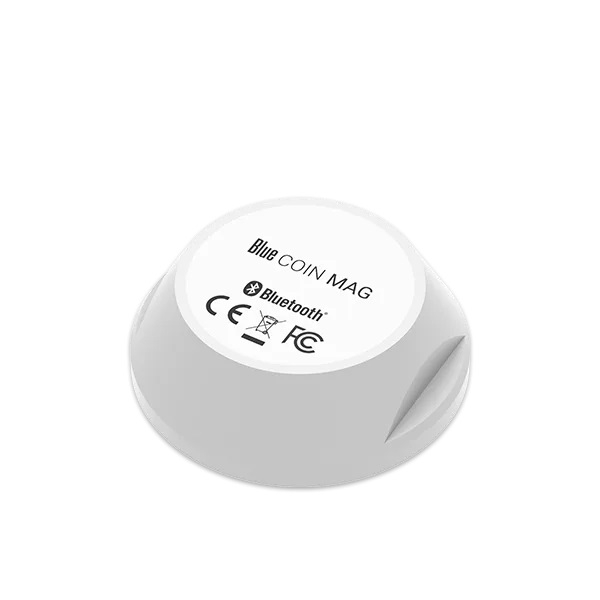

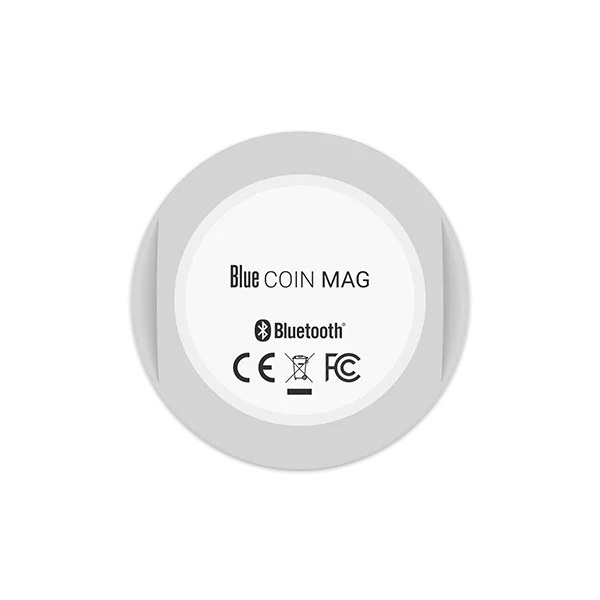

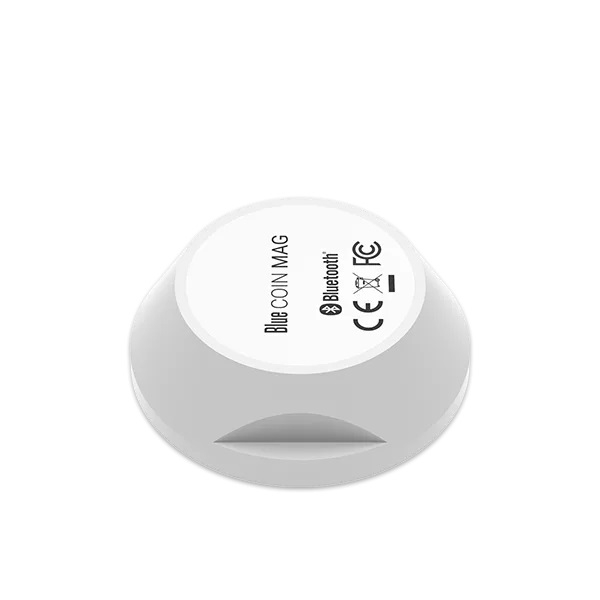

TELTONIKA Bluetooth 4.0 LE Magnet Contact Sensor Blue COIN MAG (PGEX00000620)
MPN:
PGEX00000620
Order code:
PGEX00000620
Quick code:
#3560
Long transmission range, up to 200 meters (open field) | Long battery life time, up to 2.5 years | Classifies the degree of protection against solid objects and water | Easy configuration with dedicated mobile application only via NFC
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 23.01£ | 27.61£ | >0£ |
| 22.80£ | 27.36£ | >300£ |
| 22.60£ | 27.12£ | >1000£ |
Features:
Teltonika is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE sensors extends covered business cases: doors, hood or similar objects open/close status monitoring. In combination with sensor it is necessary to use additional magnet. Sensor can send information when magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance and can work from one battery up to 2.5 years.
Specification:
| TECHNICAL DATA | |
| Battery | Lifecycle up to 2.5 years |
| Bluetooth | 2,4 GHz - Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | ø 36 mm base - Thickness 11.5 mm |
| Weight | 13 g |
| Operating temperature | -30°C to +70°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Magnetic range | Up to 2 cm (from device top marked by arrow) |
| Transmission range | Up to 200 meters (open field) |
| Transmission period | 0,1 to 10 second (programmable) |
| Regulatory | CE (Europe): EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1 FCC (USA): FCC 15.247 / FCC PT 15B ISED/IC (Canada): RSS-247 / ICES-003 RoHS certified |
