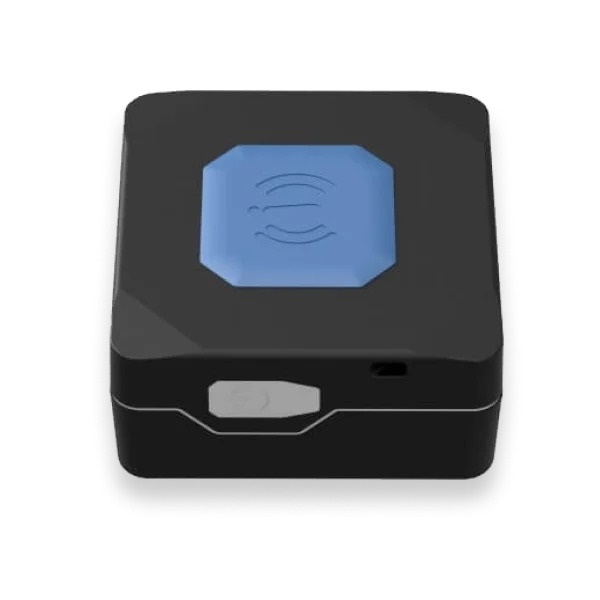

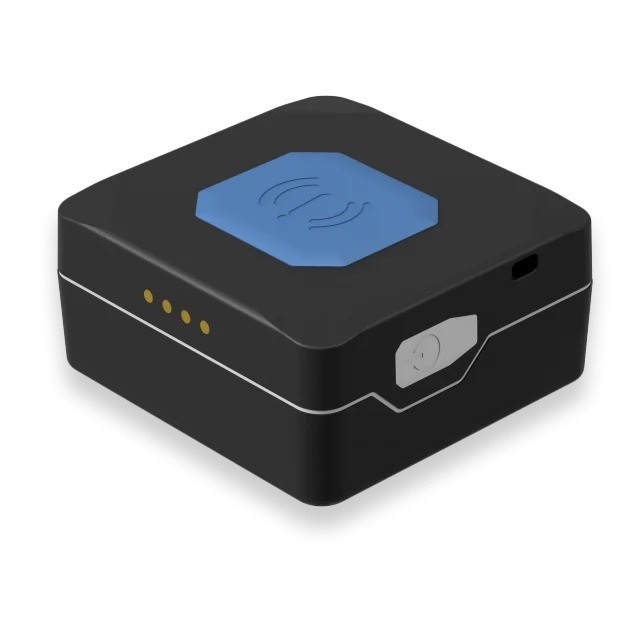

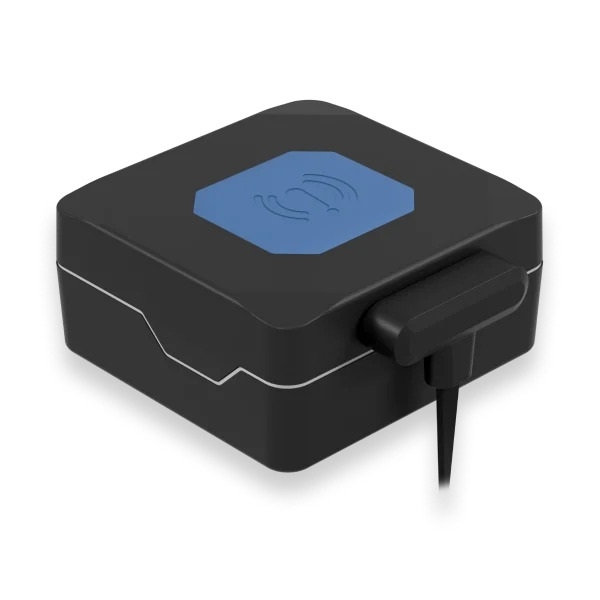

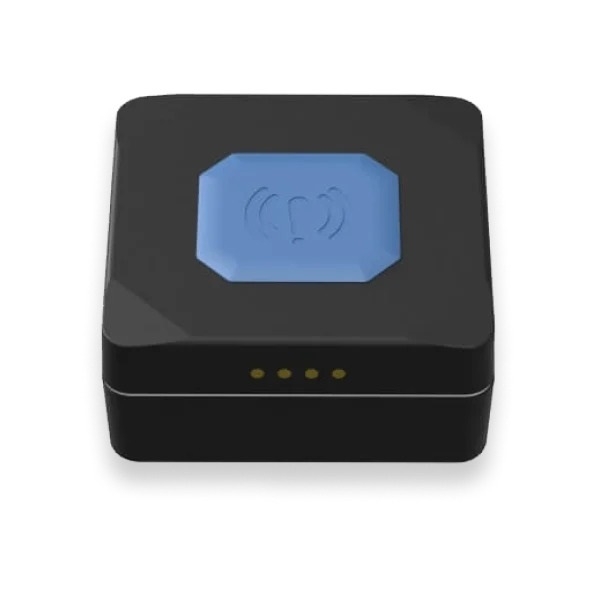

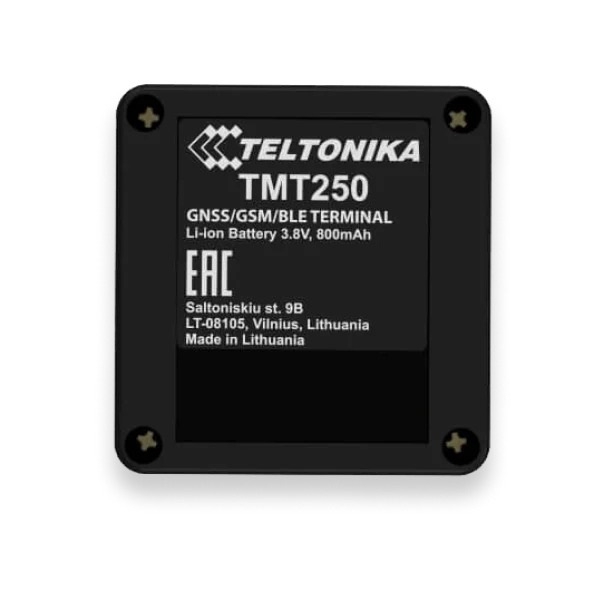

TELTONIKA autonomous personal tracker with GNSS, GSM and Bluetooth connectivity (TMT250)

MPN: TMT25084A500
Order code: TMT250
Quick code: #1681

Designed for people, pets, car monitoring, employees control, sport events, etc. IP67 waterproof case, supports hands-free, firmware and configuration update via Bluetooth

Price exc. VAT: Price inc. VAT: For orders (total sum):
35.03£ 42.04£ >0£
34.71£ 41.65£ >300£
34.40£ 41.28£ >1000£
Qty:


Features:

Teltonika TMT250 is an AUTONOMOUS personal tracker with GNSS, GSM and Bluetooth connectivity. This mini tracker is designed for people, pets, car monitoring, employees control, sport events, etc. IP67 waterproof case ensures outside usage in harsh conditions, moreover large battery‘s capacity expands application range where long battery lifetime is needed. In addition to that, TMT250 supports hands-free, firmware and configuration update via Bluetooth.

- IP67 Classifies the degree of protection against solid objects and water
- Man-down feature. Used to detect fall down event
- Bluetooth for external devices and Low Energy sensors
- Alarm button immediately sends notification in case of emergency

Learn more on wiki page

Specification:

Module

Name: TM2500
Technology: GSM/GPRS+GPS+BLUE-TOOTH

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular

Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)

Power

Charging voltage: 5V DC
Battery: 800 mAh Li-Ion battery (3.04 Wh)
Power consumption: 1,5 mA (Ultra Deep Sleep), 3,5 mA (Deep Sleep), 4 mA (Online Sleep), 8 mA (GPS Sleep), 44 mA (nominal)

Blue-tooth

Specification: 4.0 + LE
Supported peripherals: Headset

Interface

Configurable buttons: 2
GNSS antenna: Internal High Gain
GSM antenna: Internal High Gain
USB: 2.0 Magnetic USB contact
LED indication: 1 RGB LED
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification

Dimensions: 44 x 43 x 20 mm (L x W x H)
Weight: 40 g

Operating environment

Operating temperature: -25 °C to +55 °C
Storage temperature: -40 °C to +70 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP67

Features

Sensors: Accelerometer, Gyroscope
Scenarios: Over speeding, Man – down, Alarm, Auto Geofence, Manual Geofence, Action on call.
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA Web, FOTA, FMB Configurator (USB, Blue-tooth), FMBT mobile application
SMS: Configuration, Events, Debug
GPRS commands: Configuration, Debug
Time Synchronization: GPS, NITZ, NTP

Certification & Approvals

Regulatory: CE/RED, SAR
