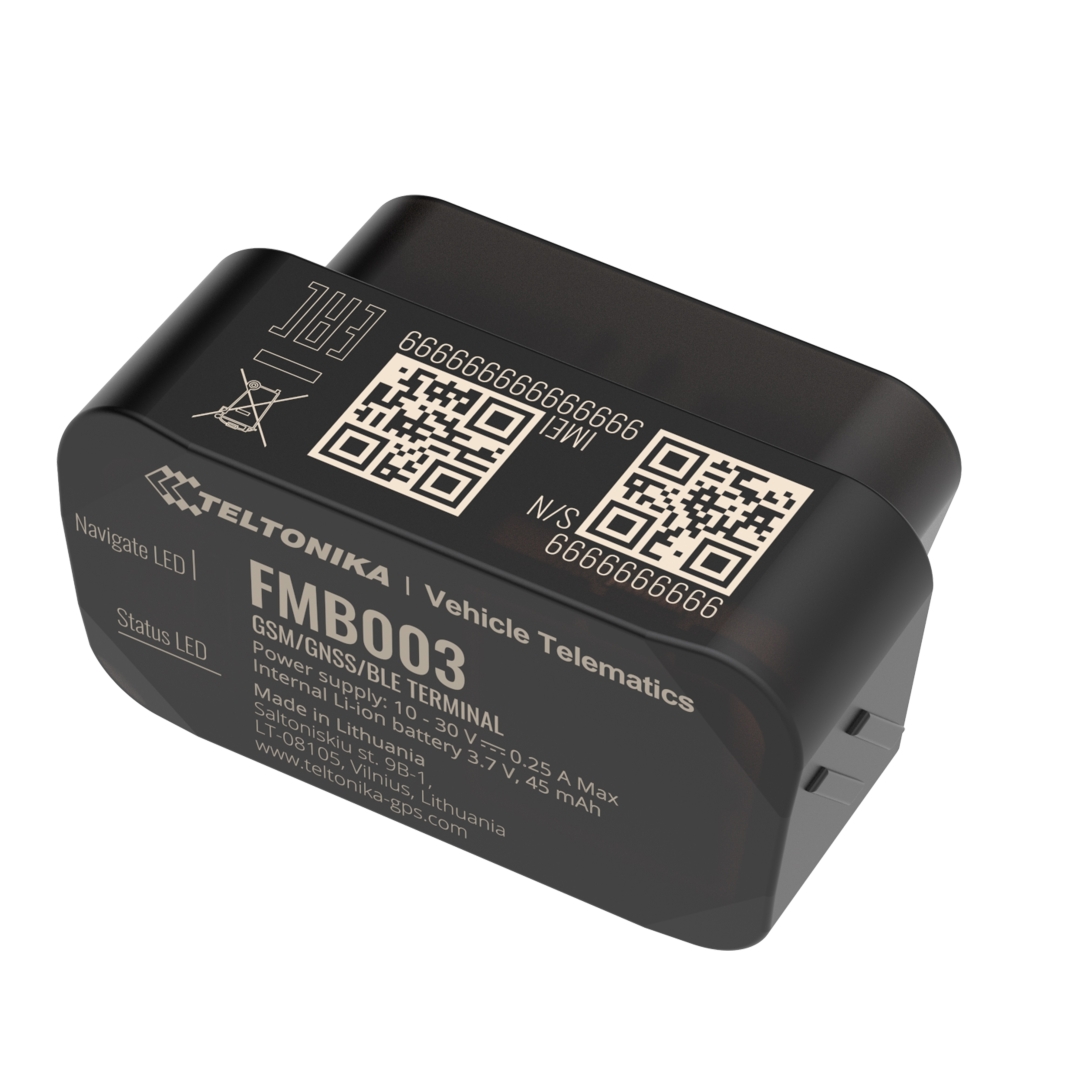

TELTONIKA Advanced plug and track device with bluetooth (FMB003)

MPN: FMB003OE3E01
Order code: FMB003
Quick code: #3058

Plug and play device with OEM parameters reading capability dedicated to OBD applications of next generation

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
45.53£ 54.64£ >0£
45.13£ 54.16£ >300£
44.72£ 53.66£ >1000£
Qty:


Features:

FMB003 is an ultra-small plug and play device dedicated to OBD applications of next generation. The main feature of FMB003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device, you will be able to read Real Odometer and Real Fuel Level data. What’s more, our device comes with the supported vehicles and data list, so no need to guess anymore – now you know what data you can read from a specific vehicle.

It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.

The device supports various BLE 4.0 sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth, thus, expanding its already rich set of features.

FMB003 – setting a new standard in OBD tracking!

Specification:

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12(up to 240 kbps)
Data support SMS (text/data)
POWER
Supply voltage range 10 - 30 V DC with overvoltage protection
Back-up battery 3.7 V 45 mAh
Power consumption At 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support
OBD INTERFACE
Data K-Line, CAN bus data
Data reading Up to 32 vehicle onboard parameters, supported OBD protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
INTERFACE

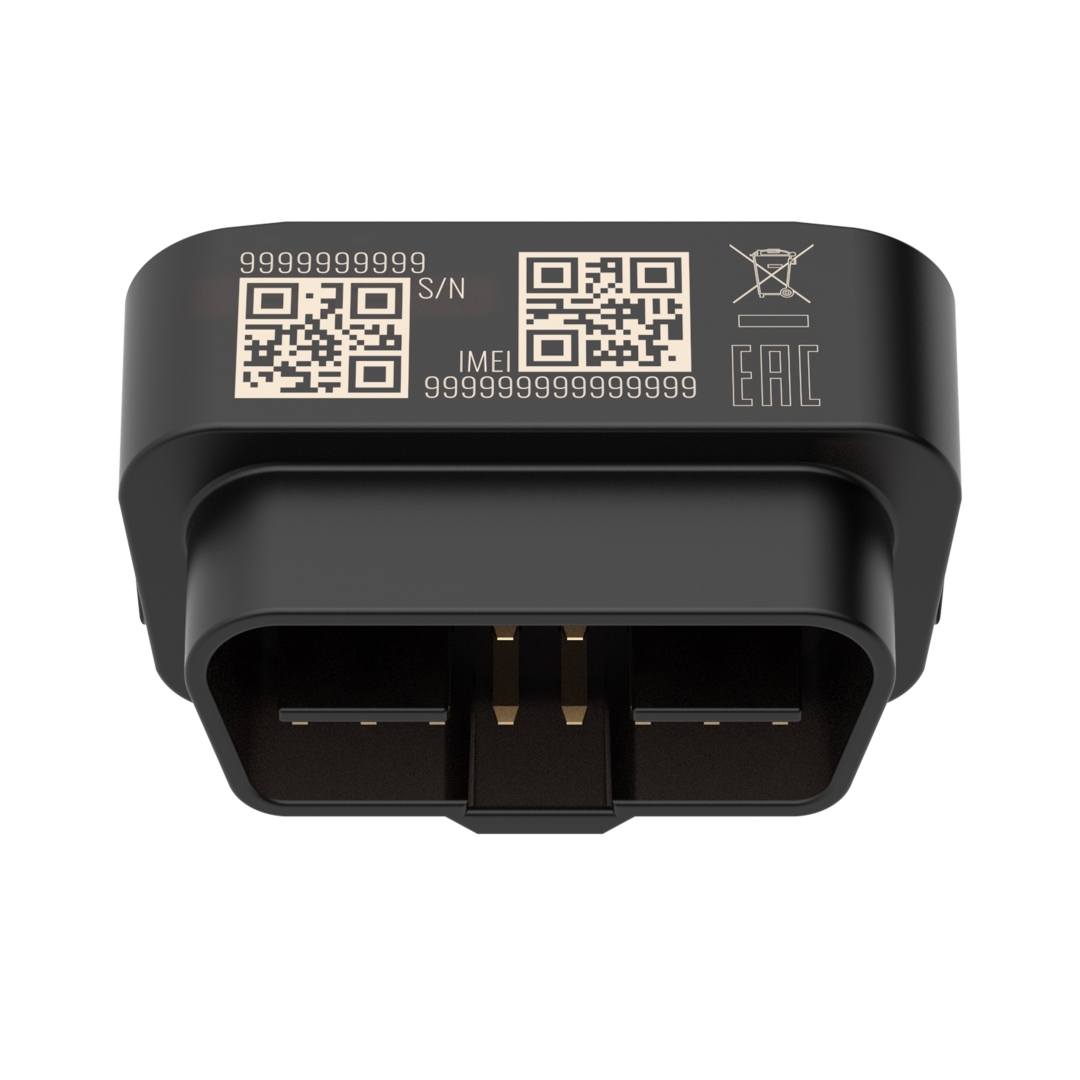

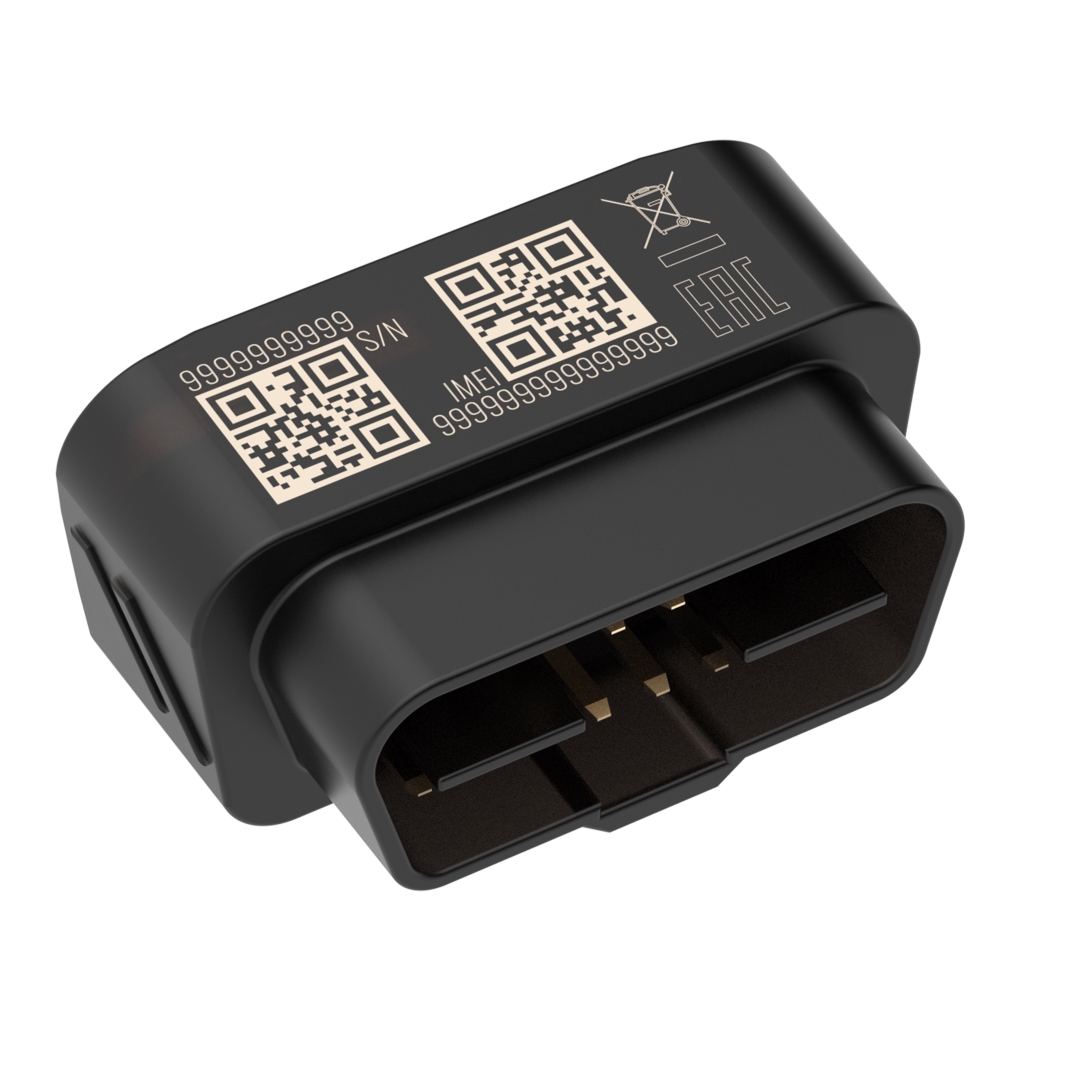

Connection OBDII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB

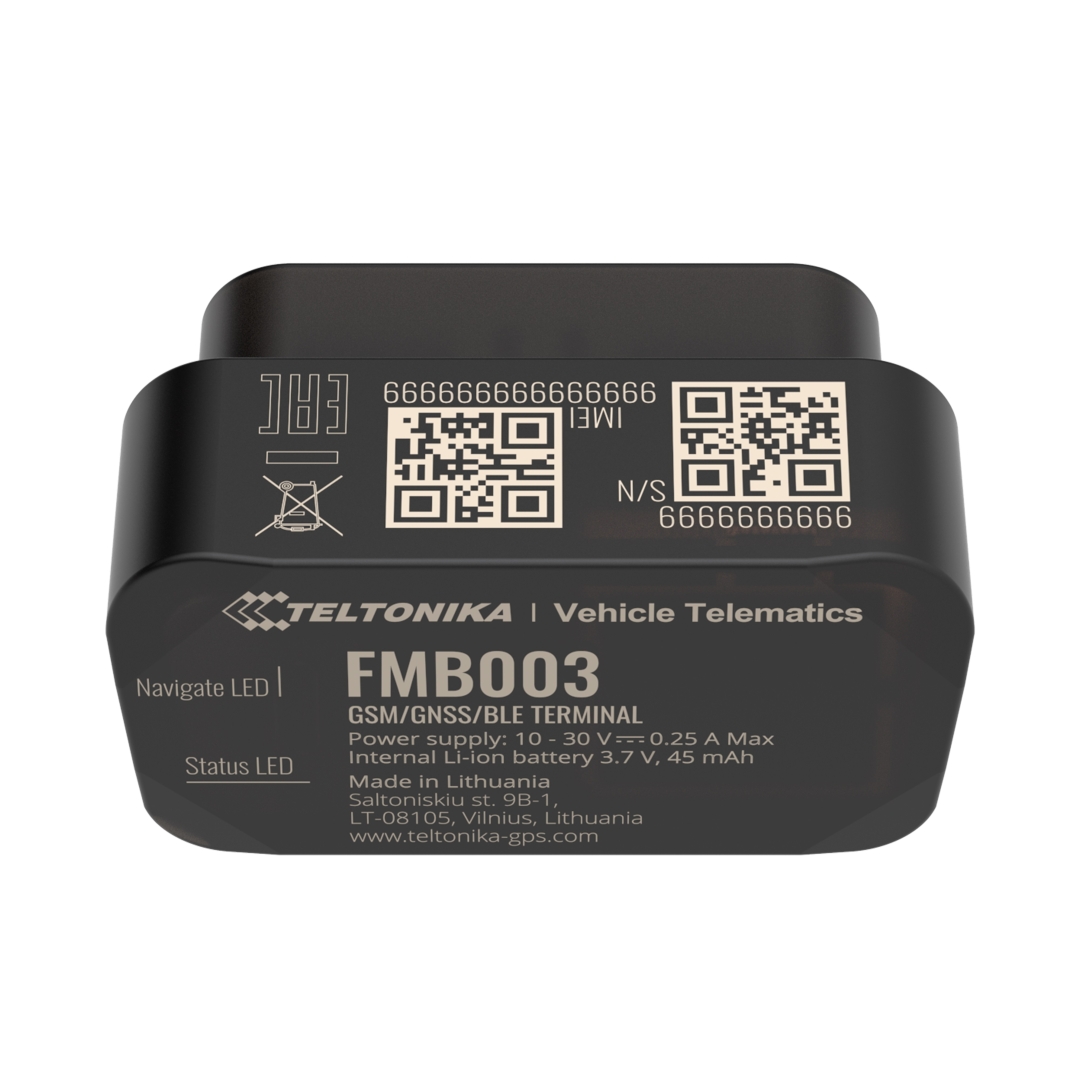

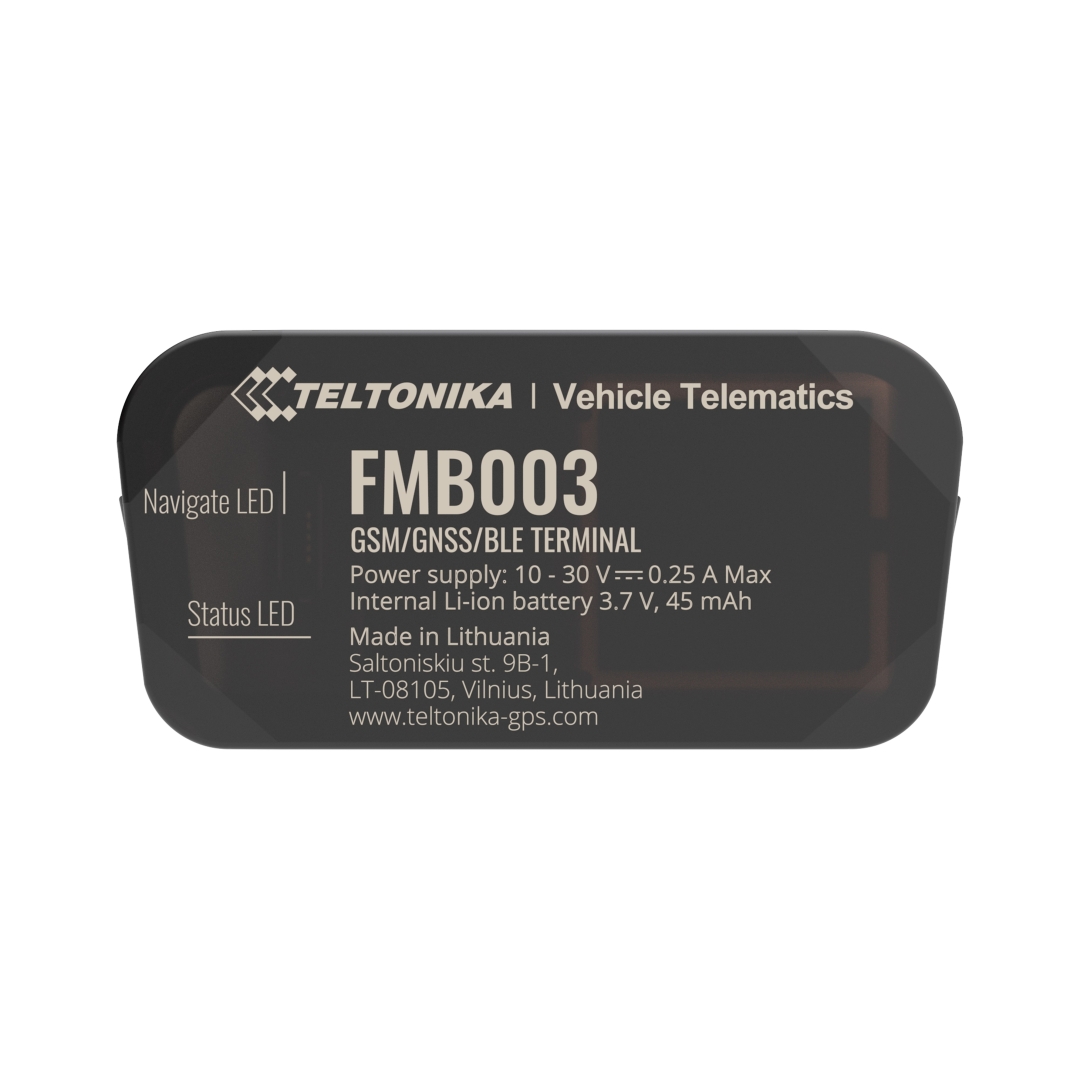

LED indication 2 status LED lights
SIM Nano-SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 52.6 x 29.1 x 26 mm (L x W x H)
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature +10 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring OBD II
Ignition detection Accelerometer, External Power Voltage, Engine RPM

Package contains

  • FMB003 tracker
  • Packaging box with Teltonika branding
