TELTONIKA 5G Wi-Fi 7 Router ALTOS (CAP700)

Features:

Teltonika Altos is a 5G Wi-Fi 7 router, engineered to deliver ultra-fast and future-ready mobile broadband for modern homes, small offices, and other Fixed Wireless Access (FWA) deployments. It provides reliable high-speed 5G connectivity where traditional fibre is unavailable or too costly. Running on the feature-rich Teltonika RutOS and fully managed by the Remote Management System (RMS), Altos balances next-generation speed and enterprise-grade security in an intuitive setup.

Ultra-Fast 5G
Enjoy lightning-fast broadband via 5G SA/NSA

Next-Gen Wi-Fi 7
Multi-gigabit Wi-Fi for seamless streaming and entertainment

Secure by Design
User roles, advanced firewalls, VPNs, and WPA3 to keep networks safe

Remote Management
Zero touch deployment, fleet management, and remote device access

Specification:

Mobile
Mobile module: 5G NR up to 4.0 Gbps DL / 900 Mbps UL; 4G LTE (CAT 19) up to 1.6 Gbps DL / 200 Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release: Release 17
Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list: Operator block/allow list (by country or separate operators)
Band management: Band lock, Used band status display
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless
Wireless mode: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Dual Band, 2x2 MIMO, Access Point (AP)
Wi-Fi security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, WPA2-EAP, WPA3-EAP, OWE; CCMP, TKIP ciphers
Wi-Fi users: Up to 128 simultaneous connections
Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

Ethernet
LAN: 1 x LAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
WAN/LAN: 1 x WAN/LAN port, 10/100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules, TTL target customization
Firewall status page: View all your Firewall statistics, rules, and rule counters
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
DDNS: Supported >77 service providers, others can be configured manually
Network backup: Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing: Balance Internet traffic over multiple WAN connections
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS: Possibility to mount remote file system via SSH protocol
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security
Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Custom data limits for SIM card
WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
Certificate Manager: Let's Encrypt and SCEP certificate generation methods

VPN
OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

BacNET
Supported modes: Router
Supported connection types: USB, TCP
Configuration options: Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA
Supported modes: Client, Server
Supported connection types: TCP

MODBUS
Supported modes: Server, Client
Supported connection types: Client
Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server
Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Modbus MQTT GATEWAY
Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modes: Station, Outstation
Supported connection types: TCP, USB

DLMS/COSEM
DLMS Support: DLMS - standard protocol for utility meter data exchange
Supported modes: Client
Supported connection types: TCP

API
Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration
Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email: Receive email message status alerts of various services
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)

IoT Platforms
ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
CPU: Qualcomm
RAM: 1GB LPDDR4
FLASH storage: 8GB eMMC

Firmware/Configuration
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation
Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager: The Package Manager is a service used to install additional software on the device

Power
Connector: Barrel jack
Input voltage: 12 VDC
Power consumption: Idle: < 8 W, Max: < 24 W

Physical Interfaces

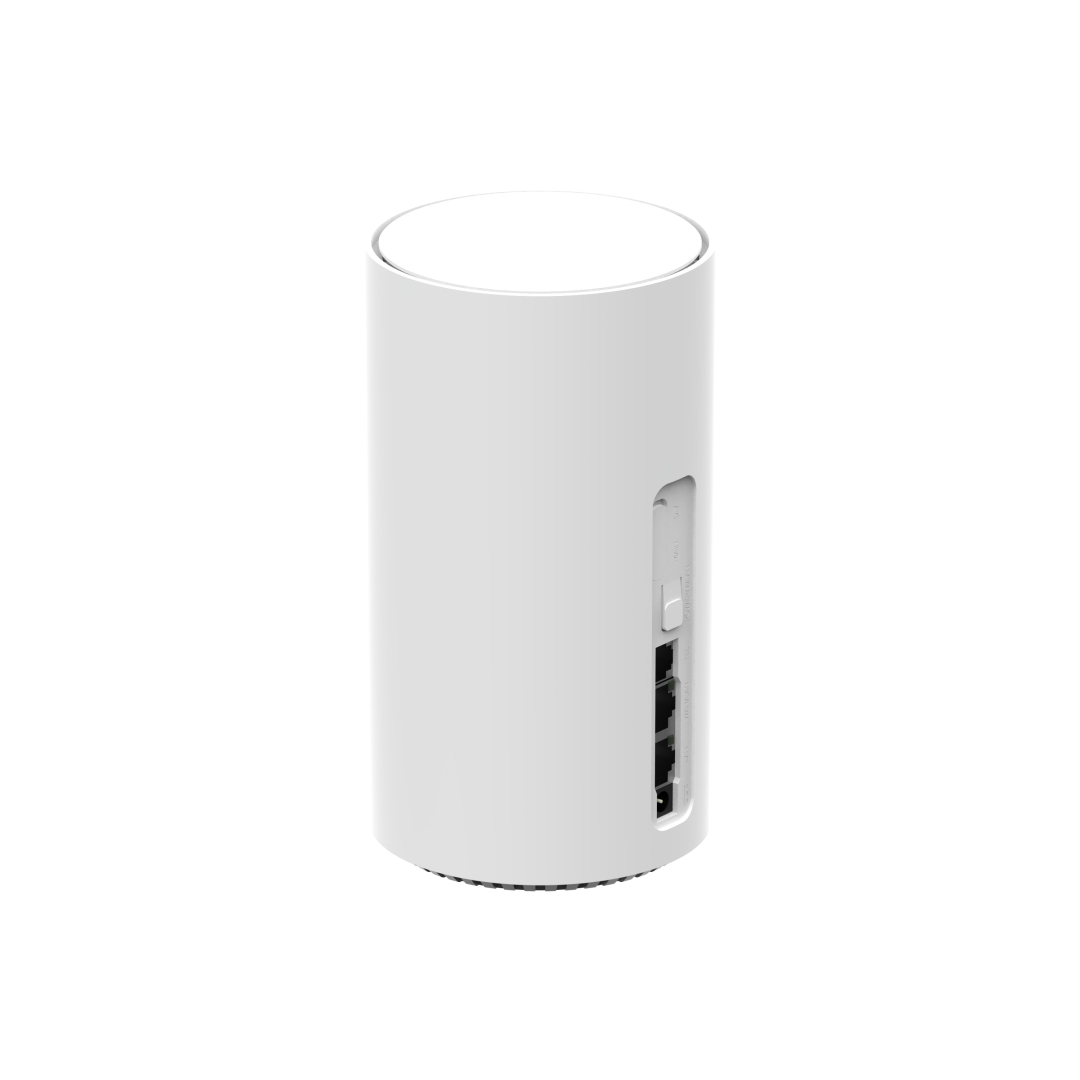

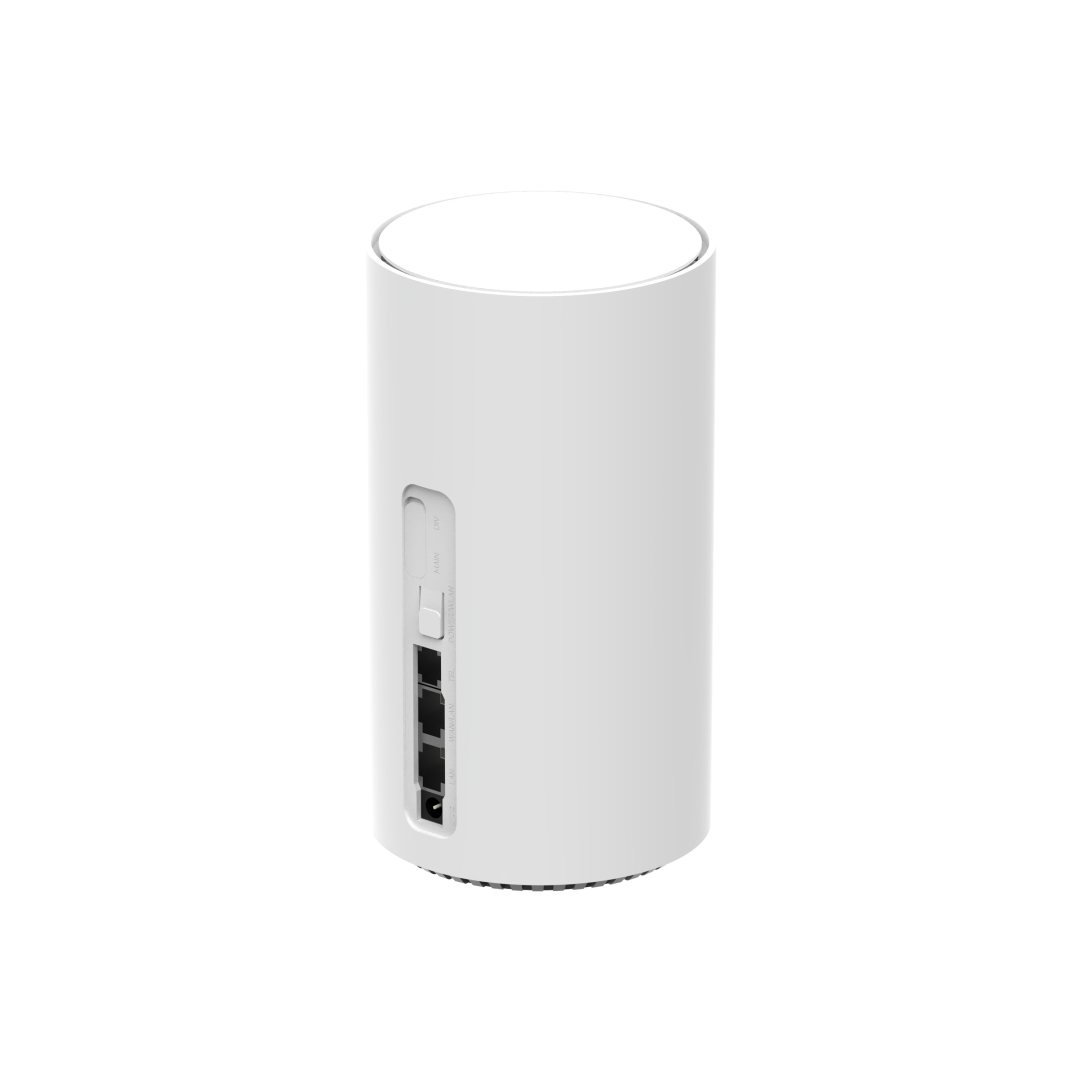

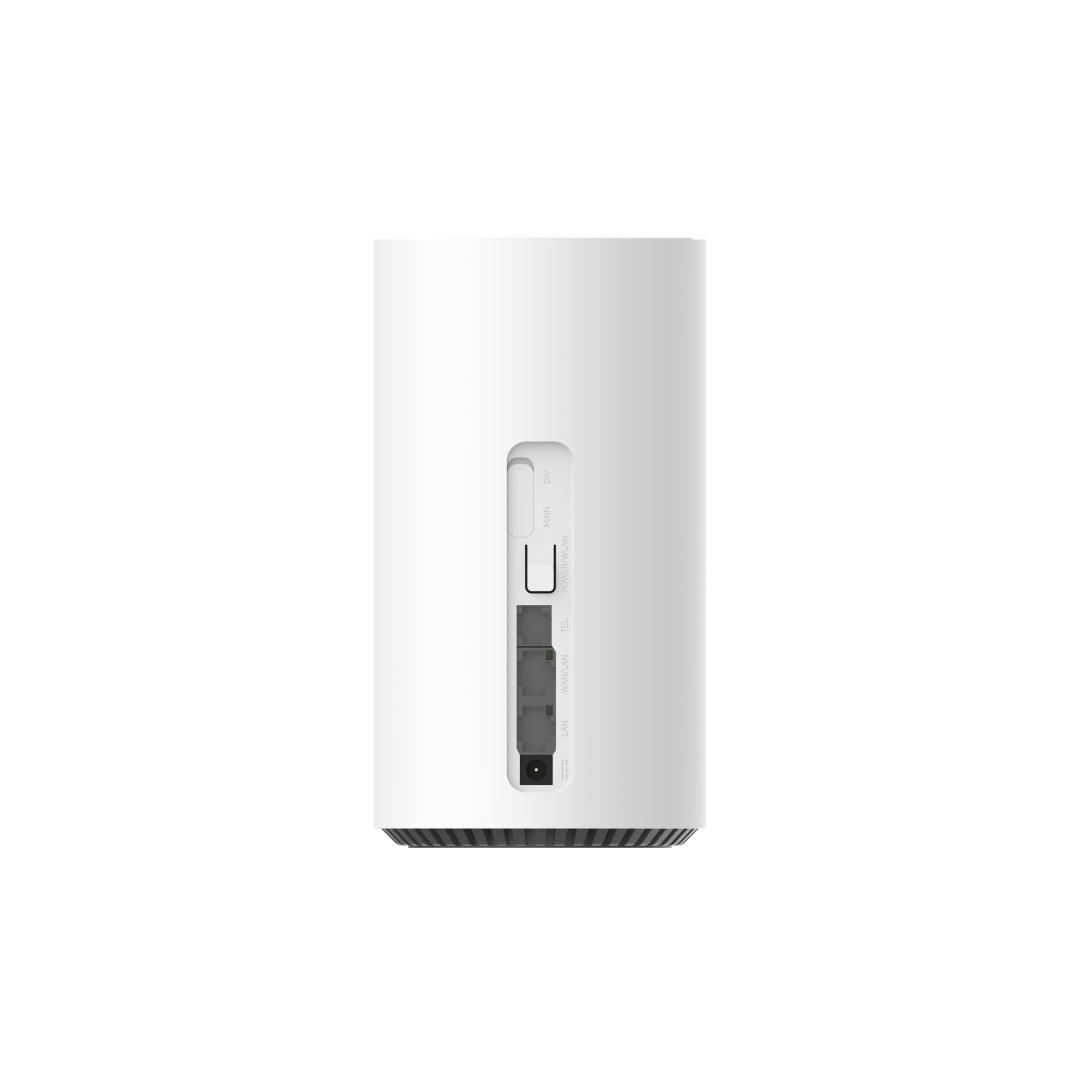

Ethernet: 1 x RJ45 port, 10/100/1000 Mbps, 1 x RJ45 port, 10/100/1000/2500 Mbps
Telephone: 1 x RJ11 port

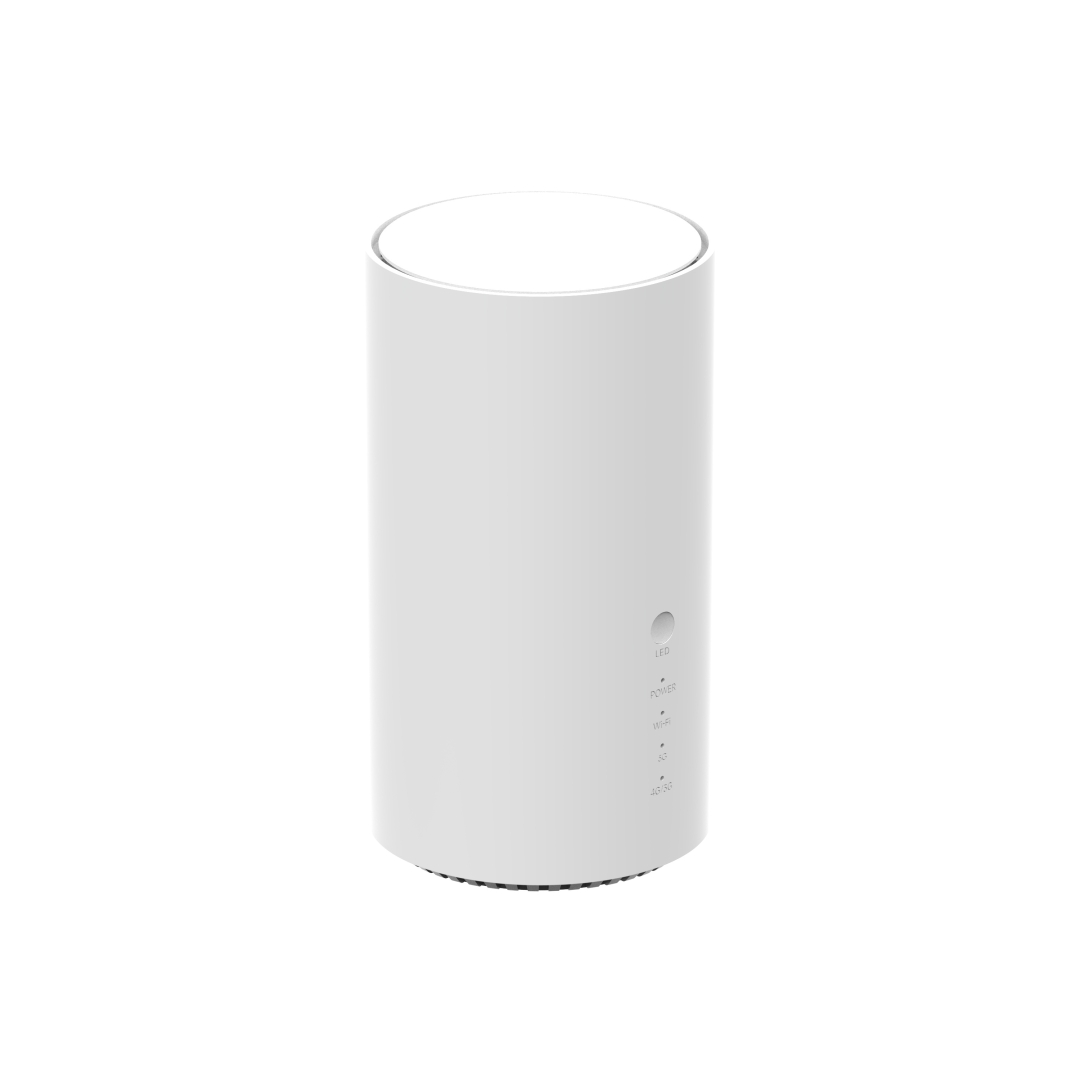

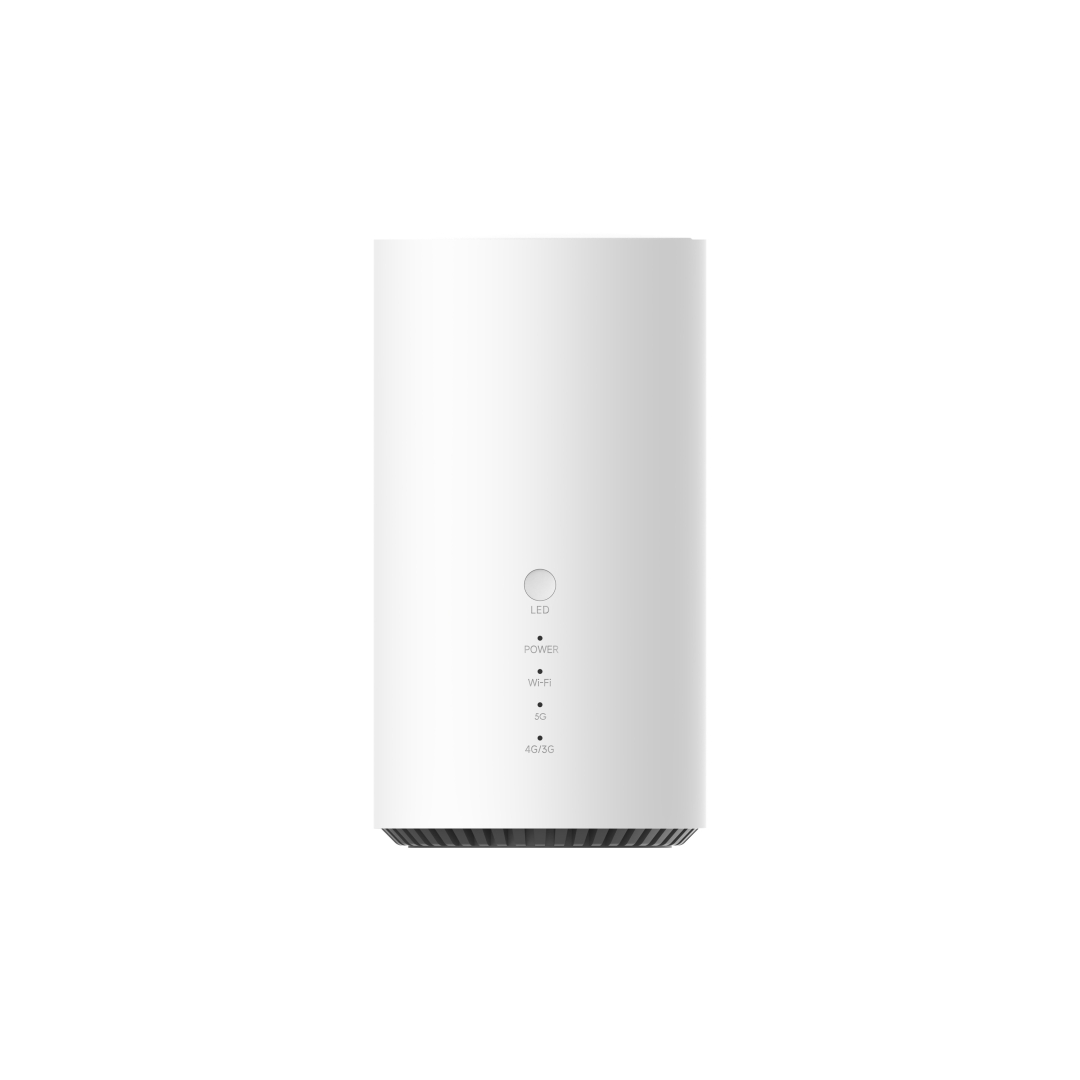

Status LEDs: 1 x Power, 1 x Wi-Fi, 2 x Mobile connection type, 2 x LAN status

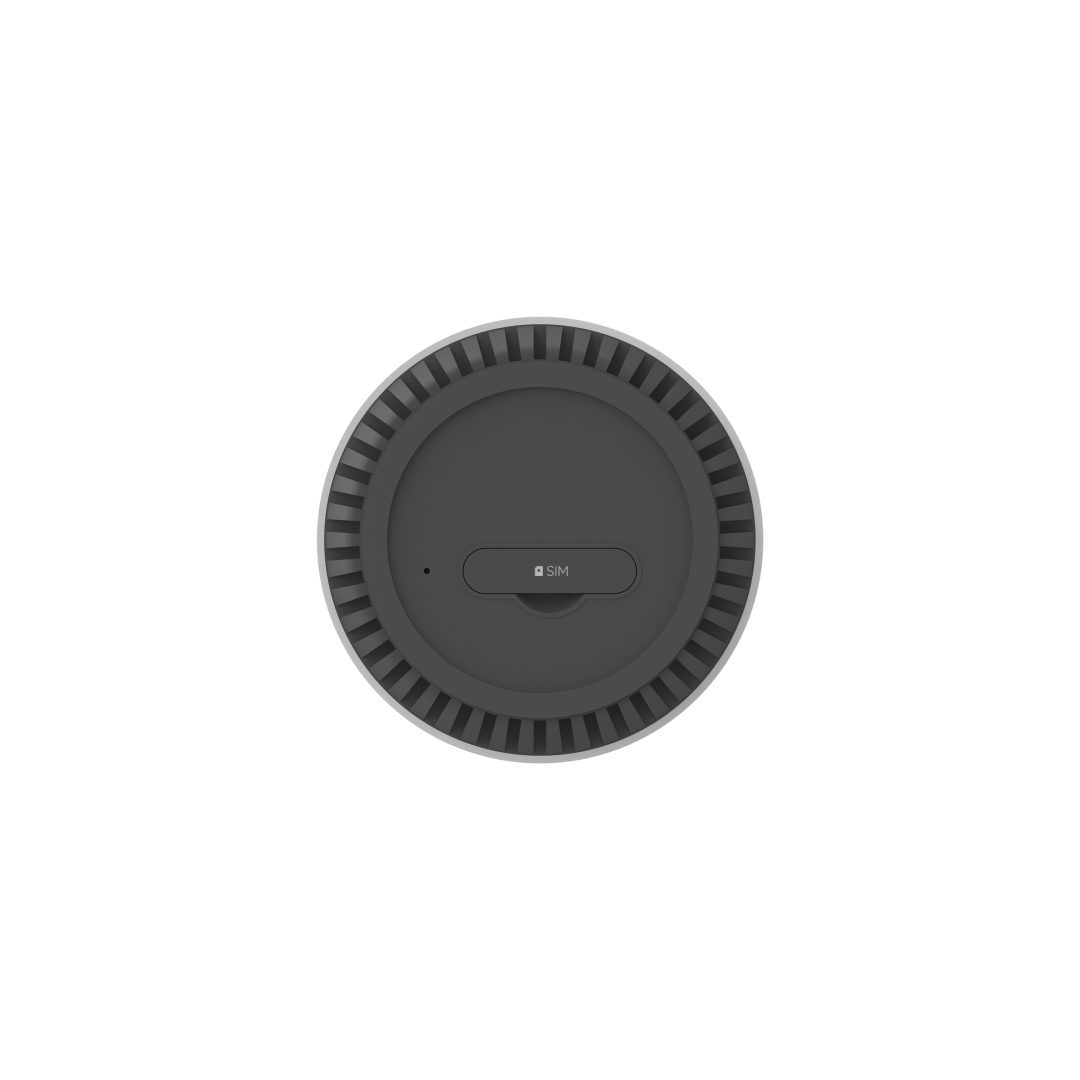

SIM: 1 x SIM slots (Nano SIM - 4FF)
Power: 1 x Barrel socket
Antennas: 6 x Mobile internal antennas, 2 x Wi-Fi internal antennas
USB: 1 x Virtual network interface via micro USB
Power: Power/WLAN Button
Reset: Reboot/User default reset/Factory reset button

Physical Specification
Casing material: Plastic panels
Dimensions (W x H x D): Ø 100 mm x 185 mm
Weight: 720 g
Mounting options: Flat surface placement

Operating Environment
Operating temperature: 0 °C to 45 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, UKCA, EAC, UCRF, RCM, CB, WEEE

EMC Emissions & Immunity
Standards:
    EN 55032:2015+ A11:2020 + A1:2020
    EN 55035:2017+A11:2020
    EN 301 489-1 V2.2.3
    EN 301 489-3 V2.3.2
    EN 301 489-17 V3.2.4
    EN 301 489-52 V1.2.1

RF
Standards:
    EN 300 328 V2.2.2
    EN 301 893 V2.1.1
    EN 301 908-1 V15.2.1
    EN 301 908-2 V13.1.1
   EN 301 908-13 V13.3.1
   EN 301 908-25 V15.1.1

Safety
Standards:
    CE: EN IEC 62311:2020
    RCM: AS/NZS 62368.1:2022
    CB: EN IEC 62368-1:2020+A11:2020
