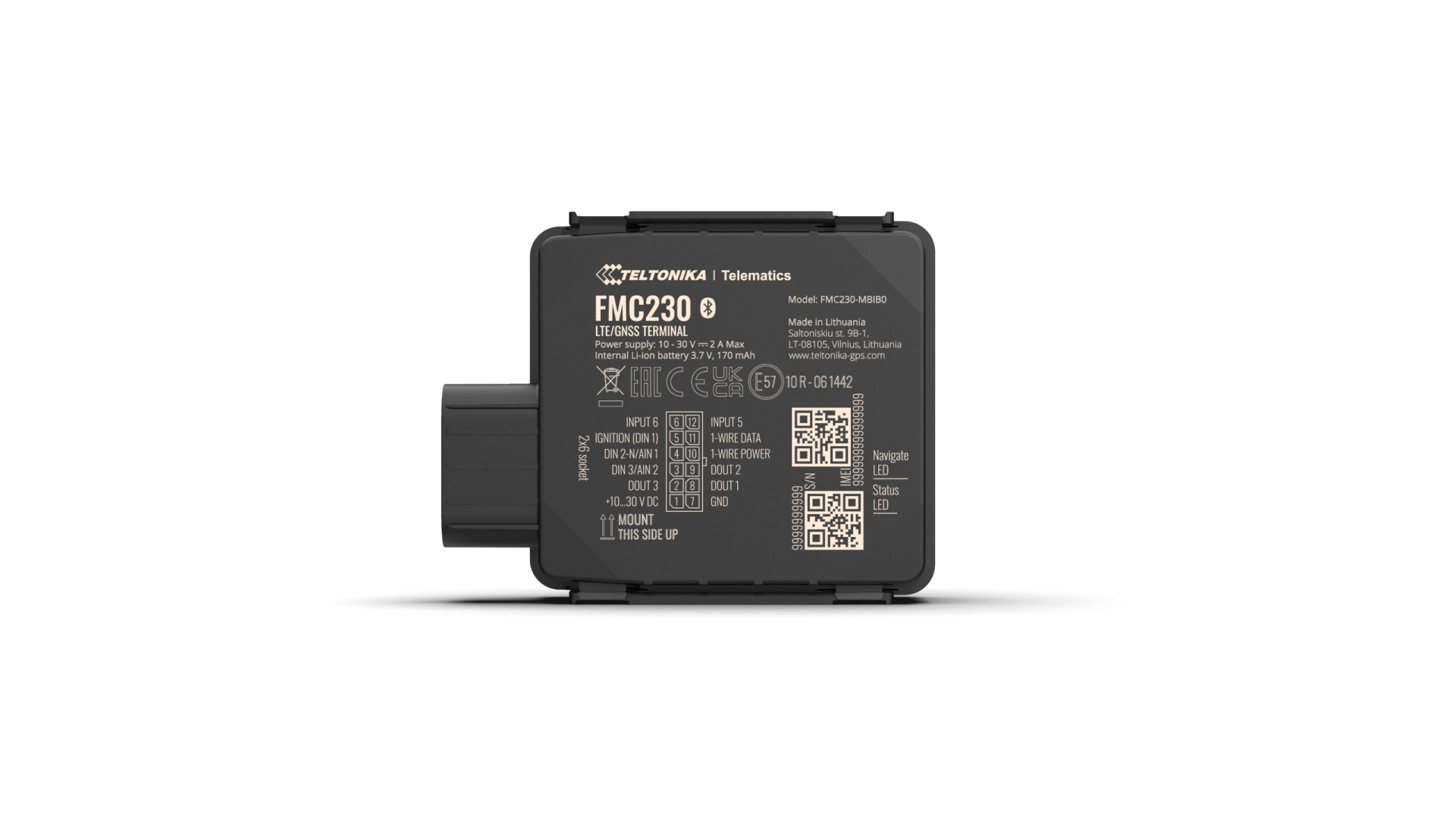

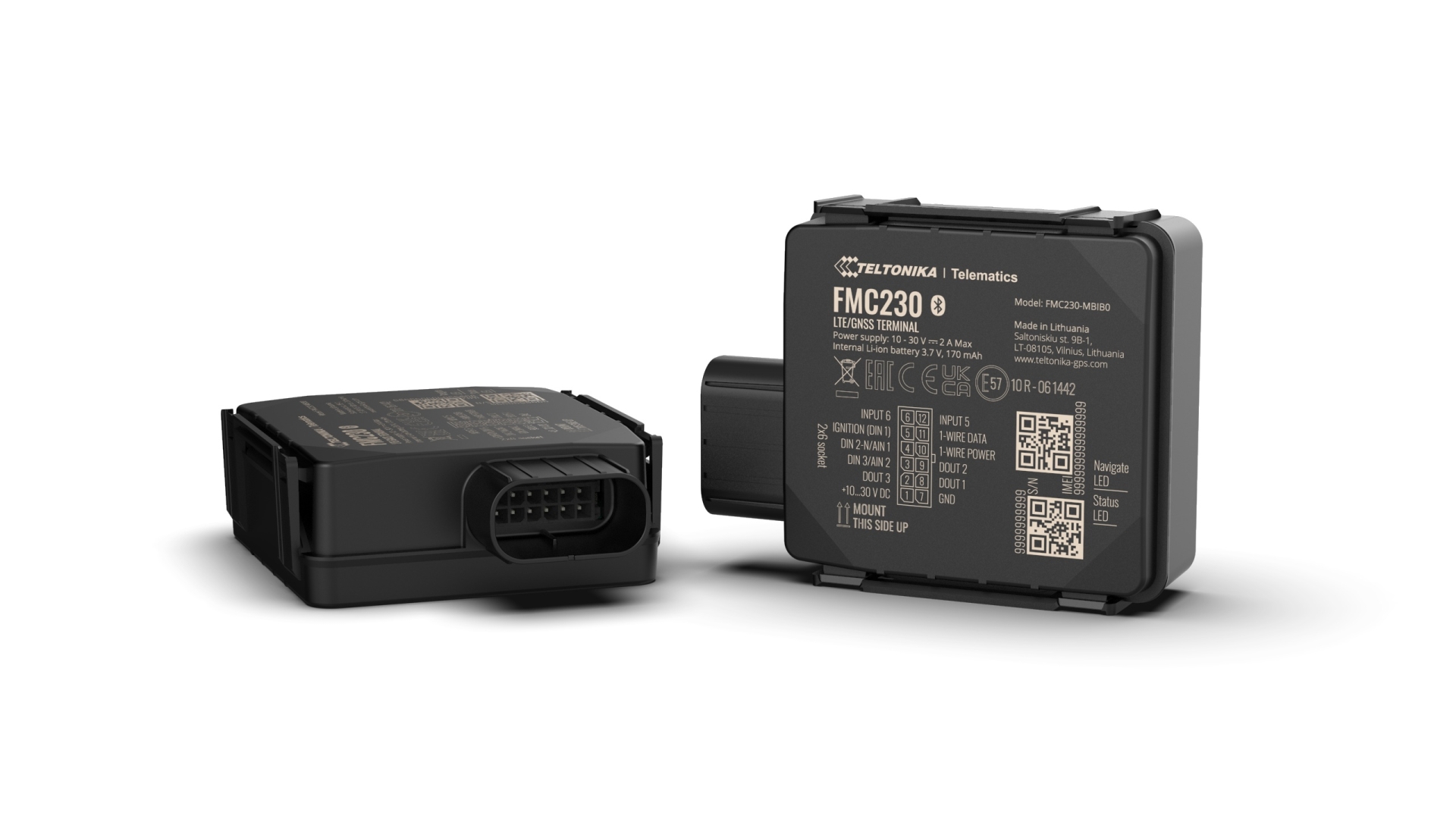

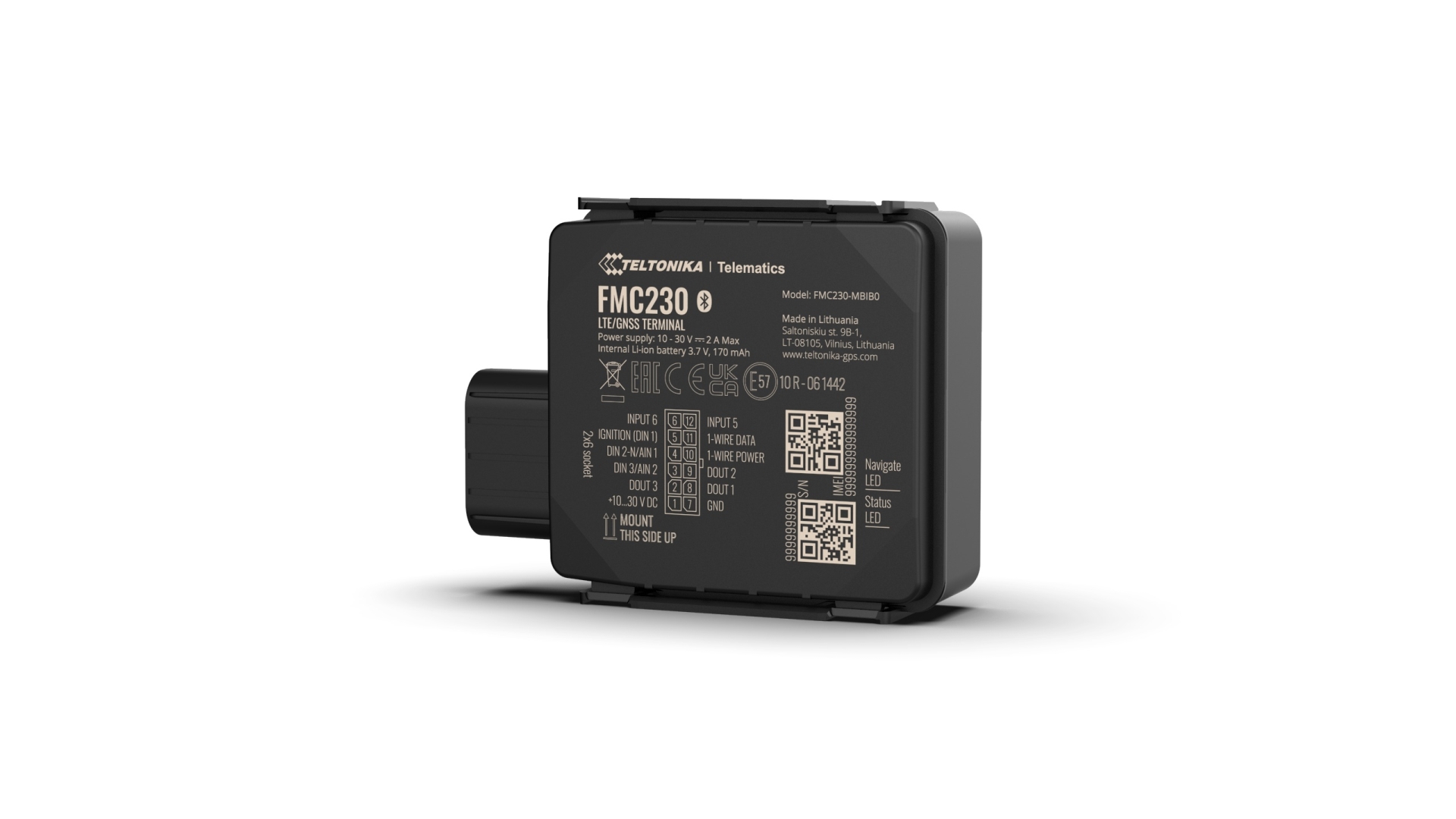

TELTONIKA 4G LTE Cat 1 Water-resistant Tracker with Flexible Inputs (FMC230)

Features:

FMC230 is WATER and DUST resistant real-time tracking terminal with 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital, analog, negative and impulse inputs, three DOUT outputs, Bluetooth® connectivity, and backup battery.
The device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC230 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines,
agriculture equipment.
Additionally, FMC230 device has IP67 certified casing which provides a total protection against dust and resistance to water in a depth of up to 1 meter for at least 30 minutes. As a result, FMC230 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.

Protection against dust and water
Robust IP67-rated casing provides trusted protection against dust and resistance to water

No additional tools needed
Innovative click-type two-phase closing with no additional tools needed

Different cable options
Standard and U-type cable options available to ensure easy and fast installation

Extended product usage scenarios
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement

Specification:

Module
Name: FMC230-MBIB0: MeiG SLM320-E with Teltonika TM2500
Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver:
    33 tracking channels
    99 acquisition channels
Tracking sensitivity: -165 dBM
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: LTE Cat 1, GSM
2G bands: GSM: B2/B3/B5/B8
4G LTE bands:
    LTE FDD: B1/B3/B7/B8/B20/B28
    LTE-TDD: B38/B40/B41
Data transfer:
    LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
    LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
    GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support: SMS (text/data)

Power
Input voltage range: 10 - 30 V DC with overvoltage protection
Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse: 3A, 125V
Power consumption:
    At 12V < 3 mA (Ultra Deep Sleep)
    At 12V < 5 mA (Deep Sleep)
    At 12V < 16 mA (Online Deep Sleep)
    At 12V < 18 mA (GPS Sleep)
    At 12V < 33 mA (nominal with no load)
    At 12V < 2A Max. (with full Load / Peak)

Bluetooth® Technology
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support support

Physical specification
Dimensions:
    70,5 x 67,0 x 25,6 mm (L x W x H)
    85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Weight: 79 g

Operating environment
Operating temperature (without battery): -20 °C to +85 °C
Storage temperature (without battery): -20 °C to +85 °C
Operating temperature (with battery): -20 °C to +60 °C
Storage temperature (with battery): -20 °C to +45 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP67
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
    -20 °C to +45 °C for 1 month
    -20 °C to +35 °C for 6 months

Interface
Digital Inputs: 3
Negative Inputs: 1 (Digital Input 2)
Impuls Inputs: 2 (Digital Input 1, Digital Input 2)
Digital Outputs: 3
Analog Inputs: 2
CAN Adapter Inputs: 1
1-Wire: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM or eSIM
Memory: 128MB internal flash memory

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certification & approvals
Regulatory: CE-RED, E-mark, RCM, Anatel, TRA, CITC, REACH, RoHS, ICASA
