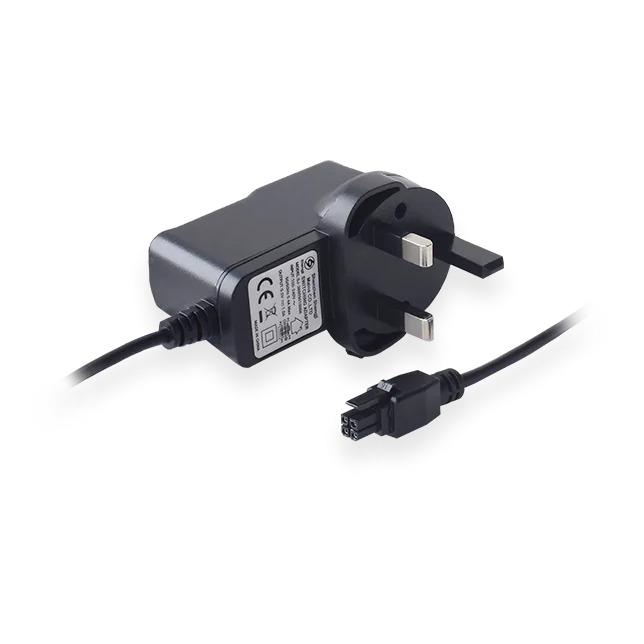

TELTONIKA 4 PIN 9W Power Supply for Teltonika routers, UK type (PR3PUUK3)
MPN:
035R-00148
Order code:
PR3PUUK3
Quick code:
#1688
Output Voltage: 9V, Output Current: 1A, Output Power: 9W.
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 6.17£ | 7.40£ | >0£ |
| 6.06£ | 7.27£ | >300£ |
| 5.97£ | 7.16£ | >1000£ |
Features:
Compatible with RUT230, RUT240, RUT850, RUT950, RUT955 routers.
Specification:
| Parameters | ||
|---|---|---|
| Parameter | Rated value | Absolute maximum |
| Input Voltage | 100-240 VAC | 90-264 VAC |
| Input Frequency | 50/60 Hz | 47-63 Hz |
| Input Current (@100-240VAC) | 0.4 A | - |
| Inrush Current (@100-240VAC) | - | 40 A |
| Output Voltage | 9 VDC | 8.55-9.45 VDC |
| Output Current | 0-1 A | - |
| Overshoot | 5 % | 10 % |
| Other parameters | ||
|---|---|---|
| Short-Circuit protection | ||
| Input protection | Fuse |
| HIPOT (Dielectric Withstand Test) | Primary to Secondary: AC3000V |
| MTBF | 50000 h |
| Input connector | UK |
| Output connector | 4pin, 3mm pitch |
| Certification: | EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011; EN 55022: 2010, EN 55024: 2010; EN 61000-3-2: 2006+A1: 2009+A2: 2009, EN 61000-3-3: 2008; IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C. |
