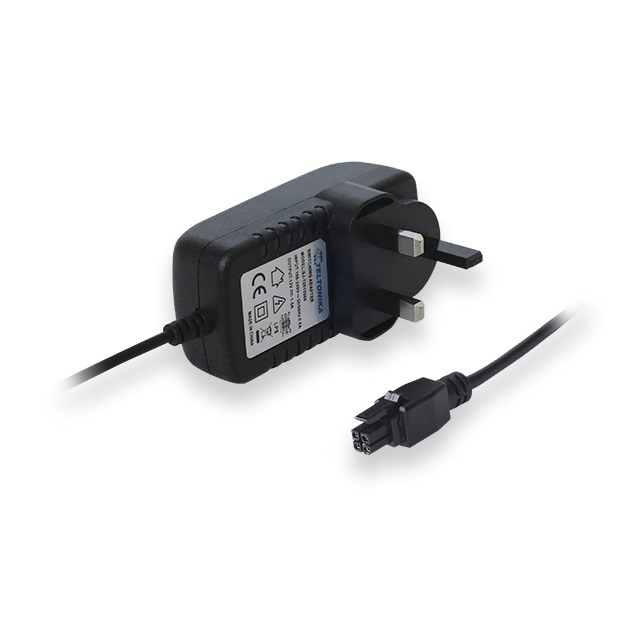

TELTONIKA 4 PIN 24 W Power Supply for Teltonika routers, UK type (PR3P2UK3)

MPN: PR3P2UK3
Order code: PR3P2UK3
Quick code: #3465

Output Voltage: 12V, Output Current: 2A, Output Power: 24W.

Price exc. VAT: Price inc. VAT: For orders (total sum):
9.85£ 11.82£ >0£
9.70£ 11.64£ >300£
9.54£ 11.45£ >1000£
Qty:


Features:

Compatible with RUTX12 router.

Specification:

Parameters
  Rated value Absolute maximum
Input Voltage 100-240 VAC 90-264 VAC
Input Frequency 50/60 Hz 47-63 Hz
Input Current (@100-240VAC) 0.6 A -
Inrush Current (@100-240VAC) - 40 A
Output Voltage 12 VDC 11.40-12.60 VDC
Output Current 0-2A -
Overshoot - 10 %
Other parameters
Certification: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN
62368-1:2014 + A11:2017,
IEC62321-7-1:2015, IEC62321-6:2015, IEC62321-5:2013, IEC62321-4:2013,
IEC62321:2008 Annex C,
UL 60950-1, CSA C22.2 No. 60950-1-07
Short-Circuit protection
Input protection Fuse
HIPOT (Dielectric Withstand Test) Primary to Secondary: AC3000V
MTBF 50000 h
Input connector UK
Output connector 4-pin, 3mm pitch
