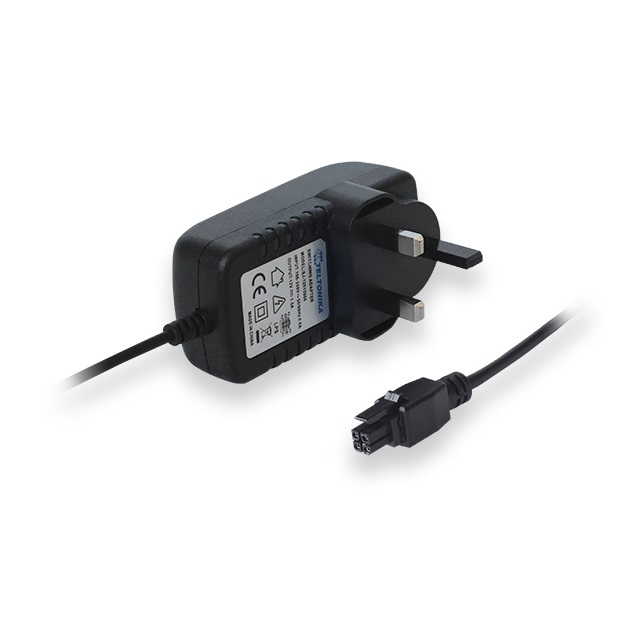

TELTONIKA 4 PIN 18 W Power Supply for Teltonika routers, UK type (PR3PXUK3)
MPN:
PR3PXUK3
Order code:
PR3PXUK3
Quick code:
#3466
Output Voltage: 12V, Output Current: 1.5A, Output Power: 18W.
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 8.57£ | 10.28£ | >0£ |
| 8.43£ | 10.12£ | >300£ |
| 8.29£ | 9.95£ | >1000£ |
Features:
Compatible with RUTX09, RUTX11, RUTXR1, RUT360, RUTX08, RUTX11, RUTX10 routers.
Specification:
| Parameters | ||
|---|---|---|
| Rated value | Absolute maximum | |
| Input Voltage | 100-240 VAC | 90-264 VAC |
| Input Frequency | 50/60 Hz | 47-63 Hz |
| Input Current (@100-240VAC) | 0.6 A | - |
| Inrush Current (@100-240VAC) | - | 40 A |
| Output Voltage | 12 VDC | 11.40-12.60 VDC |
| Output Current | 0-1.5 A | - |
| Overshoot | - | 10 % |
| Other parameters | ||
|---|---|---|
| Certification: | EN 60065:2014, EN 55032:2015, EN55020:2007+A12:2016, EN61000-3-2:2014, EN6100-3-3:2013, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C, UL 60950-1, CSA C22.2 No. 60950-1-07 |
|
| Short-Circuit protection | ||
| Input protection | Fuse |
| HIPOT (Dielectric Withstand Test) | Primary to Secondary: AC3000V |
| MTBF | 50000 h |
| Input connector | UK |
| Output connector | 4pin, 3mm pitch |
