TELTONIKA GNSS Adhesive SMA Antenna PR1KSG30
MPN:
PR1KSG30
Order code:
PR1LSG30
Quick code:
#1320

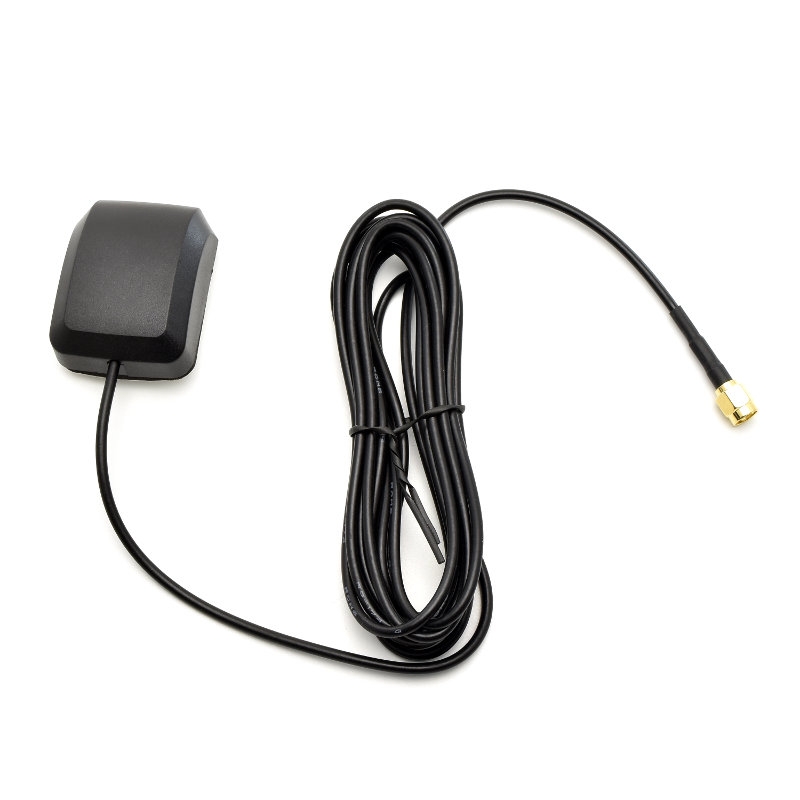

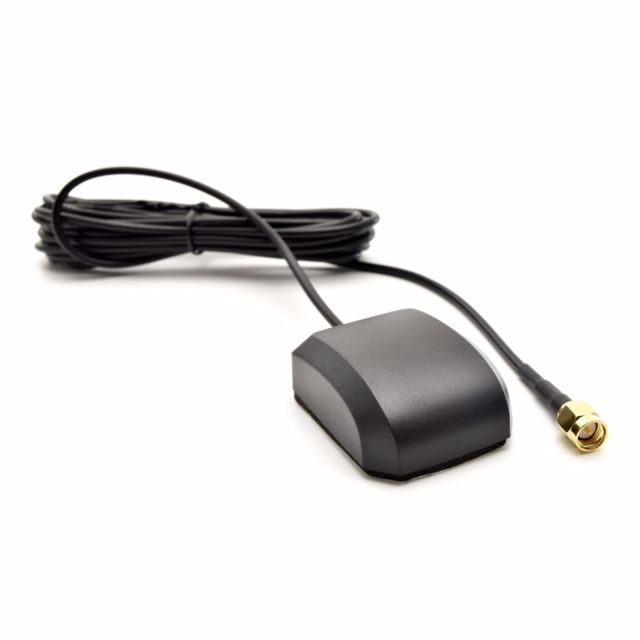

TELTONIKA GPS GNSS 2 dBi Antenna Adhesive Type with 3m Cable for RUT9xx and RUT Xxx routers
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 5.59£ | 6.71£ | >0£ |
| 5.45£ | 6.54£ | >300£ |
| 5.42£ | 6.50£ | >1000£ |
Specification:
| Frequency | 1575.42-1602 MHz |
| Polarization | RHCP |
| Gain | 2 dBi |
| V.S.W.R | < 1.5 |
| Impedance | 50 Ω |
| Max Axial Ratio | 3 dB |
| LNA Gain | 28±2 dB |
| LNA Noise Figure | < 1.5 dB |
| Supply Voltage | 2.2 - 5 VDC |
| Current Consumption | < 15 mA |
| LNA V.S.W.R | < 2.0 |
| Cable | RG174, 3000 mm |
| Connector | SMA Male |
| Mounting Method | Adhesive |
| Operating Temperature | -40 to +85 |
| Operating Relative Humidity | 95 % max |
| RoHS Compliant | Yes |
