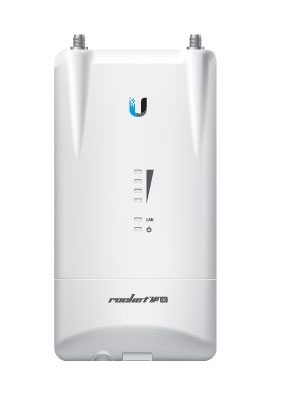

UBIQUITI Rocket 5AC airMAX® ac BaseStation (R5AC‑Lite)

Order code: R5AC-Lite
Quick code: #728

27dBm, 802.11ac, frequency: Full-Band 5 GHz, throughput: 500+ Mbps (Max. 80 MHz), ports: (1) 10/100/1000 Ethernet Port, RF Connectors: (2) RP-SMA (Waterproof)

Price exc. VAT: Price inc. VAT: For orders (total sum):
88.61£ 106.33£ >0£
87.85£ 105.42£ >300£
86.31£ 103.57£ >1000£


Ubiquiti RocketM5 AC Lite 802.11n/ac  RM5-AC-PTP-Lite
Ubiquiti airMAX®ac BaseStation R5AC-Lite
Featuring proprietary airMAX® ac technology, the Rocket™5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
Performance Breakthrough via ac chipset
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Plug and Play Integration
The innovative airMAX® ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.


Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
Weight: 250 g (8.81 oz)

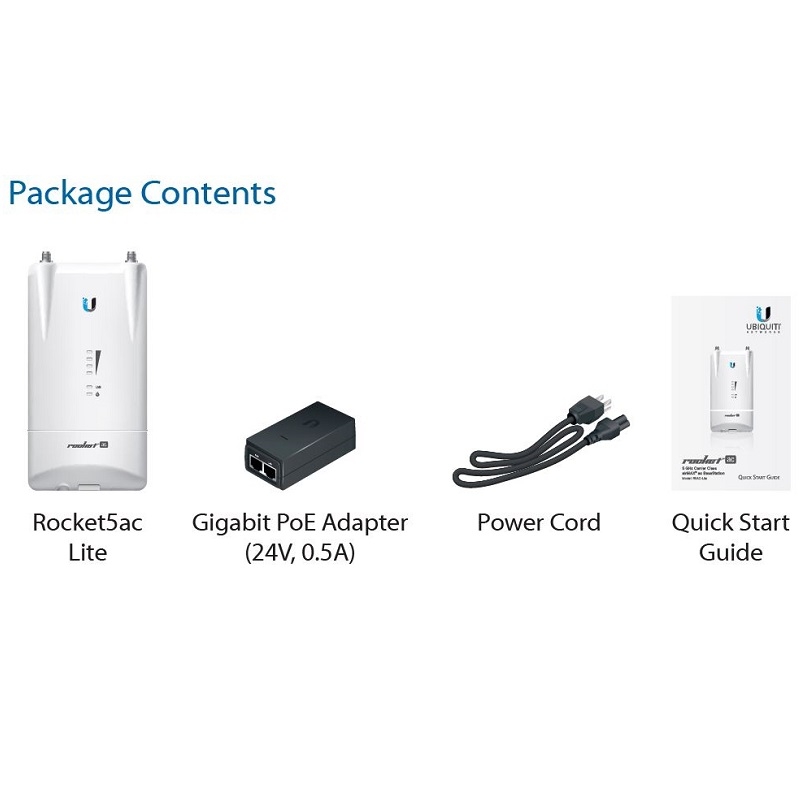

Power Supply: 24V, 0.5A Gigabit PoE Adapter
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption: 8.5W
Operating Frequency: 5150 - 5875 MHz (Worldwide)
Processor: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Networking Interface: (1) 10/100/1000 Mbps
RF Connections: (2) RP-SMA (Waterproof)
LEDs: Power, LAN, (4) Signal Strength
Channel Sizes:
PtP Mode - 10/20/30/40/50/60/80 MHz
PtMP Mode - 10/20/30/40 MHz
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Supported Voltage Range: 20-26VDC
ESD/EMP Protection: ± 24KV Air / Contact
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes
Modes: Access Point, Station
Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment: Dynamic Ack and Ackless Mode
Power Adjustment: Software Adjustable UI or CL
Security: WPA2 AES Only
QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
