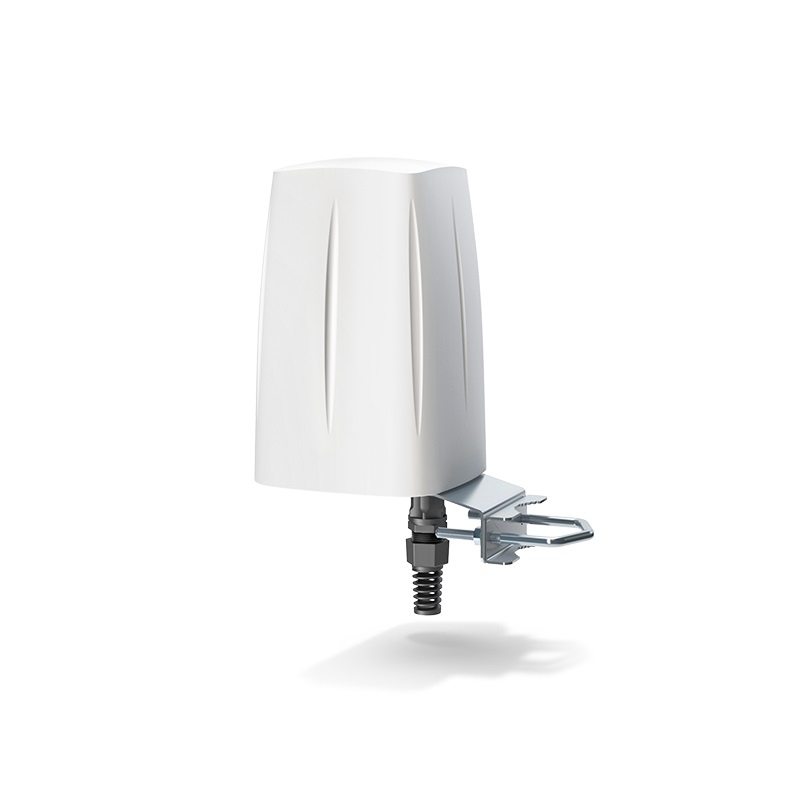

QuWireless QuSpot for Teltonika RUTX12/RUTX14 (QUSPOT_RUTX12)

MPN: AX12S
Order code: QUSPOT_RUTX12
Quick code: #2997

Integrated MIMO 4x4 multi-band LTE omni antenna + Wi-Fi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX12 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
107.46£ 128.95£ >0£
105.67£ 126.80£ >300£
103.87£ 124.64£ >1000£
Qty:


Features:

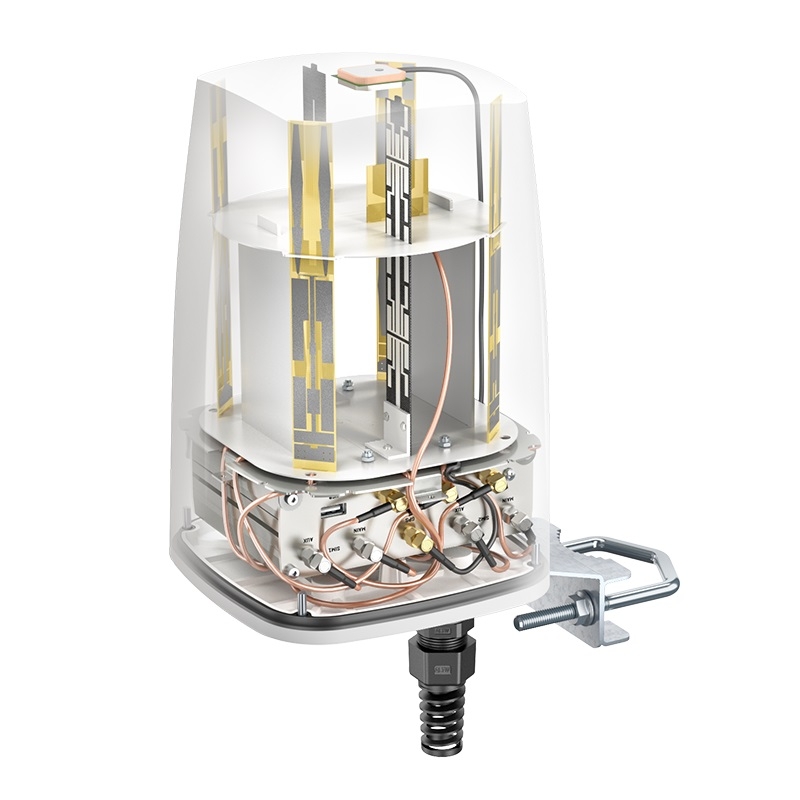

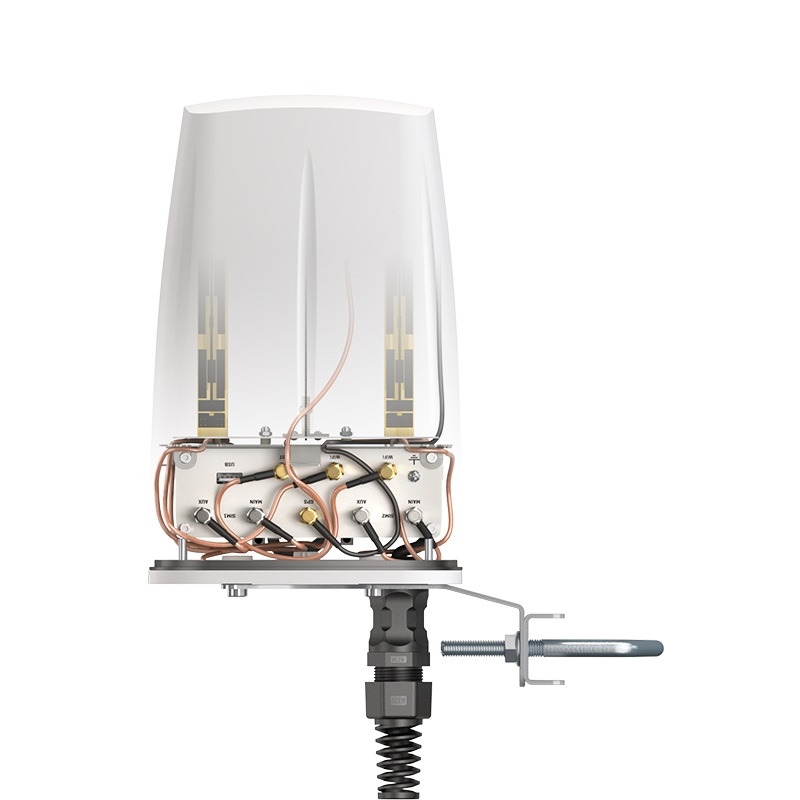

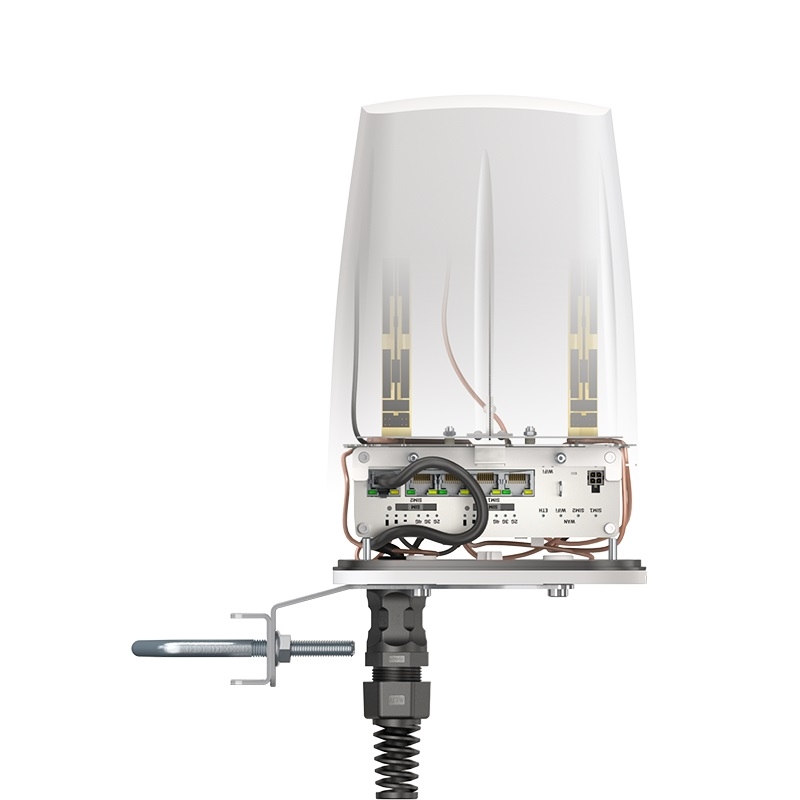

QuSpot MIMO 4x4 omni LTE antenna (4x SMA connector for 2x embedded LTE modems) for Teltonika RUTX12 and RUTX14 routers is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. If you use RUTX12 or RUTX14 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specification:

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.5 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95
Gain 0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.5 - 2.7 GHz : 3 dBi
VSWR <1.50, max <2.50
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
4.70 - 6.00 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
BLUETOOTH ANTENNA SPECIFICATION
Frequency 2.20 - 2.70 GHz
Gain 2 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Connector type RJ45
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
