QuWireless QuSpot for Teltonika RUTX10 (QUSPOT_RUTX10)

Order code: QUSPOT_RUTX10
Quick code: #1817

Integrated outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth omni antenna + place to install Teltonika RUTX10 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
63.24£ 75.89£ >0£
62.19£ 74.63£ >300£
61.14£ 73.37£ >1000£
Qty:


Features:

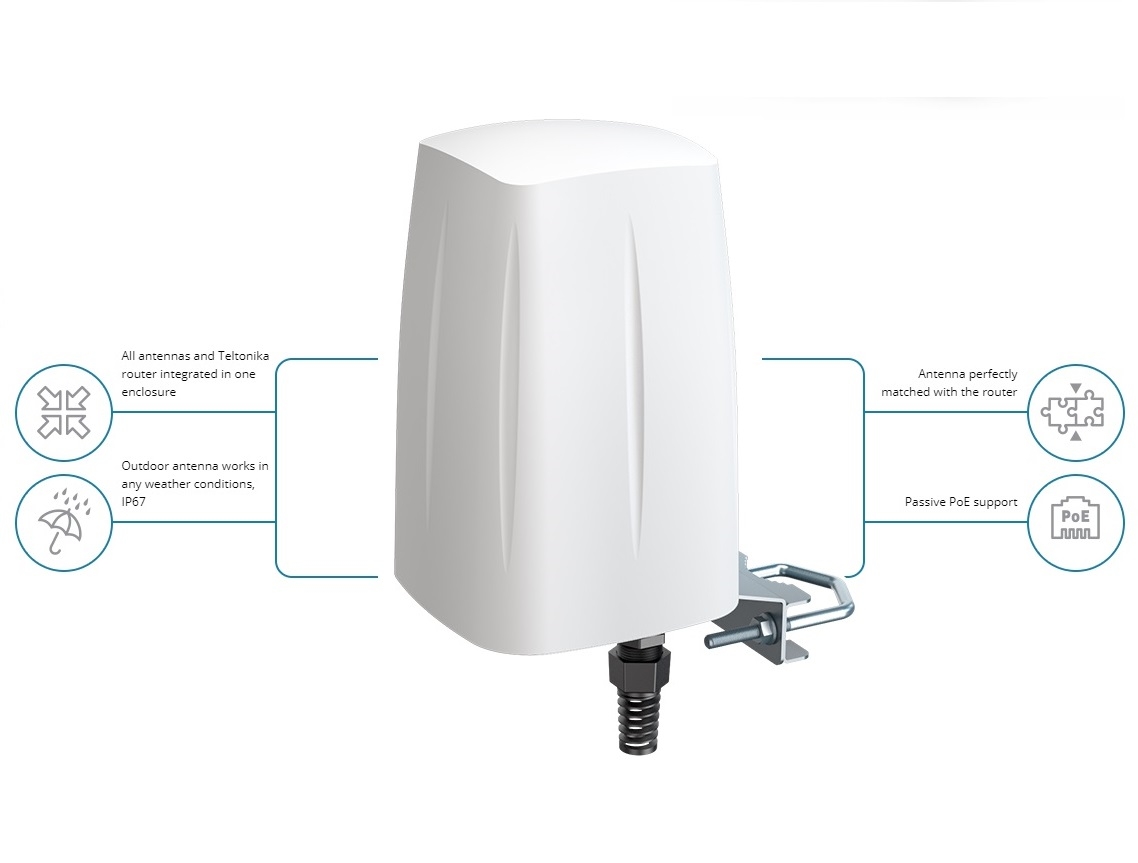

QuSpot Wi-Fi antenna for Teltonika RUTX10 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also Wi-Fi dual band 2.4 & 5GHz omni antenna and Bluetooth omni antenna. If you use RUTX10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specification:

WI-FI SPECIFICATION
FREQUENCY:
     2.40 - 2.50 GHz
     4.70 - 6.00 GHz

GAIN:
     6 dBi
     7 dBi

VSWR
     <1.70, max <2.00
     <1.70, max <2.00

BEAMWIDTH:
     360°/25° +/- 5°
     360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE
INGRESS PROTECTION: IP67
DIMENSIONS: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
WEIGHT: 1.5 kg (3.31 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
